Brand:GE Fanuc PLC Item No.:GE IC697MDL650 Product Origin: USA Product Dimensions:3.5 cm × 13 cm × 13.5 cm Product Weight:0.5 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

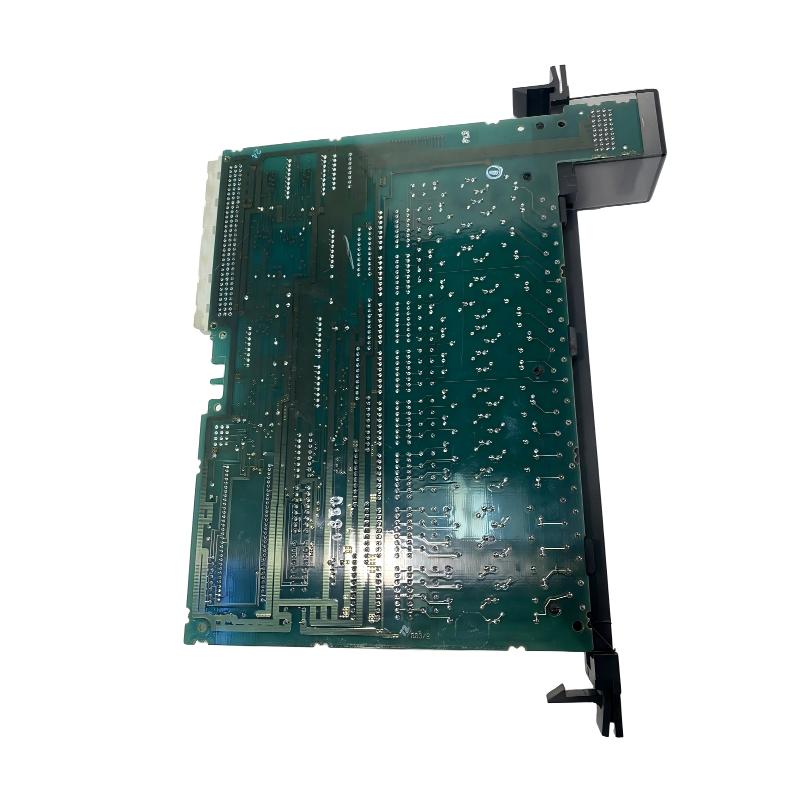

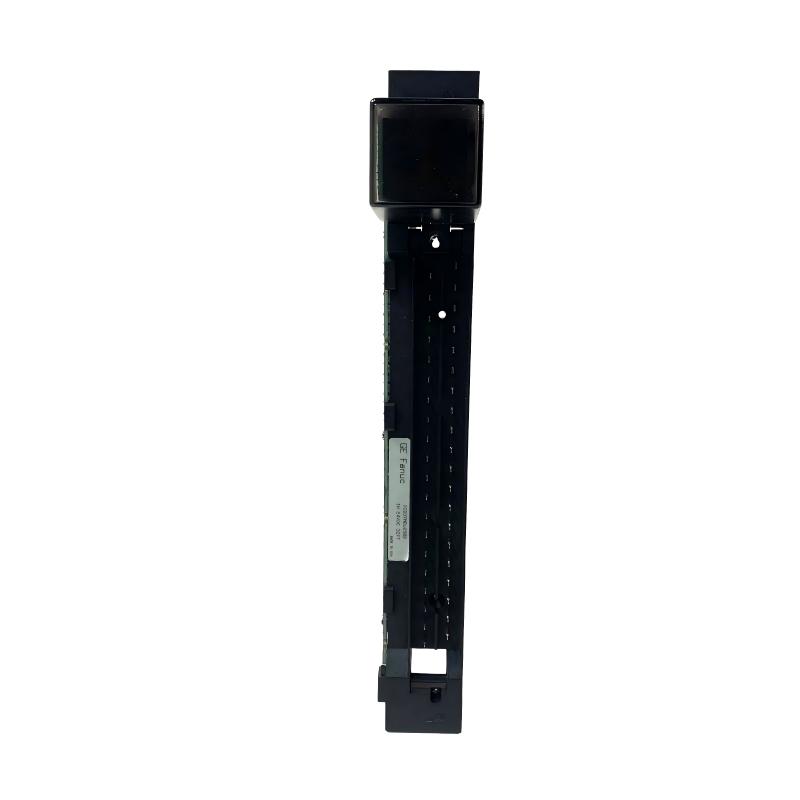

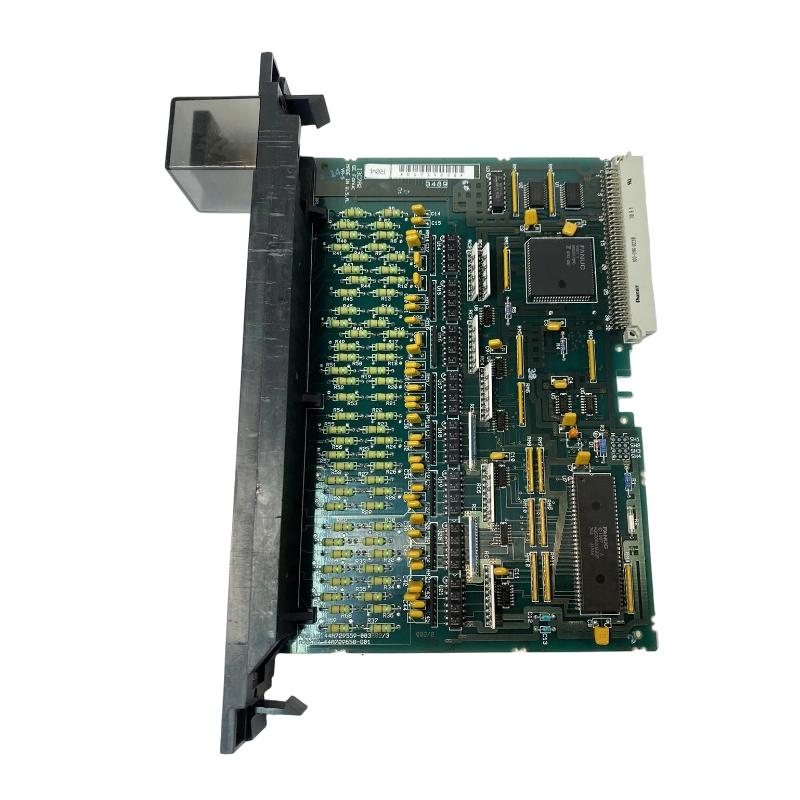

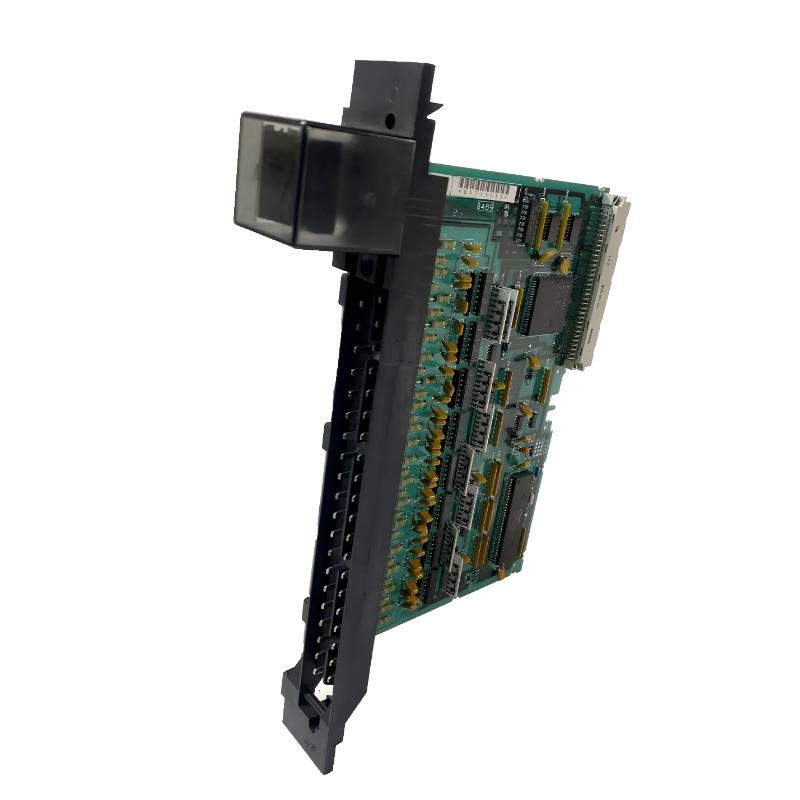

The GE IC697MDL650 is a high-density 32-point DC discrete input module for the GE Fanuc Series 90-70 PLC system. It is designed to receive 24 VDC digital signals from field devices such as pushbuttons, proximity sensors, limit switches, and relay contacts, and transmit them to the PLC CPU for processing.
It is one of the most widely used standard DC input modules in the 90-70 family, known for its flexibility, high channel density, and strong electrical isolation.
Technical Specifications
The IC697MDL650 is a 32-point 24 VDC positive logic input module with group isolation.
Parameter
Specification
Model
IC697MDL650
Product Type
Discrete Input Module
Series
GE Fanuc Series 90-70
Input Type
DC Digital Input
Number of Inputs
32 points
Input Configuration
4 groups of 8 points
Rated Voltage
24 VDC (–3 to +30 VDC range)
Logic Type
Positive logic (sourcing)
Input Current
~10 mA typical at rated voltage
Input Impedance
~2.4 kΩ
Input ON Level
~13–30 VDC
Input OFF Level
~0–5 VDC
Input Filter
~1 ms or 10 ms selectable
Isolation
1500 VDC input-to-backplane, group isolated
Backplane Current
~0.3 A @ 5 VDC
Wiring
Removable terminal block
Indicators
LED per input channel
Applications
This module is commonly used in:
Manufacturing automation systems
Packaging and assembly lines
Conveyor and material handling systems
Machine control panels
Power plant auxiliary systems
Water treatment systems
Process control and SCADA systems
Advantages
32 DC inputs in a single-slot module
Flexible group isolation (4 × 8 points)
Strong noise immunity and electrical isolation
LED diagnostics for fast troubleshooting
Compatible with wide range of industrial sensors
Stable long-term operation in harsh environments
Easy integration into GE 90-70 PLC systems
Widely used in retrofit and maintenance projects
Technical FAQs
1. What is IC697MDL650 used for?
It is used to read 24 VDC digital input signals into a PLC system.
2. How many inputs does it have?
32 DC inputs arranged in 4 isolated groups of 8 points.
3. What voltage does it support?
–3 to +30 VDC (24 VDC nominal).
4. Is it AC or DC module?
It is a DC input module.
5. What logic type does it use?
Positive logic (sourcing type).
6. Does it require DIP switches?
No, configuration is done via software.
7. What industries use it?
Manufacturing, power generation, water treatment, and industrial automation.
8. Is it still used today?
Yes, mainly in legacy GE 90-70 systems and retrofit upgrades.
