Brand:GE Fanuc PLC Item No.:GE IC697MDL652 Product Origin: USA Product Dimensions:292 mm × 229 mm × 38 mm Product Weight:0.6 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

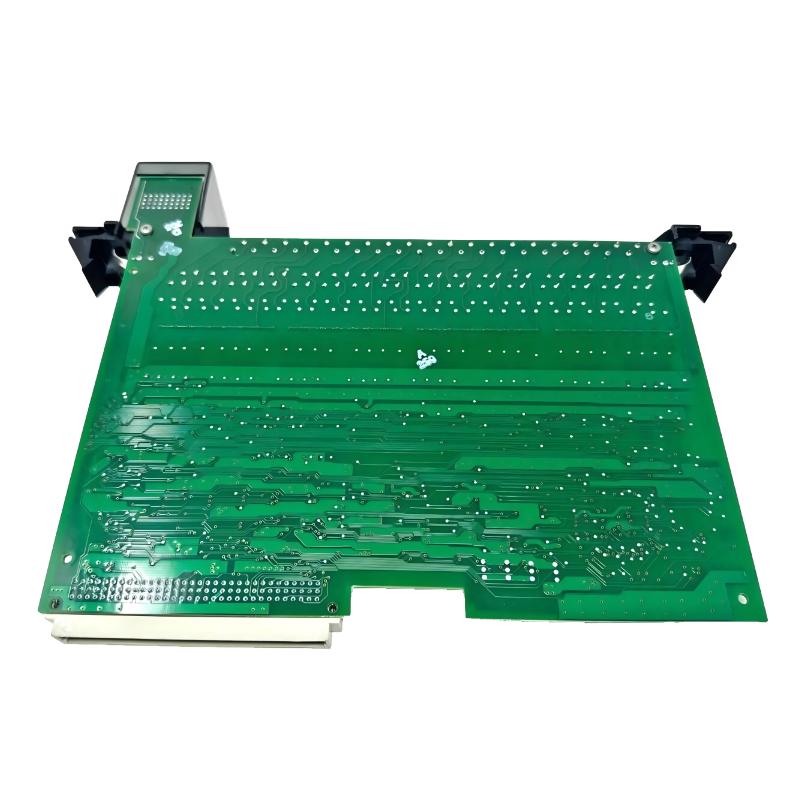

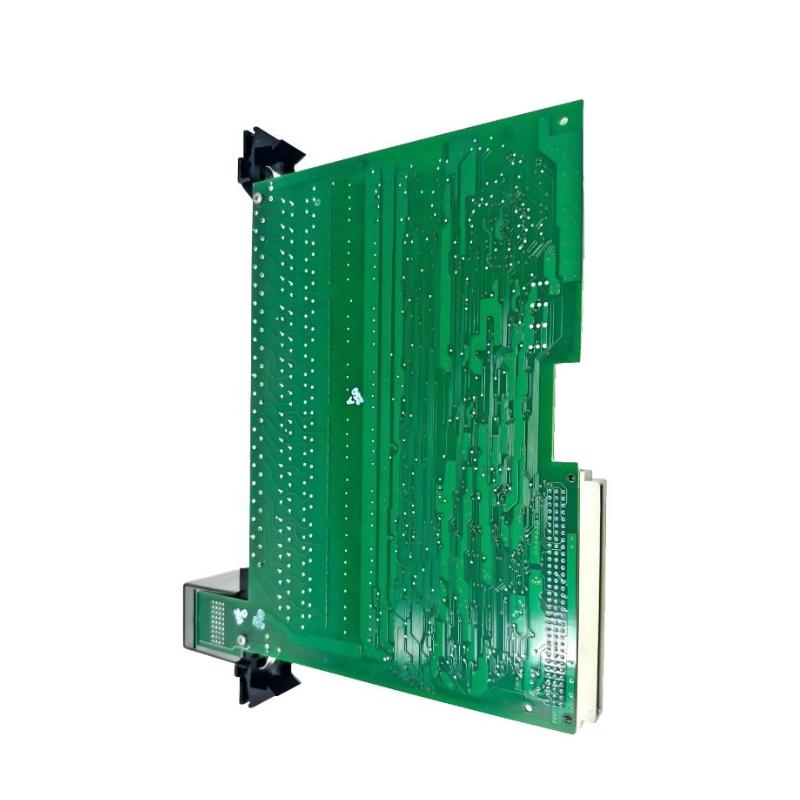

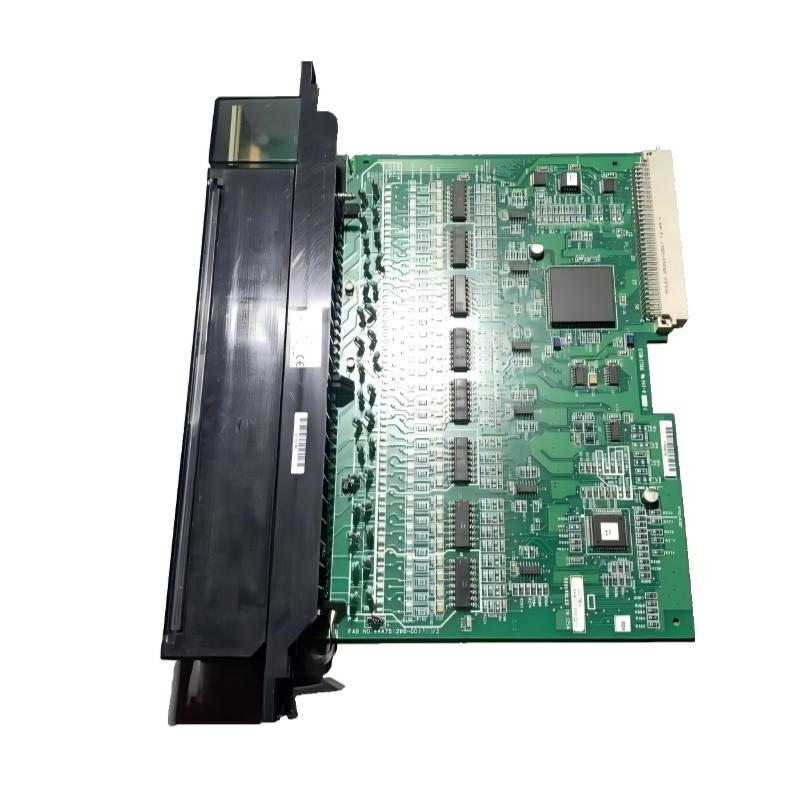

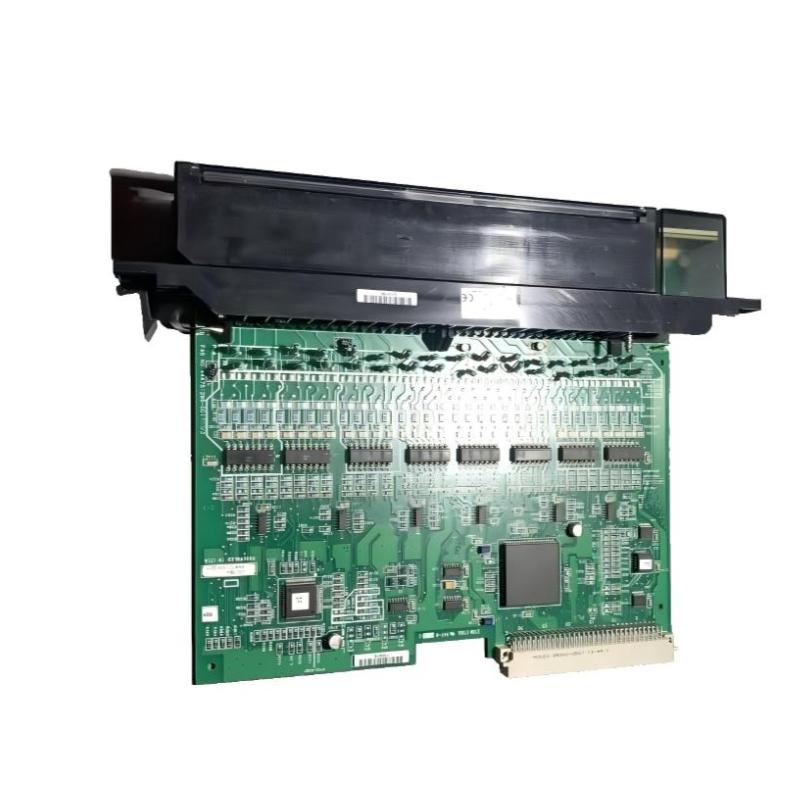

The GE IC697MDL652 is a 32-point discrete DC input module for the GE Fanuc Series 90-70 PLC system. It is designed to receive 12 VDC digital signals from industrial field devices such as pushbuttons, limit switches, proximity sensors, and relay contacts, and convert them into PLC logic signals.
It supports both positive and negative logic wiring, making it flexible for different industrial control designs.
Technical Specifications
The IC697MDL652 is a 12 VDC 32-point input module with group isolation.
Parameter
Specification
Model
IC697MDL652
Product Type
Discrete Input Module
Series
GE Fanuc Series 90-70
Input Type
DC Digital Input
Number of Inputs
32 points
Input Configuration
4 groups of 8 points
Rated Voltage
12 VDC
Input Voltage Range
-2.5 to +15 VDC
Logic Type
Positive / Negative logic
Input Current
~4.7 mA typical
ON-State Voltage
~7.5–15 VDC
OFF-State Voltage
~0–2.5 VDC
Input Filter
1 ms / 10 ms selectable
Isolation
1500 V input-to-backplane, group isolated
Backplane Current
~0.3 A @ 5 VDC
Indicators
LED per input channel
Wiring
Removable terminal block
Applications
This module is commonly used in:
Manufacturing automation systems
Packaging machinery
Conveyor and material handling systems
Machine control panels
Power generation auxiliary systems
Water treatment systems
Process control and SCADA systems
Advantages
Flexible positive/negative logic input design
32 inputs in compact single-slot module
Strong electrical isolation for industrial environments
LED diagnostics for fast troubleshooting
Compatible with wide range of sensors and switches
Stable operation in legacy GE 90-70 systems
Easy integration and replacement in field service
Technical FAQs
1. What is IC697MDL652 used for?
It is used to read 12 VDC digital input signals into a PLC system.
2. How many inputs does it have?
32 inputs arranged in 4 isolated groups of 8 points.
3. What voltage does it support?
12 VDC (range approximately -2.5 to +15 VDC).
4. Is it AC or DC module?
It is a DC input module.
5. Does it support both logic types?
Yes, it supports positive and negative logic operation.
6. What is the input filtering time?
Selectable 1 ms or 10 ms.
7. What industries use it?
Manufacturing, power plants, water treatment, and industrial automation.
8. Is it still used today?
Yes, mainly in GE 90-70 legacy systems and retrofit maintenance projects.
