Brand:GE Fanuc PLC Item No.:GE IC697MDL654 Product Origin: USA Product Dimensions:292 mm × 229 mm × 38 mm Product Weight:1.36 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

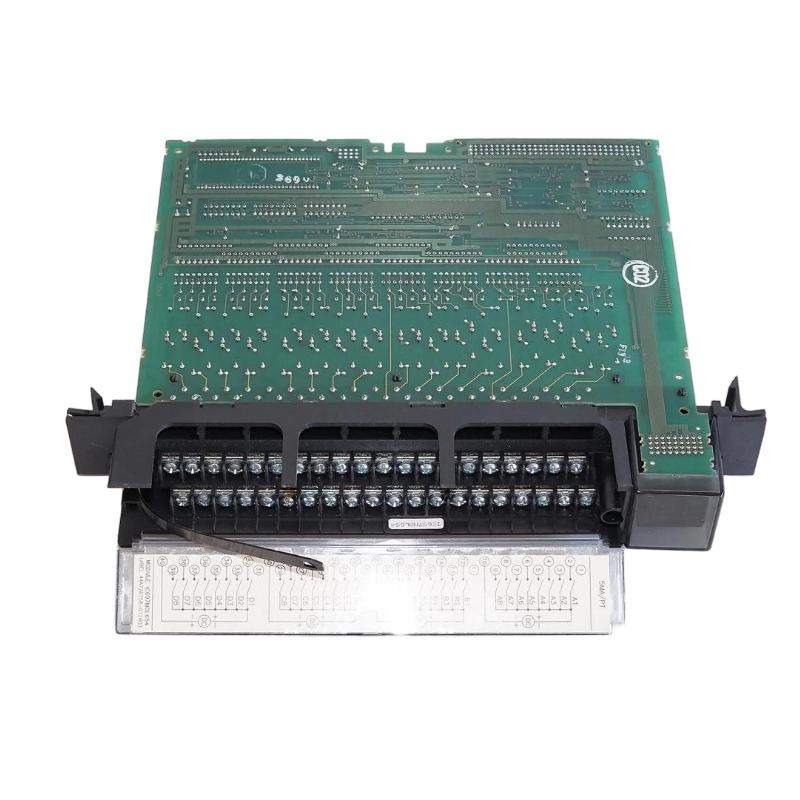

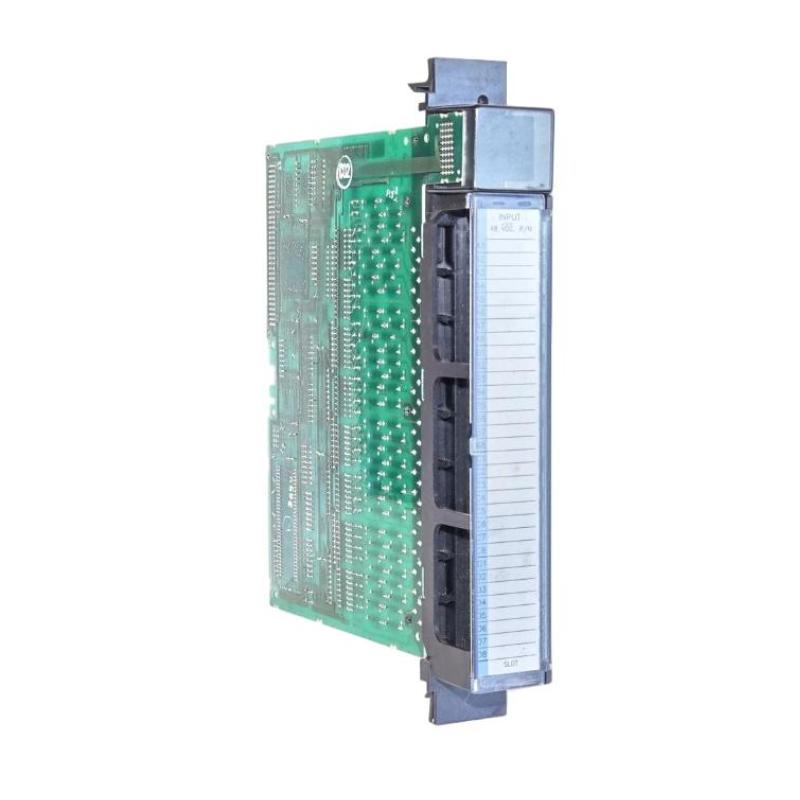

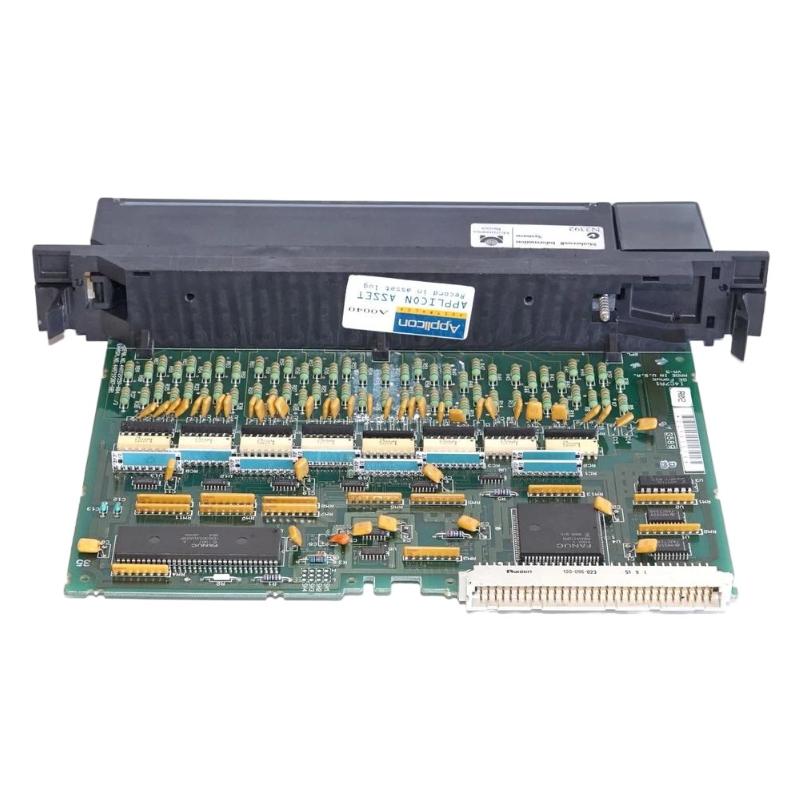

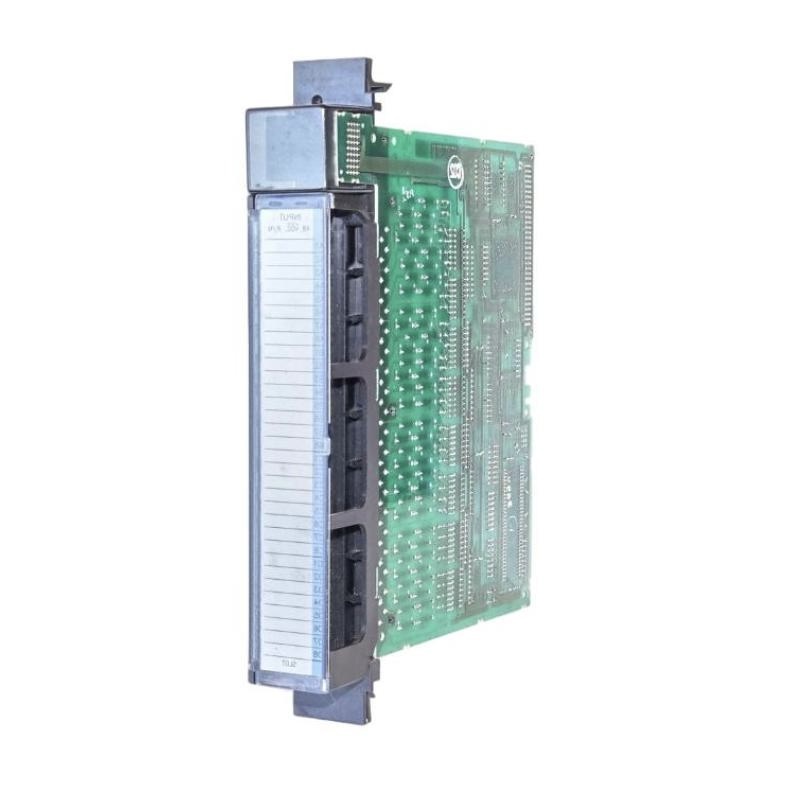

The GE IC697MDL654 is a high-density discrete DC input module for the GE Fanuc Series 90-70 PLC system. It is designed to receive 48 VDC digital ON/OFF signals from industrial field devices such as switches, proximity sensors, limit switches, and relay contacts, and convert them into PLC logic inputs.
It is mainly used in heavy industrial control systems where higher DC voltage levels (48 VDC) are used for long-distance or noise-resistant signal transmission.
Technical Specifications
The IC697MDL654 is a 32-point 48 VDC input module with grouped isolation.
Parameter
Specification
Model
IC697MDL654
Product Type
Discrete Input Module
Series
GE Fanuc Series 90-70
Input Type
DC Digital Input
Number of Inputs
32 points
Input Configuration
4 groups of 8 points
Rated Voltage
48 VDC
Input Voltage Range
-3 to +56 VDC
Input Current
~4.7 mA typical
ON-State Voltage
~33–56 VDC
OFF-State Voltage
~0–10 VDC
Logic Type
Positive / Negative logic compatible
Input Impedance
~9.12 kΩ typical
Input Filter
1 ms / 10 ms selectable
Isolation
1500 V input-to-backplane, 500 V between groups
Backplane Current
~0.30 A @ 5 VDC
Indicators
LED per input channel
Wiring
Removable terminal block
Applications
This module is commonly used in:
Heavy industrial automation systems
Power plants and energy facilities
Oil & gas control systems
Large-scale manufacturing plants
Water treatment and pumping stations
SCADA and distributed control systems
Advantages
Excellent noise immunity (48 VDC design)
32 inputs in compact single-slot module
Flexible group isolation wiring
Supports both sourcing and sinking logic
LED diagnostics for fast maintenance
Stable operation in harsh industrial environments
Widely used in legacy GE 90-70 systems
Suitable for long cable runs in field installations
Technical FAQs
1. What is IC697MDL654 used for?
It is used to read 48 VDC digital input signals into a PLC system.
2. How many inputs does it have?
32 inputs arranged in 4 isolated groups of 8 points each.
3. What voltage does it support?
48 VDC nominal (range approximately -3 to +56 VDC).
4. Is it AC or DC module?
It is a DC input module.
5. Does it support both logic types?
Yes, it supports positive and negative logic wiring.
6. What is the input filter time?
Selectable 1 ms or 10 ms.
7. What industries use it?
Heavy industry, power generation, oil & gas, water treatment, and large automation systems.
8. Is it still used today?
Yes, mainly in GE 90-70 legacy systems and long-term industrial maintenance projects.
