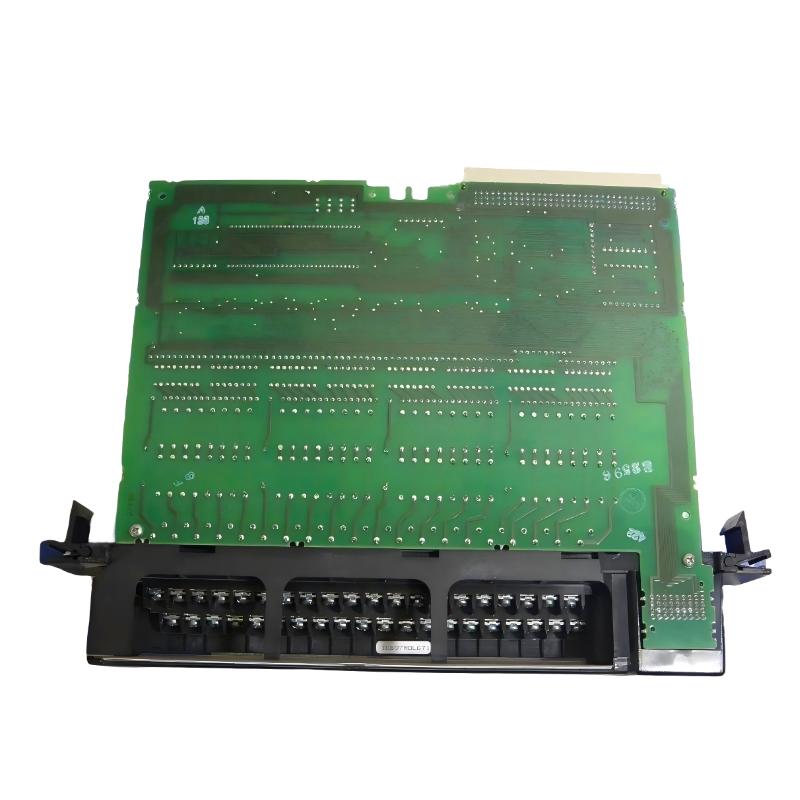

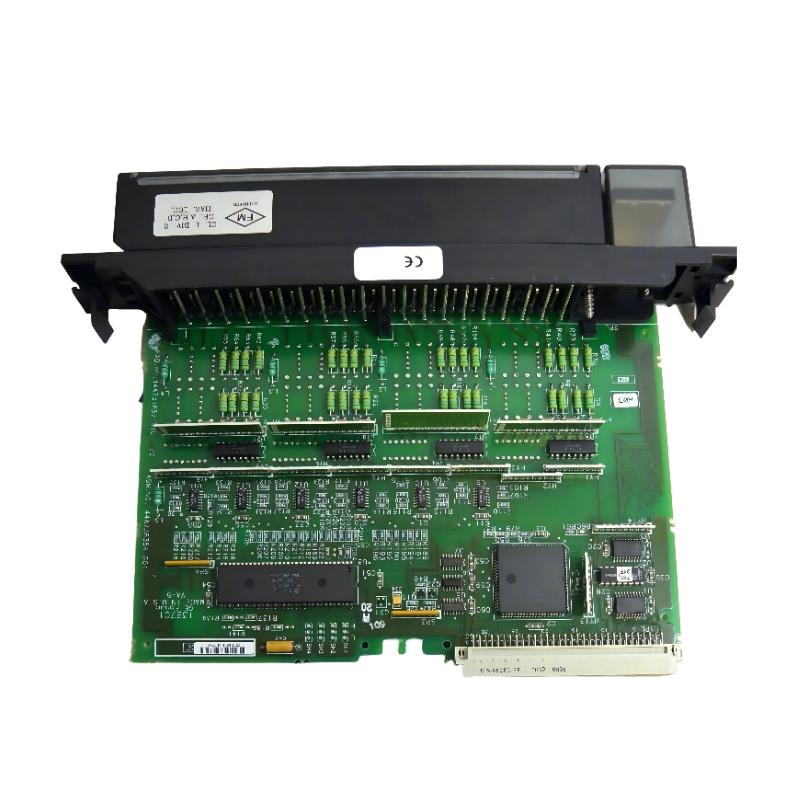

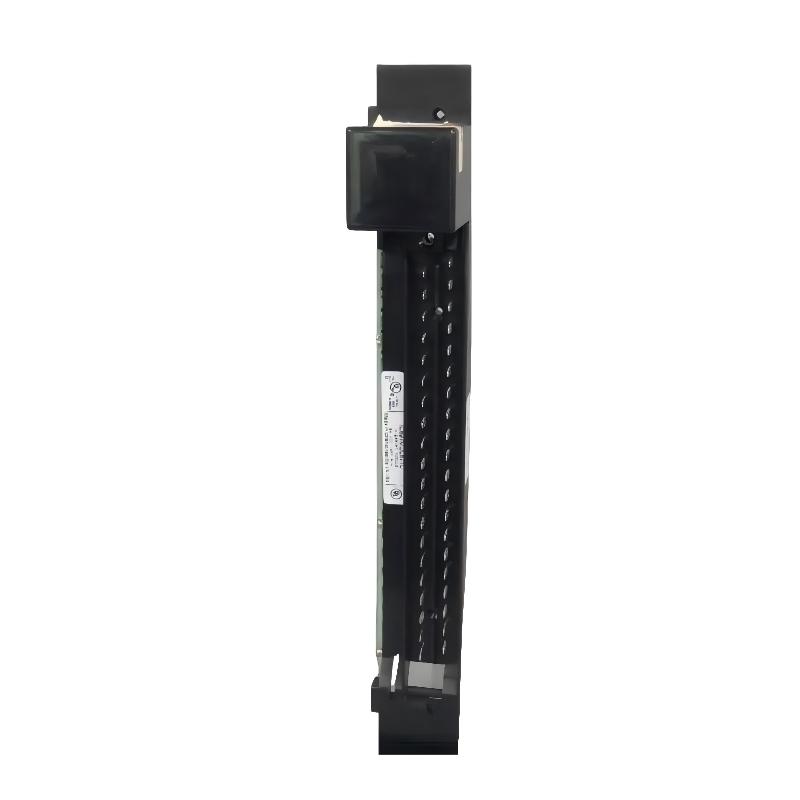

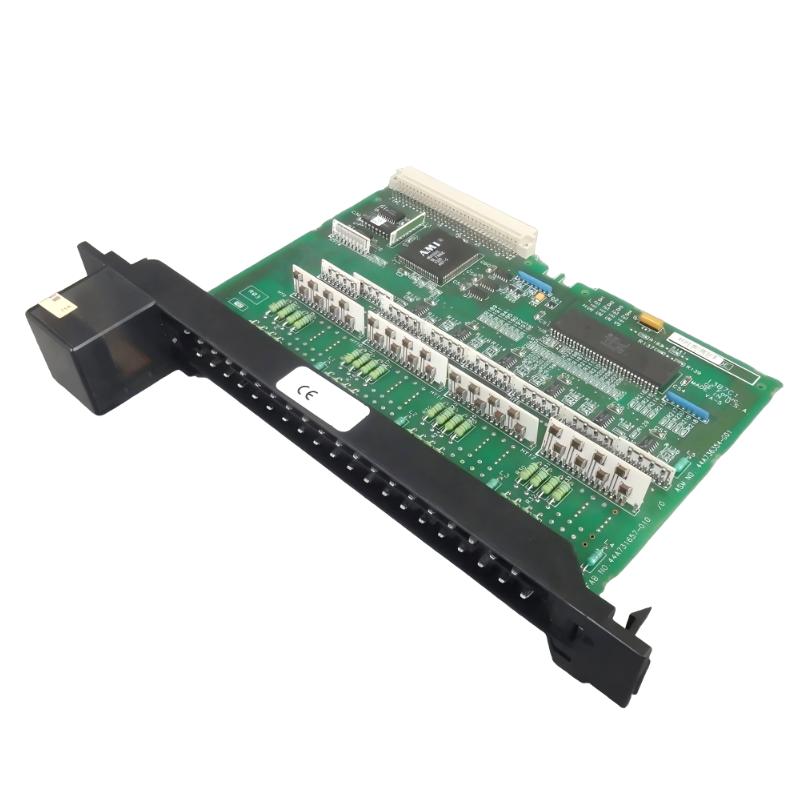

The GE IC697MDL671 is a special-purpose discrete DC input module with interrupt capability for the GE Fanuc Series 90-70 PLC system. It is designed to receive 24 VDC digital signals from field devices such as switches, proximity sensors, and pushbuttons, while also providing high-speed interrupt-triggered input processing for fast control applications.
Unlike standard input modules, the IC697MDL671 is optimized for time-critical events, making it suitable for applications where immediate CPU response is required.
Technical Specifications
The IC697MDL671 is a 16-point (14 interrupt + 2 configuration) 24 VDC input module.
| Parameter | Specification |
|---|---|
| Model | IC697MDL671 |
| Product Type | Discrete Input Module (Interrupt Type) |
| Series | GE Fanuc Series 90-70 |
| Input Type | DC Digital Input |
| Number of Inputs | 16 points total |
| Interrupt Inputs | 14 points |
| Configuration Inputs | 2 points |
| Input Groups | 4 groups of 4 points |
| Rated Voltage | 24 VDC |
| Input Voltage Range | -3 to +30 VDC |
| Input Current | ~10 mA per point |
| Logic Type | Positive / Negative logic compatible |
| Input Filter | 1 ms / 10 ms selectable |
| Isolation | 1500 V input-to-backplane |
| Interrupt Response | High-speed (all 14 inputs support max interrupt rate) |
| Backplane Current | ~0.3 A @ 5 VDC |
| Indicators | LED per input channel |
| Wiring | Removable terminal block |
