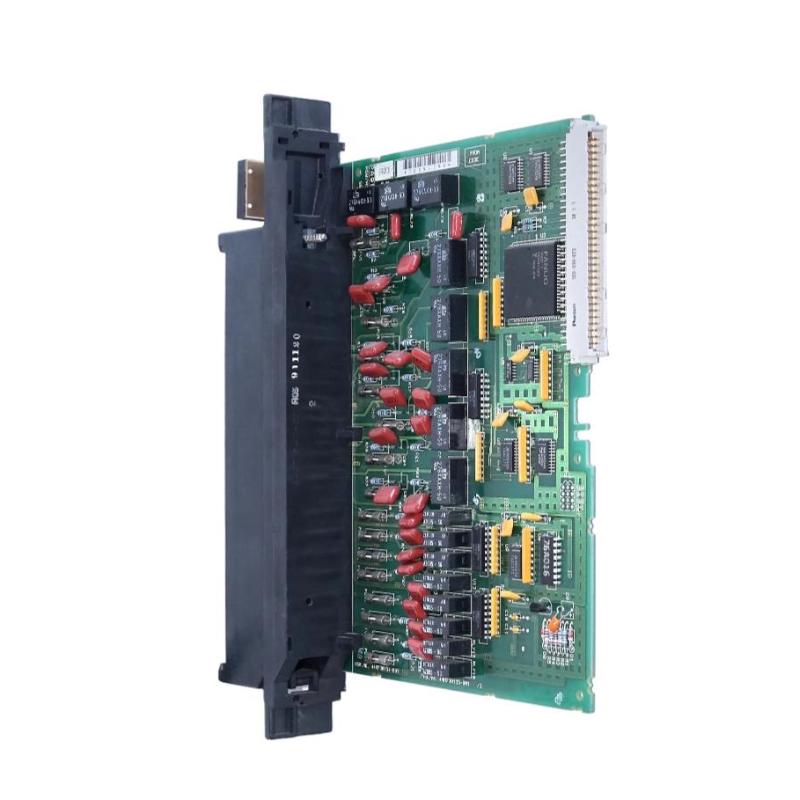

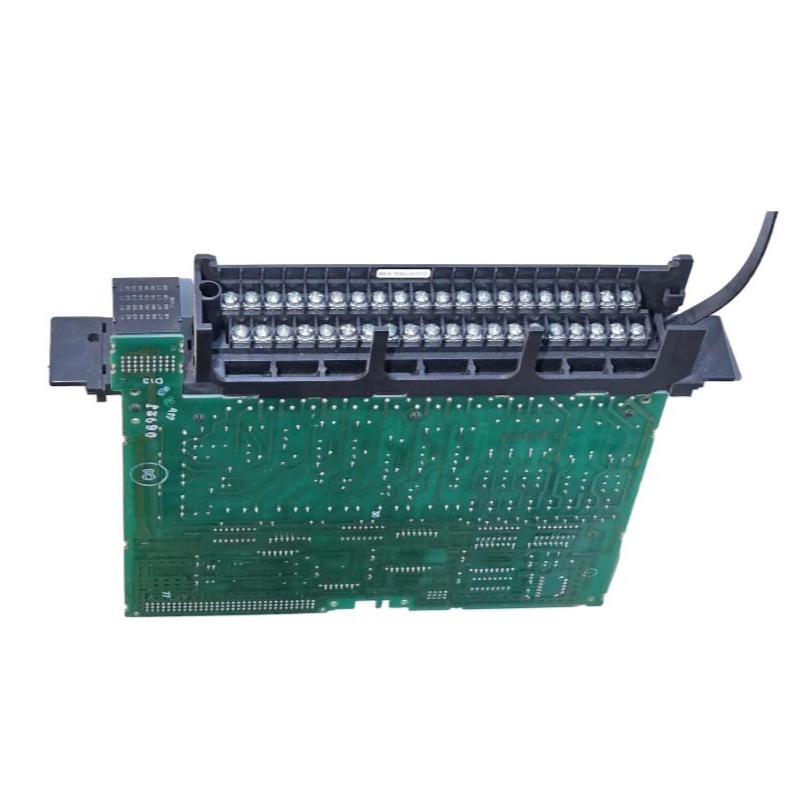

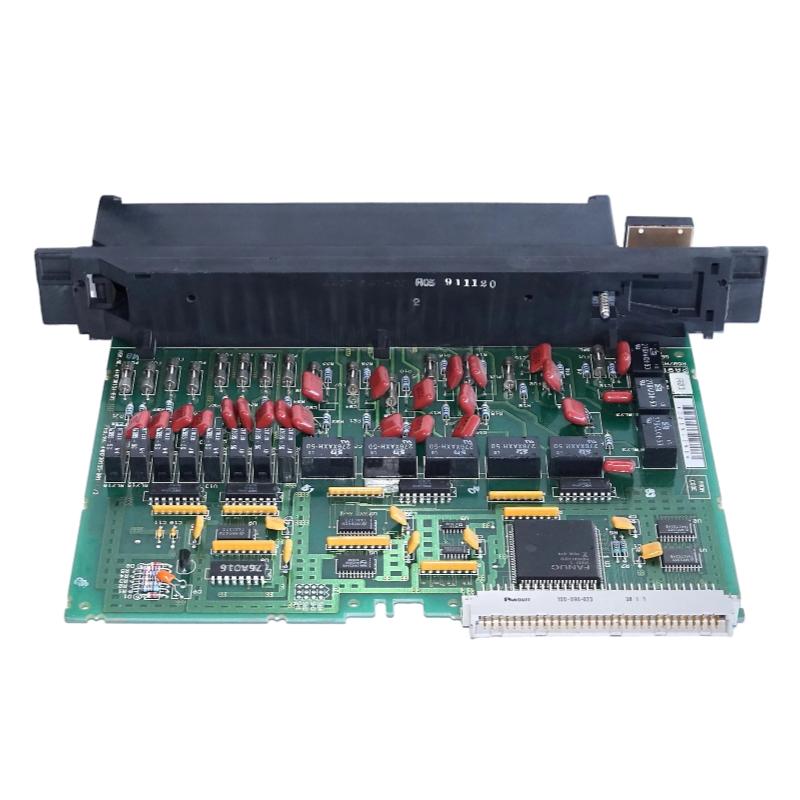

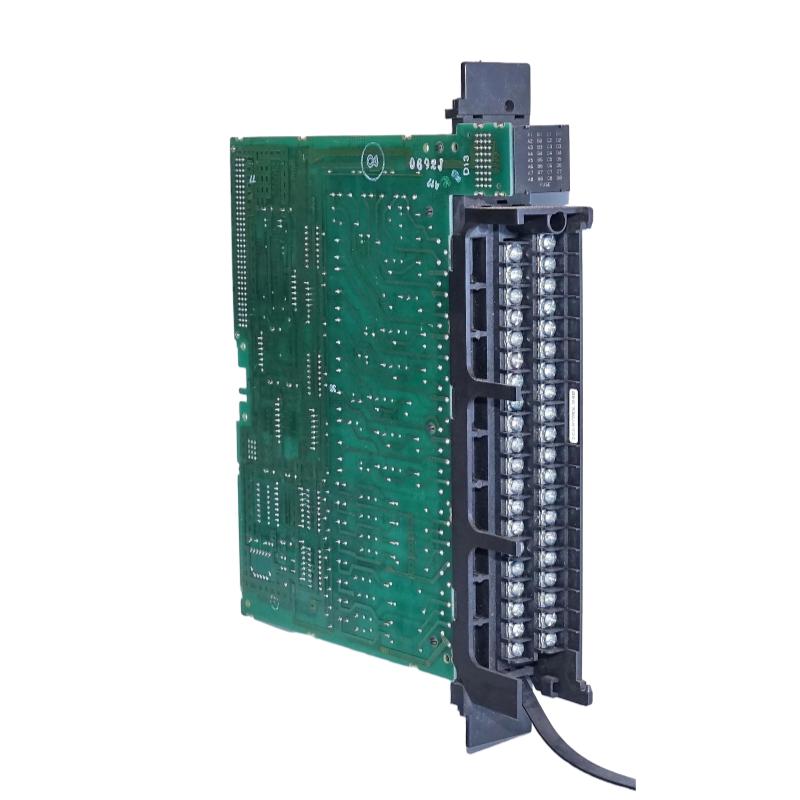

The GE IC697MDL710 is a central controller (CPU-level module) for the GE Fanuc Series 90-70 PLC system. It is designed to execute automation control programs, coordinate I/O modules, and manage system-level communication in a modular PLC rack architecture.
Unlike MDL input/output modules, this unit is part of the core processing layer of the PLC system, responsible for logic execution rather than field signal acquisition.
Technical Specifications
The IC697MDL710 is a Series 90-70 PLC controller module.
| Parameter | Specification |
|---|---|
| Model | IC697MDL710 |
| Product Type | PLC Controller / CPU Module |
| Series | GE Fanuc Series 90-70 |
| Function | Central processing / system controller |
| Supply Voltage | 24 VDC |
| Memory Capacity | System dependent (configurable CPU architecture) |
| Programming Language | Ladder Diagram / Function Block / Structured Text |
| I/O Expansion | Supports full 90-70 rack I/O modules |
| Communication Ports | RS-232 / RS-485 / Ethernet (varies by configuration) |
| System Role | Master controller in PLC rack |
| Operating Temperature | -20°C to +55°C |
| Humidity | 5%–95% non-condensing |
