Brand:GE Fanuc PLC Item No.:GE IC697MDL740 Product Origin: USA Product Dimensions:263 mm × 138 mm × 88 mm Product Weight:2.3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

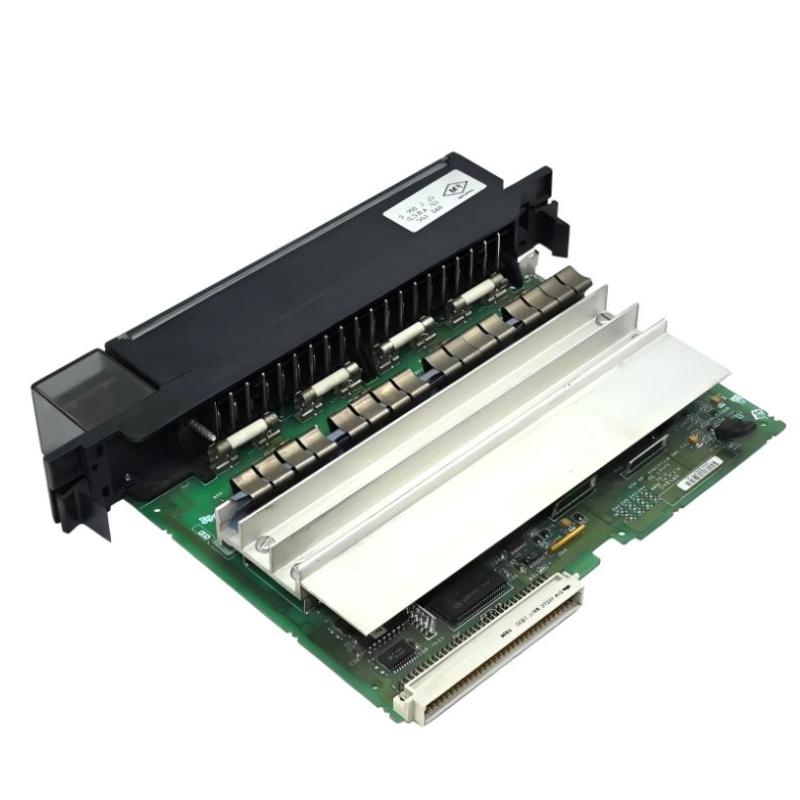

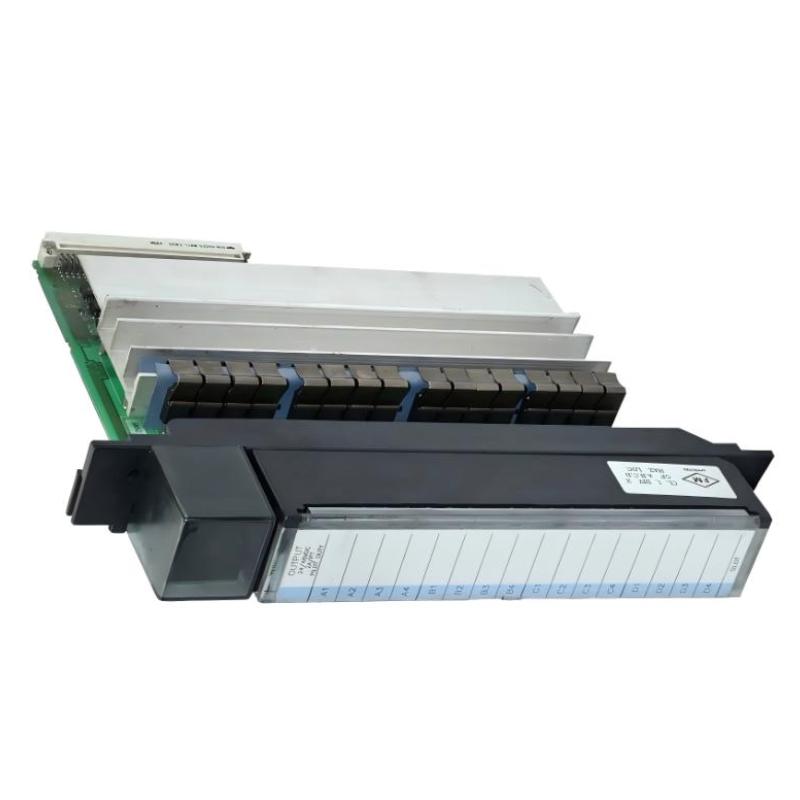

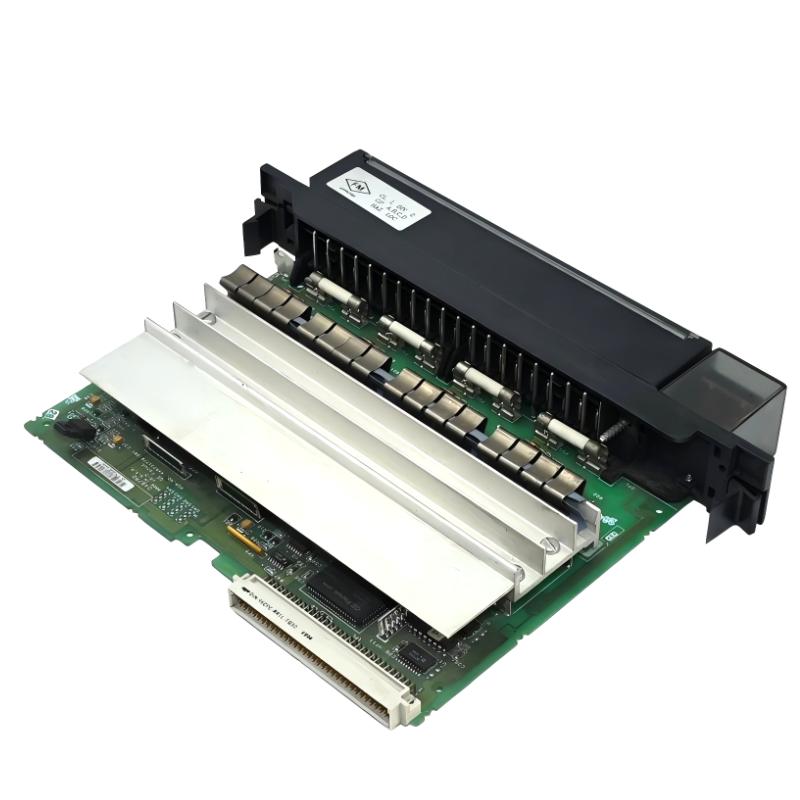

The GE IC697MDL740 is a high-density discrete DC output module for the GE Fanuc Series 90-70 PLC system. It is designed to drive industrial DC loads such as solenoids, motor starters, contactors, and indicator lamps, converting PLC logic signals into field-level switching outputs.
It is a standard 16-point DC output module with grouped isolation, widely used in industrial automation systems requiring reliable medium-power switching.
Technical Specifications
The IC697MDL740 is a 16-point 24/48 VDC output module with group isolation.
Parameter
Specification
Model
IC697MDL740
Product Type
Discrete Output Module
Series
GE Fanuc Series 90-70
Output Type
DC Digital Output
Number of Outputs
16 points
Output Configuration
4 groups of 4 points
Rated Voltage
24 / 48 VDC
Operating Voltage Range
20–60 VDC
Output Current
2 A per point
Group Current
4 A per group
Total Group Fuse
10 A per group
Inrush Capacity
Up to 20 A (short duration)
Response Time
~2 ms ON / OFF
Isolation
1500 V output-to-backplane
Backplane Current
~0.15 A @ 5 VDC
Indicators
LED per output + fuse status LEDs
Logic Type
Positive logic
Applications
Industrial automation systems
Manufacturing production lines
Packaging and assembly machines
Conveyor and material handling systems
Power plant auxiliary control systems
Water treatment systems
Process control and SCADA systems
Advantages
16-channel high-density output design
Strong inductive load handling capability
Fast switching response (~2 ms)
Group isolation improves wiring flexibility
Built-in fuse protection per group
LED diagnostics for maintenance efficiency
Stable performance in harsh industrial environments
Widely used in GE 90-70 legacy systems
Technical FAQs
1. What is IC697MDL740 used for?
It is used to switch DC loads such as relays, solenoids, and contactors.
2. How many outputs does it have?
16 outputs arranged in 4 isolated groups of 4 points each.
3. What voltage does it support?
24–48 VDC (20–60 VDC operating range).
4. What is the output current per point?
2 A per output point.
5. What is the response time?
Approximately 2 ms ON/OFF.
6. Is it AC or DC module?
It is a DC output module.
7. What industries use it?
Manufacturing, power generation, water treatment, and industrial automation.
