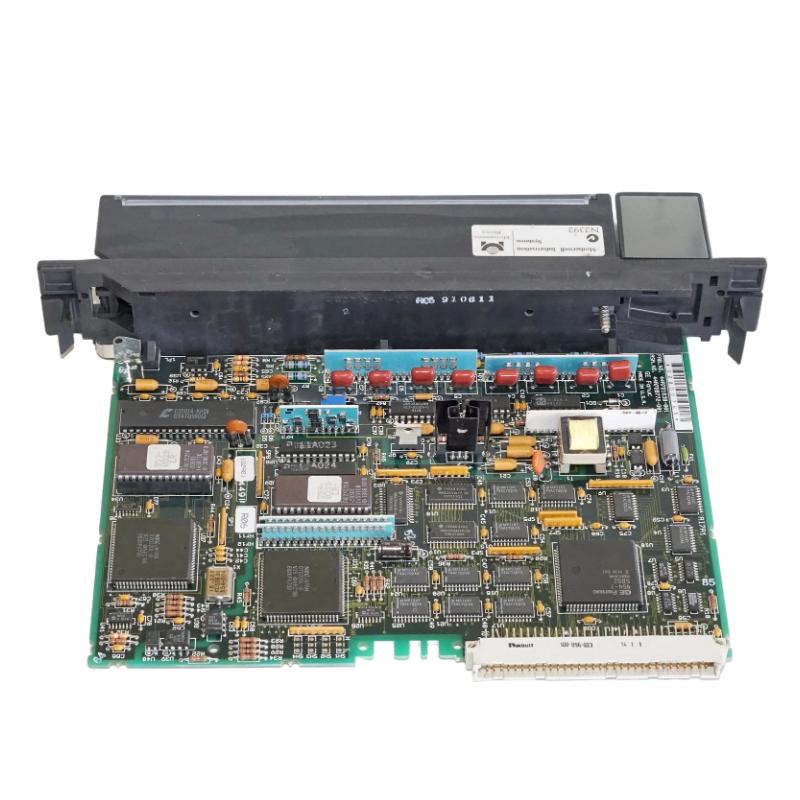

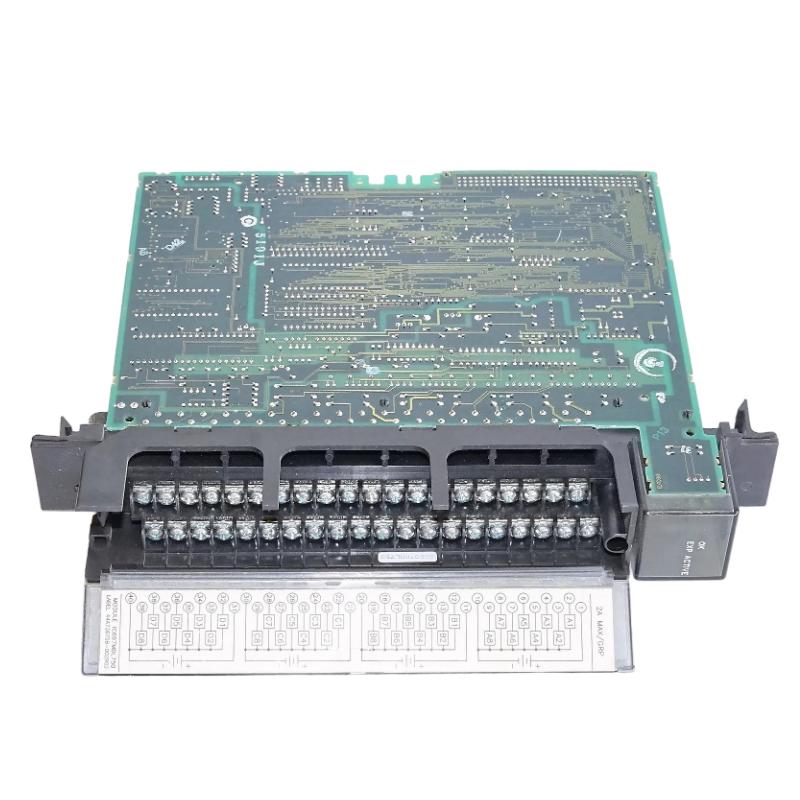

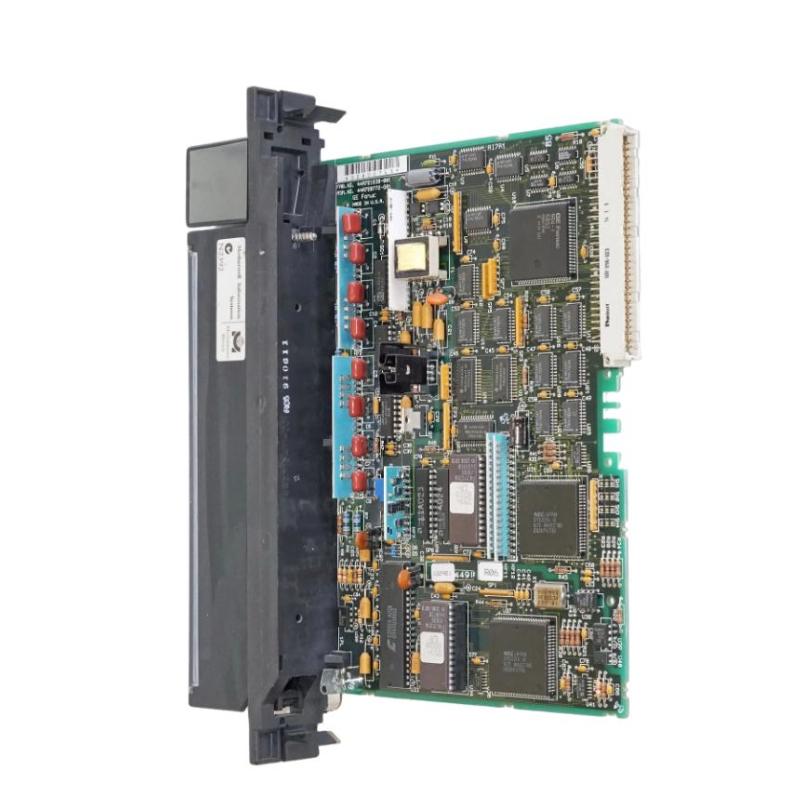

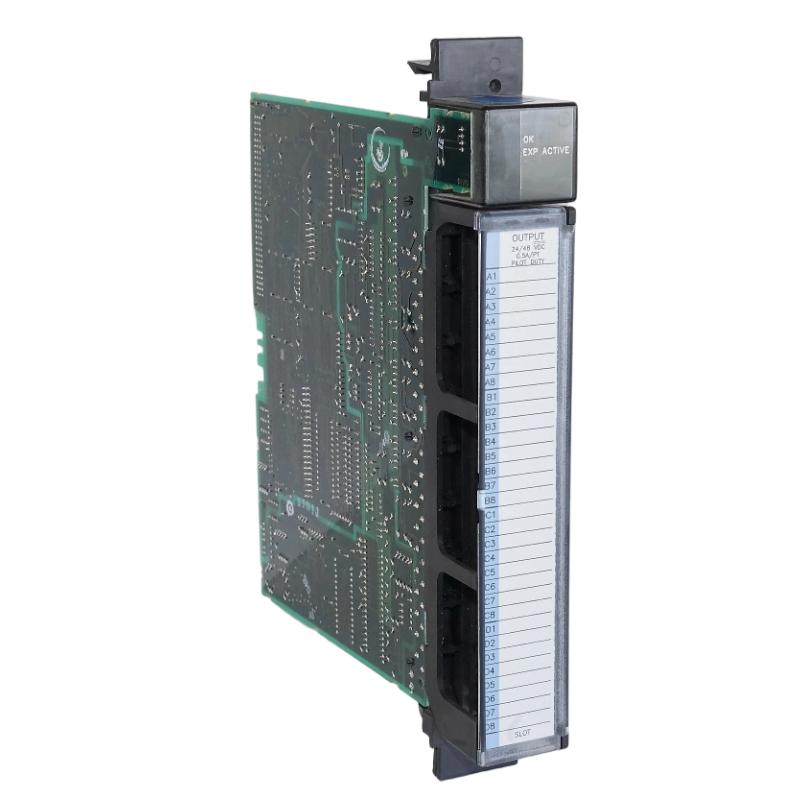

The GE IC697MDL750 is a high-density discrete DC output module for the GE Fanuc Series 90-70 PLC system. It is designed to control industrial DC loads such as solenoids, contactors, motor starters, and indicator lamps, converting PLC logic signals into field-level electrical outputs.
It is one of the most widely used 32-point DC output modules in the 90-70 system, offering strong load capacity and group-isolated wiring structure.
Technical Specifications
The IC697MDL750 is a 32-point 24/48 VDC positive logic output module with group isolation.
| Parameter | Specification |
|---|---|
| Model | IC697MDL750 |
| Product Type | Discrete Output Module |
| Series | GE Fanuc Series 90-70 |
| Output Type | DC Digital Output |
| Number of Outputs | 32 points |
| Output Configuration | 4 groups of 8 points |
| Rated Voltage | 24 / 48 VDC |
| Operating Voltage Range | 20–60 VDC |
| Output Current | 0.5 A per point |
| Group Current | 2 A per group |
| Inrush Current | Up to 10 A (20 ms) |
| Response Time | ≤ 1 ms ON / OFF |
| Leakage Current | ≤ 1 mA |
| Isolation | 1500 V output-to-backplane |
| Group Isolation | 500 V between groups |
| Backplane Current | ~0.25 A @ 5 VDC |
| Logic Type | Positive logic |
| Indicators | LED per output channel |
