Brand:GE Fanuc PLC Item No.:GE IC697MDL753 Product Origin: USA Product Dimensions:147 x 95 x 35 mm Product Weight:0.6 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

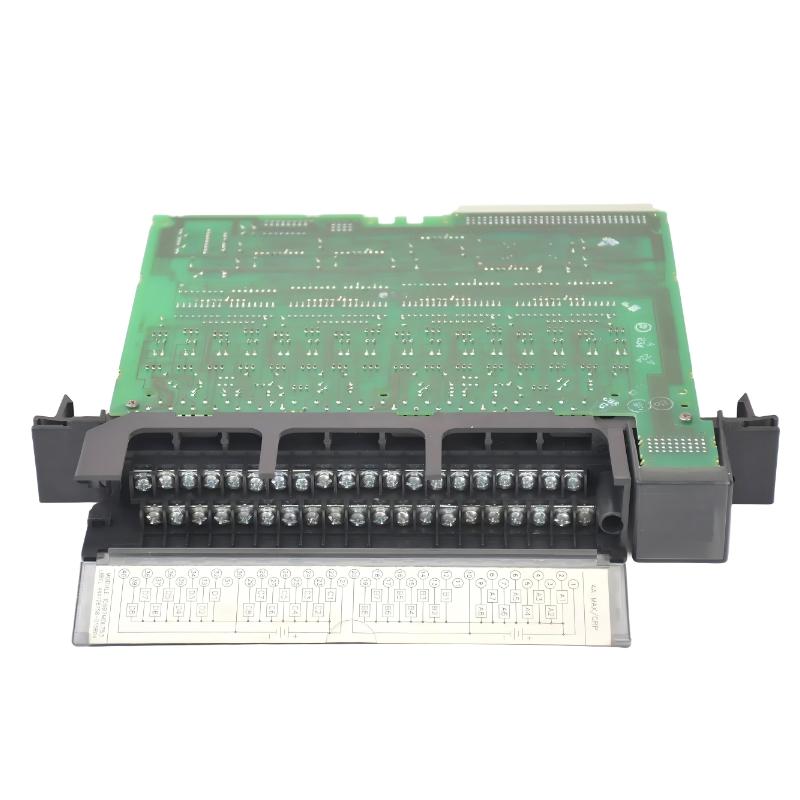

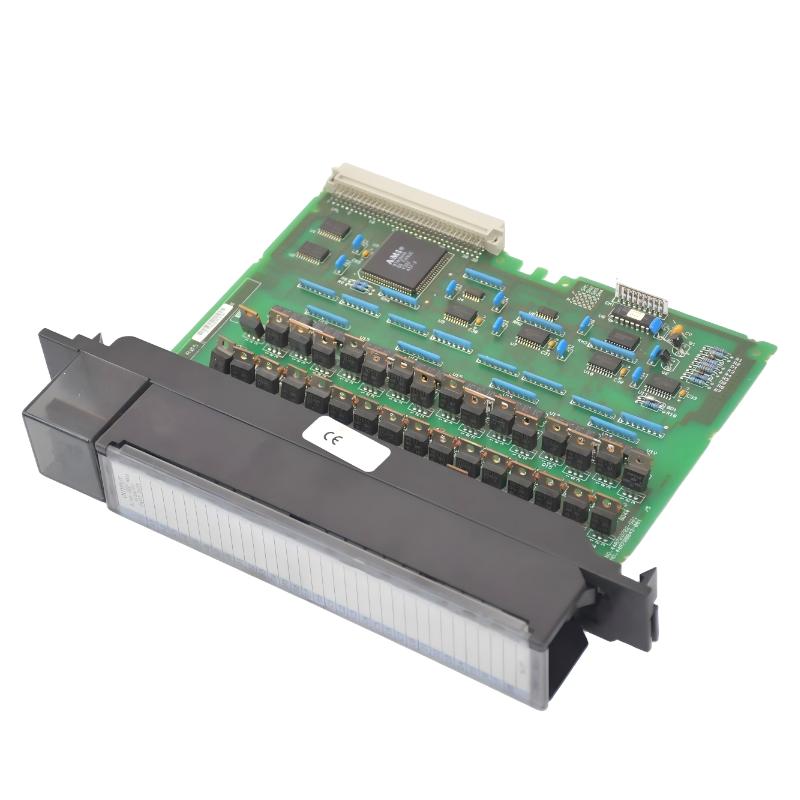

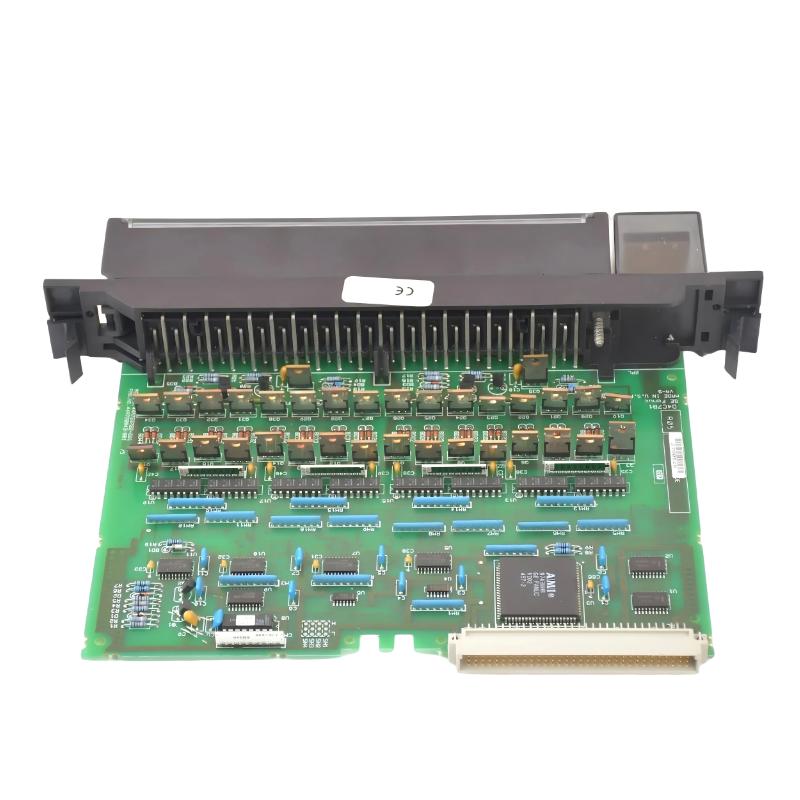

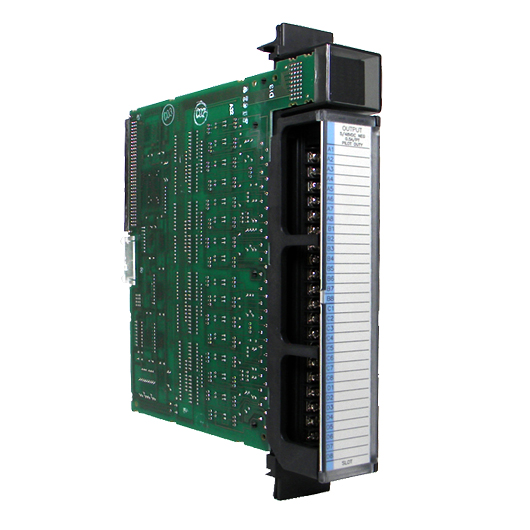

Engineered for precision and durability, the GE IC697MDL753 Discrete Output Module is a high-density solution within the Series 90-70 PLC family. Designed with negative logic (sinking) architecture, this module delivers consistent and responsive control for a wide range of industrial output devices. Its ability to manage both low-level TTL signals and higher DC loads makes it exceptionally versatile in complex automation systems.
For facilities that demand stable performance and long-term system continuity, the IC697MDL753 remains a proven and dependable choice.
Technical Specifications
Parameter
Details
Manufacturer
GE Fanuc
Series
90-70 Series
Model Number
IC697MDL753
Module Type
Discrete Output Module (Negative Logic)
Output Points
32 (2 groups of 16)
Rated Voltage
5 VDC / 10–60 VDC
Output Voltage Range
5–60 VDC
Output Current
16 mA @ 5V / 0.5 A per point (10–60V)
Max Current per Group
4 A
Inrush Current
5 A (20 ms)
Response Time
1 ms (ON/OFF)
Isolation
1500 V
Logic Type
Negative (Sinking)
Dimensions (HxWxD)
Approx. 147 x 95 x 35 mm
Weight
Approx. 0.45–0.6 kg
Installation
Rack-mounted (90-70 chassis)
Note: Dimensions and weight may vary slightly depending on revision or supplier batch.
Suggested Companion Modules
IC697CHS790 Rack Chassis
IC697PWR711 Power Supply Module
IC697CPU731 CPU Module
IC697BEM731 Bus Expansion Module
IC697ALG230 Analog Input Module
Commonly Deployed GE Models
IC697MDL750 Output Module
IC697MDL653 Input Module
IC695CPU310 RX3i Controller
IC693MDL940 Output Module
IC200MDL650 VersaMax I/O
Industrial Applications
The IC697MDL753 is widely utilized in environments where precise DC output switching and reliability are critical:
Automated conveyor and sorting systems
Motor starters and relay control panels
Chemical and process industries
Power generation and utility control systems
Manufacturing lines requiring synchronized output control
Its negative logic design makes it particularly effective for sinking-type loads and systems requiring enhanced noise immunity.
Performance Advantages
Flexible Voltage Compatibility
Supports both TTL-level signals and higher DC voltages, enabling broad device compatibility.
High-Density Output Design
32 outputs in a single module reduce panel space and simplify wiring.
Reliable Switching Performance
Fast 1 ms response ensures precise timing in automated processes.
Strong Load Handling Capability
Handles up to 0.5 A per point, suitable for industrial-grade loads.
Enhanced Diagnostics
LED indicators provide immediate feedback for each output channel.
Technical FAQs
1. What type of logic does the IC697MDL753 use?
It uses negative logic (sinking), meaning it switches the ground side of the circuit.
2. How many outputs are available?
The module provides 32 discrete outputs divided into two groups.
3. What voltage range does it support?
It supports 5 VDC and 10–60 VDC output ranges.
4. What is the maximum current per output?
Up to 0.5 A per point for higher voltage ranges.
5. Is it suitable for inductive loads?
Yes, it supports loads like solenoids and relays due to its inrush current capacity.
6. How fast is the switching speed?
Approximately 1 millisecond for both ON and OFF transitions.
7. Does it support isolation?
Yes, it offers 1500V isolation for improved electrical protection.
8. What PLC system is it compatible with?
It is designed for GE Fanuc Series 90-70 PLC systems.
9. How are outputs grouped?
Outputs are arranged into two groups of 16 for better load management.
10. What industries commonly use this module?
Industries such as manufacturing, energy, water treatment, and process automation widely deploy it.
