Brand:GE Fanuc PLC Item No.:GE IC697MDL940 Product Origin: USA Product Dimensions:216 x 152 x 89 mm Product Weight:0.91 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

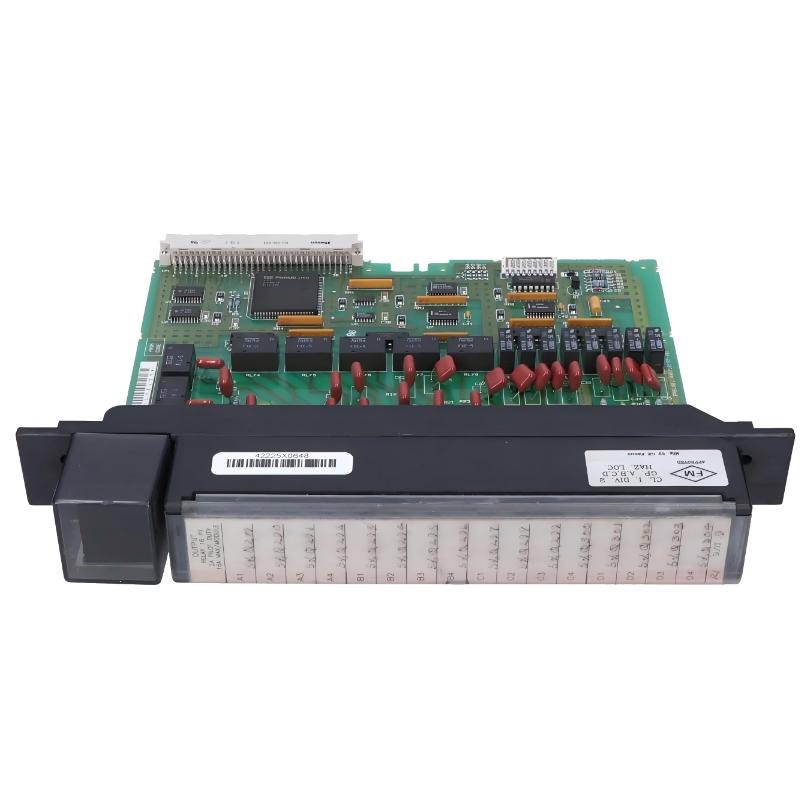

The GE IC697MDL940 Relay Output Module is a robust and highly adaptable output solution from the Series 90-70 platform, engineered for precise control of both AC and DC loads. Designed with industrial durability in mind, this module delivers reliable switching performance across a wide range of applications, from simple control panels to complex automation systems.
Its relay-based architecture provides flexibility that transistor-based modules cannot match, making it an ideal choice for environments requiring mixed voltage handling and dependable isolation. For facilities maintaining legacy GE systems, this module continues to offer excellent long-term value and operational stability.
Technical Specifications
Parameter
Details
Manufacturer
GE Fanuc / Emerson
Series
90-70 Series
Model Number
IC697MDL940
Module Type
Relay Output Module
Output Points
16 Outputs
Output Configuration
8 Form C (isolated) + 8 Form A (grouped)
Rated Voltage
120/240 VAC or 5/24/125 VDC
Max Output Current
2 A per point (AC/DC ≤30V), 0.2 A (higher DC ranges)
Max Load Capacity
16 A per module / 4 A per group
Backplane Current
750 mA
Response Time
10 ms (ON/OFF)
Isolation Voltage
1500 V
Protection
Built-in 3A fuse + RC snubber
Switching Frequency
20 cycles/min (inductive load)
Dimensions (HxWxD)
Approx. 216 x 152 x 89 mm
Weight
Approx. 0.8 – 0.91 kg
Installation
Rack-mounted (90-70 chassis)
Recommended Related Models
IC697CHS790 Rack Chassis
IC697PWR711 Power Supply Module
IC697CPU731 CPU Module
IC697BEM731 Bus Expansion Module
IC697ALG230 Analog Input Module
Popular GE Automation Modules
GE IC697MDL740 Digital Output Module
GE IC697MDL654 Input Module
GE IC697MDL640 Discrete Module
GE IC697BEM713 Bus Expansion Module
GE IC694MDL230 Output Module
Application Fields
The IC697MDL940 is specifically designed for applications requiring flexible relay switching and electrical isolation:
Industrial motor and pump control systems
Lighting and HVAC automation
Conveyor and material handling systems
Process industries (chemical, oil & gas, water treatment)
Power distribution and control panels
Its ability to switch both AC and DC loads makes it particularly valuable in hybrid systems where multiple voltage types coexist.
Key Advantages
Versatile Relay Outputs
Supports both AC and DC loads, eliminating the need for multiple module types.
High Reliability Switching
Mechanical relay contacts ensure stable performance even under demanding electrical conditions.
Integrated Protection Design
Each channel includes fuse and snubber protection to enhance durability and reduce failure risks.
Flexible Output Configuration
Combination of Form A and Form C outputs provides greater control flexibility.
Long Service Life
Engineered for high cycle operations, supporting continuous industrial usage.
Technical FAQs
1. What type of outputs does the IC697MDL940 provide?
It provides 16 relay outputs, including both Form A (NO) and Form C (NO/NC) contacts.
2. Can this module handle both AC and DC loads?
Yes, it supports 120/240 VAC and multiple DC voltage ranges.
3. What is the maximum current per output?
Up to 2 A per point for standard ranges, with lower limits for higher DC voltages.
4. Are outputs isolated?
Yes, Form C outputs are individually isolated, while Form A outputs are grouped.
5. Does it include built-in protection?
Yes, each output includes a fuse and RC snubber circuit.
6. What is the switching speed?
Approximately 10 ms for ON and OFF transitions.
7. What types of loads is it best suited for?
Relays, contactors, lamps, and other low-to-medium power loads.
8. Is the module hot-swappable?
Yes, it supports replacement without shutting down the entire system (with proper procedures).
9. What PLC platform is it compatible with?
It is designed for GE Fanuc Series 90-70 PLC systems.
10. Is this module still in production?
No, it is considered obsolete but widely available in surplus and refurbished markets.
