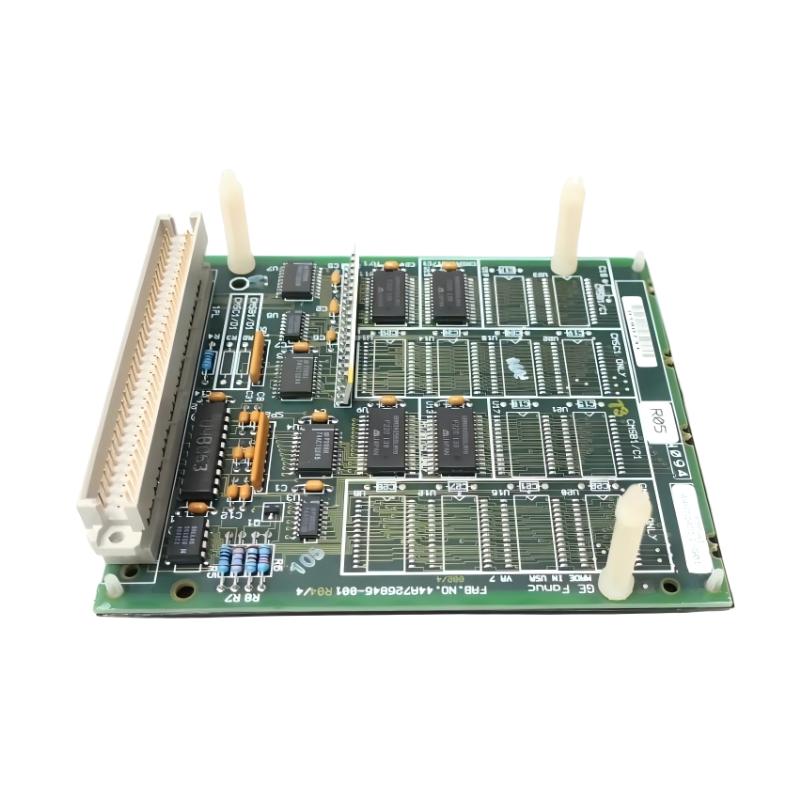

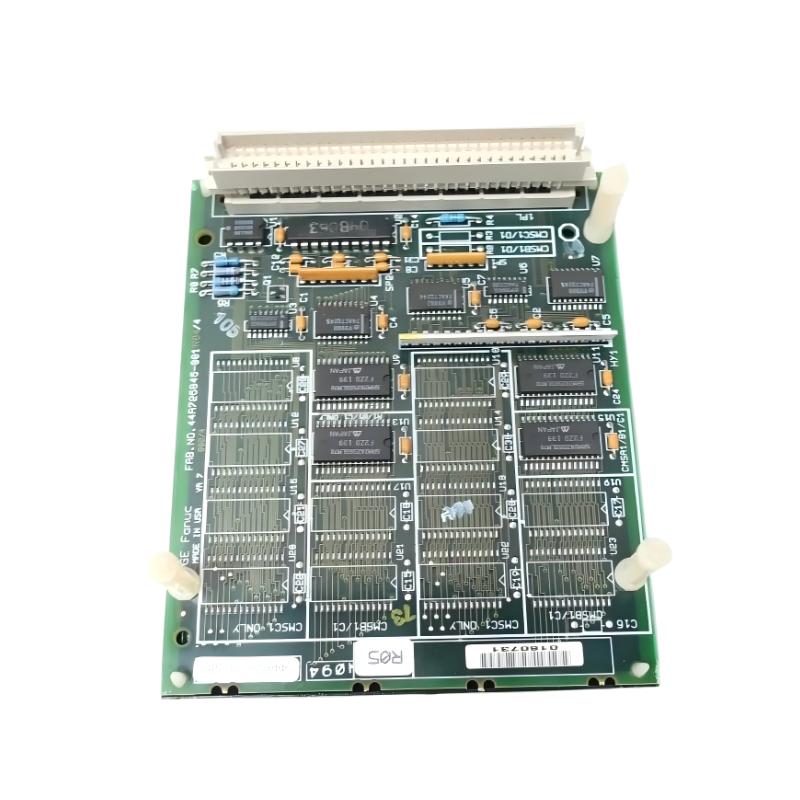

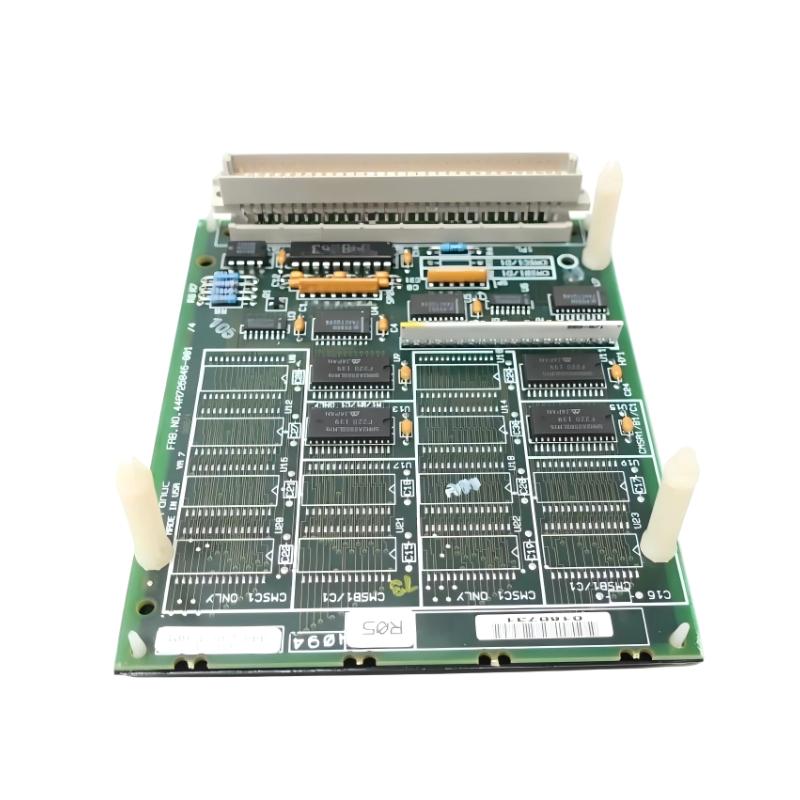

IC697MEM715-4 IC697MEM715-3 IC697MEM715-2 IC697MEM715-1

The GE IC697MEM715 is a high-reliability CMOS memory expansion module designed for the GE Fanuc Series 90-70 PLC platform. It is engineered to extend controller memory capacity, enabling more complex automation programs, larger data handling, and improved system flexibility without replacing the CPU.

In demanding industrial environments, this module is widely valued for its stability, scalability, and long lifecycle support in legacy control systems. It is especially relevant for plants that require system continuity while gradually expanding automation capabilities.

Technical Specifications

Parameter	Details
Manufacturer	GE Fanuc / Emerson
Series	90-70 Series
Model Number	IC697MEM715
Module Type	CMOS Memory Expansion Module
Memory Capacity	64 KB / 128 KB / 256 KB / 512 KB (variant dependent)
Memory Type	CMOS RAM
Function	Program & Data Memory Expansion
Data Retention	Battery-backed (system dependent)
Compatibility	CPU 771 / CPU 772 / PCM711 modules
Installation	Plug-in daughterboard (same slot integration)
Error Checking	Built-in checksum validation
Operating Temperature	0°C to 60°C
Storage Temperature	-40°C to 85°C
Dimensions (HxWxD)	Approx. 127 × 109 × 25 mm
Weight	Approx. 0.22–0.9 kg (variant dependent)

Recommended Related Models

IC697CPU771 High-Performance CPU
IC697CPU772 Advanced Control Processor
IC697PCM711 Programmable Coprocessor
IC697MEM713 Memory Expansion Module
IC697PWR711 Power Supply Module

Popular GE 90-70 Series Modules

IC697MDL740 Digital Output Module
IC697MDL753 High-Density Output Module
IC697MDL940 Relay Output Module
IC697BEM731 Bus Expansion Module
IC695CPU310 RX3i Controller

Applications

The IC697MEM715 is widely used in automation systems where expanded memory is essential for operational stability and process complexity:

Large-scale manufacturing control systems
Energy and power generation automation
Oil, gas, and petrochemical processing
Water treatment and utility management systems
Legacy industrial PLC upgrade projects

Its ability to support larger programs makes it especially valuable in multi-process and multi-loop control environments.

Advantages

Scalable Memory Expansion
Increases PLC capacity without replacing the CPU hardware.
Stable Program Execution
Supports complex logic structures with improved system reliability.
Seamless Integration
Designed specifically for direct compatibility with GE 90-70 CPUs.
Battery-Backed Data Retention
Helps preserve critical data during power interruptions.
Industrial-Grade Reliability
Built for continuous operation in harsh environments with long service life.

Technical FAQs

1. What is the main function of IC697MEM715?
It expands PLC memory for program and data storage in GE 90-70 systems.

2. Which CPUs is it compatible with?
It works with CPU 771, CPU 772, and PCM711 modules.

3. What memory sizes are available?
Variants include 64 KB, 128 KB, 256 KB, and 512 KB configurations.

4. Does it retain data during power loss?
Yes, it uses battery-backed CMOS memory depending on system configuration.

5. Is it installed in a separate slot?
No, it is a daughterboard installed in the same slot as the operating module.

6. Does it require configuration software?
Yes, setup is managed through GE PLC programming tools.

7. Is it still in production?
It is considered a legacy component, mainly available through industrial supply channels.

8. What industries use it most?
Heavy industry, utilities, manufacturing, and process control sectors.

9. Does it improve CPU speed?
Indirectly—by reducing memory constraints and enabling larger programs.

10. Why is it still widely used today?
Because many installed GE 90-70 systems still rely on it for stable long-term operation.

Look forward to your comments!Comment

Latest comments

Tags:	IC697MEM715

GE Fanuc PLC

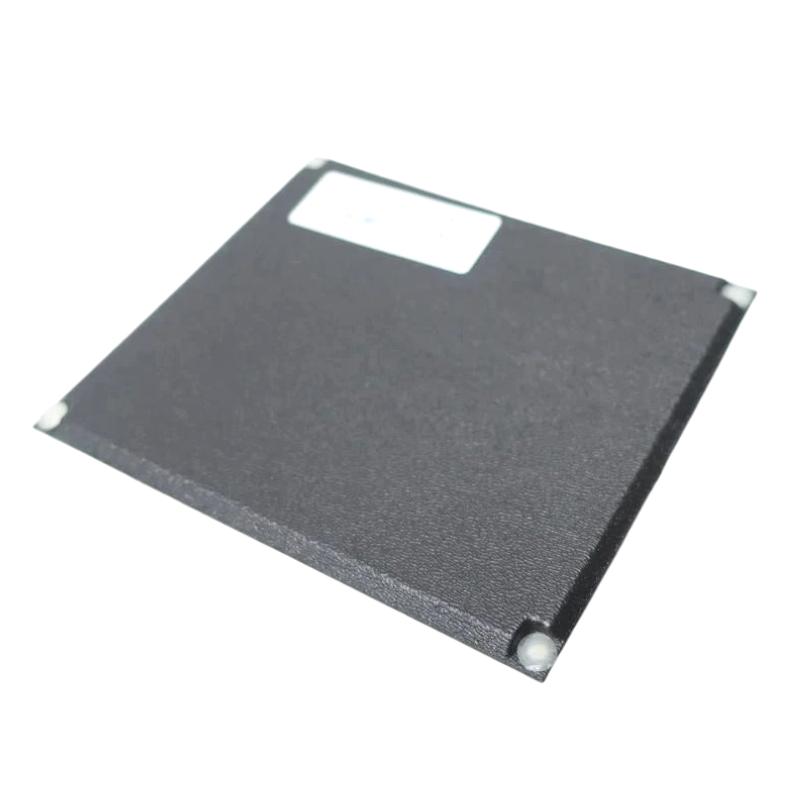

GE IC697MEM715 Memory Expansion Module
