Brand:GE Fanuc PLC Item No.:GE IC697PCM711 Product Origin: USA Product Dimensions:812 × 516 × 825 mm Product Weight:0.5 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

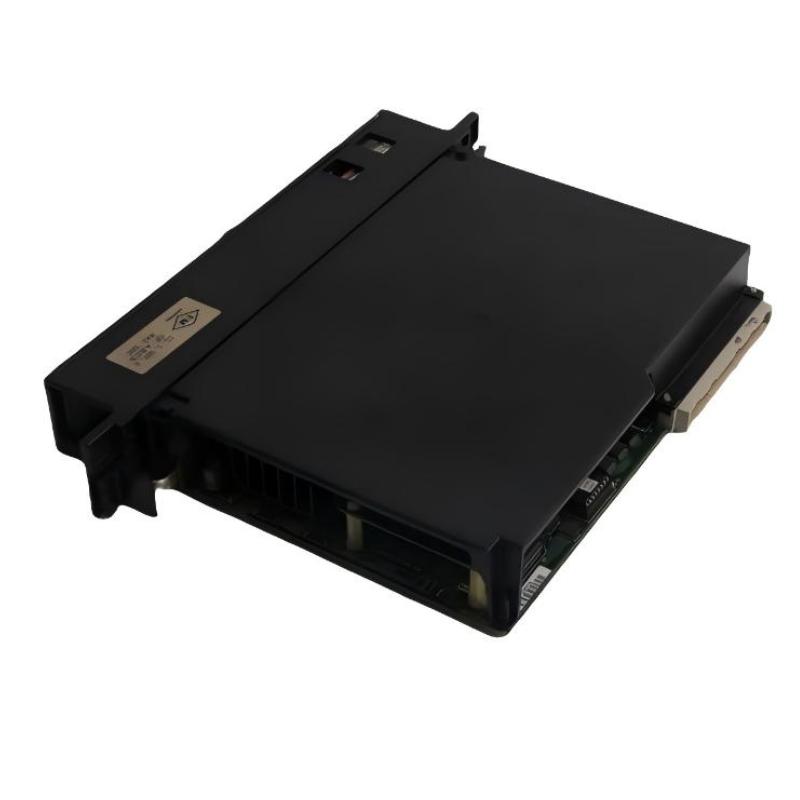

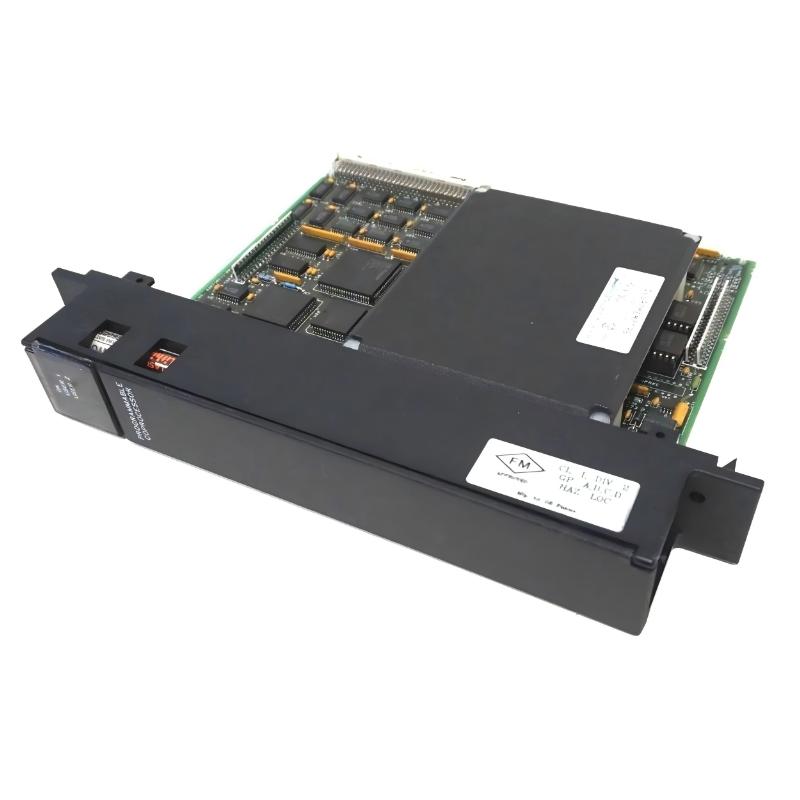

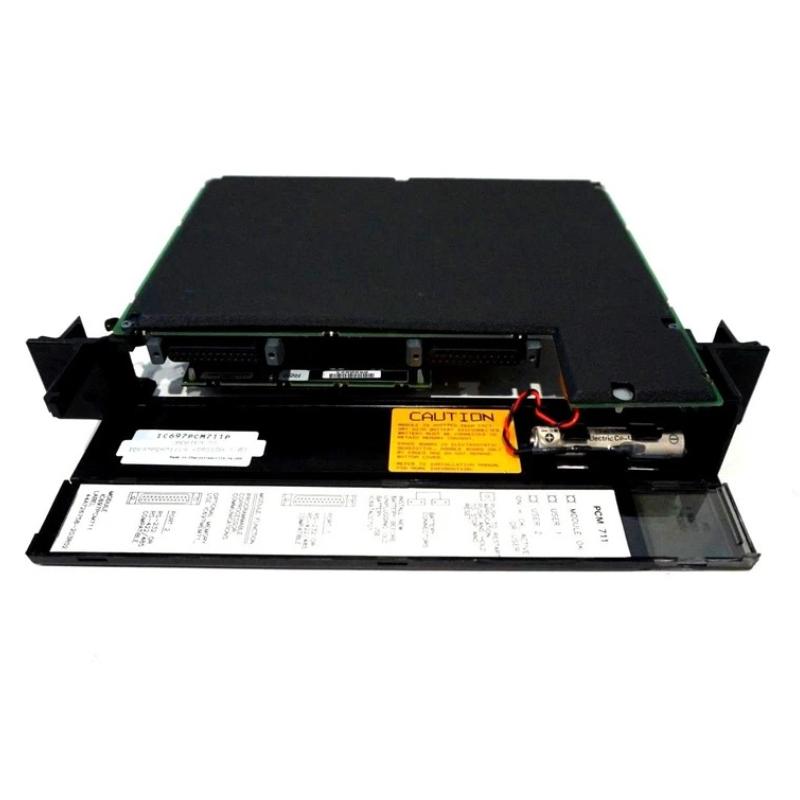

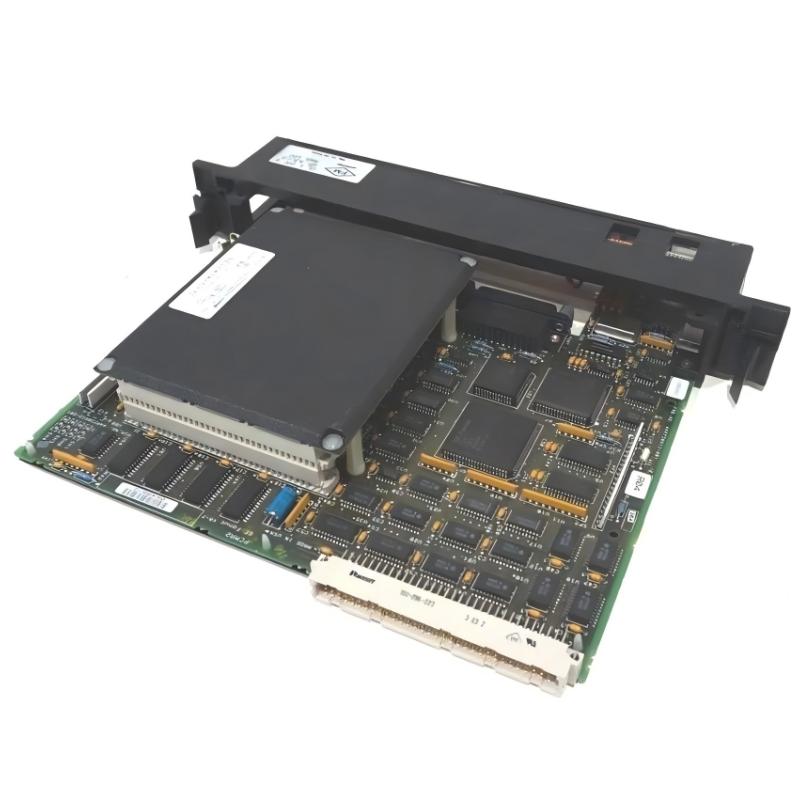

The GE IC697PCM711 is a single-slot programmable coprocessor module (PCM) designed for the GE Fanuc Series 90-70 PLC platform. It is built to enhance system performance by offloading complex tasks from the main CPU, such as real-time calculations, data acquisition, communication handling, and advanced control logic execution.
This module effectively acts as an industrial co-processor, improving overall system responsiveness in high-load automation environments. It is widely used in demanding process control systems where standard PLC processing capacity is not sufficient.
Technical Specifications
Parameter
Details
Manufacturer
GE Fanuc / Emerson
Series
90-70 Series
Model Number
IC697PCM711
Module Type
Programmable Coprocessor Module (PCM)
Processor
12 MHz 80C186 microprocessor
Program Memory
64 KB / 128 KB / 512 KB (optional expansion)
Onboard Memory
Up to 96 KB battery-backed CMOS memory
Communication Ports
2 × RS-232 / RS-422 / RS-485
Communication Speed
Up to 19.2 Kbaud
Functions
Real-time control, data processing, communication handling
Backplane Interface
GE 90-70 PLC rack system
Power Consumption
~1.0 A @ 5 VDC
Programming Interface
IC647 / IC640 / IBM-compatible PC
Status Indicators
3 LED indicators
Operating Temperature
0°C to 60°C
Weight
~0.5 kg
Physical Dimensions (mm)
Length × Width × Height: 812 × 516 × 825 mm (varies by revision packaging reference)
Typical module body size (industrial standard): approx. 266 × 88 × 31 mm
Applications
The IC697PCM711 is widely used in high-performance industrial automation systems where additional processing power is required:
Complex motion control systems
High-speed data acquisition systems
Large-scale manufacturing automation
Process optimization in chemical and refinery plants
Communication-intensive PLC architectures
It is especially valuable in systems requiring parallel processing and advanced logic execution beyond standard PLC CPU capability.
Advantages
Offloads CPU Processing Load
Improves overall PLC performance by handling complex tasks independently.
Dual-Tasking Capability
Executes multiple processes simultaneously for higher efficiency.
Flexible Communication Interfaces
Supports RS-232, RS-422, and RS-485 industrial protocols.
Expandable Memory Architecture
Supports up to 512 KB additional memory expansion.
Real-Time Processing Power
Ideal for time-critical industrial control applications.
Seamless PLC Integration
Works directly with GE 90-70 backplane architecture.
Technical FAQs
1. What is the IC697PCM711 used for?
It is used as a programmable coprocessor to handle advanced processing tasks in GE 90-70 PLC systems.
2. Is it a CPU module?
No, it is a co-processor that works alongside the main CPU.
3. What tasks can it perform?
Real-time calculations, communication handling, and data processing.
4. How many communication ports does it have?
Two serial ports supporting RS-232/RS-422/RS-485.
5. Does it support memory expansion?
Yes, up to 512 KB optional expansion memory.
6. What is its power requirement?
Approximately 1.0 A at 5 VDC.
7. How is it programmed?
Using IC647, IC640, or IBM-compatible PCs with PCM software.
8. Is it still manufactured?
It is a legacy module, typically available through industrial suppliers.
9. What industries use it?
Manufacturing, energy, process automation, and heavy industry.
10. Why is it still relevant today?
Because many GE 90-70 systems still rely on its co-processing capabilities for stable long-term operation.
