Brand:GE Fanuc PLC Item No.:GE IC697VAL304 Product Origin: USA Product Dimensions:175 × 108 × 38 mm Product Weight:0.3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

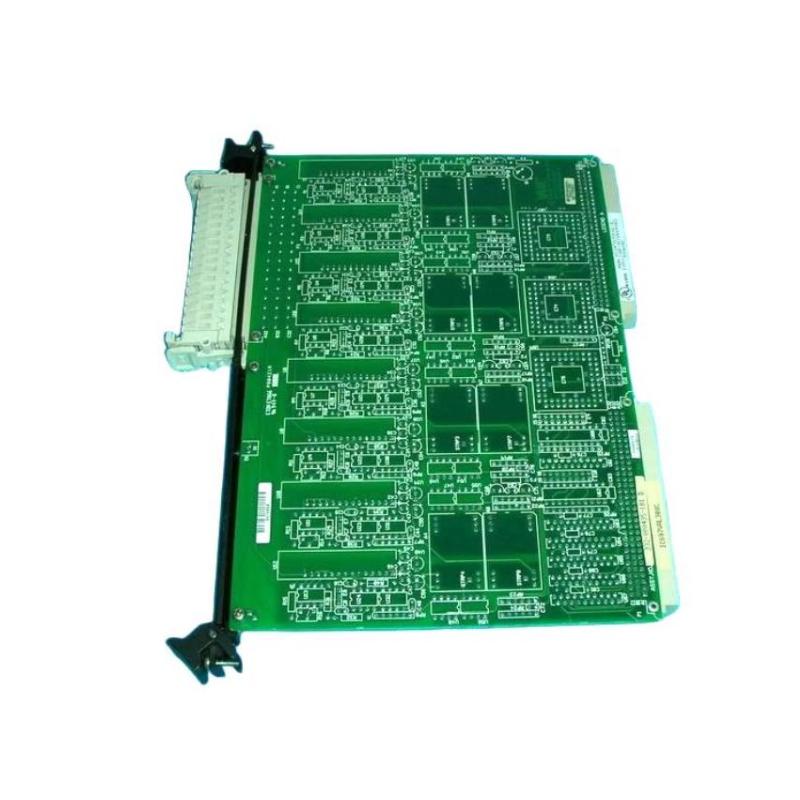

The GE IC697VAL304 is a precision analog output module designed for the GE Fanuc Series 90-70 PLC platform. It provides isolated voltage outputs that allow the PLC to control external field devices such as actuators, drives, valves, and analog instrumentation.
With its 12-bit resolution and configurable voltage ranges, this module delivers accurate and stable signal output, making it ideal for high-performance industrial control systems that require precise analog signal generation.
Technical Specifications
Parameter
Details
Manufacturer
GE Fanuc / Emerson
Series
90-70 Series
Model Number
IC697VAL304
Module Type
Analog Output Module (Voltage)
Output Channels
4 isolated channels
Output Signal Type
Bipolar voltage output
Output Ranges
±2.5 V / ±5 V / ±10 V (jumper selectable)
Resolution
12-bit
Isolation
Channel-to-channel and backplane isolation
Configuration
Hardware jumper configurable
Output Accuracy
High precision analog signal control
Backplane Power
5 VDC from PLC rack
Compatibility
GE 90-70 PLC systems
Operating Temperature
0°C to 60°C
Physical Dimensions & Weight
Size (L × W × H): 175 × 108 × 38 mm
Weight: 0.3 kg
Recommended Related Models
IC697VAL134 Analog Input Module
IC697VAL132 Analog Input Module
IC697MDL753 Digital Output Module
IC697CPU780 High-Performance CPU
IC697BEM731 Bus Expansion Module
Popular GE 90-70 Modules
IC697MDL740 Digital Output Module
IC697MDL940 Relay Output Module
IC697MEM731 Memory Expansion Module
IC697MSC800 System Interface Module
IC697PWR711 Power Supply Module
Applications
The IC697VAL304 is widely used in industrial automation systems requiring precise analog control output:
Variable speed drive control
Valve position control systems
Process control loops (temperature, pressure, flow)
Power plant control systems
Chemical and petrochemical automation
It is especially suitable for applications where stable voltage output and high accuracy are critical.
Advantages
High-Precision Output Control
12-bit resolution ensures accurate signal generation.
Flexible Voltage Configuration
Supports multiple bipolar output ranges via jumper settings.
Isolated Channel Design
Enhances system reliability and reduces electrical interference.
Industrial-Grade Stability
Designed for continuous operation in harsh environments.
Seamless PLC Integration
Fully compatible with GE 90-70 backplane architecture.
Compact Multi-Channel Design
Provides 4 outputs within a single slot, saving space.
Technical FAQs
1. What is the IC697VAL304 used for?
It outputs analog voltage signals from the PLC to control external devices.
2. How many output channels does it have?
It has 4 isolated analog output channels.
3. What voltage ranges are supported?
±2.5 V, ±5 V, and ±10 V selectable via jumpers.
4. What is its resolution?
12-bit analog output resolution.
5. Is it an input or output module?
It is an analog output module.
6. Does it provide isolation?
Yes, between channels and the backplane.
7. What is its weight?
Approximately 0.3 kg.
8. Can it be used with modern PLC systems?
It is mainly used in legacy GE 90-70 systems.
9. How is it configured?
Through hardware jumper settings.
10. Why is it important in automation systems?
Because it enables precise control of analog-driven industrial processes.
