Brand:GE Fanuc PLC Item No.:GE IC697VAL314 Product Origin: USA Product Dimensions:261 × 202 × 21 mm Product Weight:0.42 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

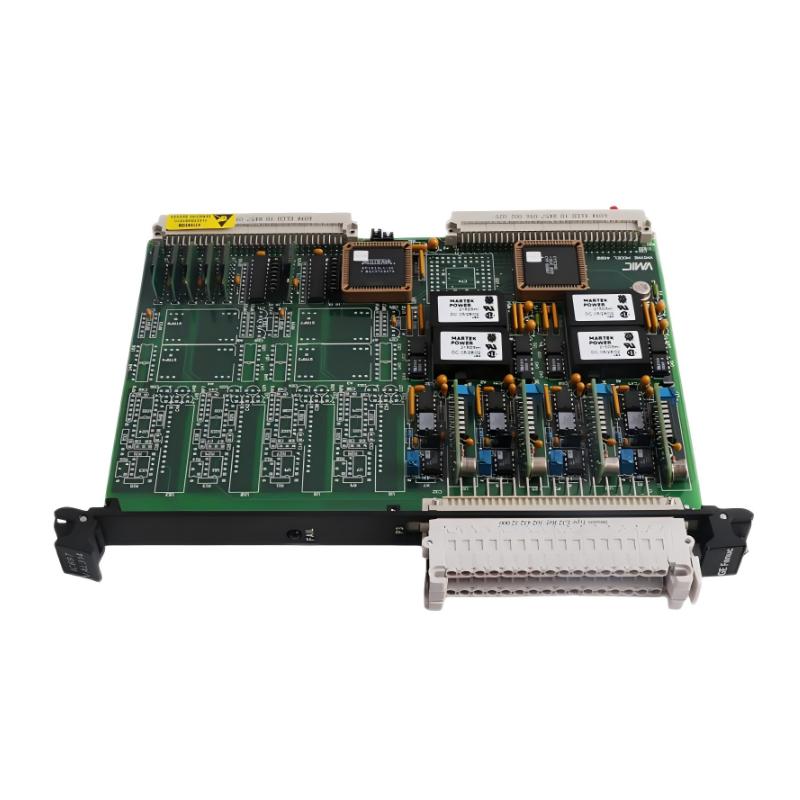

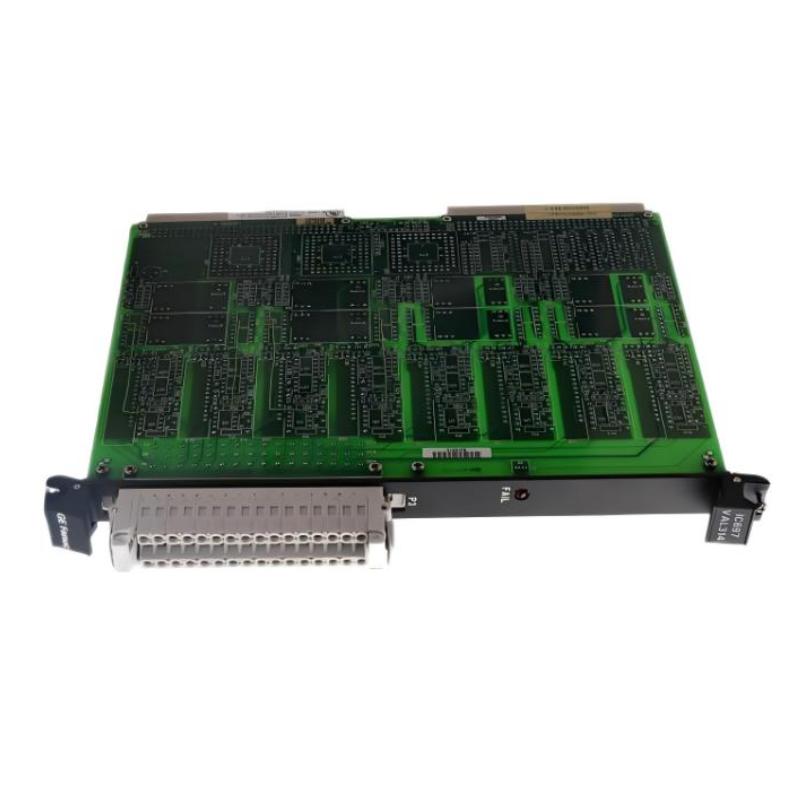

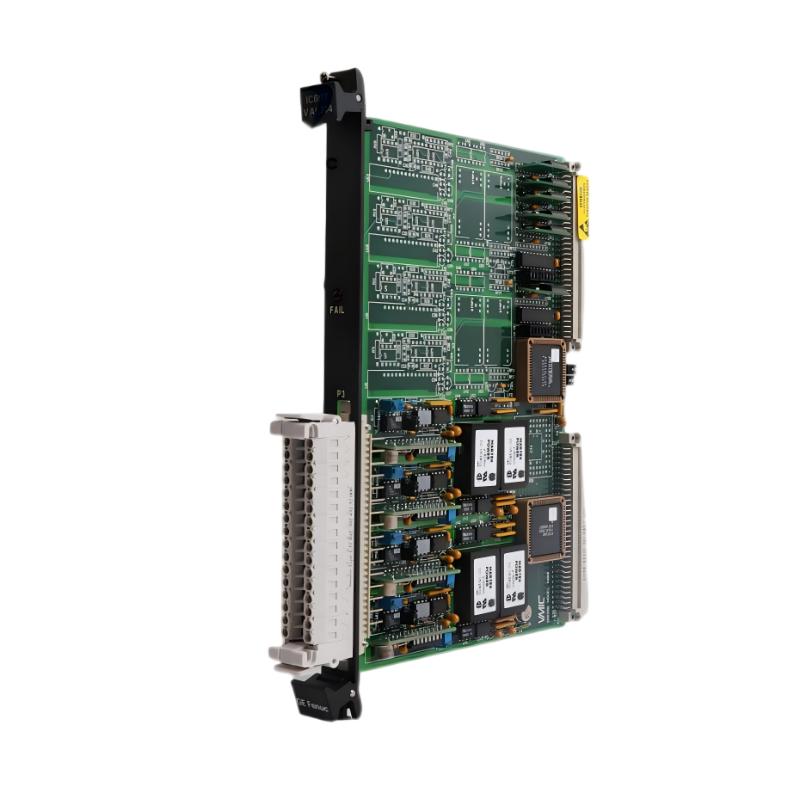

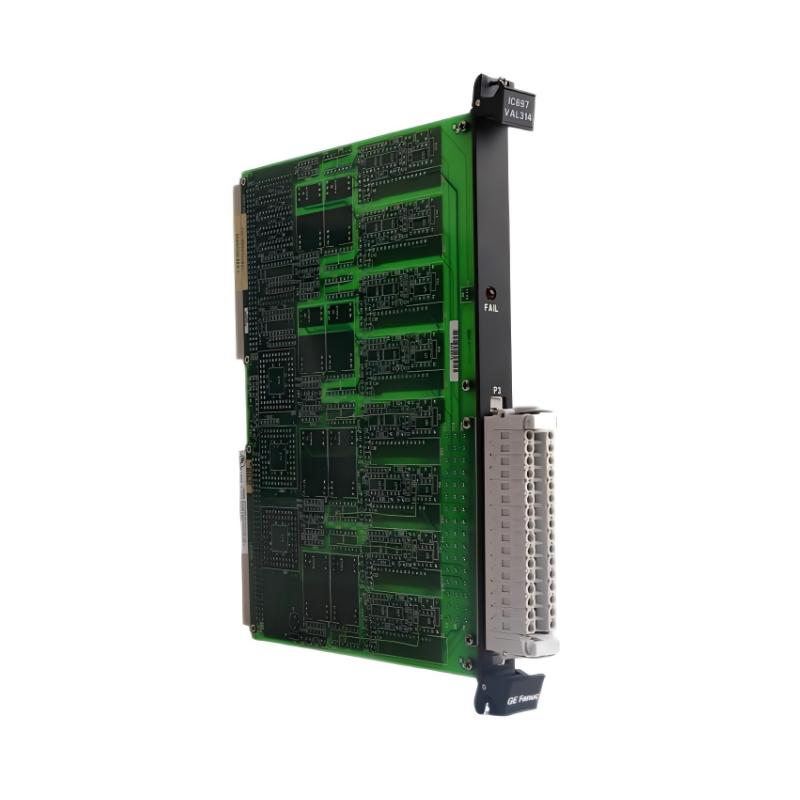

The GE IC697VAL314 is a precision 4-channel analog output module engineered for the GE Fanuc Series 90-70 PLC platform. Designed for demanding industrial environments, it delivers stable current and voltage signals to control field devices such as valves, drives, and actuators.
With its isolated architecture and flexible configuration, this module is a strong choice for applications requiring high accuracy, signal integrity, and reliable long-term performance.
Technical Specifications
Parameter
Details
Manufacturer
GE Fanuc / Emerson
Series
90-70 Series
Model Number
IC697VAL314
Module Type
Analog Output Module
Output Channels
4 isolated channels
Output Type
Current and voltage configurable
Output Ranges
4–20 mA / 0–20 mA / 0–10 V / ±10 V
Resolution
12-bit
Isolation
Channel-to-channel and channel-to-backplane
Configuration
Software configurable per channel
Backplane Interface
VME-based rack system
Function
Digital-to-analog conversion
Compatibility
GE 90-70 PLC systems
Operating Temperature
0°C to 60°C
Physical Dimensions & Weight
Size (L × W × H): 261 × 202 × 21 mm
Weight: 0.42 kg
Recommended Related Models
IC697VAL304 Analog Output Module
IC697VAL308 High-Density Output Module
IC697VAL134 Analog Input Module
IC697CPU780 High-Performance CPU
IC697BEM731 Bus Expansion Module
Popular GE 90-70 Models
IC697MDL740 Digital Output Module
IC697MDL753 High-Density Output Module
IC697MEM731 Memory Expansion Module
IC697MSC800 System Interface Module
IC697PWR711 Power Supply Module
Applications
The IC697VAL314 is widely used in precision control systems where stable analog output is critical:
Process control (flow, pressure, temperature loops)
Valve and actuator positioning systems
Variable frequency drive (VFD) control
Power plant automation
Chemical and petrochemical production
It excels in applications where accurate current loop control (4–20 mA) is essential.
Advantages
Dual Signal Capability
Supports both current and voltage outputs, increasing flexibility.
High Accuracy Control
12-bit resolution ensures precise signal generation.
Isolated Channel Design
Minimizes noise interference and improves system stability.
Flexible Configuration
Each channel can be independently configured via software.
Industrial Reliability
Built for continuous operation in harsh environments.
Efficient System Integration
Seamlessly integrates into GE 90-70 PLC racks.
Technical FAQs
1. What is the IC697VAL314 used for?
It converts PLC digital values into analog signals to control external devices.
2. How many output channels are available?
It provides 4 isolated analog output channels.
3. What output types are supported?
Both current (4–20 mA) and voltage outputs.
4. What is the resolution?
12-bit analog output resolution.
5. Is each channel configurable?
Yes, each channel can be independently configured.
6. Does it provide isolation?
Yes, full channel-to-channel and backplane isolation.
7. What are the dimensions and weight?
261 × 202 × 21 mm, 0.42 kg.
8. Is it suitable for modern systems?
Primarily used in legacy GE 90-70 PLC systems.
9. What industries commonly use it?
Energy, oil & gas, chemical processing, and manufacturing.
10. Why is it important in automation systems?
Because it ensures precise and stable analog control signals for industrial processes.
