Introduction

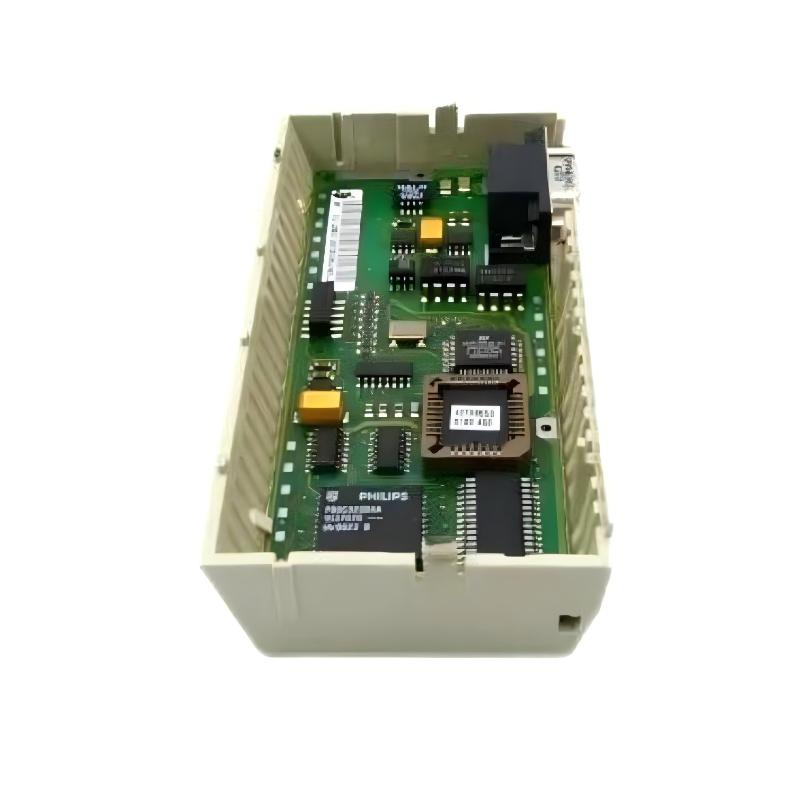

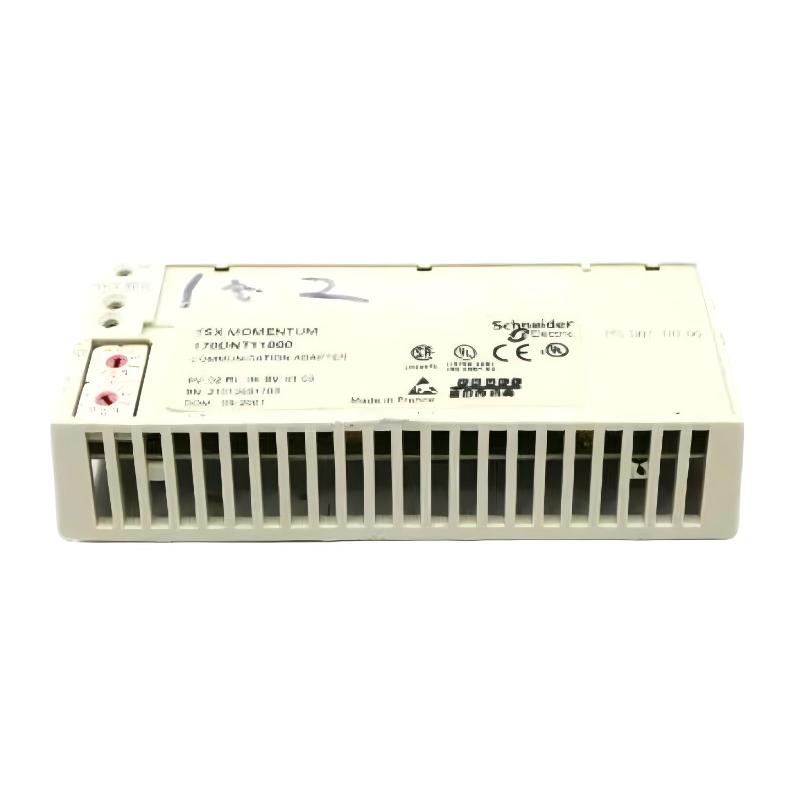

The Schneider 170DNT11000C Profibus DP Communication Adapter is a powerful and compact solution designed to enhance the connectivity of your Modicon PLC system by enabling communication over the Profibus DP network. Whether you're expanding your existing system or integrating new devices, this adapter provides fast and reliable communication for improved process control and data exchange. With its durable design and seamless integration, it is an ideal choice for automation systems across various industries, ensuring continuous, real-time communication and high system performance.

Technical Specifications

Feature	Specification
Dimensions (L x W x H)	47.5 × 125 × 141.5 mm
Weight	0.07 kg (0.15 lb)
Communication Protocol	Profibus DP
Mounting	DIN Rail Mountable
Operating Temperature Range	-10°C to +60°C
Data Transfer Rate	Up to 12 Mbps
Protection Features	Industrial-grade protection for stable communication

Applications

The Schneider 170DNT11000C Profibus DP Communication Adapter is designed to enable seamless communication between Schneider Electric’s Modicon PLCs and field devices over a Profibus DP network. It is ideal for industrial automation systems that require fast, reliable, and flexible communication between programmable logic controllers (PLCs) and a wide range of peripheral devices such as sensors, actuators, and other control systems. Commonly used in manufacturing, process control, automotive, and energy sectors, this communication adapter helps enhance the interoperability and data exchange across your system, improving overall process efficiency and monitoring.

Advantages

Enhanced Communication Speed: The 170DNT11000C adapter provides high-speed communication over the Profibus DP network, ensuring real-time data exchange between devices and the Modicon PLC.
Compact and Lightweight: Measuring 47.5 × 125 × 141.5 mm and weighing just 0.07 kg (0.15 lb), the adapter is extremely compact, making it easy to integrate into space-constrained control panels and systems.
Seamless Integration: Designed to integrate easily with Schneider Electric’s Modicon PLCs and other Profibus-compatible devices, this communication adapter enables quick and straightforward system upgrades or expansions.
Reliable Communication: The Profibus DP protocol offers high reliability, allowing for secure and continuous data transmission even in demanding industrial environments.
Durable Design: Built to withstand industrial conditions, the 170DNT11000C is designed for long-lasting performance, ensuring your automation system runs smoothly without interruptions.
Flexible Configuration: This adapter supports various field devices connected to the Profibus DP network, providing the flexibility needed to adapt to a wide variety of applications.

Technical FAQs

What is the purpose of the Schneider 170DNT11000C Profibus DP Communication Adapter?
The 170DNT11000C enables communication between Schneider Electric’s Modicon PLCs and field devices over a Profibus DP network, facilitating high-speed data exchange in industrial automation systems.
What is the weight of the Schneider 170DNT11000C?
The adapter weighs just 0.07 kg (0.15 lb), offering a lightweight and compact solution for integrating Profibus communication capabilities into your control system.
How is the 170DNT11000C installed?
The Profibus DP Communication Adapter can be easily mounted on standard DIN rails and connected to the Profibus network, providing hassle-free installation.
Can the 170DNT11000C be used with other PLC systems besides Schneider's Modicon series?
While the adapter is optimized for Schneider Electric’s Modicon PLCs, it is compatible with any Profibus-compatible system, enabling integration into a variety of automation setups.
What Profibus devices can the 170DNT11000C communicate with?
The adapter is designed to communicate with a wide range of Profibus DP devices, including sensors, actuators, variable frequency drives (VFDs), and other automation equipment.
What is the operating temperature range for the 170DNT11000C?
The adapter operates within a temperature range of -10°C to +60°C, making it suitable for use in various industrial environments.
How fast is the data transmission over the Profibus DP network?
Profibus DP allows for fast data exchange, with speeds of up to 12 Mbps, ensuring quick and real-time communication in automation processes.
Does the 170DNT11000C support redundancy?
While the 170DNT11000C is not inherently redundant, it can be integrated into systems that utilize Profibus redundancy features for increased reliability in critical applications.
Is the 170DNT11000C suitable for hazardous environments?
While the adapter is designed for robust industrial environments, it should be enclosed in a suitable protective housing if used in hazardous or explosive atmospheres to ensure safety and compliance.
How does the 170DNT11000C improve system performance?
By enabling fast, reliable communication between field devices and PLCs, the adapter enhances overall system performance, providing real-time control and monitoring, which is essential for efficient industrial operations.
