Introduction

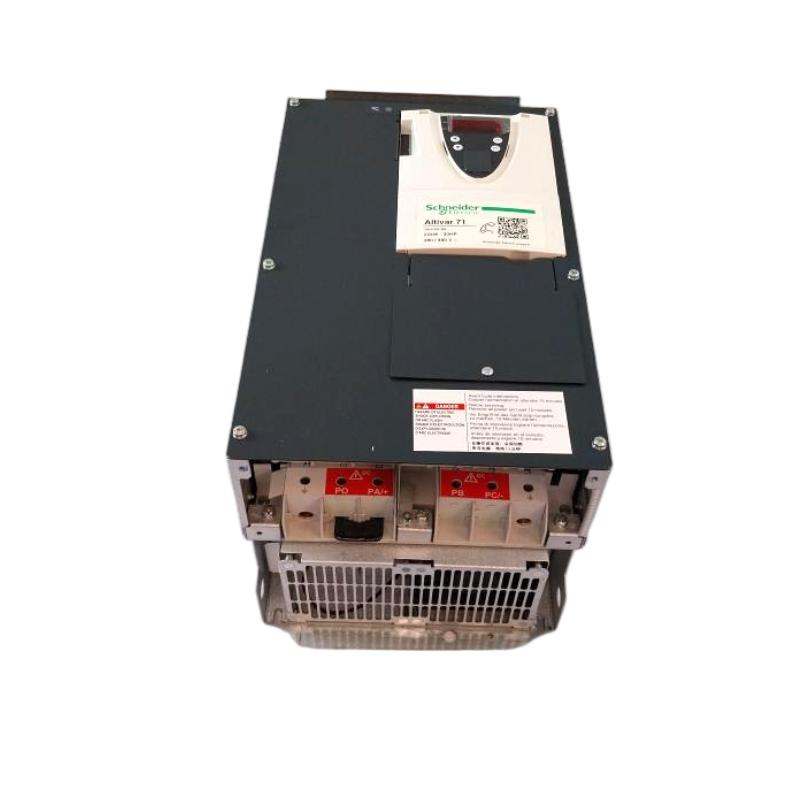

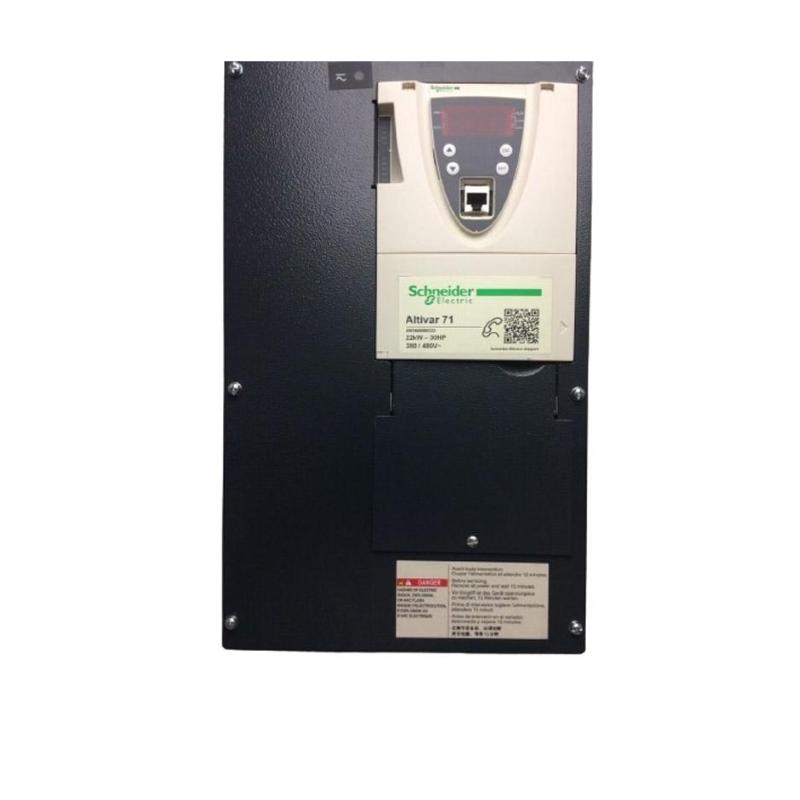

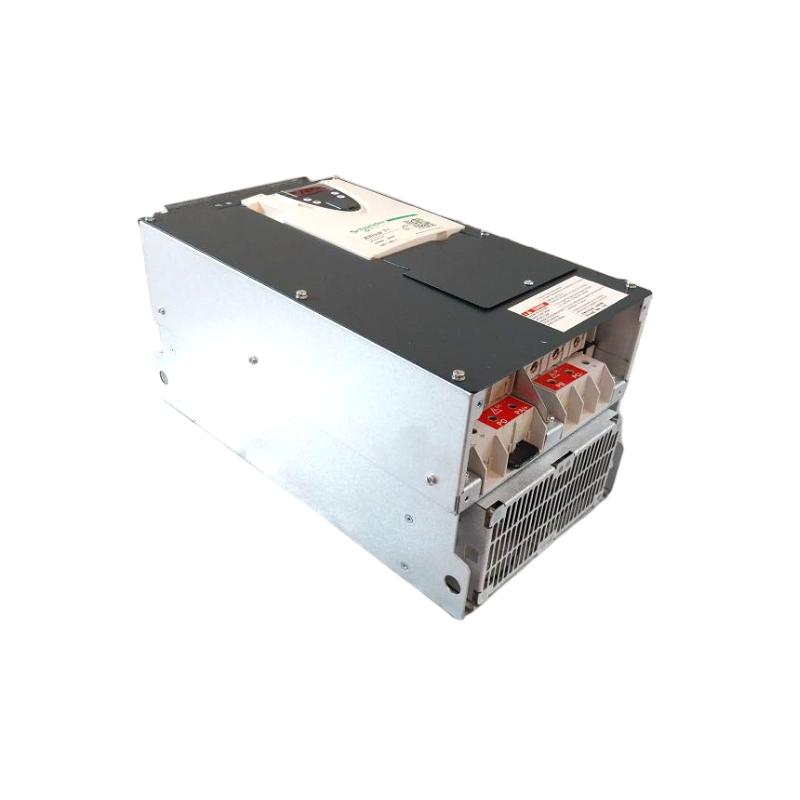

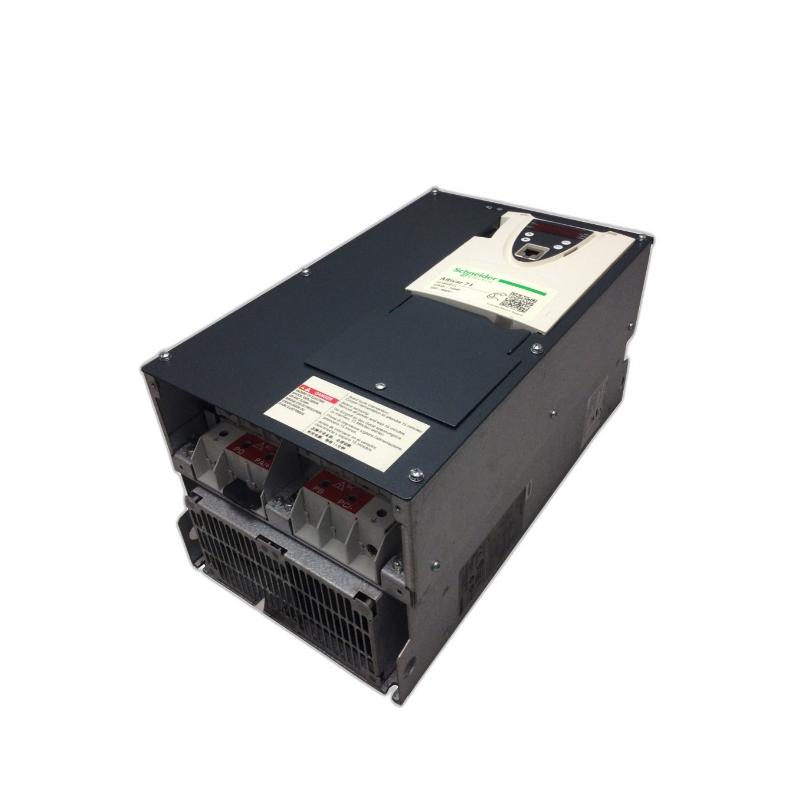

The Schneider ATV71HD22N4Z Variable Speed Drive is a high-performance solution designed to control large three-phase motors in industrial environments. Offering a variety of motor control options, energy-saving features, and robust protection mechanisms, the ATV71HD22N4Z is ideal for complex applications that require reliable, precise motor control over a wide range of operating conditions. Whether controlling pumps, fans, or other heavy machinery, this drive ensures smooth operation and long-lasting performance, helping businesses optimize their operations and reduce energy costs.

Technical Specifications

Feature	Specification
Dimensions (L x W x H)	420 × 236 × 230 mm
Weight	21 kg (46.3 lb)
Input Voltage	380-480 V, 3-phase
Output Frequency Range	0 to 500 Hz
Control Mode	V/f Control, Vector Control
Motor Type	Three-phase asynchronous motors
Protection Features	Overload, short circuit, overtemperature, phase loss
Communication Protocols	Modbus, CANopen
Operating Temperature Range	-10°C to +50°C
Mounting	DIN Rail or Panel Mountable

Applications

The Schneider ATV71HD22N4Z Variable Speed Drive is engineered for high-performance motor control, delivering precise speed and torque management for large industrial systems. It is ideal for controlling large motors in applications such as water and wastewater treatment, HVAC, material handling, conveyors, and high-power pumps. This robust drive is perfect for environments requiring high operational reliability, energy efficiency, and precise control. Its powerful features make it well-suited for complex automation systems across sectors such as manufacturing, oil and gas, and energy.

Advantages

High-Performance Motor Control: The ATV71HD22N4Z provides advanced motor control capabilities, including V/f and vector control, allowing for accurate speed and torque regulation, making it ideal for high-demand industrial applications.
Energy Efficiency: By dynamically adjusting the motor speed to match operational demands, this variable speed drive helps to minimize energy consumption, leading to significant savings in power usage over time.
Heavy-Duty Design: With a robust construction and dimensions of 420 × 236 × 230 mm, the ATV71HD22N4Z weighs 21 kg (46.3 lb), making it suitable for large-scale industrial operations where durability and long-term reliability are essential.
Enhanced Protection Features: Built-in protections include overload, short circuit, overtemperature, and phase loss, ensuring reliable operation and preventing motor damage in harsh conditions.
Flexible Integration: Supporting a variety of communication protocols, including Modbus and CANopen, the ATV71HD22N4Z can be easily integrated into existing automation systems, enabling centralized control and monitoring.
User-Friendly Interface: The intuitive interface simplifies configuration, allowing for quick and easy installation and programming, reducing setup time in complex applications.

Technical FAQs

What is the purpose of the Schneider ATV71HD22N4Z Variable Speed Drive?
The ATV71HD22N4Z is designed to provide precise control of large motors, optimizing speed and torque in industrial applications such as pumps, conveyors, and HVAC systems.
What is the weight of the Schneider ATV71HD22N4Z?
The ATV71HD22N4Z weighs 21 kg (46.3 lb), making it a heavy-duty solution suitable for large-scale industrial environments.
What types of motors can the ATV71HD22N4Z control?
This drive is capable of controlling three-phase asynchronous motors, commonly used in high-power applications like industrial fans, pumps, and conveyors.
What protection features are included in the ATV71HD22N4Z?
The drive offers extensive protection, including overload, short circuit, overtemperature, and phase loss protection, ensuring safe and reliable operation of both the motor and the drive.
How does the ATV71HD22N4Z improve energy efficiency?
The drive optimizes motor speed based on operational needs, ensuring that power consumption is reduced by only using the necessary amount of energy for the task, leading to significant cost savings.
Can the ATV71HD22N4Z be integrated into existing control systems?
Yes, the ATV71HD22N4Z supports a variety of communication protocols, such as Modbus and CANopen, making it easy to integrate into your existing automation system for centralized monitoring and control.
What is the operating temperature range of the ATV71HD22N4Z?
The drive operates within a temperature range of -10°C to +50°C, making it suitable for most industrial environments, even those with moderate heat.
What type of control modes does the ATV71HD22N4Z offer?
The ATV71HD22N4Z supports V/f control and vector control, offering flexible options for managing motor speed, torque, and performance across a variety of applications.
How is the ATV71HD22N4Z mounted and installed?
The drive can be mounted easily on a standard DIN rail or in a panel, offering flexible installation options to suit various industrial settings.
What applications benefit the most from the ATV71HD22N4Z?
The ATV71HD22N4Z is ideal for high-power applications such as large pumps, compressors, conveyors, and HVAC systems, where precision motor control and energy savings are crucial.
