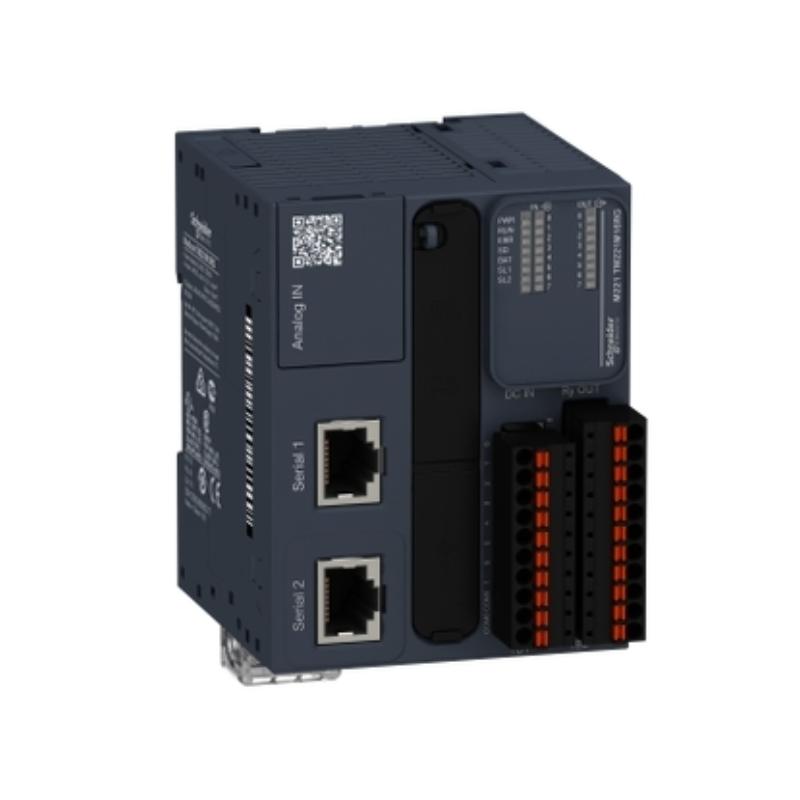

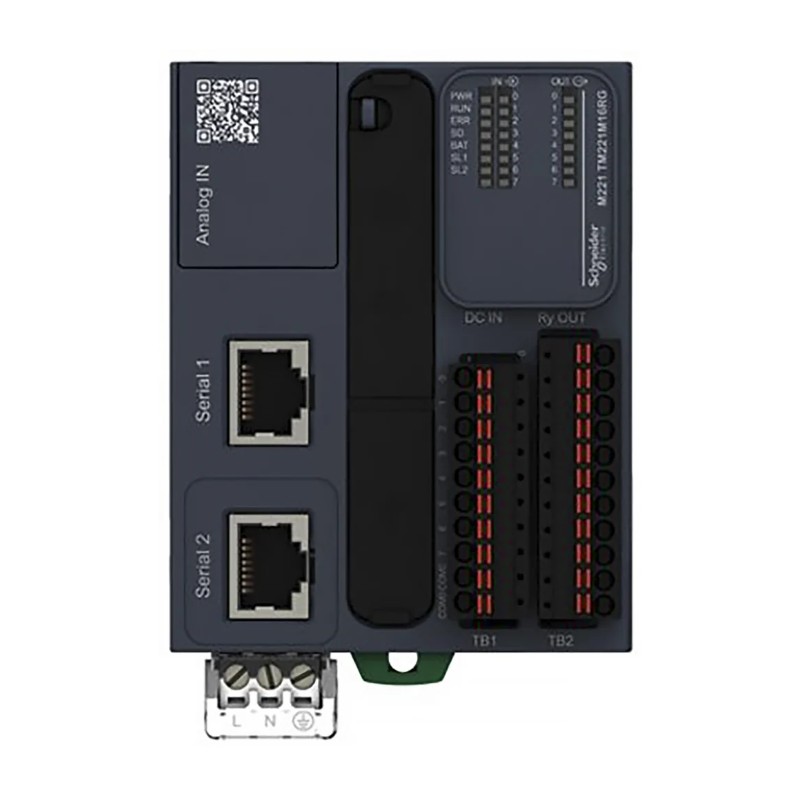

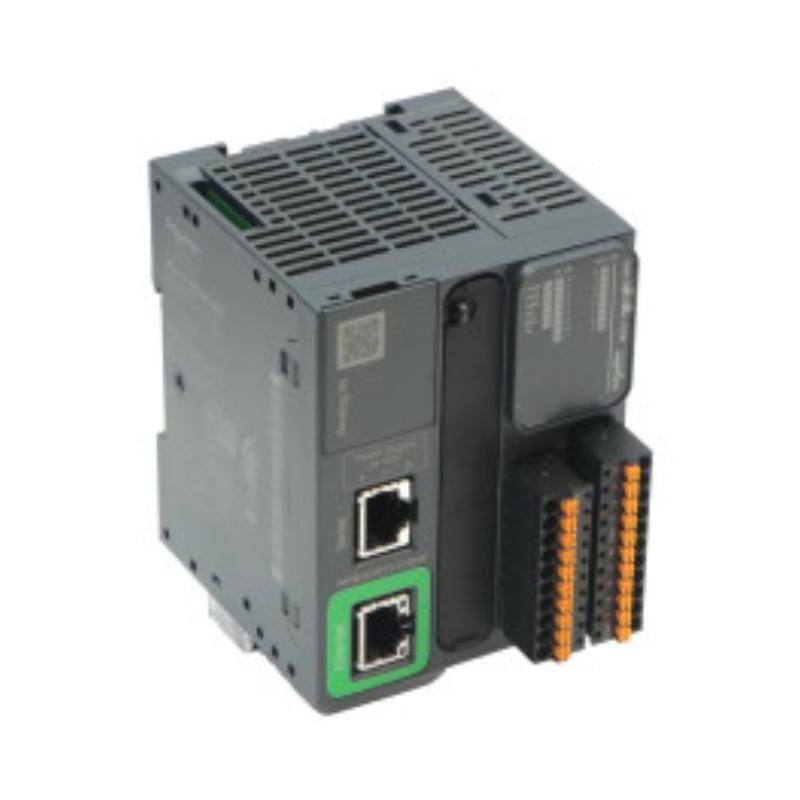

Schneider TM221M16RG Programmable Logic Controller

Applications

The Schneider TM221M16RG Programmable Logic Controller is designed for compact and efficient control in small to medium-sized automation systems. Perfect for applications that require reliable control over processes such as material handling, packaging, HVAC systems, and small machine automation, this PLC offers an excellent solution for industries such as manufacturing, water treatment, and building automation. With its versatile input/output options, scalability, and user-friendly programming, the TM221M16RG ensures smooth and precise control in a variety of industrial processes.

Advantages

• Compact and Lightweight Design: With dimensions of 90 × 70 × 70 mm and a weight of just 0.264 kg (0.58 lb), the TM221M16RG offers a space-saving solution for installations where space is limited, without compromising on performance.
• Integrated I/O: The TM221M16RG comes with 16 I/O points (8 inputs and 8 outputs), making it ideal for small-scale applications that require simple but reliable automation and control.
• User-Friendly Programming: Equipped with Schneider Electric’s intuitive SoMachine Basic software, the TM221M16RG simplifies programming, enabling users to quickly configure and deploy the system without advanced automation expertise.
• Flexible Communication Options: This PLC supports Modbus communication, allowing it to integrate easily into existing control networks and communicate with other Schneider Electric devices and external systems.
• Energy-Efficient Operation: Designed for efficiency, the TM221M16RG provides energy savings and operational cost reductions, which is essential for long-term sustainability in industrial applications.
• Rugged and Reliable: Built to perform in demanding industrial environments, the TM221M16RG operates reliably in temperatures ranging from -10°C to +60°C, ensuring robust performance even in challenging conditions.

Technical FAQs

1. What is the purpose of the Schneider TM221M16RG Programmable Logic Controller?
   The TM221M16RG is designed to control small to medium automation processes, offering integrated I/O and reliable control for applications like material handling, packaging, and HVAC systems.
2. What is the weight of the Schneider TM221M16RG?
   The TM221M16RG weighs 0.264 kg (0.58 lb), making it an ideal choice for installations where space is limited but functionality and performance are paramount.
3. What type of I/O does the TM221M16RG offer?
   The controller includes 16 I/O points—8 digital inputs and 8 digital outputs—making it a versatile solution for small control applications that require basic automation functions.
4. How is the TM221M16RG programmed?
   The TM221M16RG is programmed using Schneider Electric’s SoMachine Basic software, which is user-friendly and allows for rapid configuration and deployment without needing advanced automation knowledge.
5. Can the TM221M16RG be integrated into larger systems?
   Yes, the TM221M16RG supports Modbus communication, making it easy to integrate into existing automation systems and networked environments, enabling data exchange with other devices.
6. What environmental conditions is the TM221M16RG designed to withstand?
   The controller is built to operate within a temperature range of -10°C to +60°C, ensuring reliable performance in industrial settings with moderate environmental conditions.
7. How does the TM221M16RG improve system efficiency?
   Its compact design, integrated I/O, and energy-efficient operation contribute to reduced energy consumption and operational costs, making it an efficient choice for small automation systems.
8. Can the TM221M16RG be expanded with additional modules?
   While the TM221M16RG offers 16 I/O points, it can be expanded with additional I/O modules from Schneider Electric’s range, providing scalability as your automation needs grow.
9. What industries can benefit from the TM221M16RG?
   Industries such as manufacturing, building automation, packaging, water treatment, and material handling can benefit from the TM221M16RG due to its compact size, reliability, and flexible functionality.
10. How easy is it to integrate the TM221M16RG into existing automation systems?
    The TM221M16RG is designed for easy integration, with Modbus communication support and user-friendly programming, making it simple to incorporate into existing control systems.
