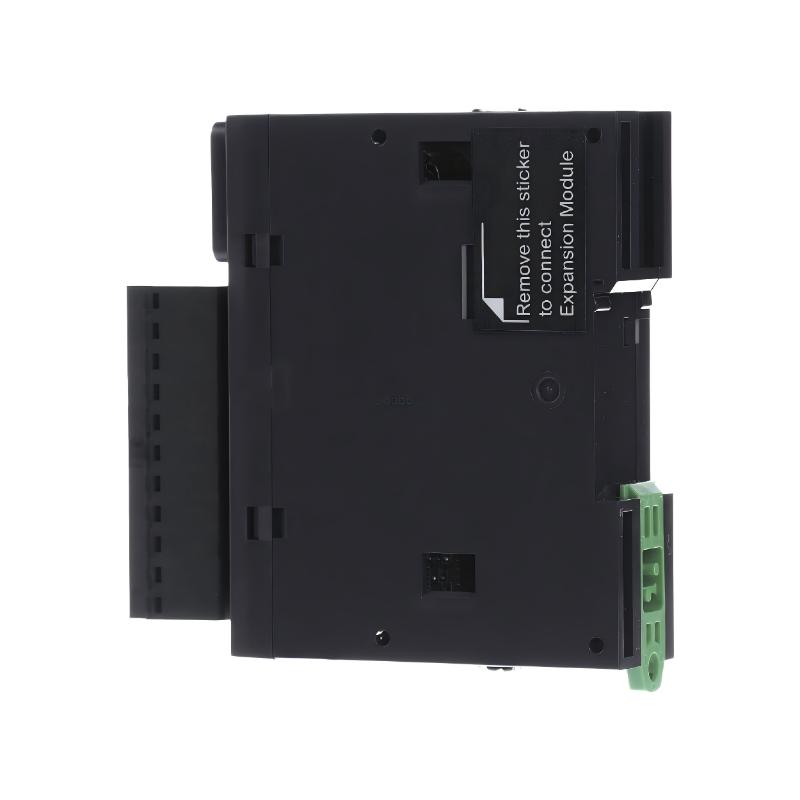

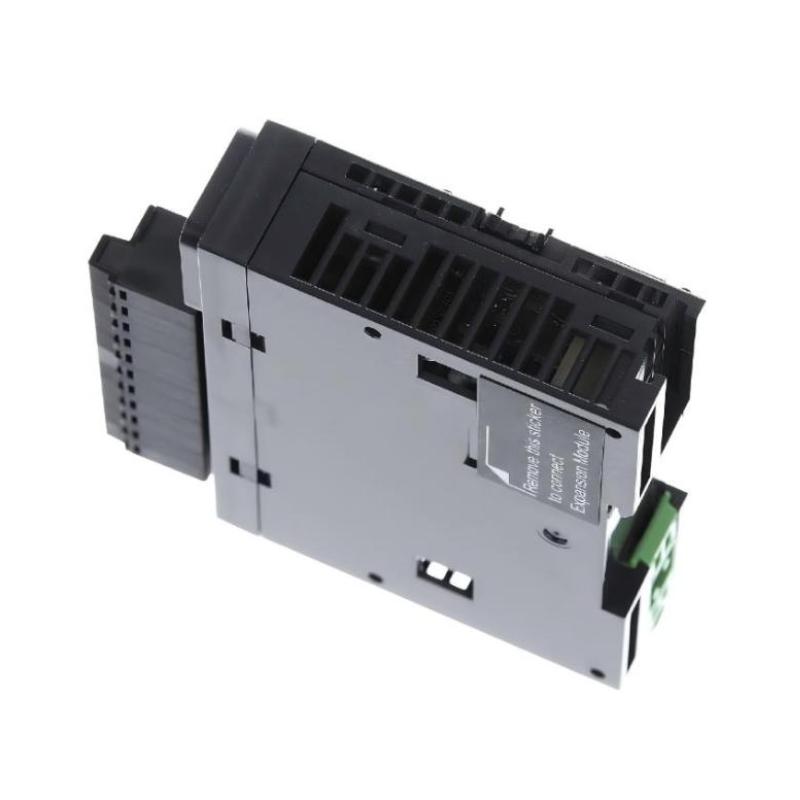

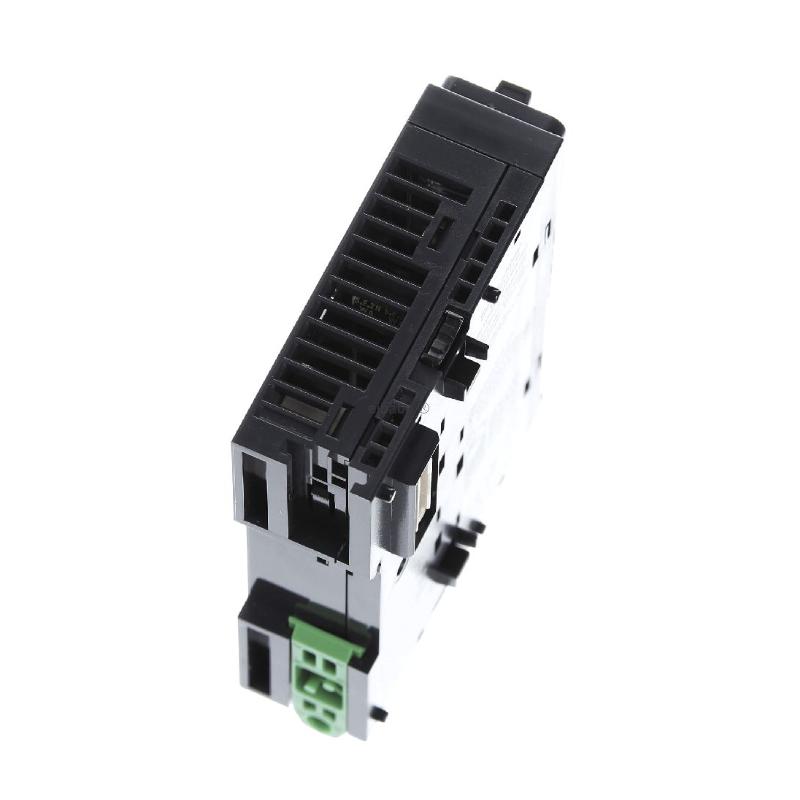

Schneider TM3DI8G Numeric Input Module

Applications

The Schneider TM3DI8G Numeric Input Module is designed to provide fast and reliable numeric input capabilities for Schneider Electric’s TM3 series PLCs. With 8 discrete digital inputs, this module is ideal for applications that require precise monitoring and data acquisition from numeric signals such as pulse counting, position tracking, or event detection. It is commonly used in industries such as manufacturing, process automation, material handling, and machine control. The TM3DI8G module excels in applications where quick response times and accurate data capture are crucial, such as monitoring speed, temperature, or motion in real-time.

Advantages

• Compact and Lightweight Design: With dimensions of 90 × 27.4 × 84.6 mm and weighing just 0.085 kg (0.19 lb), the TM3DI8G offers a space-efficient solution for adding numeric input capabilities to your automation system.
• 8 Digital Numeric Inputs: This module provides 8 discrete digital input channels, ideal for handling a moderate number of numeric signals or pulse events from sensors, encoders, and switches.
• High-Speed Data Processing: The TM3DI8G is optimized for fast numeric input processing, ensuring timely response and accurate data acquisition for applications requiring real-time monitoring and control.
• Seamless Integration with TM3 PLCs: Designed specifically for use with Schneider Electric’s TM3 series PLCs, the TM3DI8G module ensures easy integration and scalability in your control system.
• Reliable Performance in Harsh Environments: Built to operate within a temperature range of -10°C to +60°C, the TM3DI8G module ensures reliable operation even in challenging industrial environments.
• Cost-Effective Expansion: Offering a cost-effective solution for systems that need numeric input capabilities, the TM3DI8G module delivers high performance without the need for additional complex hardware.

Technical FAQs

1. What is the purpose of the Schneider TM3DI8G Numeric Input Module?
   The TM3DI8G module is designed to provide 8 discrete digital inputs for applications that require fast and accurate processing of numeric signals such as pulse counting, position tracking, or event detection.
2. What is the weight of the Schneider TM3DI8G?
   The TM3DI8G weighs 0.085 kg (0.19 lb), making it a lightweight and compact solution for adding numeric input capabilities to your automation system.
3. How many digital inputs does the TM3DI8G provide?
   The TM3DI8G module offers 8 discrete digital inputs, which is ideal for systems that require moderate input handling from devices like encoders or sensors.
4. What types of signals can the TM3DI8G handle?
   The TM3DI8G module processes digital signals such as pulse counts and binary data, making it ideal for applications like position tracking, speed monitoring, and event detection.
5. How is the TM3DI8G module configured and programmed?
   The TM3DI8G can be easily configured and programmed using Schneider Electric’s SoMachine or EcoStruxure Machine Expert software, which provides a user-friendly interface for setup and diagnostics.
6. What is the operating temperature range of the TM3DI8G?
   The module operates in temperatures ranging from -10°C to +60°C, making it suitable for use in various industrial environments with temperature fluctuations.
7. What industries benefit from the TM3DI8G?
   Industries such as manufacturing, automation, material handling, and process control can benefit from the TM3DI8G’s ability to accurately capture and process numeric data, enabling real-time monitoring and control.
8. Can the TM3DI8G module be expanded with additional I/O modules?
   Yes, the TM3DI8G is part of the modular TM3 series and can be easily expanded with additional digital or analog I/O modules to meet the growing needs of your automation system.
9. How does the TM3DI8G contribute to system efficiency?
   By providing fast and reliable numeric input processing, the TM3DI8G improves system efficiency by enabling quick data capture, reducing system response times, and enhancing overall control accuracy.
10. What is the key benefit of using the TM3DI8G in automation applications?
    The TM3DI8G is ideal for applications that require accurate and high-speed processing of numeric signals, making it perfect for real-time data acquisition and monitoring in a wide range of automation systems.
