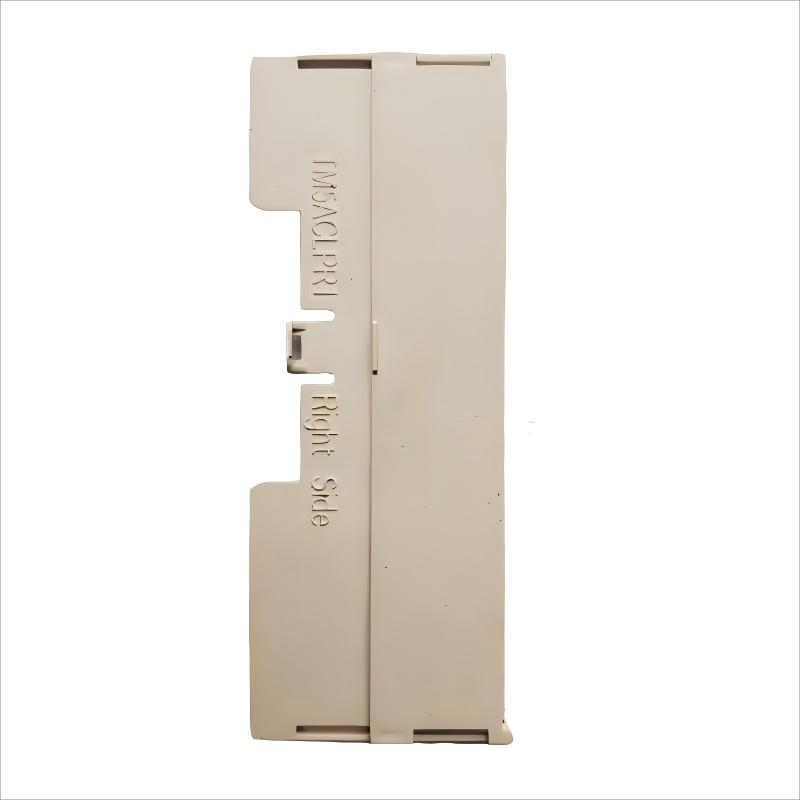

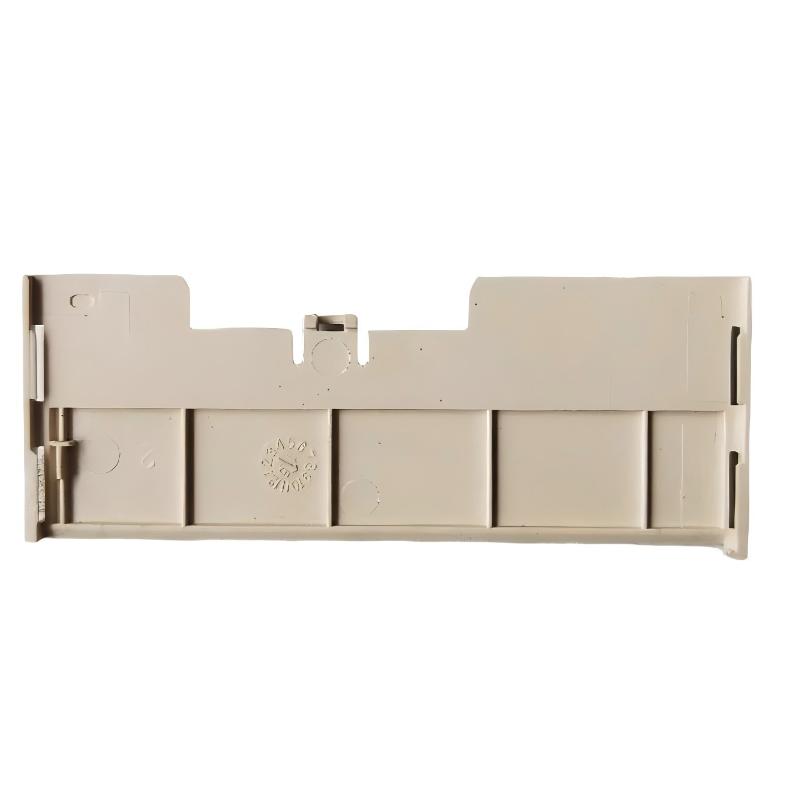

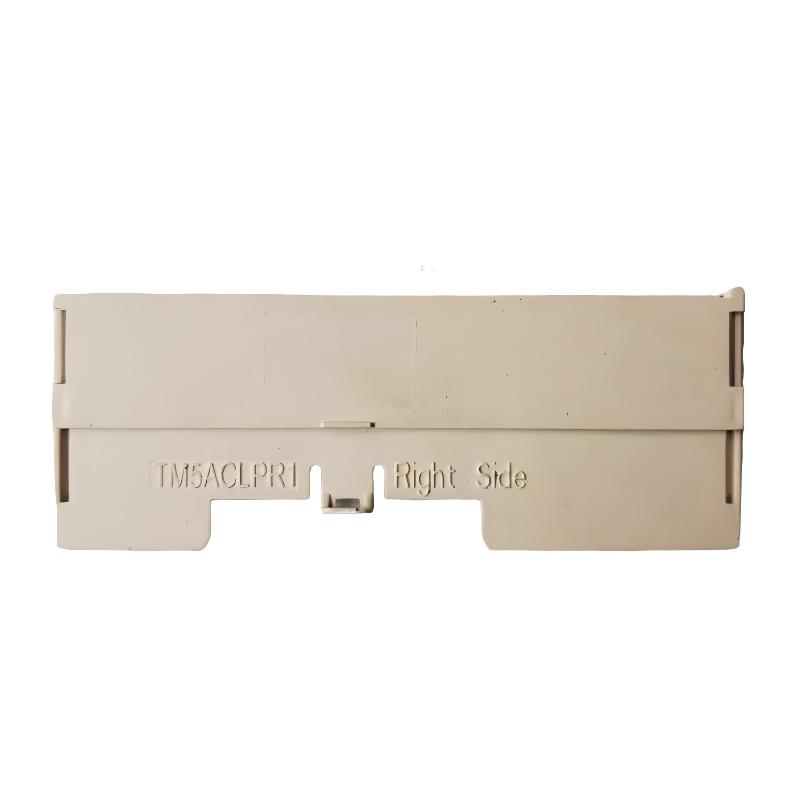

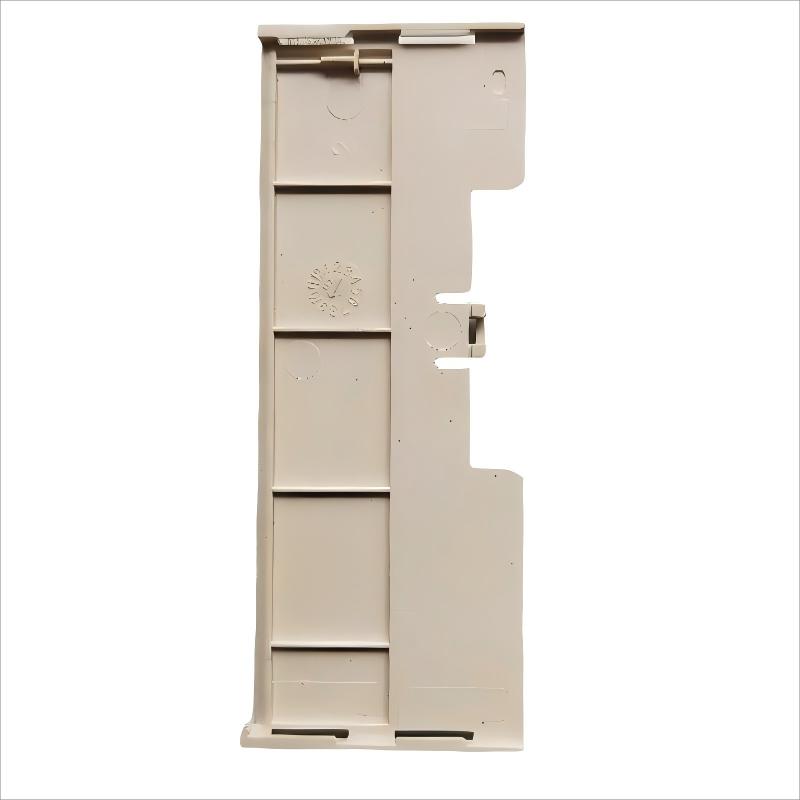

Schneider TM5ACLPR1 10-Channel Bus Base locking Plate

Applications

The Schneider TM5ACLPR1 10-Channel Bus Base Locking Plate is a critical accessory designed to secure and stabilize the bus base in Schneider Electric’s TM5 I/O system. It is used in applications where secure mounting of I/O modules is essential for maintaining system integrity. The locking plate is an essential part of installations requiring the TM5 I/O system to be safely and reliably mounted, ensuring that the modules remain in position even under vibration or movement. Ideal for industries such as manufacturing, robotics, and automation, the TM5ACLPR1 provides a stable and secure foundation for controlling I/O modules in demanding environments.

Advantages

• Compact and Lightweight: With dimensions of 16 × 53 × 105 mm and a weight of only 0.025 kg (0.055 lb), the TM5ACLPR1 locking plate offers a lightweight, yet durable solution for securing I/O modules.
• Enhanced Security for Modules: This locking plate ensures that the bus base and connected modules remain securely in place, preventing accidental disconnections or module displacement in high-vibration environments.
• Easy Installation: Designed to fit seamlessly into the TM5 I/O system, the TM5ACLPR1 can be quickly installed with minimal effort, enhancing the overall ease of system setup.
• Durable and Reliable: Built to withstand industrial environments, the locking plate ensures a long-lasting and secure installation, even in harsh conditions.
• Cost-Effective Solution: The TM5ACLPR1 provides an affordable way to ensure the secure and reliable mounting of your TM5 I/O modules, improving the performance and longevity of your automation system.

Technical FAQs

1. What is the purpose of the Schneider TM5ACLPR1 10-Channel Bus Base Locking Plate?
   The TM5ACLPR1 locking plate is used to securely fasten the bus base and connected I/O modules, ensuring they remain in place during operation and under challenging conditions.
2. What is the weight of the Schneider TM5ACLPR1?
   The TM5ACLPR1 weighs just 0.025 kg (0.055 lb), providing a lightweight yet durable solution for securing I/O modules in the TM5 system.
3. How does the TM5ACLPR1 improve system stability?
   The locking plate secures the bus base and modules, preventing them from dislodging due to vibrations, shocks, or movement in industrial environments, thus maintaining system stability.
4. How is the TM5ACLPR1 installed?
   The TM5ACLPR1 is designed for easy installation into the TM5 I/O system, simply locking the modules and bus base in place with minimal effort.
5. What types of environments is the TM5ACLPR1 suitable for?
   The TM5ACLPR1 is ideal for use in industrial environments where vibration or movement is common, such as in manufacturing, robotics, and automation systems.
6. What is the material of the TM5ACLPR1 locking plate?
   The TM5ACLPR1 is made from high-quality materials that ensure durability and resistance to wear, even in demanding industrial environments.
7. Can the TM5ACLPR1 be used with any other Schneider Electric modules?
   Yes, the TM5ACLPR1 locking plate is designed specifically for the TM5 I/O system but is compatible with various Schneider Electric I/O modules that require secure mounting.
8. How does the TM5ACLPR1 contribute to system reliability?
   By ensuring that the I/O modules are securely mounted, the TM5ACLPR1 helps reduce the risk of module disconnections, ensuring continuous, reliable operation in automation systems.
9. Is the TM5ACLPR1 easy to maintain?
   Yes, the TM5ACLPR1 locking plate requires minimal maintenance, providing a secure solution that enhances the overall reliability of the TM5 I/O system.
10. What is the key benefit of using the TM5ACLPR1 in automation applications?
    The TM5ACLPR1 locking plate provides enhanced stability and security for the I/O modules, ensuring that your TM5 system operates efficiently and reliably even in challenging industrial environments.
