Introduction

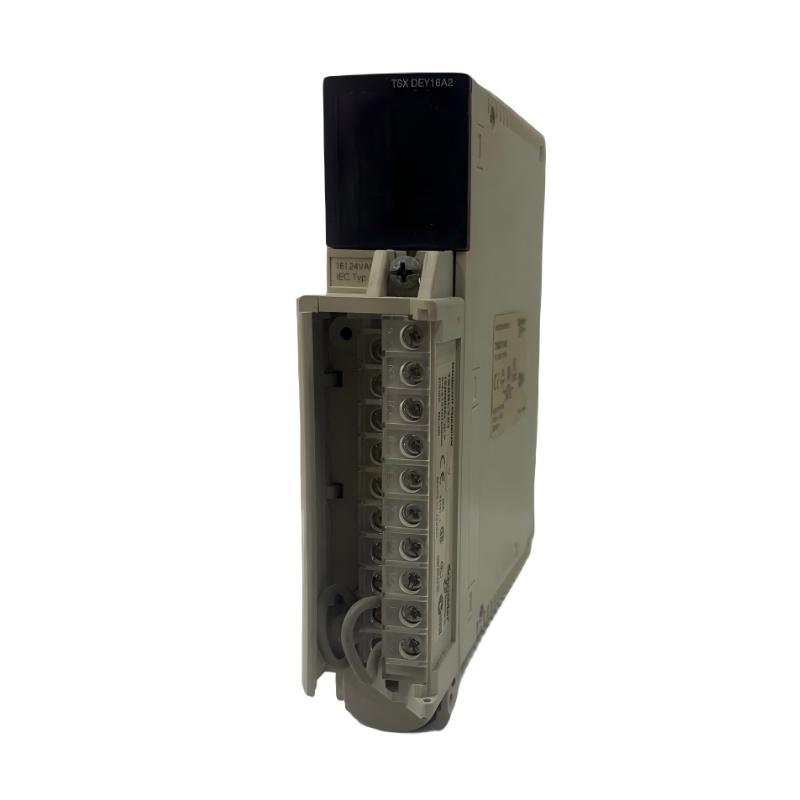

The Schneider TSXDEY16A2 Discrete Input Module is a reliable and compact solution designed to handle discrete input signals in industrial automation systems. It features 16 input channels, allowing it to effectively monitor on/off signals from a wide range of field devices. Its compatibility with Schneider Electric’s Modicon PLC systems ensures seamless integration, making it an ideal choice for expanding system capacity or upgrading existing setups. With its rugged design, ease of installation, and versatile functionality, the TSXDEY16A2 module is perfect for applications in manufacturing, process control, and energy management where accurate signal processing is critical for efficient system operation.

Technical Specifications

Feature	Specification
Dimensions (L x W x H)	55 × 180 × 260 mm
Weight	0.31 kg (0.68 lb)
Input Channels	16 discrete inputs
Signal Type	Discrete (on/off) signals
Mounting	Compatible with Modicon PLC systems
Operating Temperature Range	-10°C to +60°C
Protection	IP20 (for protection against dust and water ingress)

Applications

The Schneider TSXDEY16A2 Discrete Input Module is an essential component for Schneider Electric’s Modicon PLC systems, designed to handle discrete input signals in industrial automation applications. It is commonly used in manufacturing, process control, and automation systems that require real-time monitoring and control of on/off signals from field devices such as sensors, switches, and detectors. The module ensures reliable and precise signal processing, allowing operators to monitor the state of equipment, detect faults, and control operations. Its robust construction and versatility make it ideal for use in demanding environments that require accurate and secure signal transmission.

Advantages

Compact and Lightweight: The TSXDEY16A2 module is compact with dimensions of 55 × 180 × 260 mm and a weight of 0.31 kg (0.68 lb), making it easy to integrate into existing systems without taking up valuable space.
Reliable Signal Processing: This module supports 16 discrete input channels, providing a reliable solution for managing on/off signals from a variety of field devices. It ensures accurate signal processing and fast response times in real-time applications.
Flexible Integration: The TSXDEY16A2 is compatible with Schneider Electric’s Modicon PLC systems and can easily be integrated into existing control setups. It is ideal for expanding your system's input capacity while maintaining high reliability.
Durable and Robust Design: Built to withstand harsh industrial environments, the TSXDEY16A2 module is resistant to temperature variations, vibrations, and electromagnetic interference, ensuring consistent performance in demanding applications.
Easy Installation and Maintenance: The modular design of the TSXDEY16A2 allows for easy installation and replacement, reducing downtime during system setup or maintenance. The module can be mounted quickly, helping reduce overall system configuration time.
Cost-Effective Solution: With its affordable pricing and robust functionality, the TSXDEY16A2 module provides an excellent value, delivering the necessary input processing capability without breaking the budget.

Technical FAQs

What is the function of the Schneider TSXDEY16A2 Discrete Input Module?
The TSXDEY16A2 module processes discrete input signals, allowing for real-time monitoring and control of on/off devices such as sensors and switches in industrial automation systems.
What is the weight of the Schneider TSXDEY16A2 module?
The TSXDEY16A2 module weighs 0.31 kg (0.68 lb), providing a lightweight yet durable solution for adding discrete input channels to your automation system.
How many input channels does the TSXDEY16A2 module support?
The TSXDEY16A2 supports 16 discrete input channels, making it suitable for systems that need to process multiple on/off signals simultaneously.
What types of applications can benefit from the TSXDEY16A2 module?
The TSXDEY16A2 is ideal for applications in manufacturing, process control, and automation where monitoring and controlling on/off signals from field devices is crucial for system operation and performance.
Is the TSXDEY16A2 compatible with other Schneider Electric products?
Yes, the TSXDEY16A2 module is fully compatible with Schneider Electric’s Modicon PLC systems, and it can be easily integrated into new or existing setups.
What is the operating temperature range for the TSXDEY16A2 module?
The TSXDEY16A2 module operates effectively across a wide temperature range, making it suitable for use in various industrial environments that require stable and reliable performance.
How does the TSXDEY16A2 module improve system reliability?
By providing precise and fast signal processing for discrete inputs, the TSXDEY16A2 ensures reliable monitoring and control of field devices, which is critical for maintaining the overall reliability of an automation system.
Can the TSXDEY16A2 module be expanded?
Yes, the TSXDEY16A2 is part of Schneider Electric’s modular PLC system, meaning you can add more modules to expand the number of discrete input channels based on your system’s needs.
What types of field devices can be connected to the TSXDEY16A2 module?
The TSXDEY16A2 is designed to work with a wide range of field devices such as push buttons, limit switches, proximity sensors, and other devices that provide discrete on/off signals.
What is the key benefit of using the TSXDEY16A2 module in an automation system?
The TSXDEY16A2 module provides a reliable, efficient, and cost-effective solution for managing discrete input signals in automation systems, helping to ensure smooth and accurate system operation with minimal downtime.
