Introduction

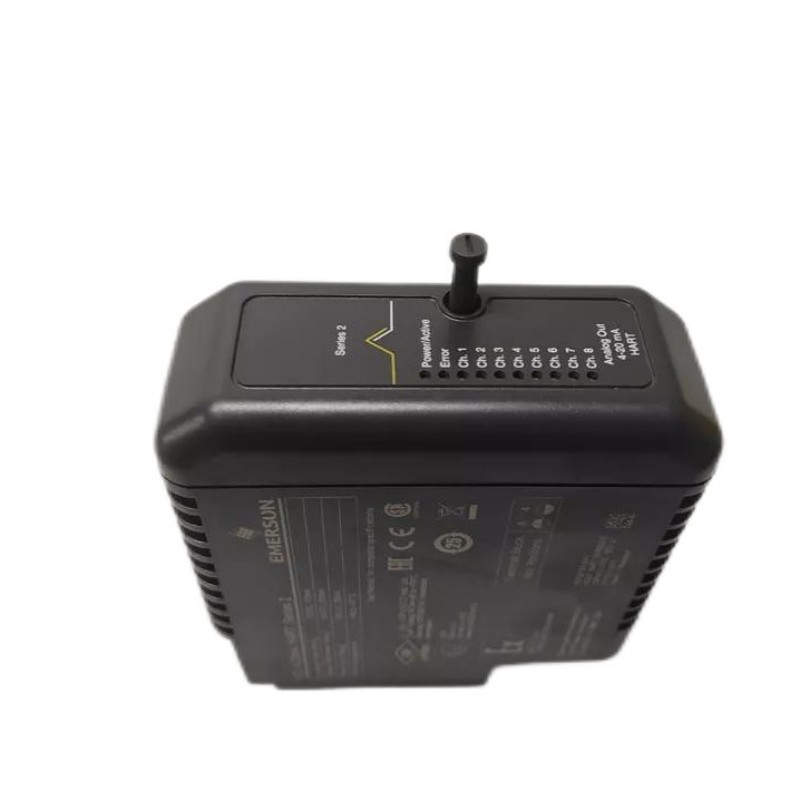

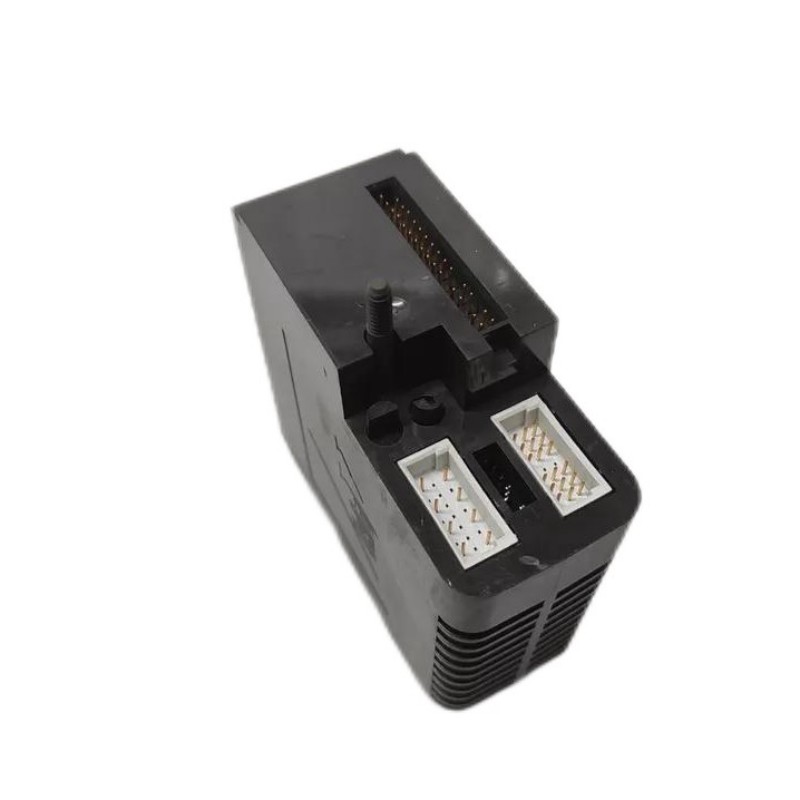

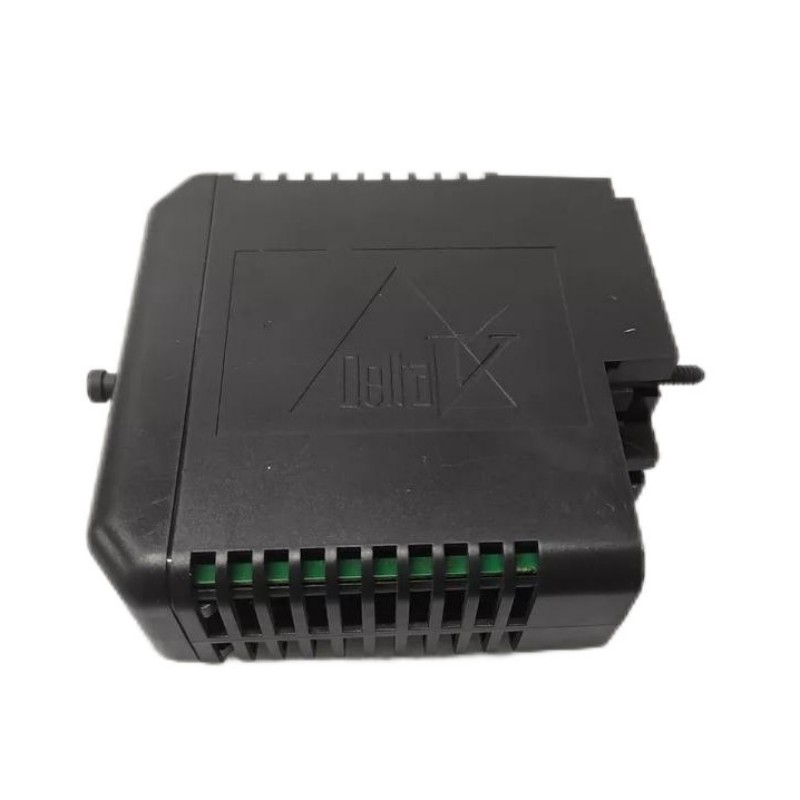

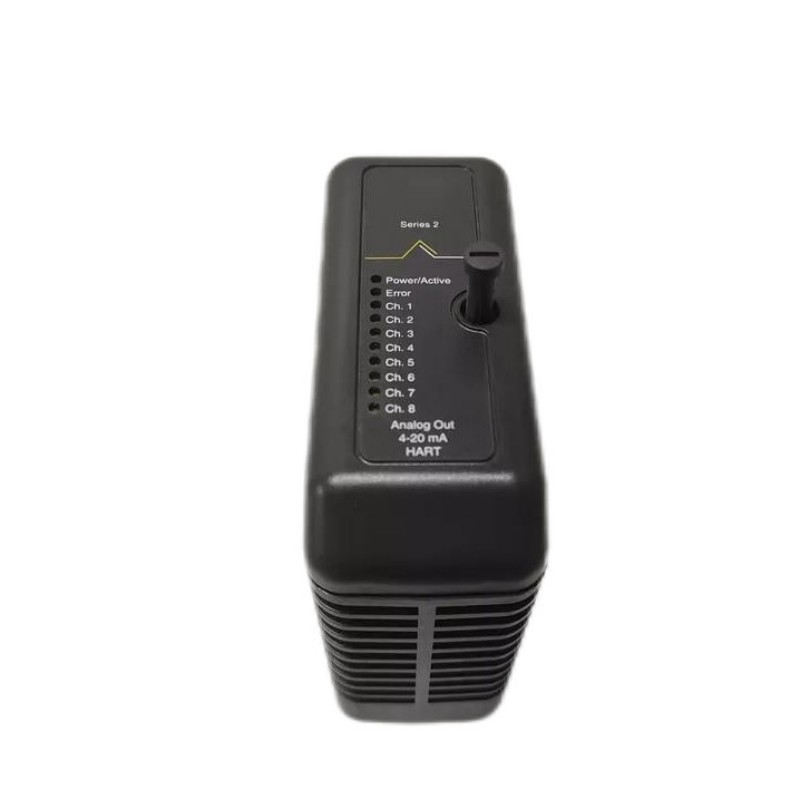

The Emerson VE4005S2B2 KJ3221X1-BA1 12P2531X092 Analog Output Card is an essential component for high-precision industrial control systems. With its ability to transmit accurate analog signals for a variety of control processes, it ensures seamless operation in systems that demand reliability and consistency. Whether used in process automation, energy systems, or chemical plants, this module offers a compact yet powerful solution to meet the most demanding control challenges.

Technical Specifications

Feature	Specification
Input Voltage	24VDC
Output Type	Voltage / Current
Power Consumption	3W
Operating Temperature	-20°C to 60°C
Mounting Type	DIN Rail
Protection Features	Overload, Overvoltage, Short-Circuit Protection
Dimensions (L x W x H)	107mm x 41mm x 105mm
Weight	0.231kg / 0.51lb

Applications

The Emerson VE4005S2B2 KJ3221X1-BA1 12P2531X092 Analog Output Card is a high-performance solution designed for industrial automation, process control, and instrumentation systems. This module provides precise analog signal output, ideal for applications in manufacturing, chemical processing, and energy management. With its robust design and ease of integration, it delivers consistent performance in a variety of demanding industrial environments.

Advantages

High Accuracy: Provides accurate and stable analog output signals to ensure the precision required for critical control applications.
Compact and Space-Saving: With compact dimensions of 107 x 41 x 105 mm, the module fits easily into tight spaces, making it perfect for systems with space limitations.
Versatile Output: Supports multiple output types, such as voltage and current, offering flexibility for a wide range of applications.
Reliability: Designed for long-term durability, the module operates reliably even in harsh industrial environments, minimizing downtime and maintenance.
Seamless Integration: Fully compatible with Emerson’s advanced control systems, ensuring smooth and quick integration into existing infrastructures.

Technical FAQs

What is the primary function of the Emerson VE4005S2B2 12P2531X092 Analog Output Card?
The card generates and transmits analog output signals for process control, ensuring precision and reliability in automated systems.
Which control systems are compatible with this analog output card?
The module is designed to work seamlessly with Emerson’s DeltaV™ and other advanced control systems, offering simple integration.
What is the size of the VE4005S2B2 Analog Output Card?
The card measures 107 mm x 41 mm x 105 mm, providing a compact solution that fits into tight spaces in your control system.
Does this analog output card support both voltage and current output?
Yes, it supports both voltage and current outputs, offering flexibility depending on your application’s needs.
How does this module handle electrical noise?
The VE4005S2B2 card is designed to minimize the impact of electrical noise, ensuring stable and accurate analog output even in noisy industrial environments.
What is the weight of the 12P2531X092 Analog Output Card?
The module weighs 0.231 kg (0.51 lb), making it lightweight and easy to install.
Is this module suitable for outdoor applications?
While designed primarily for indoor environments, the module can be adapted for outdoor use with proper enclosure for protection against environmental factors.
What safety features are included in the module?
The module includes built-in protection mechanisms against overloads, short circuits, and overvoltage, ensuring safe operation in industrial applications.
How easy is it to install this card into a control system?
The VE4005S2B2 module is designed for easy DIN rail mounting and integrates seamlessly into Emerson control systems, making installation straightforward.
Does the module require frequent calibration or maintenance?
The module is engineered for minimal maintenance. Occasional checks and calibration may be necessary to maintain its accuracy and performance over time.
