Introduction

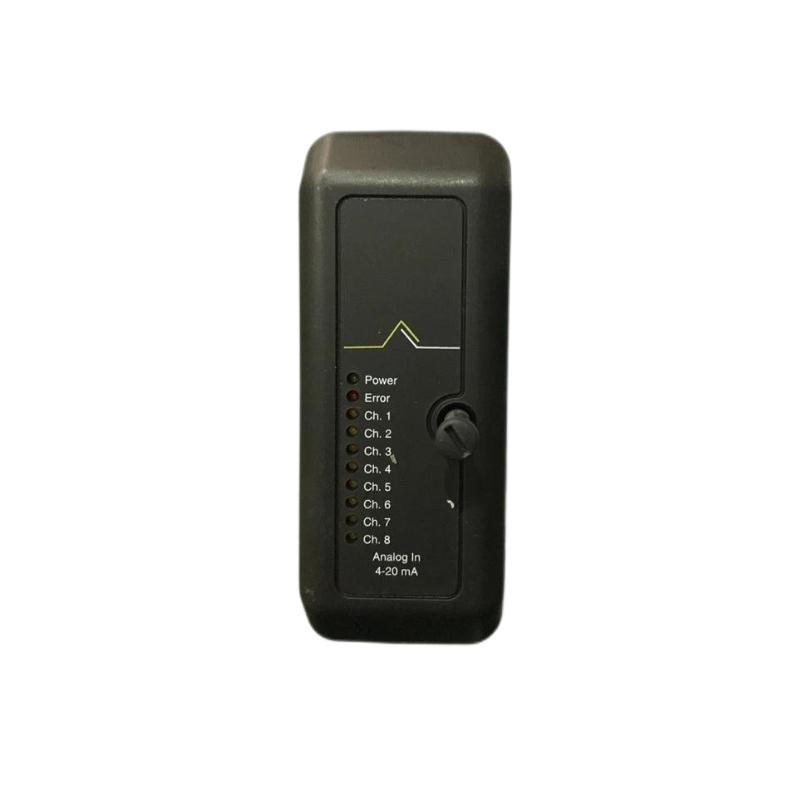

The Emerson KJ3002X1-BC1 DeltaV Analog Input Module offers exceptional accuracy and reliability for industrial process monitoring and control. Designed for seamless integration with the DeltaV™ control system, this module provides precise analog signal input, which is essential for a wide range of applications, including process automation, energy management, and chemical processing. Its compact design, ease of installation, and robust performance make it the ideal choice for demanding industrial environments.

Technical Specifications

Feature	Specification
Input Voltage	24VDC
Input Signal	Voltage / Current
Power Consumption	2W
Operating Temperature	-20°C to 60°C
Mounting Type	DIN Rail
Protection Features	Overload, Overvoltage, Short-Circuit Protection
Dimensions (L x W x H)	107mm x 41mm x 105mm
Weight	0.181kg / 0.4lb

Applications

The Emerson KJ3002X1-BC1 DeltaV Analog Input Module is designed for precise analog signal input in advanced control systems, making it ideal for industrial applications such as process automation, chemical processing, and energy management. This module ensures accurate data collection and seamless integration with Emerson's DeltaV™ control systems, allowing for enhanced control over automated processes and systems.

Advantages

High Accuracy: Provides high-precision analog input, ensuring that control systems receive accurate data for optimal performance and decision-making.
Compact and Efficient: With dimensions of just 107 x 41 x 105 mm, this module is space-efficient, making it ideal for systems with limited space.
Flexible Input Range: Capable of supporting a variety of input signals, including voltage and current, allowing it to meet the demands of diverse applications.
Durability: Built to withstand harsh industrial environments, the module ensures reliable operation with minimal maintenance needs over time.
Seamless Integration: Fully compatible with Emerson’s DeltaV™ control systems, this module integrates easily into existing setups for quick deployment.

Technical FAQs

What is the function of the Emerson KJ3002X1-BC1 DeltaV Analog Input Module?
The module is designed to collect and transmit analog signals to the control system, enabling precise monitoring and control of industrial processes.
Which types of input signals are supported by this module?
The KJ3002X1-BC1 module supports both voltage and current signals, offering versatility for a range of industrial applications.
What are the dimensions of the Emerson KJ3002X1-BC1 module?
The module has compact dimensions of 107mm x 41mm x 105mm, making it an ideal solution for space-constrained systems.
How does this module integrate with the DeltaV™ control system?
The module is fully compatible with Emerson's DeltaV™ system, allowing for quick and easy integration into existing infrastructures.
What is the weight of the KJ3002X1-BC1 Analog Input Module?
The module weighs 0.181 kg (0.4 lb), making it lightweight and easy to handle during installation.
Is this module suitable for use in harsh environments?
Yes, the module is designed to operate reliably in industrial environments, with a robust construction that ensures long-term durability.
Does this module support both 4-20mA and 0-10V input signals?
Yes, it supports both common input ranges, making it suitable for a variety of process monitoring applications.
What safety features does the KJ3002X1-BC1 module include?
The module includes built-in protections against overloads, overvoltage, and short-circuits, ensuring safe and reliable operation.
How does the module handle electrical noise?
The KJ3002X1-BC1 is designed to minimize the impact of electrical noise, ensuring stable analog input signals even in noisy industrial environments.
What maintenance is required for the Emerson KJ3002X1-BC1 module?
The module is designed for minimal maintenance. However, regular checks for signal integrity and proper installation are recommended for long-term reliability.
