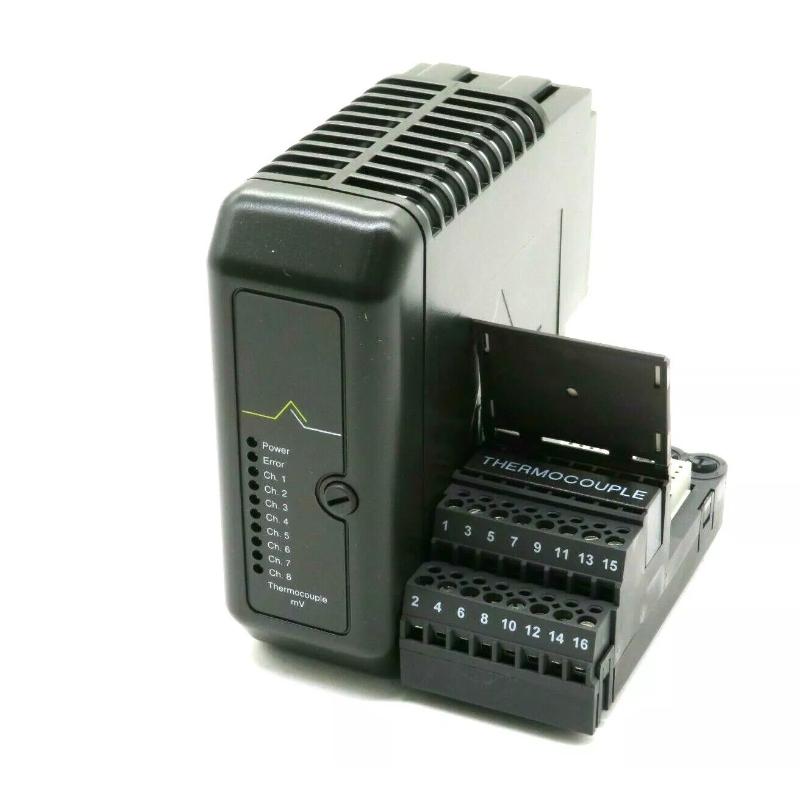

Emerson KJ3002X1-BG2 12P1731X082 Thermocouple Module

Applications

The Emerson KJ3002X1-BG2 12P1731X082 Thermocouple Module is designed for highly accurate temperature measurement in industrial control systems. It is ideal for use in a wide variety of applications such as process automation, energy management, and manufacturing, where temperature monitoring is critical for system performance and safety. This module seamlessly integrates with Emerson’s DeltaV™ control systems, providing reliable temperature data from thermocouple sensors to optimize industrial processes.

Advantages

• High-Precision Temperature Measurement: The module supports a wide range of thermocouple types (J, K, T, E, R, S, B, N), ensuring precise temperature data for demanding applications.
• Compact Design: With dimensions of 107 x 41 x 105 mm, the module is small enough to fit into tight spaces while still offering high performance.
• Versatile Compatibility: Supports various thermocouple types, making it suitable for diverse temperature measurement needs across industries.
• Reliable Performance: Built for tough industrial environments, this module offers consistent, reliable performance with minimal maintenance requirements.
• Seamless Integration: Fully compatible with Emerson’s DeltaV™ control system, enabling easy integration into existing infrastructure for immediate deployment.

Technical FAQs

1. What is the primary function of the Emerson KJ3002X1-BG2 12P1731X082 Thermocouple Module?
   The module is designed to convert thermocouple signals into readable analog inputs for precise temperature monitoring and control.
2. Which thermocouple types does this module support?
   The module supports a variety of thermocouple types, including J, K, T, E, R, S, B, and N, offering flexibility for different temperature measurement applications.
3. What are the dimensions of the KJ3002X1-BG2 module?
   The module has compact dimensions of 107mm x 41mm x 105mm, making it suitable for installations where space is limited.
4. What is the weight of the Emerson KJ3002X1-BG2 module?
   The module weighs 0.281 kg (0.62 lb), providing a lightweight yet durable solution for your temperature measurement needs.
5. Can this module be used for high-temperature applications?
   Yes, this module is ideal for high-temperature applications, especially when used with thermocouples such as R, S, or B, which are typically used for high-temperature measurements.
6. How does the KJ3002X1-BG2 module ensure accurate temperature readings?
   The module ensures accuracy by converting thermocouple signals to reliable analog inputs, allowing precise temperature monitoring in various industrial environments.
7. Is the KJ3002X1-BG2 module compatible with other Emerson control systems?
   Yes, the module is fully compatible with Emerson’s DeltaV™ control system, providing a seamless integration into existing setups for easy deployment.
8. What safety features does the module offer?
   The KJ3002X1-BG2 includes built-in protections against overloads, overvoltage, and short circuits to ensure safe and reliable operation.
9. How easy is it to install the KJ3002X1-BG2 Thermocouple Module?
   The module is designed for easy installation with DIN rail mounting, enabling quick integration into your control system infrastructure.
10. What maintenance is required for the Emerson KJ3002X1-BG2 module?
    The module requires minimal maintenance, but regular checks for signal accuracy and system performance are recommended for optimal results over time.
