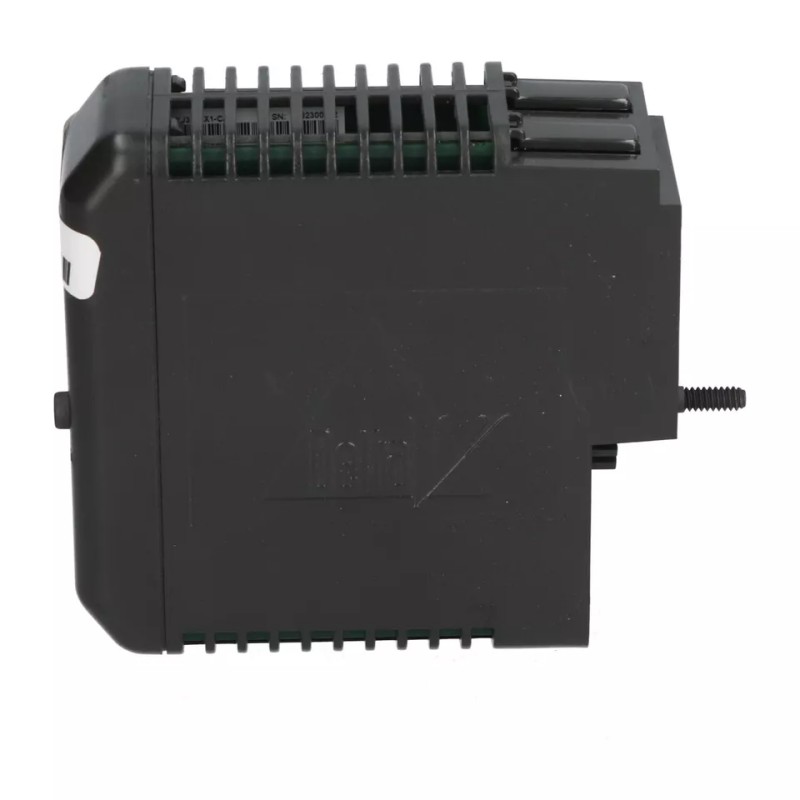

Emerson KJ3203X1-BA1 12P3270X032 DeltaV Discrete Input Card

Applications

The Emerson KJ3203X1-BA1 12P3270X032 DeltaV Discrete Input Card is a crucial component for processing discrete input signals in industrial automation systems. It is designed for use in control applications across various industries, including oil & gas, manufacturing, chemical processing, and power generation. This card provides accurate and reliable detection of discrete signals from field devices, such as limit switches, pressure switches, and proximity sensors, ensuring optimal control and monitoring of processes within the DeltaV™ system.

Advantages

• Reliable Discrete Signal Processing: The module provides precise processing of discrete input signals, which are essential for monitoring on/off states of field devices in automated systems.
• Compact Design: With dimensions of 120 x 45 x 130 mm, the card offers a compact solution that fits into systems where space is at a premium.
• Enhanced System Performance: Reliable input signal processing improves system responsiveness and control accuracy, enhancing overall process efficiency.
• Durability: Built to withstand harsh industrial environments, the card ensures long-term reliability with minimal maintenance.
• Seamless Integration: Fully compatible with Emerson’s DeltaV™ control systems, making it easy to integrate into existing industrial systems.

Technical FAQs

1. What is the main function of the Emerson KJ3203X1-BA1 12P3270X032 Discrete Input Card?
   The card processes discrete input signals from field devices, such as switches and sensors, and communicates them to the DeltaV™ control system for real-time monitoring and control.
2. What are the dimensions of the KJ3203X1-BA1 Discrete Input Card?
   The module measures 120mm x 45mm x 130mm, providing a compact solution for installation in control systems with limited space.
3. How much does the KJ3203X1-BA1 Discrete Input Card weigh?
   The card weighs 0.132 kg (0.29 lb), making it lightweight and easy to handle during installation.
4. What types of input signals can this module process?
   The module is designed to handle discrete on/off signals from devices such as limit switches, pressure switches, and proximity sensors, providing reliable monitoring and control.
5. Is the KJ3203X1-BA1 module compatible with Emerson’s DeltaV™ control systems?
   Yes, this module is fully compatible with the DeltaV™ control system, enabling smooth integration and communication for real-time process control.
6. What is the typical application of the KJ3203X1-BA1 Discrete Input Card?
   This module is used in applications where discrete signals from field devices need to be processed, such as in process control, alarm systems, and safety monitoring applications.
7. Can the module be used in high-temperature environments?
   Yes, the card is designed to function in a wide range of temperatures, making it suitable for most industrial environments, including high-temperature conditions.
8. Does the module support multiple input devices?
   Yes, the KJ3203X1-BA1 can support multiple discrete input devices, allowing for versatile applications in industrial control systems.
9. What protection features are included in the module?
   The module is equipped with protection against electrical interference and signal integrity issues, ensuring stable and reliable operation even in challenging environments.
10. What maintenance is required for the KJ3203X1-BA1 Discrete Input Card?
    The module requires minimal maintenance, but periodic checks for signal accuracy and proper installation are recommended to ensure long-term reliable performance.
