Introduction

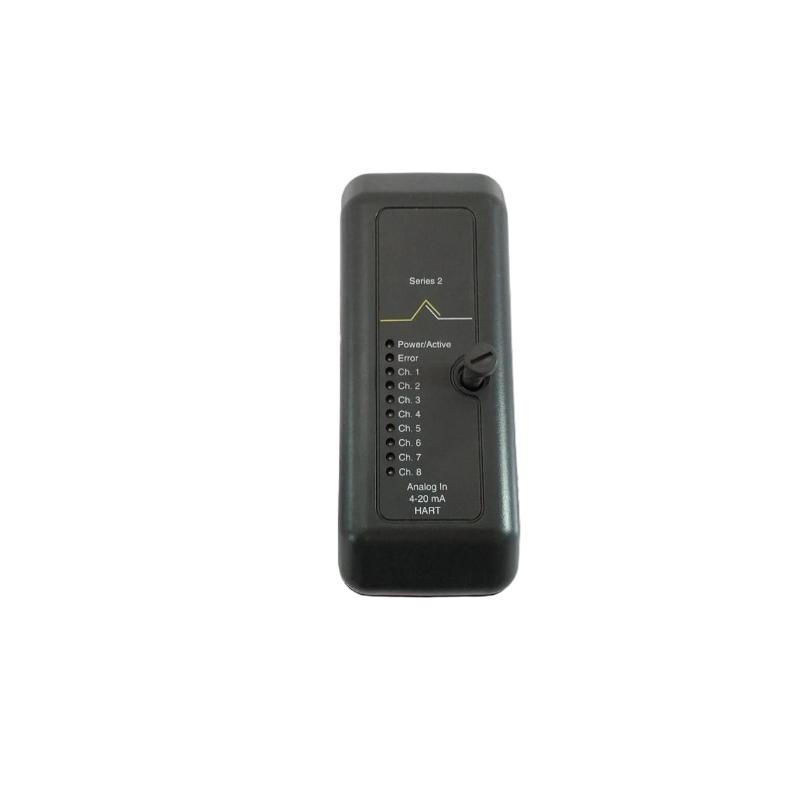

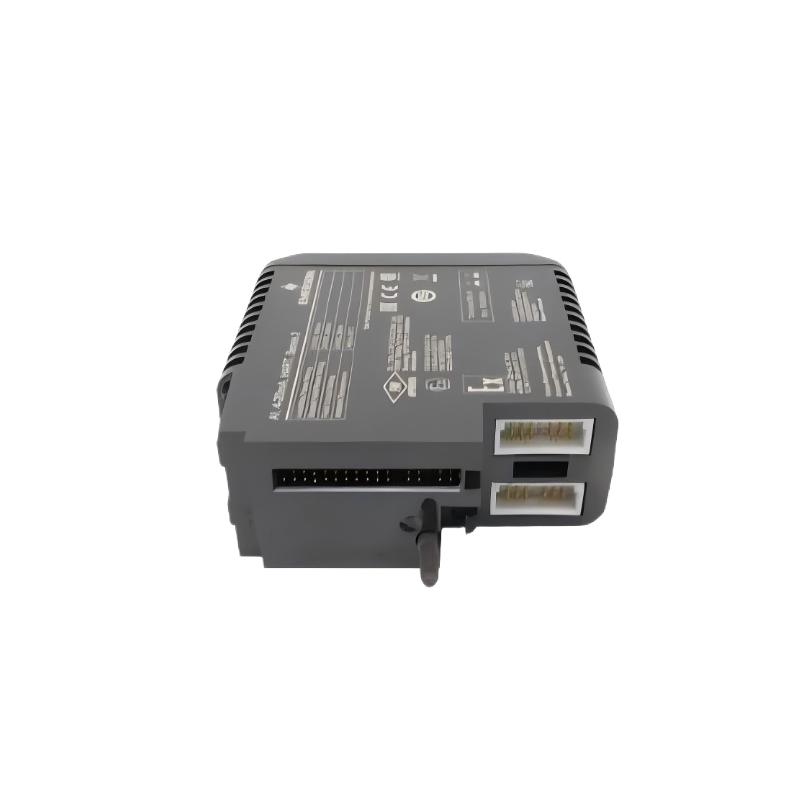

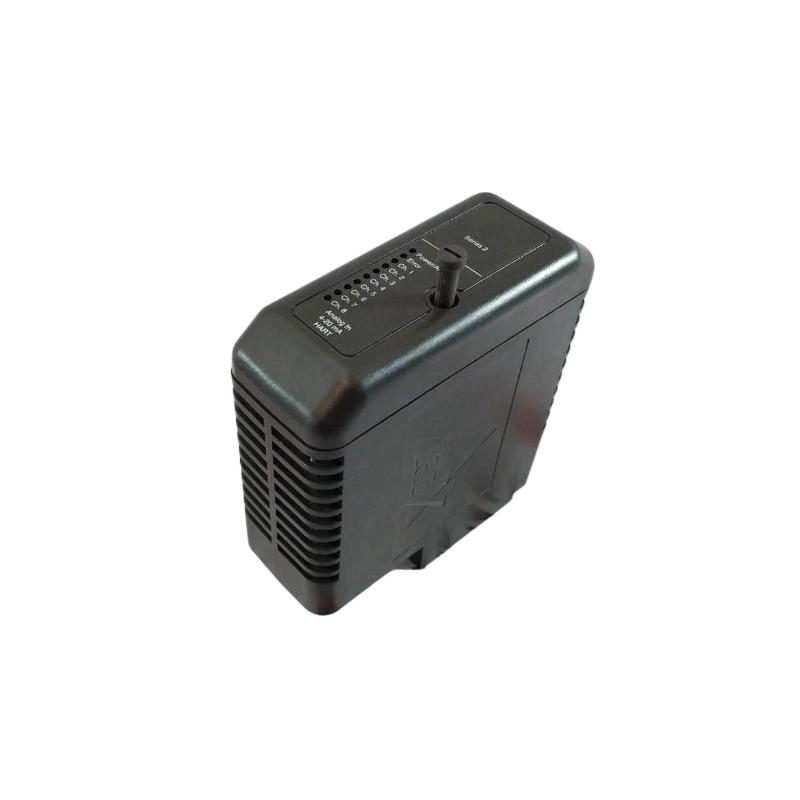

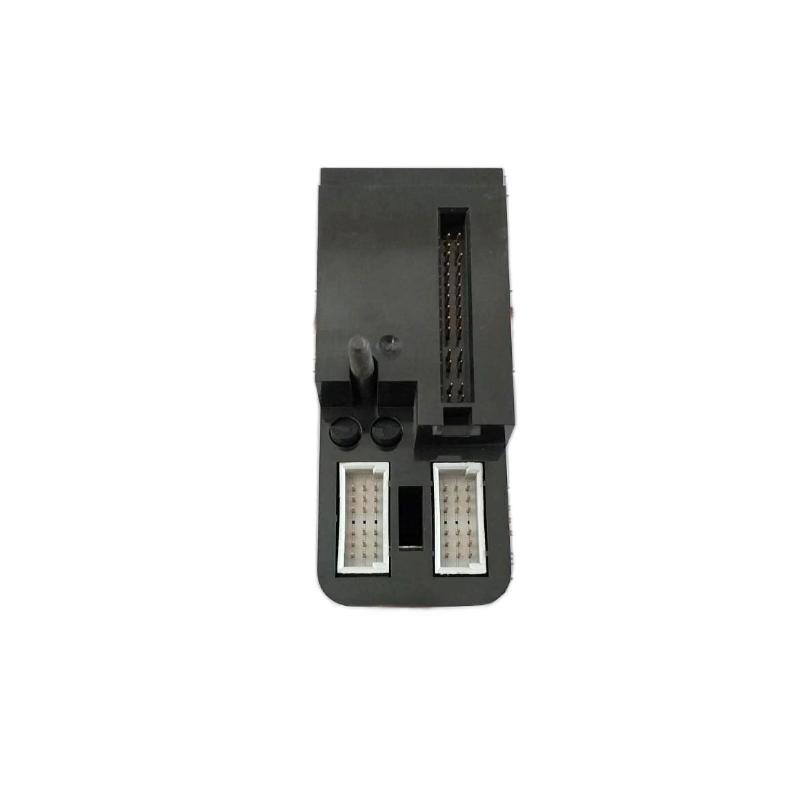

The Emerson KJ3222X1-BA1 12P2532X152 Input Module is designed for seamless integration into Emerson’s DeltaV™ control systems, providing precise processing and conversion of analog input signals. It plays an essential role in converting field data from instruments like temperature, pressure, and flow sensors into actionable information for process control. With its compact design and robust features, the KJ3222X1-BA1 module is an ideal solution for industries where accuracy and reliability are paramount, including chemical processing, oil & gas, and power generation.

Technical Specifications

Feature	Specification
Input Type	Analog Signals (Temperature, Pressure, Flow, Level, etc.)
Input Signal	4-20mA, 0-10V, or other standard analog signals
Power Consumption	2W
Operating Temperature	-20°C to 60°C
Mounting Type	DIN Rail
Protection Features	Overload, Overvoltage, Short-Circuit Protection
Dimensions (L x W x H)	44mm x 108mm x 127mm
Weight	0.2kg / 0.44lb

Applications

The Emerson KJ3222X1-BA1 12P2532X152 Input Module is designed to accurately process analog input signals for industrial automation systems. This module plays a crucial role in converting real-time data from various field devices such as temperature sensors, pressure transmitters, flow meters, and level sensors. It is ideal for use in a wide range of industries including chemical processing, oil & gas, power generation, and manufacturing, where precise measurement and control of physical parameters are essential for system performance and efficiency.

With seamless integration into Emerson’s DeltaV™ control systems, the KJ3222X1-BA1 ensures that all critical process variables are monitored and controlled efficiently, helping operators maintain optimal operational conditions.

Advantages

Accurate Signal Conversion: The KJ3222X1-BA1 Input Module provides reliable conversion of analog input signals, offering precise monitoring of critical process variables such as temperature, pressure, and flow.
Space-Saving Design: With compact dimensions of 44 x 108 x 127 mm, the module is designed to fit easily into control systems where space is limited, without sacrificing performance.
Seamless Integration with DeltaV™ Systems: Fully compatible with Emerson’s DeltaV™ control systems, the module facilitates efficient communication and integration between field devices and the control system, ensuring real-time data collection and control.
Enhanced Durability: Designed for rugged industrial environments, the module ensures reliable operation even in challenging conditions, reducing maintenance needs and ensuring long-term system reliability.
Wide Application Range: Whether used in chemical, power, or oil & gas industries, this module offers versatile and accurate analog input capabilities, making it suitable for a wide range of process control applications.

Technical FAQs

What is the primary function of the Emerson KJ3222X1-BA1 Input Module?
This module is designed to process and convert analog signals from field devices such as temperature transmitters, pressure sensors, and flow meters into usable data for Emerson’s DeltaV™ control systems.
What are the dimensions of the KJ3222X1-BA1 Input Module?
The module has dimensions of 44mm x 108mm x 127mm, offering a compact solution for installations with limited space.
How much does the KJ3222X1-BA1 Input Module weigh?
The module weighs 0.2 kg (0.44 lb), making it easy to install and handle during setup.
What types of input signals can the KJ3222X1-BA1 module process?
This module is designed to process various analog signals from field instruments, including those for temperature, pressure, flow, and level measurements.
Is the KJ3222X1-BA1 module compatible with Emerson’s DeltaV™ control systems?
Yes, the module is fully compatible with DeltaV™ control systems, ensuring seamless integration and efficient data communication for real-time process control.
What is the operating temperature range of the KJ3222X1-BA1 module?
The module operates efficiently within a temperature range of -20°C to 60°C, making it suitable for most industrial environments.
What protection features does the KJ3222X1-BA1 Input Module offer?
The module includes protection against overload, overvoltage, and short circuits, ensuring safe and reliable operation in harsh industrial environments.
How does the KJ3222X1-BA1 module enhance system performance?
By converting and transmitting accurate analog signals to the DeltaV™ system, the module ensures precise real-time data that improves decision-making and process control, ultimately enhancing system performance.
What industries typically use the KJ3222X1-BA1 Input Module?
The KJ3222X1-BA1 module is widely used in industries such as chemical processing, power generation, oil & gas, and manufacturing, where precise control of physical parameters is required for efficient and safe operations.
What maintenance is required for the KJ3222X1-BA1 Input Module?
The module requires minimal maintenance. However, it is recommended to perform regular checks for signal accuracy and ensure proper connections for continued reliability.
