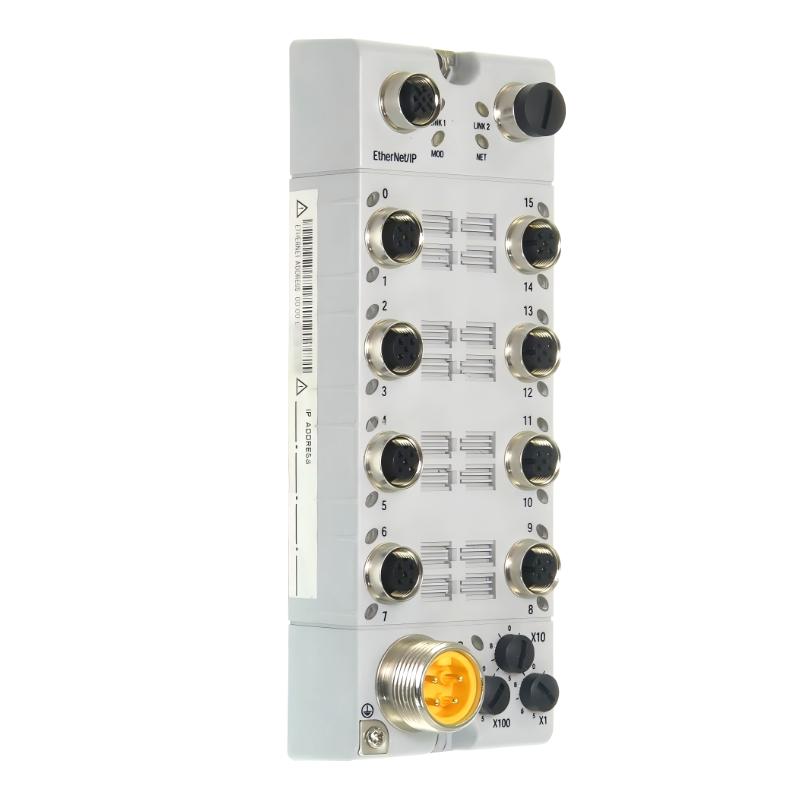

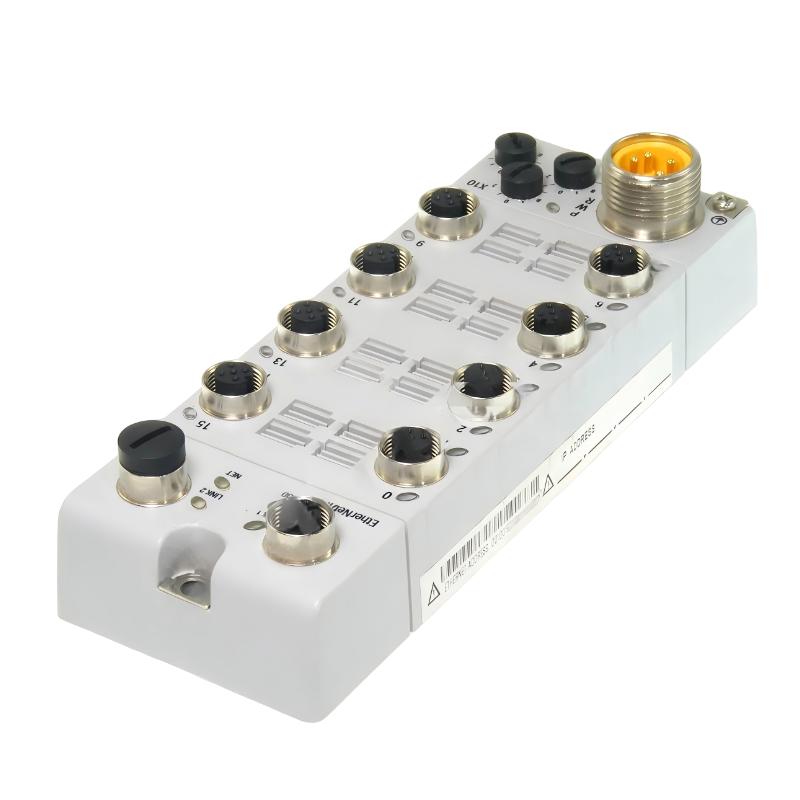

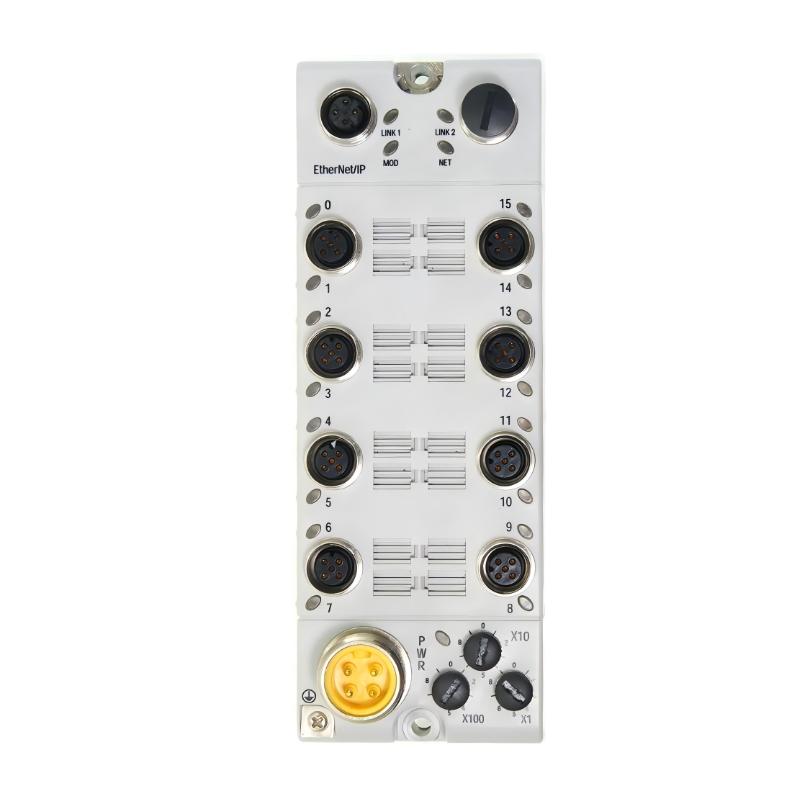

Allen Bradley 1732E-IB16M12R Ethernet/IP ArmorBlock I/O Module

Applications

• Distributed control and monitoring of industrial devices over Ethernet/IP networks.

• Connecting sensors and actuators in manufacturing, process control, and packaging systems.

• Industrial automation setups requiring compact I/O modules for modular expansion.

• System upgrades or retrofits needing reliable remote I/O connectivity.

• Harsh industrial environments where ruggedized, armor-style modules are advantageous.

Key Advantages

• Provides reliable Ethernet/IP communication for fast and secure data transfer.

• Rugged ArmorBlock design ensures durability in challenging industrial conditions.

• Supports both discrete input and output connections for versatile automation needs.

• Compact form factor allows easy integration into distributed control networks.

• Reduces wiring complexity by enabling modular and remote I/O deployment.

• Simplifies maintenance with hot-swappable capabilities and diagnostic LEDs.

Technical FAQs

1. What is the main function of this I/O module?
It provides digital input and output interfaces over Ethernet/IP networks for industrial automation.

2. How many inputs and outputs does it support?
This model features 16 digital inputs compatible with M12 connectors.

3. Can it operate in harsh industrial environments?
Yes, the ArmorBlock design protects against vibration, dust, and moisture.

4. Does it support hot-swapping?
Yes, modules can be replaced without shutting down the network.

5. What network protocol is supported?
It supports Ethernet/IP for fast and reliable industrial communication.

6. Can multiple modules be daisy-chained?
Yes, it supports modular daisy-chaining for scalable I/O expansion.

7. How are status and diagnostics monitored?
Integrated LEDs provide real-time status and diagnostic information.

8. Is it compatible with Allen-Bradley controllers?
Yes, it works seamlessly with CompactLogix, ControlLogix, and ArmorBlock systems.

9. Can it reduce cabling complexity?
Yes, by providing centralized remote I/O connections close to devices.

10. Which industries commonly use this module?
Widely used in automotive, manufacturing, food & beverage, and process industries.
