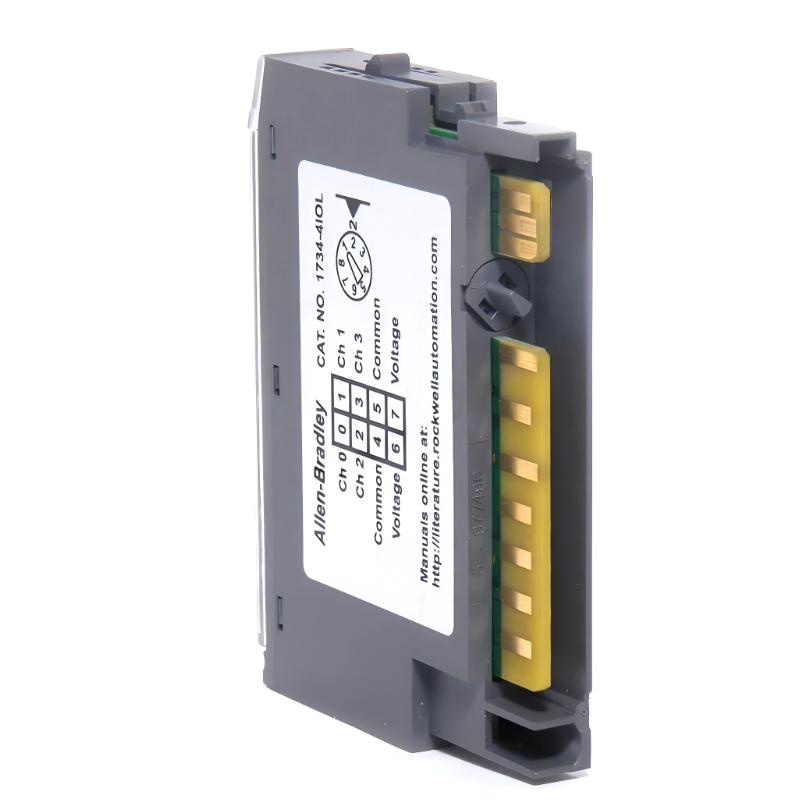

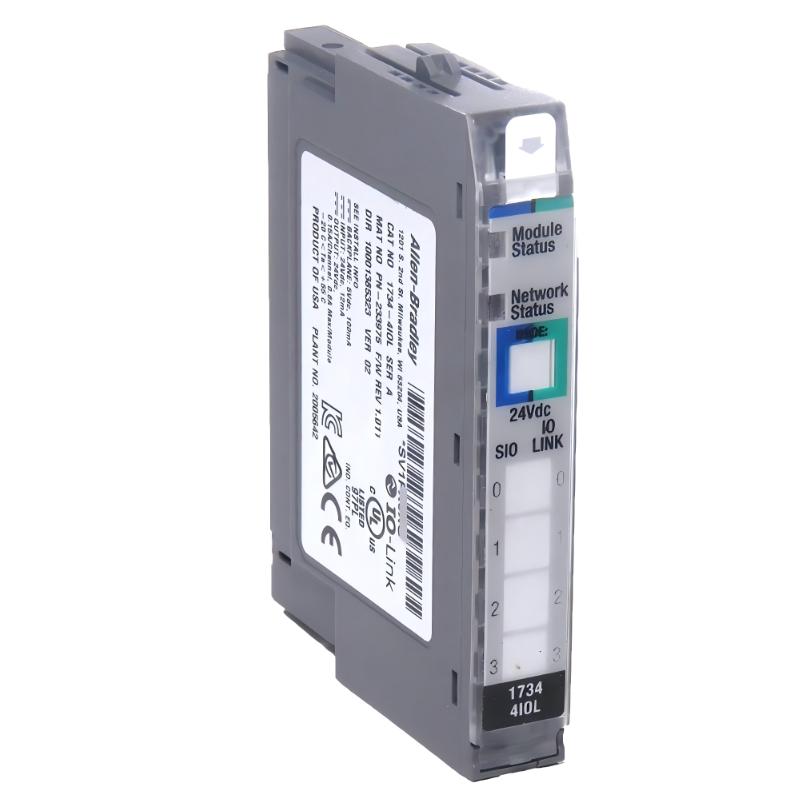

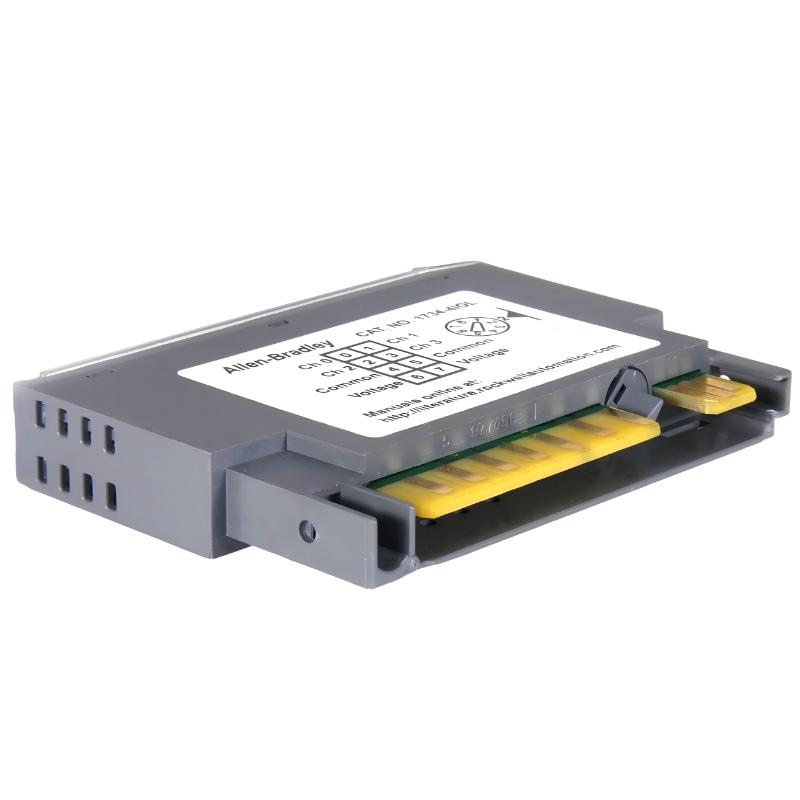

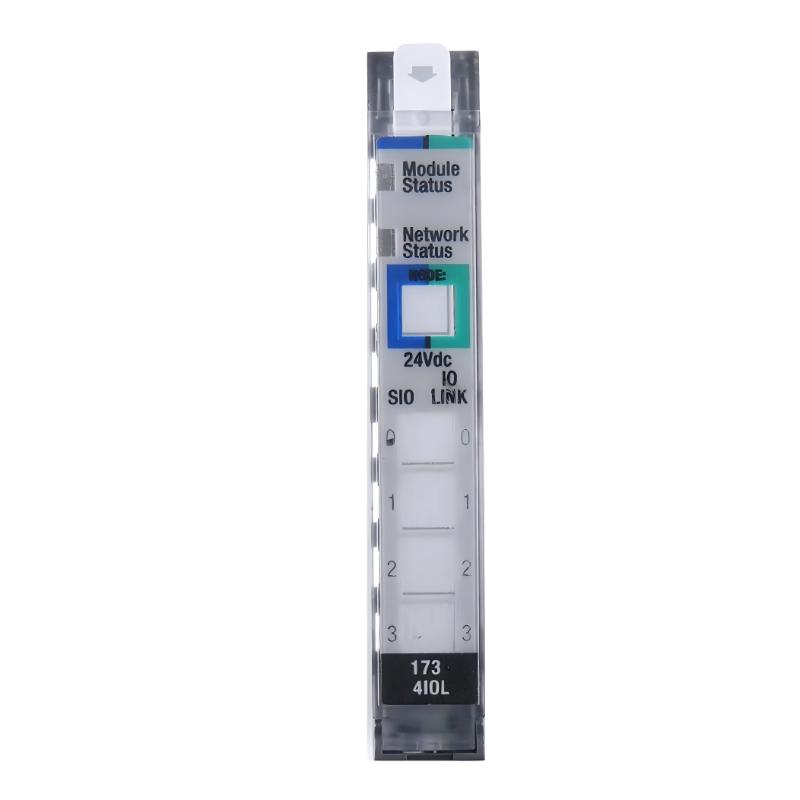

Allen Bradley 1734-4IOL Point I/O 4-channel IO-Link Main Module
Allen Bradley 1734-4IOL Point I/O 4-channel IO-Link Main Module
0.0
Points
Brand:Allen Bradley PLC Item No.:1734-4IOL Product Origin:USA Product Dimensions:75.5 x 12 x 56 mm Product Weight:0.036 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen-Bradley 1734-4IOL Point I/O 4-channel IO-Link Main Module is a compact and rugged interface module designed to integrate smart sensors and actuators into Point I/O systems. Supporting 4 IO-Link channels, it enables seamless communication with ControlLogix and CompactLogix controllers while providing real-time diagnostics. Ideal for both new installations and retrofits, this module simplifies wiring, supports modular expansion, and ensures reliable operation in demanding industrial environments.
Technical Specifications
Parameter
Specification
Model
1734-4IOL
Type
Point I/O IO-Link Main Module
Dimensions
75.5 × 12 × 56 mm
Weight
0.036 kg
Channels
4 IO-Link
Application
Distributed Industrial Automation
Function
Smart Sensor/Actuator Interface
Recommended Related Models
Model
Product Name
Allen Bradley 1734-IB8
Point I/O 8-Channel Digital Input Module
Allen Bradley 1734-OB8
Point I/O 8-Channel Digital Output Module
Allen Bradley 1734-IA8
Point I/O 8-Channel Analog Input Module
Allen Bradley 1734-OW8
Point I/O 8-Channel Analog Output Module
Popular Related Models
Model
Product Name
Allen Bradley 1734-4IO
4-Channel Point I/O Main Module
Allen Bradley 1734-IB16
16-Point Digital Input Module
Allen Bradley 1734-OB16
16-Point Digital Output Module
Allen Bradley 1734-IA16
16-Channel Analog Input Module
Applications
• Central interface for IO-Link devices in distributed Allen-Bradley Point I/O systems.
• Industrial automation setups in manufacturing, process control, and packaging lines.
• System expansions requiring integration of smart sensors and actuators via IO-Link.
• Retrofit projects needing compact and modular I/O connectivity.
• Applications where remote device diagnostics and configuration are required.
Key Advantages
• Supports 4 IO-Link channels for communication with smart sensors and actuators.
• Compact design fits easily in tight control panel spaces.
• Enables seamless integration with ControlLogix and CompactLogix systems.
• Simplifies wiring by consolidating multiple device connections through a single module.
• Provides real-time device diagnostics for faster troubleshooting.
• Rugged design ensures reliable operation in harsh industrial environments.
Technical FAQs
1. What is the main function of this module?
It serves as a 4-channel IO-Link interface for connecting smart sensors and actuators to Point I/O systems.
2. How many IO-Link devices can it connect?
It supports up to 4 IO-Link devices per module.
3. Is it compatible with Allen-Bradley controllers?
Yes, it integrates with ControlLogix, CompactLogix, and other Point I/O systems.
4. Can it be used in harsh industrial conditions?
Yes, the module is designed for vibration, temperature, and electrical noise tolerance.
5. Does it provide device diagnostics?
Yes, it enables real-time monitoring and diagnostic information for connected devices.
6. Can multiple modules be daisy-chained?
Yes, it supports modular expansion for additional IO-Link devices.
7. Is programming required for operation?
Yes, configuration is done through Allen-Bradley software to map IO-Link devices.
8. Can it reduce cabling complexity?
Yes, it consolidates multiple device connections into a single module, simplifying wiring.
9. Is it hot-swappable?
No, power should be removed before replacing the module.
10. What industries commonly use this module?
Used in automotive, food & beverage, packaging, and general manufacturing industries.
