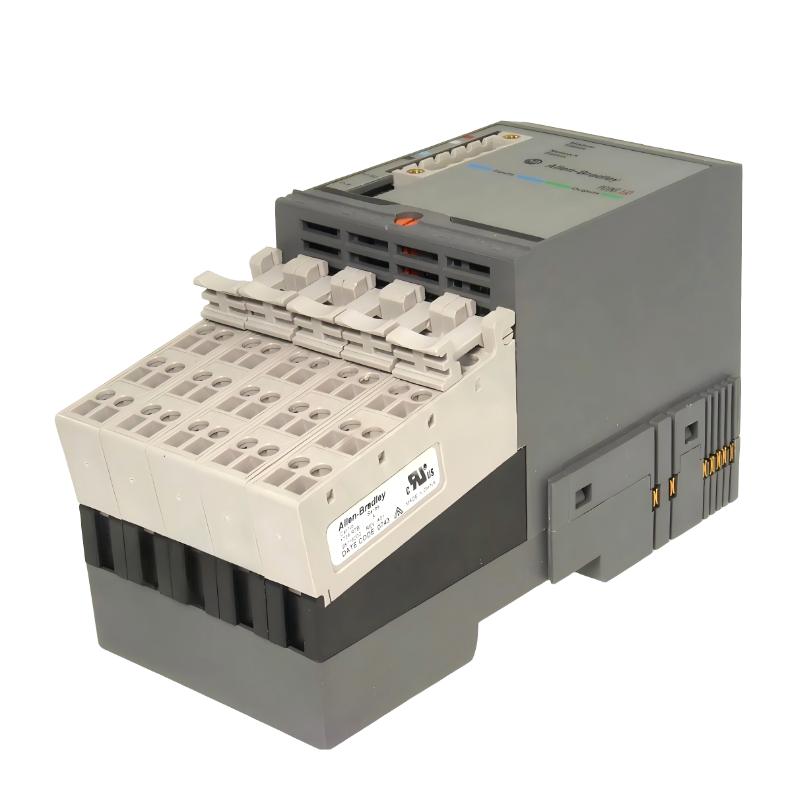

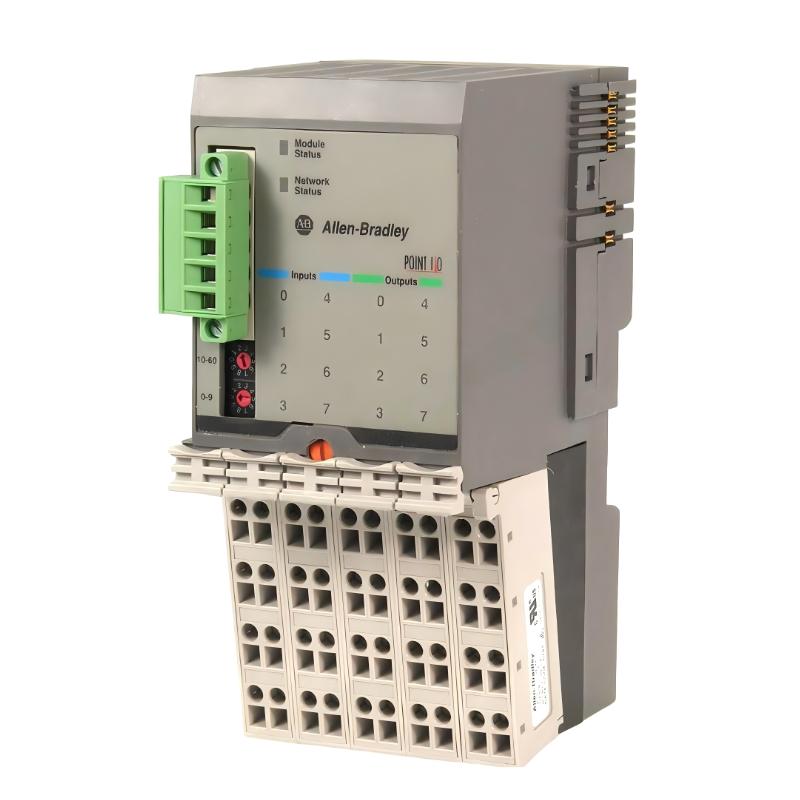

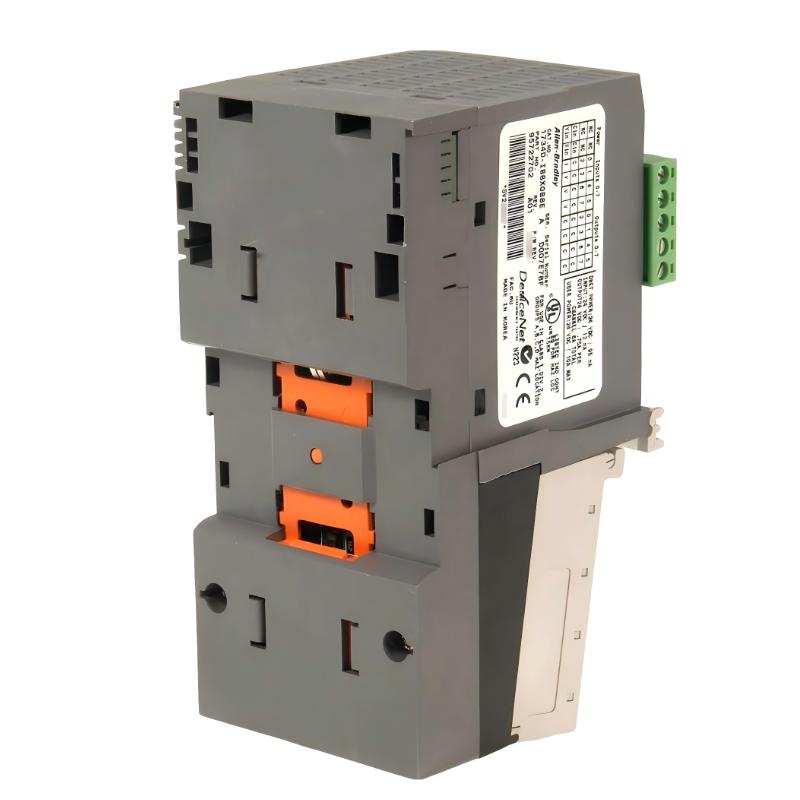

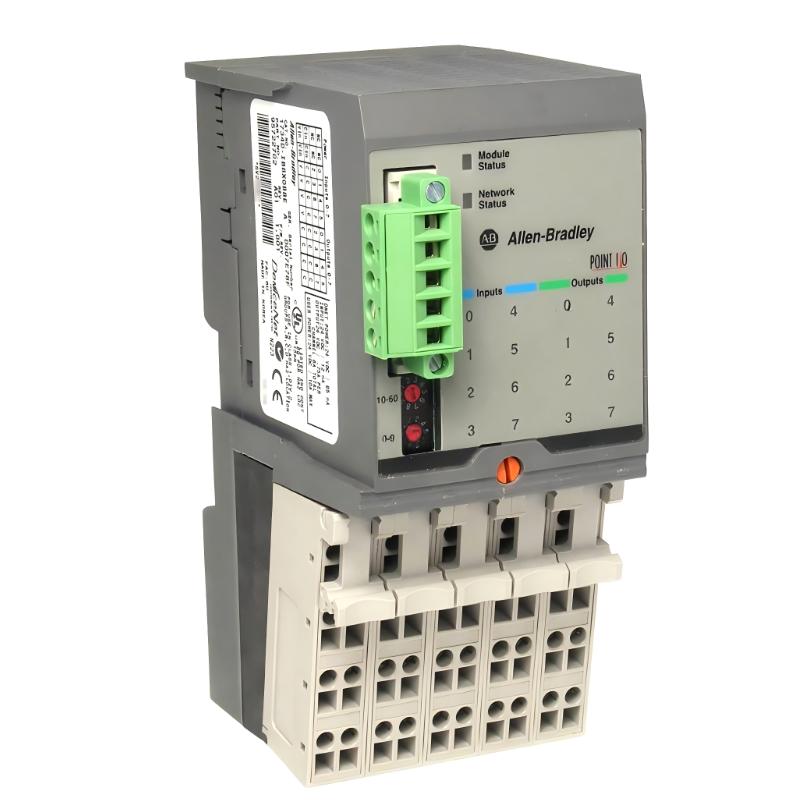

Allen Bradley 1734D-IB8XOB8E Point I/O Combination Module
Allen Bradley 1734D-IB8XOB8E Point I/O Combination Module
0.0
Points
Brand:Allen Bradley PLC Item No.:1734D-IB8XOB8E Product Origin:USA Product Dimensions:133.4 x 60 x 76.2 mm Product Weight:0.522 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen-Bradley 1734D-IB8XOB8E Point I/O Combination Module is a versatile module that integrates 8 digital inputs and 8 digital outputs into a single compact unit. Designed for distributed control systems, it communicates seamlessly with ControlLogix and CompactLogix controllers over the Point I/O network. Ideal for space-constrained installations, retrofits, or expansions, this module simplifies wiring, provides real-time diagnostics, and ensures reliable operation in demanding industrial environments.
Technical Specifications
Parameter
Specification
Model
1734D-IB8XOB8E
Type
Point I/O Combination Module
Dimensions
133.4 × 60 × 76.2 mm
Weight
0.522 kg
Inputs
8 Digital Inputs
Outputs
8 Digital Outputs
Communication
Ethernet/IP or DeviceNet via Point I/O
Application
Distributed Industrial Automation
Function
Combined Digital Input and Output Module
Recommended Related Models
Model
Product Name
Allen Bradley 1734-IB8
Point I/O 8-Channel Digital Input Module
Allen Bradley 1734-OB8
Point I/O 8-Channel Digital Output Module
Allen Bradley 1734-AENT
Point I/O Ethernet/IP Adapter
Allen Bradley 1734D-IB16
16-Point Digital Input Module
Popular Related Models
Model
Product Name
Allen Bradley 1734D-IB16XOB16
Point I/O Combination Module (16 I/O)
Allen Bradley 1734-IB16
16-Point Digital Input Module
Allen Bradley 1734-OB16
16-Point Digital Output Module
Allen Bradley 1734-4IOL
4-Channel IO-Link Main Module
Applications
• Combines digital input and output functionality in a single Point I/O module for compact control panels.
• Industrial automation systems requiring efficient use of space and simplified wiring.
• Integration into manufacturing, process control, and packaging operations.
• System expansions or retrofits where both input and output channels are needed in one module.
• Applications requiring fast and reliable communication with ControlLogix or CompactLogix controllers.
Key Advantages
• Provides 8 digital inputs and 8 digital outputs in a single module, reducing hardware requirements.
• Compact design allows installation in tight control panel spaces.
• Simplifies wiring and reduces panel complexity by combining input and output channels.
• Supports real-time Ethernet/IP or DeviceNet communication through the Point I/O network.
• Provides LED indicators for diagnostics and operational status.
• Rugged construction ensures reliability in industrial environments.
Technical FAQs
1. What is the primary function of this module?
It combines 8 digital inputs and 8 digital outputs in a single Point I/O module for efficient control.
2. Can it communicate with Allen-Bradley controllers?
Yes, it is compatible with ControlLogix, CompactLogix, and other Point I/O networks.
3. Does it support real-time diagnostics?
Yes, integrated LEDs indicate channel status and operational health.
4. Can it be used in harsh industrial environments?
Yes, the module is designed for vibration, temperature, and electrical noise tolerance.
5. Is it hot-swappable?
No, power should be removed before module replacement.
6. How many channels are available in total?
It provides 16 channels: 8 digital inputs and 8 digital outputs.
7. Can multiple modules be daisy-chained?
Yes, it supports modular expansion within the Point I/O network.
8. Does it require programming?
Yes, configuration is done via Allen-Bradley software for channel mapping.
9. How does it simplify wiring?
Combining inputs and outputs into one module reduces the number of separate modules and wiring runs.
10. What industries commonly use this module?
Automotive, manufacturing, food & beverage, and process control industries.
