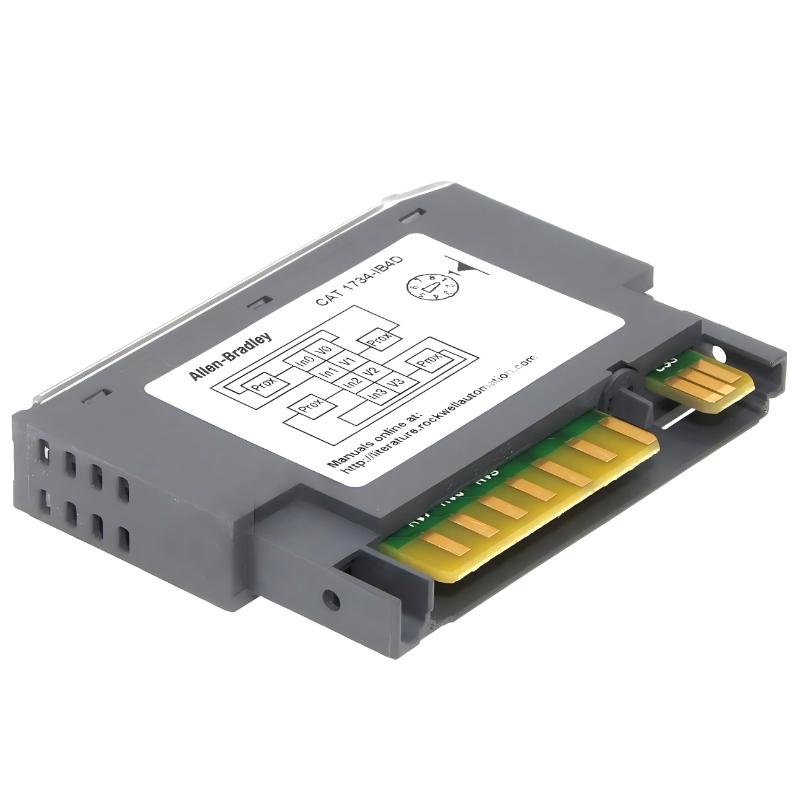

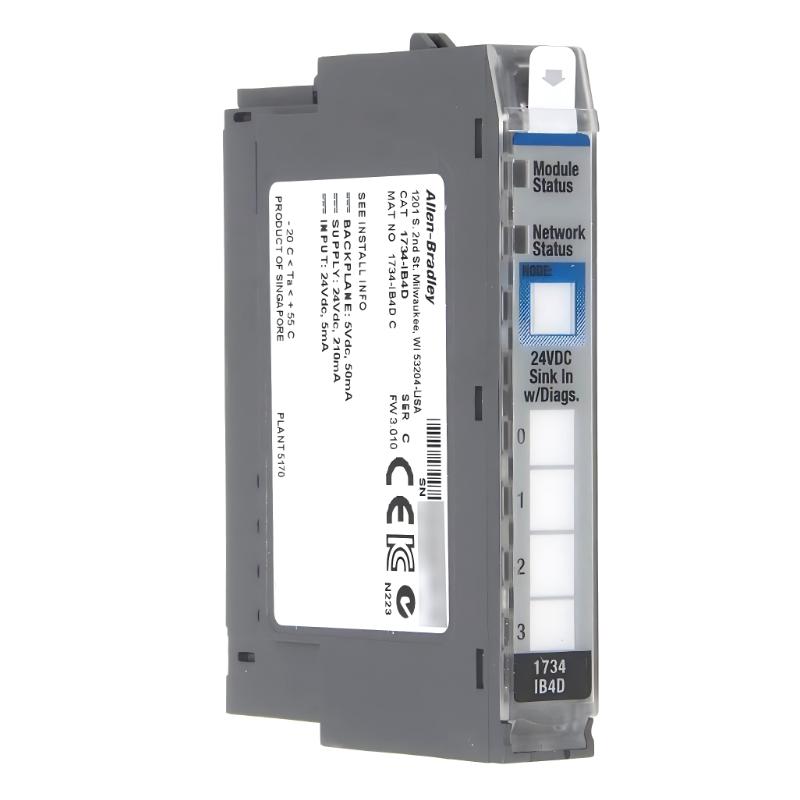

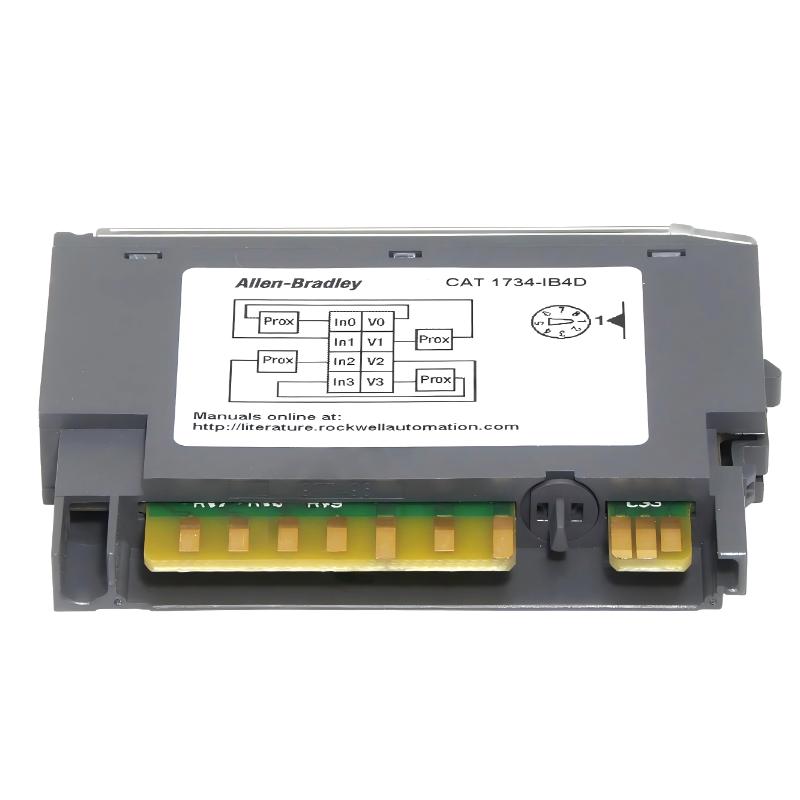

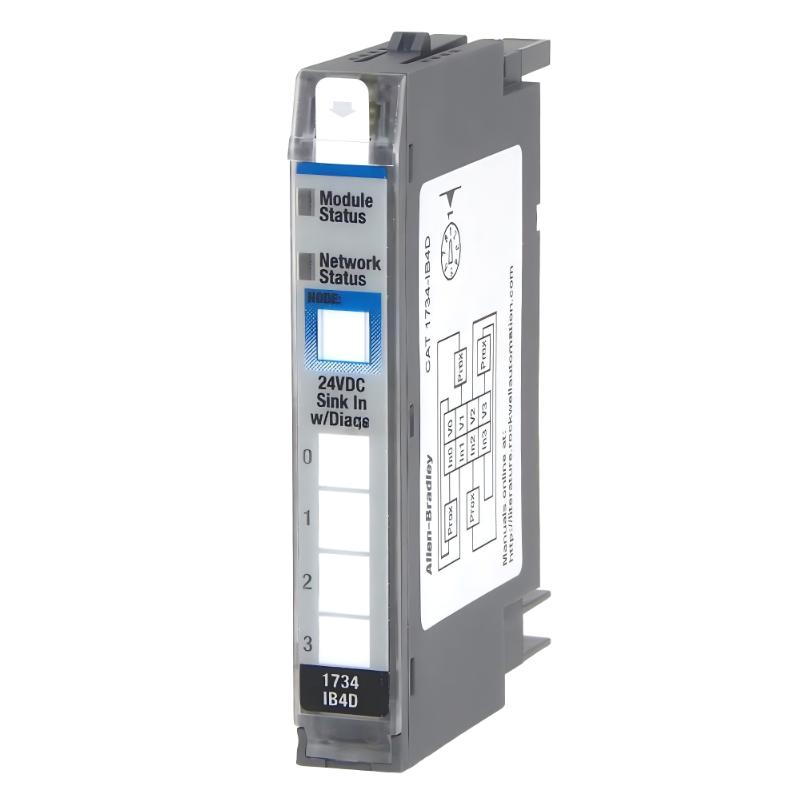

Allen Bradley 1734-IB4D Point I/O 4-point Numeric Input Module
Allen Bradley 1734-IB4D Point I/O 4-point Numeric Input Module
0.0
Points
Brand:Allen Bradley PLC Item No.:1734-IB4D Product Origin:USA Product Dimensions:75.5 x 12 x 56 mm Product Weight:0.036 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen-Bradley 1734-IB4D Point I/O 4-Point Numeric Input Module is a compact and efficient module designed to provide reliable numeric input for distributed Point I/O systems. Supporting 4 digital channels, it integrates seamlessly with ControlLogix and CompactLogix controllers, simplifying wiring and enabling modular expansion. Ideal for new installations, retrofits, or system upgrades, this module ensures dependable operation in industrial environments and provides clear real-time diagnostics.
Technical Specifications
Parameter
Specification
Model
1734-IB4D
Type
Point I/O Numeric Input Module
Dimensions
75.5 × 12 × 56 mm
Weight
0.036 kg
Inputs
4 Numeric Digital Inputs
Communication
Point I/O Network
Application
Distributed Industrial Automation
Function
Digital Input Acquisition
Recommended Related Models
Model
Product Name
Allen Bradley 1734-OB4
Point I/O 4-Point Digital Output Module
Allen Bradley 1734-IB8
8-Point Digital Input Module
Allen Bradley 1734-IB16
16-Point Digital Input Module
Allen Bradley 1734-AENT
Point I/O Ethernet/IP Adapter
Popular Related Models
Model
Product Name
Allen Bradley 1734-IB4D
4-Point Numeric Input Module (Alternate)
Allen Bradley 1734-OB8
8-Point Digital Output Module
Allen Bradley 1734-4IOL
4-Channel IO-Link Main Module
Allen Bradley 1734-ARM
Address Reserved Module
Applications
• Provides numeric digital input for distributed Point I/O systems.
• Industrial automation requiring compact and efficient input modules.
• Integration into manufacturing, process control, and packaging operations.
• Retrofits or system expansions needing additional input channels.
• Applications requiring accurate digital signal acquisition from sensors and devices.
Key Advantages
• Offers 4 reliable numeric input channels in a compact form factor.
• Simplifies wiring and reduces panel space requirements.
• Compatible with Allen-Bradley ControlLogix and CompactLogix systems.
• Provides LED indicators for real-time diagnostics and status.
• Rugged design ensures operation in industrial environments.
• Supports modular expansion for scalable automation systems.
Technical FAQs
1. What is the main function of this module?
It provides 4 numeric digital input channels for distributed Point I/O systems.
2. Can it communicate with Allen-Bradley controllers?
Yes, it is compatible with ControlLogix and CompactLogix systems.
3. Is it suitable for harsh industrial environments?
Yes, it is designed to handle vibration, temperature, and electrical noise.
4. Does it provide real-time diagnostics?
Yes, LEDs indicate input status and operational health.
5. Is it hot-swappable?
No, the module should be powered down before replacement.
6. Can multiple modules be used together?
Yes, it can be installed in series with other Point I/O modules.
7. How does it simplify wiring?
By consolidating multiple numeric inputs into a single compact module.
8. Is programming required for operation?
Yes, configuration is done via Allen-Bradley software for channel mapping.
9. How many channels are available?
It provides 4 numeric digital input channels.
10. What industries commonly use this module?
Used in automotive, manufacturing, food & beverage, and process control industries.
