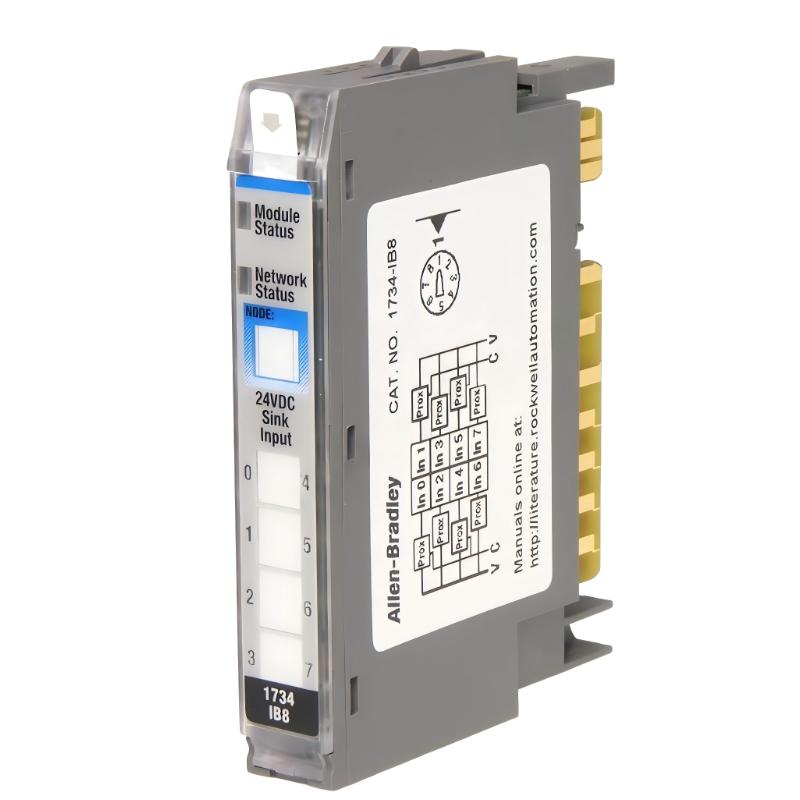

Allen Bradley 1734-IB8 Point I/O 8-point Numeric Input Module

Applications

• Provides 8 numeric digital input channels for distributed Point I/O systems.

• Industrial automation requiring compact, high-density input modules.

• Integration into manufacturing, process control, and packaging operations.

• System expansions or retrofits where multiple input channels are required.

• Applications needing reliable and fast digital signal acquisition from sensors.

Key Advantages

• Offers 8 numeric digital input channels in a slim, compact design.

• Simplifies wiring and saves space in control panels.

• Compatible with Allen-Bradley ControlLogix and CompactLogix systems.

• Real-time diagnostics provided via LED status indicators.

• Rugged construction ensures durability in industrial environments.

• Supports modular and scalable automation system design.

Technical FAQs

1. What is the primary function of this module?
It provides 8 numeric digital input channels for distributed Point I/O systems.

2. Which controllers is it compatible with?
It integrates with ControlLogix, CompactLogix, and other Allen-Bradley Point I/O networks.

3. Is it suitable for harsh industrial environments?
Yes, it is designed to withstand vibration, temperature extremes, and electrical noise.

4. Does it provide diagnostics?
Yes, LEDs indicate input status and operational health for all channels.

5. Is it hot-swappable?
No, the module should be powered down before installation or replacement.

6. Can multiple modules be installed in one system?
Yes, it can be daisy-chained with other Point I/O modules for scalable networks.

7. How does it reduce wiring complexity?
By consolidating 8 inputs into a single compact module, reducing the number of separate modules.

8. Is programming required?
Yes, channel configuration is performed via Allen-Bradley software.

9. How many input channels are available?
The module provides 8 numeric digital input channels.

10. What industries commonly use this module?
Widely used in automotive, food & beverage, packaging, and general manufacturing industries.
