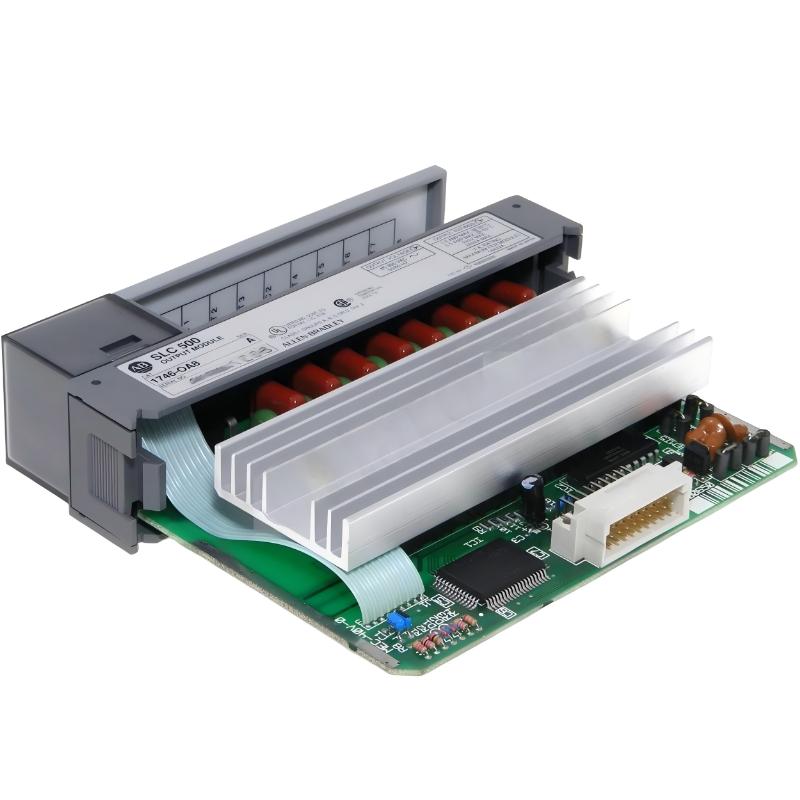

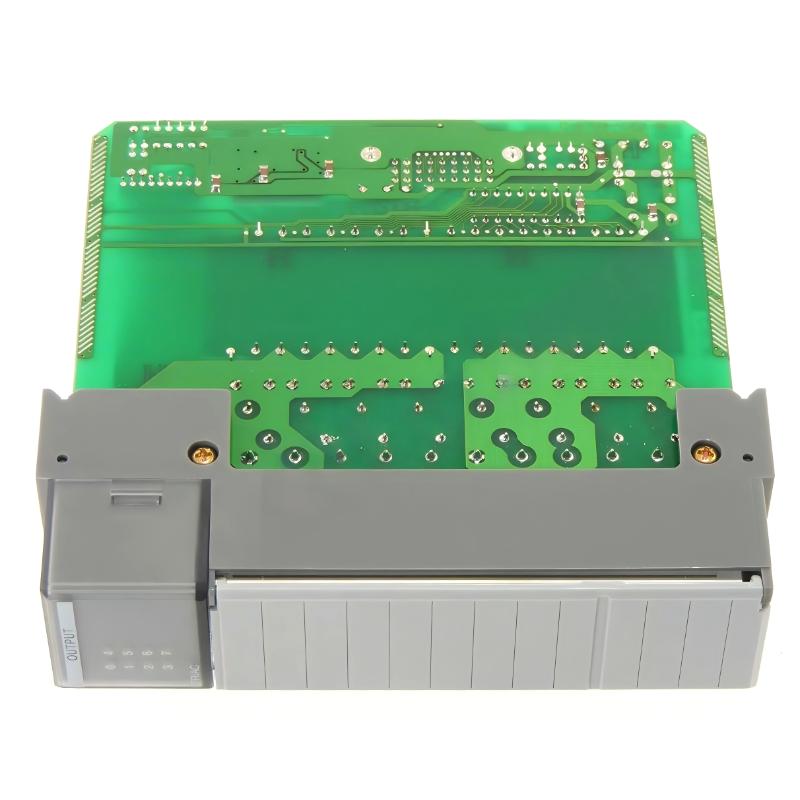

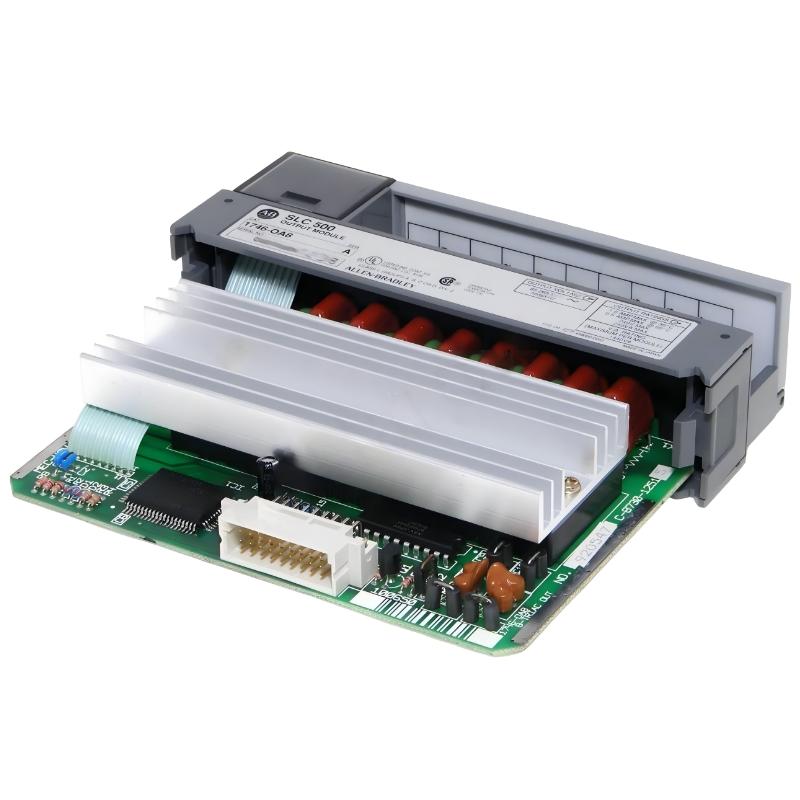

Allen Bradley 1746-OA8 SLC 500 AC Digital Input Module
Allen Bradley 1746-OA8 SLC 500 AC Digital Input Module
0.0
Points
Brand:Allen Bradley PLC Item No.:1746-OA8 Product Origin:USA Product Dimensions:144.5 × 34.6 × 130.18 mm Product Weight:0.181 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen-Bradley 1746-OA8 SLC 500 AC Digital Output Module provides reliable AC switching capabilities in a compact form factor. With 8 output channels, it integrates seamlessly with SLC 500 controllers, enabling control of field devices such as actuators, relays, and indicator lights. Ideal for system expansions, retrofits, or new installations, this module simplifies wiring, offers real-time diagnostics via LED indicators, and ensures dependable operation in industrial automation environments.
Technical Specifications
Parameter
Specification
Model
1746-OA8
Type
SLC 500 AC Digital Output Module
Dimensions
144.5 × 34.6 × 130.18 mm
Weight
0.181 kg
Outputs
8 AC Digital Outputs
Voltage Rating
AC Control Voltage
Application
Distributed Industrial Automation
Function
Digital AC Output Control
Recommended Related Models
Model
Product Name
Allen Bradley 1746-IB8
SLC 500 8-Point AC Digital Input Module
Allen Bradley 1746-IA16
SLC 500 16-Channel Analog Input Module
Allen Bradley 1746-OW16
SLC 500 16-Channel Analog Output Module
Allen Bradley 1746-OA16
SLC 500 16-Point AC Digital Output Module
Popular Related Models
Model
Product Name
Allen Bradley 1746-OA8
SLC 500 AC Digital Output Module (Alternate)
Allen Bradley 1746-OB16
SLC 500 16-Point DC Output Module
Allen Bradley 1746-IB16
SLC 500 16-Point AC Input Module
Allen Bradley 1746-IA8
SLC 500 8-Channel Analog Input Module
Applications
• Provides AC digital output capability for SLC 500 automation systems.
• Industrial automation applications requiring control of actuators, relays, or indicator lights.
• Integration into manufacturing, packaging, and process control systems.
• Retrofits or system expansions needing additional AC output channels.
• Applications where reliable switching of AC loads is required in a compact module.
Key Advantages
• Offers 8 AC digital output channels for versatile control applications.
• Compact and lightweight design saves panel space.
• Compatible with Allen-Bradley SLC 500 controllers.
• Provides LED indicators for real-time diagnostics and output status.
• Rugged construction ensures reliable operation in industrial environments.
• Simplifies system expansion and wiring by consolidating multiple outputs.
Technical FAQs
1. What is the main function of this module?
It provides 8 AC digital output channels for SLC 500 systems to control field devices.
2. Which controllers is it compatible with?
Designed for Allen-Bradley SLC 500 series controllers.
3. Can it handle harsh industrial conditions?
Yes, it is built to withstand vibration, temperature extremes, and electrical noise.
4. Does it provide diagnostics?
Yes, LEDs indicate channel status and operational health.
5. Is it hot-swappable?
No, the module should be powered down before replacement.
6. How many output channels does it offer?
It provides 8 AC digital output channels.
7. Can multiple modules be installed together?
Yes, multiple OA8 modules can be used to expand output capacity.
8. Is programming required?
Yes, configuration is done through SLC 500 programming software.
9. What types of loads can it control?
It can switch AC loads such as motors, solenoids, relays, and indicator lamps.
10. What industries commonly use this module?
Used in automotive, manufacturing, packaging, and process control industries.
