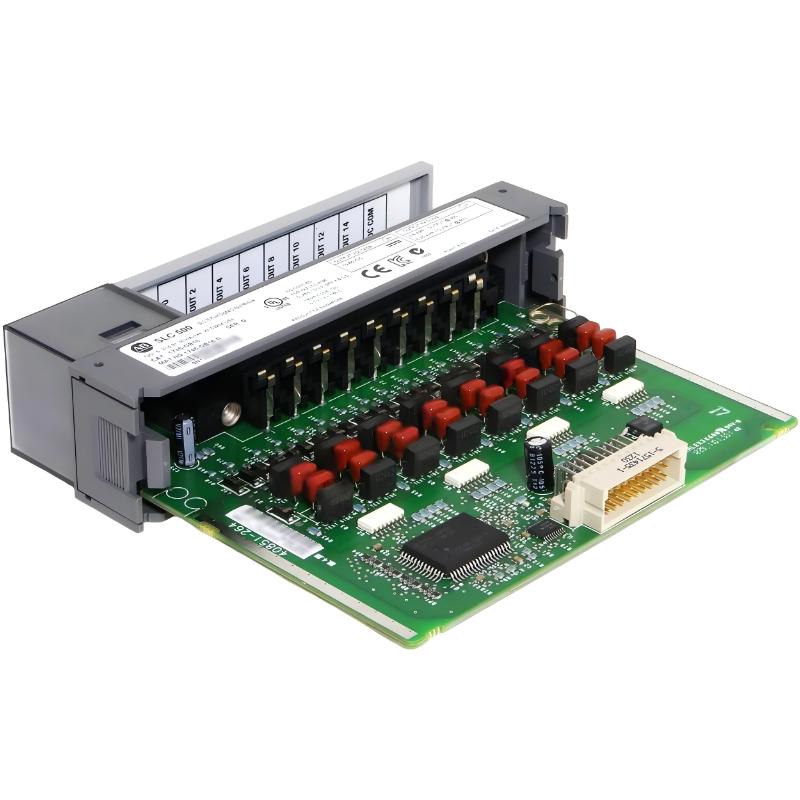

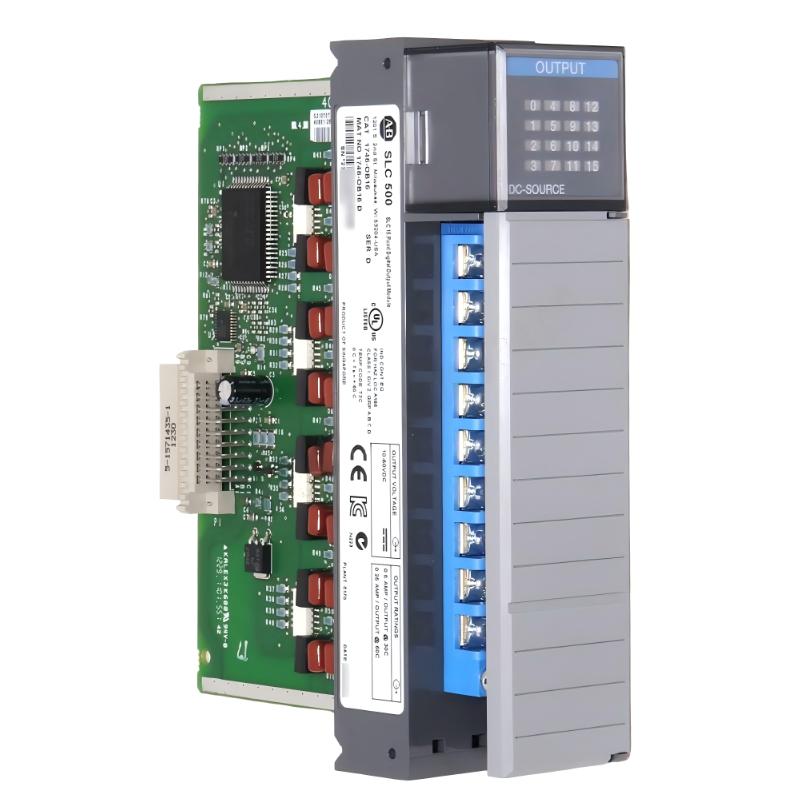

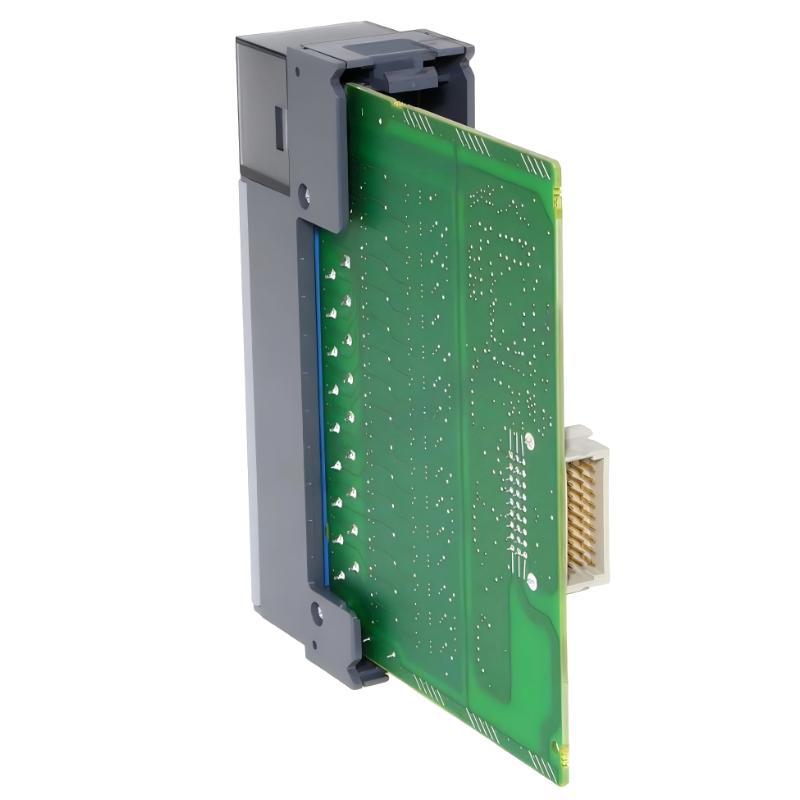

Allen Bradley 1746-OB16 SLC 500 Digital DC Output Module
Allen Bradley 1746-OB16 SLC 500 Digital DC Output Module
0.0
Points
Brand:Allen Bradley PLC Item No.:1746-OB16 Product Origin:USA Product Dimensions:144.5 × 34.6 × 130.18 mm Product Weight:0.272 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen-Bradley 1746-OB16 SLC 500 Digital DC Output Module delivers reliable DC output control for distributed automation systems. With 16 output channels in a compact package, it integrates seamlessly with SLC 500 controllers, allowing precise and dependable operation of DC actuators, solenoids, and indicators. This module is ideal for system expansions, retrofits, or new installations, simplifying wiring, providing real-time diagnostics via LEDs, and ensuring consistent performance in demanding industrial environments.
Technical Specifications
Parameter
Specification
Model
1746-OB16
Type
SLC 500 Digital DC Output Module
Dimensions
144.5 × 34.6 × 130.18 mm
Weight
0.272 kg
Outputs
16 DC Digital Outputs
Voltage Rating
DC Control Voltage
Application
Distributed Industrial Automation
Function
Digital DC Output Control
Recommended Related Models
Model
Product Name
Allen Bradley 1746-IB16
SLC 500 16-Point AC Digital Input Module
Allen Bradley 1746-IA8
SLC 500 8-Channel Analog Input Module
Allen Bradley 1746-OA8
SLC 500 8-Point AC Digital Output Module
Allen Bradley 1746-OW16
SLC 500 16-Channel Analog Output Module
Popular Related Models
Model
Product Name
Allen Bradley 1746-OB16
SLC 500 Digital DC Output Module (Alternate)
Allen Bradley 1746-OA16
SLC 500 16-Point AC Digital Output Module
Allen Bradley 1746-IB8
SLC 500 8-Point AC Input Module
Allen Bradley 1746-IA16
SLC 500 16-Channel Analog Input Module
Applications
• Provides DC digital output channels for SLC 500 automation systems.
• Industrial automation applications requiring control of DC actuators, solenoids, and indicator devices.
• Integration into manufacturing, process control, and packaging operations.
• Retrofits or system expansions needing additional DC output channels.
• Applications where precise and reliable switching of DC loads is required.
Key Advantages
• Offers 16 DC digital output channels in a single compact module.
• Compatible with Allen-Bradley SLC 500 series controllers.
• Real-time LED indicators provide diagnostics and output status.
• Simplifies system expansion by consolidating multiple outputs in one module.
• Rugged construction ensures reliability in harsh industrial environments.
• Compact form factor saves panel space while supporting high channel density.
Technical FAQs
1. What is the primary function of this module?
It provides 16 digital DC output channels for SLC 500 systems to control field devices.
2. Which controllers is it compatible with?
Designed to integrate with Allen-Bradley SLC 500 series controllers.
3. Can it operate in industrial environments?
Yes, it is designed for vibration, temperature extremes, and electrical noise tolerance.
4. Does it provide diagnostics?
Yes, LEDs indicate channel status and operational health for all outputs.
5. Is the module hot-swappable?
No, power should be removed before installation or replacement.
6. How many output channels does it offer?
It provides 16 DC digital output channels.
7. Can multiple modules be used in a system?
Yes, multiple OB16 modules can be installed to expand output capacity.
8. Is programming required?
Yes, configuration is done through SLC 500 programming software.
9. What types of loads can it switch?
It can switch DC actuators, solenoids, relays, and indicator lamps.
10. What industries commonly use this module?
Used in automotive, manufacturing, food & beverage, and process control industries.
