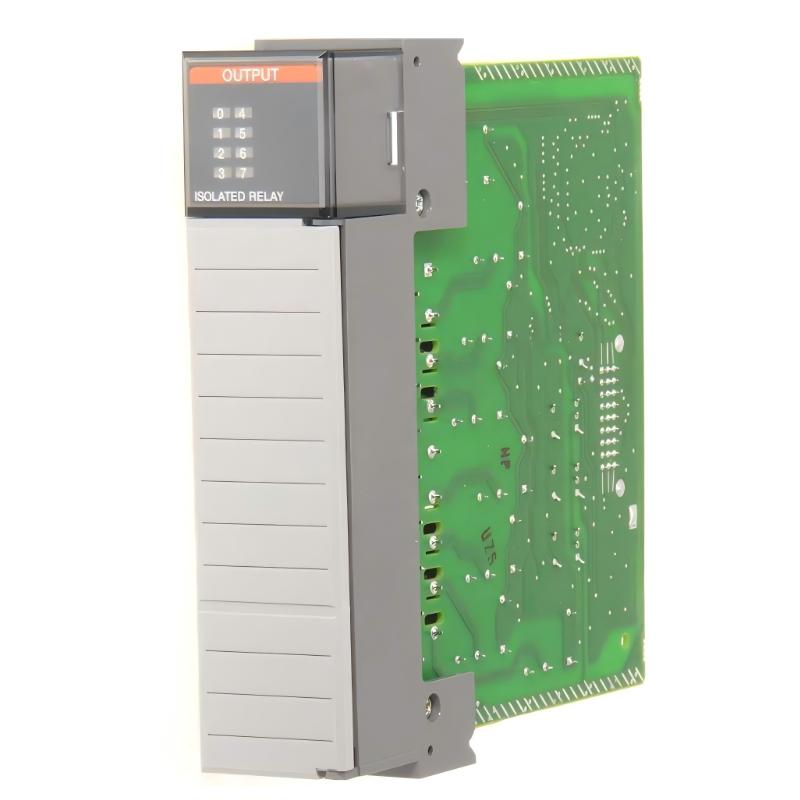

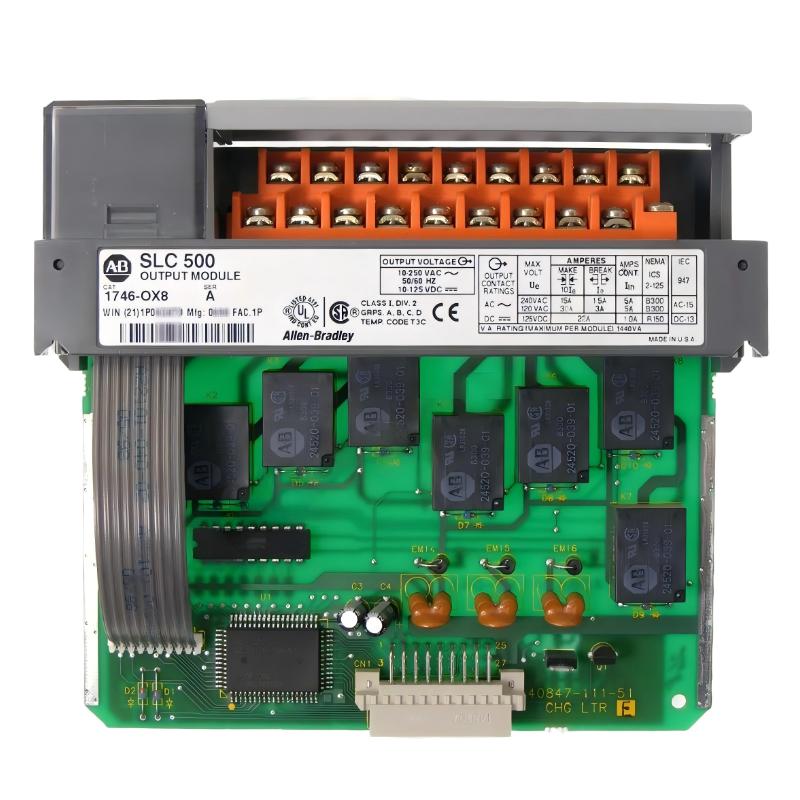

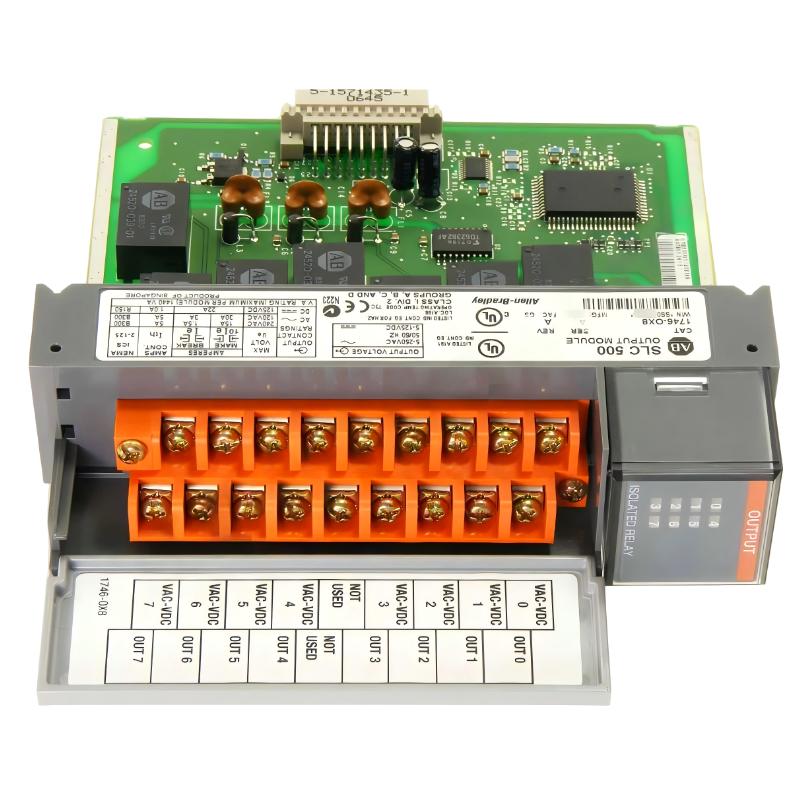

Allen Bradley 1746-OX8 SLC 500 Isolated Relay Output Module
Allen Bradley 1746-OX8 SLC 500 Isolated Relay Output Module
0.0
Points
Brand:Allen Bradley PLC Item No.:1746-OX8 Product Origin:USA Product Dimensions:144.5 × 34.6 × 130.18 mm Product Weight:0.295 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen-Bradley 1746-OX8 SLC 500 Isolated Relay Output Module delivers reliable control of field devices requiring electrical isolation. With 8 relay outputs, it supports both AC and DC loads, providing flexibility for diverse industrial applications. This module integrates seamlessly with SLC 500 controllers, simplifies wiring, provides real-time LED diagnostics, and ensures safe, reliable operation in demanding automation environments.
Technical Specifications
Parameter
Specification
Model
1746-OX8
Type
SLC 500 Isolated Relay Output Module
Dimensions
144.5 × 34.6 × 130.18 mm
Weight
0.295 kg
Outputs
8 Isolated Relay Outputs
Voltage Rating
AC/DC Loads
Application
Distributed Industrial Automation
Function
Relay Output Control with Isolation
Recommended Related Models
Model
Product Name
Allen Bradley 1746-OA8
SLC 500 8-Point AC Digital Output Module
Allen Bradley 1746-OB8
SLC 500 8-Point DC Digital Output Module
Allen Bradley 1746-IB8
SLC 500 8-Point AC Digital Input Module
Allen Bradley 1746-IA8
SLC 500 8-Channel Analog Input Module
Popular Related Models
Model
Product Name
Allen Bradley 1746-OX8
SLC 500 Isolated Relay Output Module (Alternate)
Allen Bradley 1746-OX16
SLC 500 16-Point Isolated Relay Output Module
Allen Bradley 1746-OB16
SLC 500 16-Point DC Digital Output Module
Allen Bradley 1746-OA16
SLC 500 16-Point AC Digital Output Module
Applications
• Provides isolated relay outputs for SLC 500 automation systems.
• Industrial automation applications requiring control of high-current or inductive loads.
• Integration into manufacturing, process control, and packaging operations.
• Retrofits or expansions where isolated relay outputs are needed.
• Applications requiring reliable electrical isolation between control signals and field devices.
Key Advantages
• Offers 8 isolated relay output channels for flexible control.
• Compatible with Allen-Bradley SLC 500 series controllers.
• LED indicators provide real-time diagnostics and output status.
• Supports control of both AC and DC loads safely.
• Simplifies wiring while maintaining electrical isolation for sensitive devices.
• Rugged construction ensures long-term reliability in industrial environments.
Technical FAQs
1. What is the primary function of this module?
It provides 8 isolated relay output channels for controlling field devices in SLC 500 systems.
2. Which controllers is it compatible with?
Designed for Allen-Bradley SLC 500 series controllers.
3. Can it operate in harsh industrial environments?
Yes, it is built to withstand vibration, temperature extremes, and electrical noise.
4. Does it provide diagnostics?
Yes, LEDs indicate channel status and operational health.
5. Is it hot-swappable?
No, the system should be powered down before installing or removing the module.
6. How many output channels does it have?
It provides 8 isolated relay output channels.
7. Can multiple modules be installed together?
Yes, multiple OX8 modules can expand the system’s relay output capability.
8. What types of loads can it control?
It can switch AC and DC loads, including motors, solenoids, and lamps.
9. Is programming required?
Yes, configuration is done via SLC 500 programming software.
10. What industries commonly use this module?
Used in automotive, food & beverage, packaging, and general manufacturing industries.
