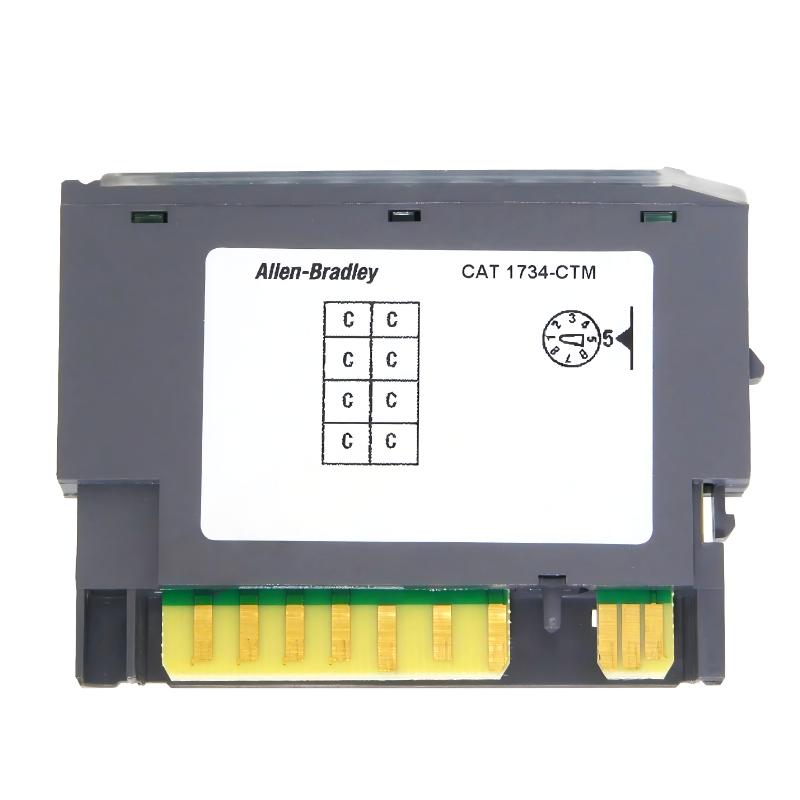

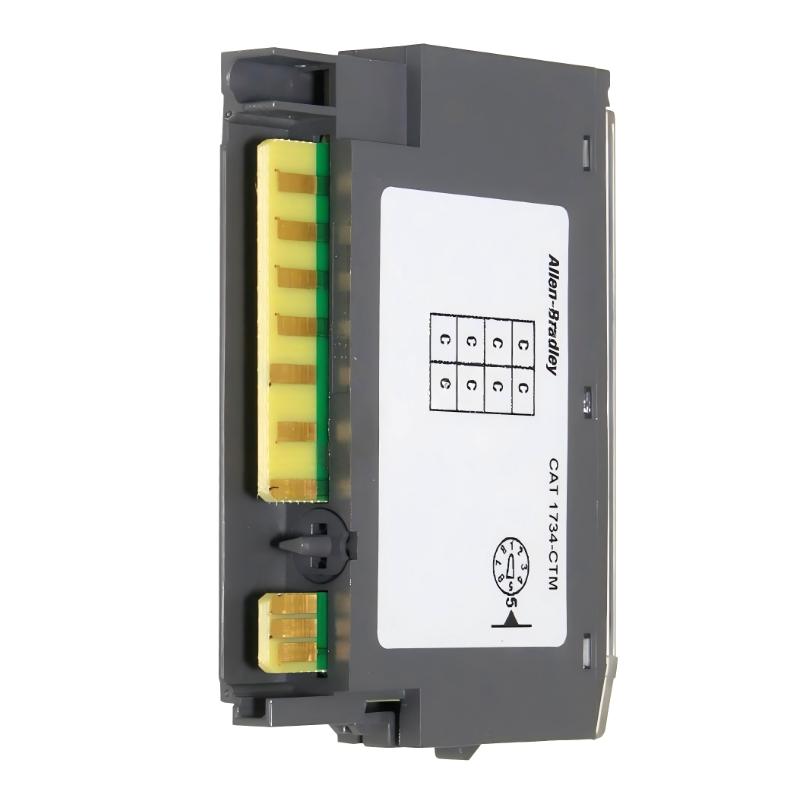

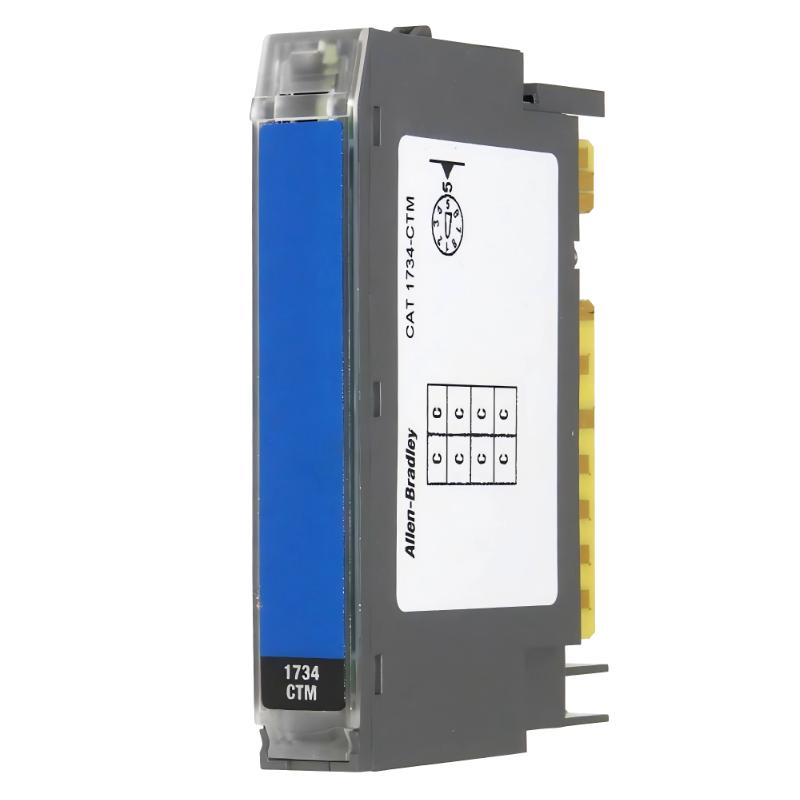

Allen Bradley 1734-CTM Point I/O General Terminal Module
Allen Bradley 1734-CTM Point I/O General Terminal Module
0.0
Points
Brand:Allen Bradley PLC Item No.:1734-CTM Product Origin:USA Product Dimensions:77.5 x 12.1 x 56.6 mm Product Weight:0.031 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen-Bradley 1734-CTM Point I/O General Terminal Module is a compact and versatile terminal solution for distributed Point I/O systems. It simplifies wiring and provides organized connections for a variety of digital and analog signals. Ideal for new installations, retrofits, or system expansions, this module ensures reliable operation and efficient space utilization in industrial automation environments.
Technical Specifications
Parameter
Specification
Model
1734-CTM
Type
Point I/O General Terminal Module
Dimensions
77.5 × 12.1 × 56.6 mm
Weight
0.031 kg
Connections
General-purpose I/O Terminals
Application
Distributed Industrial Automation
Function
Provides Terminal Connections
Recommended Related Models
Model
Product Name
Allen Bradley 1734-IB8
Point I/O 8-Point AC Digital Input Module
Allen Bradley 1734-OB8
Point I/O 8-Point DC Digital Output Module
Allen Bradley 1734-IA8
Point I/O 8-Channel Analog Input Module
Allen Bradley 1734-AENT
Point I/O Ethernet/IP Adapter
Popular Related Models
Model
Product Name
Allen Bradley 1734-CTM
Point I/O General Terminal Module (Alternate)
Allen Bradley 1734-CTM2
Expanded Terminal Module for Point I/O
Allen Bradley 1734-4IOL
4-Channel IO-Link Main Module
Allen Bradley 1734-ARM
Point I/O Address Reserved Module
Applications
• Provides general-purpose terminal connections for Point I/O systems.
• Industrial automation requiring flexible wiring and signal distribution.
• Integration into manufacturing, packaging, and process control systems.
• Retrofits or expansions where additional terminal connections are needed.
• Applications that require organized and reliable point-to-point wiring.
Key Advantages
• Compact module supporting flexible terminal wiring for Point I/O networks.
• Compatible with Allen-Bradley Point I/O systems for seamless integration.
• Provides secure and reliable connections for multiple signal types.
• Simplifies wiring and system organization in distributed I/O setups.
• Rugged design ensures durability in industrial environments.
• Lightweight and space-saving design ideal for high-density racks.
Technical FAQs
1. What is the primary function of this module?
It provides general-purpose terminal connections for Allen-Bradley Point I/O systems.
2. Which controllers is it compatible with?
It integrates with Point I/O networks and associated Allen-Bradley controllers.
3. Can it operate in harsh industrial environments?
Yes, it is designed to withstand vibration, temperature extremes, and electrical noise.
4. Does it provide diagnostics?
No active diagnostics; it is a passive terminal module for wiring connections.
5. Is the module hot-swappable?
Yes, Point I/O terminal modules can typically be added or removed while the system is powered.
6. How many connections does it support?
Supports multiple general-purpose input and output connections based on system requirements.
7. Can multiple modules be installed together?
Yes, multiple CTM modules can be added to expand terminal connectivity.
8. Is programming required?
No programming is needed; it is a passive terminal connection module.
9. What types of signals can it handle?
Supports digital and analog signals depending on connected I/O modules.
10. What industries commonly use this module?
Used in automotive, packaging, food & beverage, and general manufacturing industries.
