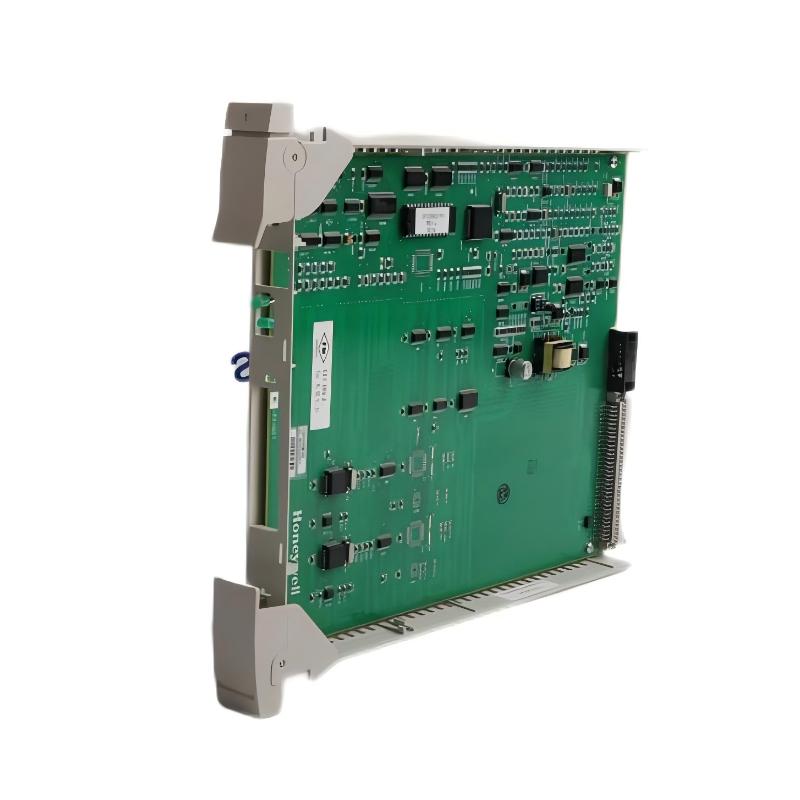

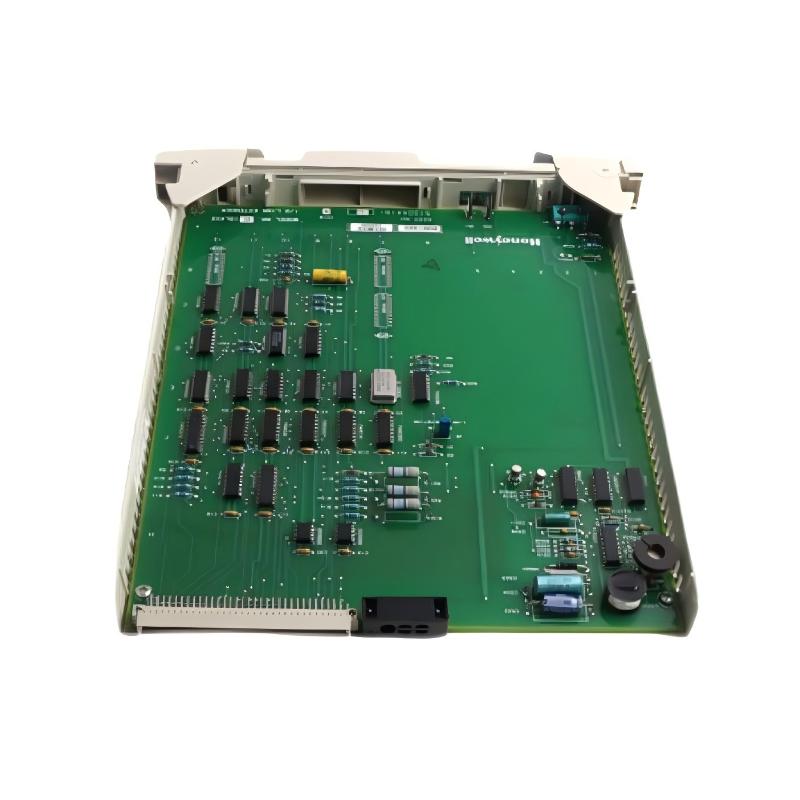

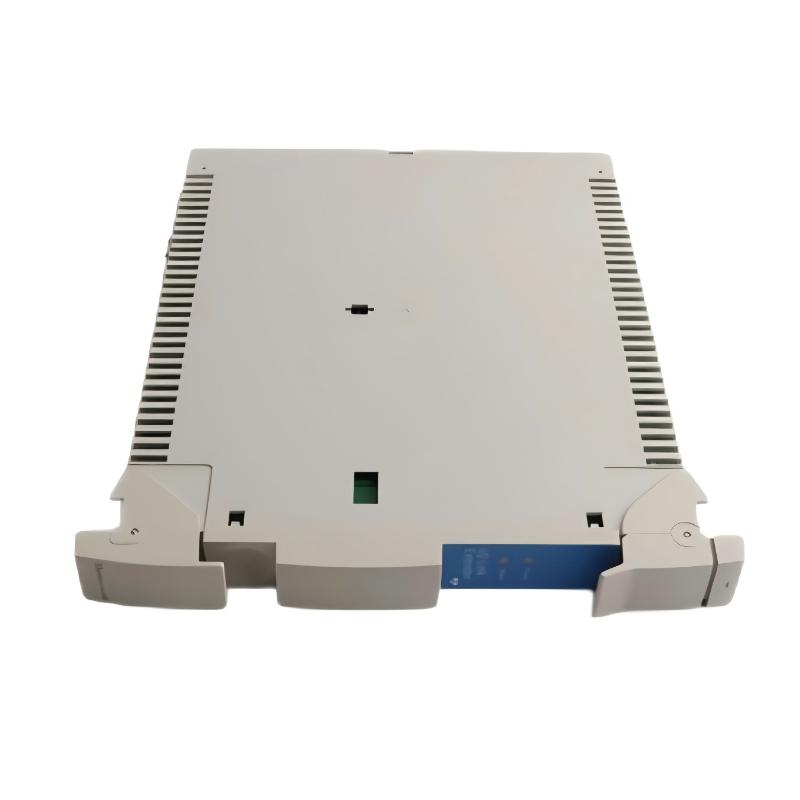

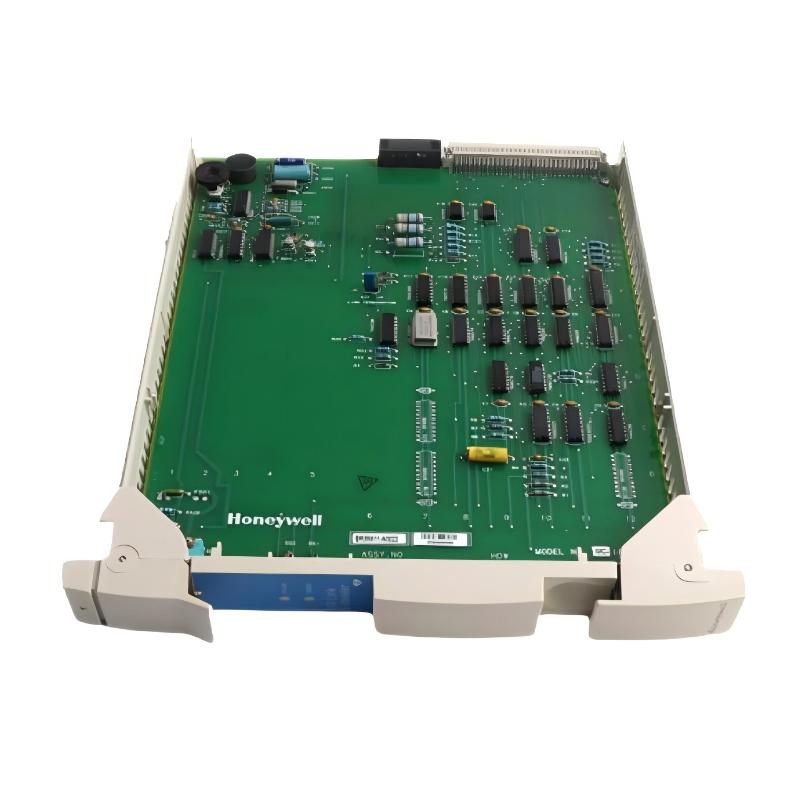

Honeywell MC-IOLX02 51304419-150 I/O Link Extender Module

Distributed Control Expansion Scenarios
The Honeywell MC-IOLX02 I/O Link Extender Module is designed to extend I/O communication distances within Honeywell control and safety systems. It is widely applied in large-scale industrial plants such as oil & gas facilities, refineries, power stations, and process manufacturing sites where control cabinets and field I/O must be distributed over long distances. By maintaining stable and synchronized data transmission, the module supports flexible system architecture without compromising reliability.

Operational Advantages

• Extended I/O communication range: Enables flexible placement of I/O cabinets across large installations.

• Stable data transmission: Maintains signal integrity even over extended link distances.

• Slim industrial form factor: Designed for efficient cabinet integration and clean layout.

• High system reliability: Built for continuous operation in mission-critical environments.

• Scalable architecture support: Ideal for system expansion and phased plant upgrades.

Technical FAQs

1. What is the primary function of the MC-IOLX02?
   It extends the communication link between Honeywell controllers and remote I/O assemblies.

2. Is it suitable for large, distributed control systems?
   Yes, it is specifically designed for distributed architectures requiring extended I/O distances.

3. Can it operate continuously in industrial environments?
   Yes, it supports 24/7 operation under standard industrial conditions.

4. Does it affect signal integrity over long distances?
   No, it is engineered to maintain stable and reliable data transmission.

5. What are the physical dimensions of the module?
   The module measures 28 × 318 × 278 mm.

6. What is the weight of the module?
   It weighs approximately 0.567 kg.

7. How is the module installed?
   It is panel-mounted within Honeywell control system cabinets.

8. Is it resistant to industrial interference?
   Yes, it is designed to withstand electrical noise and mechanical vibration.

9. Which systems is it compatible with?
   It integrates seamlessly with Honeywell control systems using I/O link architectures.

10. Is it suitable for system expansion projects?
    Yes, it is ideal for plant expansions, retrofits, and layout optimization.
