Introduction

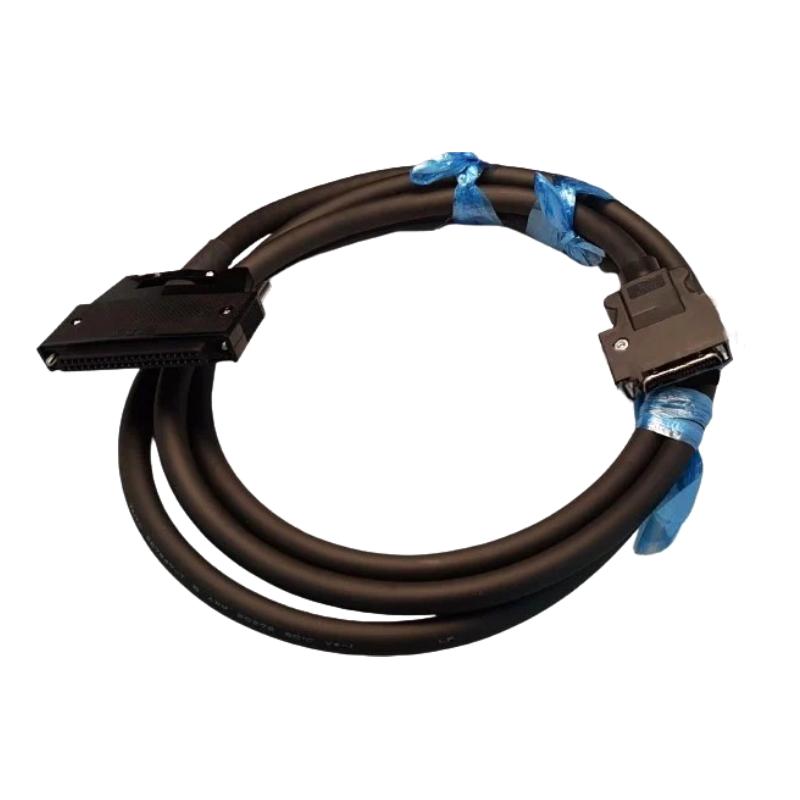

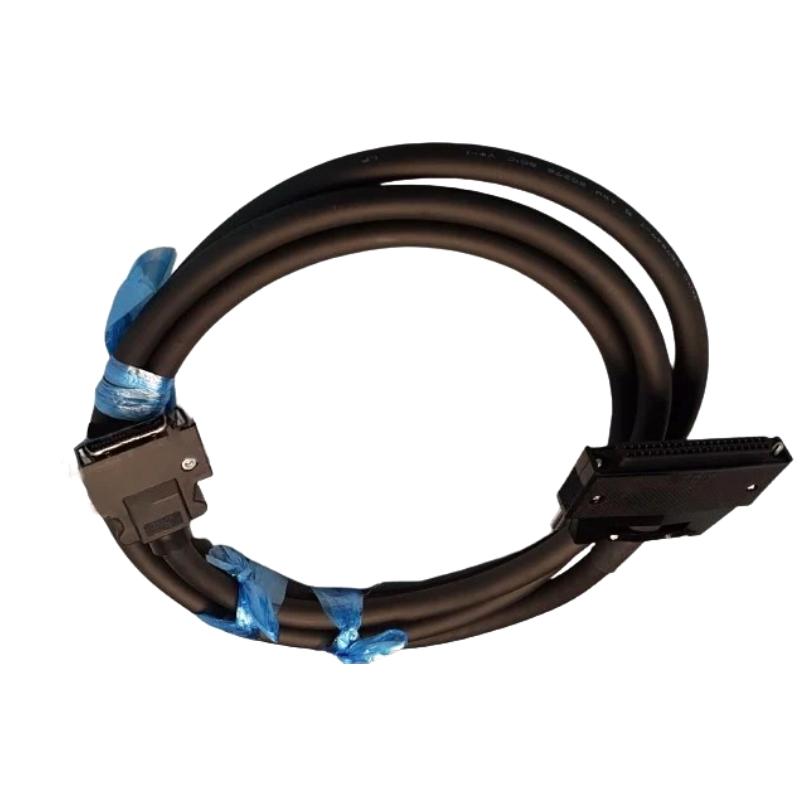

The Bently Nevada 130118-0010-02 Main Unit to 3500 Rack Cable is a key component in the 3500 series machinery monitoring system. By ensuring a secure and efficient connection between the main unit and rack, this cable plays a vital role in maintaining system integrity. Used primarily in predictive maintenance applications, the cable ensures accurate data transmission from critical machinery, supporting decision-making processes that reduce downtime and enhance operational efficiency.

Technical Specifications

Specification	Value
Model	130118-0010-02
Cable Type	Main Unit to 3500 Rack Cable
Cable Length	10 feet (3.05 meters)
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Shielding	Yes, shielded
Current Rating	Low-power signal transmission
Weight	3 kg (6.6 lb)
Connectors	Bently Nevada 3500 series connectors

Applications

The Bently Nevada 130118-0010-02 Main Unit to 3500 Rack Cable is designed to provide a reliable connection between the Bently Nevada 3500 series monitoring systems and their respective main units. This cable is essential in industrial settings where machinery and equipment health are continuously monitored, such as in power plants, oil rigs, and manufacturing facilities. It supports high-fidelity signal transmission for predictive maintenance, ensuring critical assets like turbines, pumps, and motors are operating within optimal conditions.

Advantages

Optimized for 3500 Series: Specifically engineered to connect the main unit to the 3500 rack, ensuring seamless communication and data flow.
Reliable Signal Transmission: Maintains signal integrity over the 10-foot length, enabling accurate diagnostics and monitoring.
Heavy-Duty Construction: Built to endure the challenging conditions of industrial environments, ensuring longevity and minimal maintenance.
Compatibility: Fully compatible with Bently Nevada’s 3500 series machinery monitoring systems, guaranteeing easy integration and effective operation.
Enhanced Durability: Offers robust shielding to protect against electrical noise, ensuring stable and interference-free data transmission.

Technical FAQs

What is the cable length for the 130118-0010-02 model?
The cable length is 10 feet, providing sufficient length for most industrial monitoring setups.
What type of connectors are used on this cable?
The cable features high-quality connectors that are designed to interface directly with the 3500 series main unit and rack components.
Can this cable be used with other Bently Nevada systems?
This cable is specifically designed for use with the 3500 series systems and may not be compatible with other product lines without additional adapters.
Is the cable rated for outdoor use?
The 130118-0010-02 cable is designed for industrial environments, including indoor and sheltered outdoor applications, provided it is protected from extreme weather conditions.
What is the operating temperature range of this cable?
The cable operates effectively in temperatures ranging from -40°C to +85°C (-40°F to +185°F).
How does this cable maintain signal integrity over its length?
The cable is shielded to minimize electromagnetic interference (EMI) and ensure reliable transmission of monitoring signals over the 10-foot distance.
Can the cable be used in hazardous areas?
While the cable is built to handle industrial environments, it is not intrinsically safe for use in hazardous locations unless installed within a suitable enclosure.
Is the 130118-0010-02 cable resistant to vibration?
Yes, the cable is designed for use in environments where machinery vibration is common, ensuring stable operation in such conditions.
What is the maximum current the cable can carry?
The cable is designed for low-power signal transmission and is typically used for data transfer rather than powering high-current equipment.
What materials are used for the cable insulation?
The cable insulation is made from high-quality, durable materials that offer resistance to abrasion and chemical exposure, ensuring long-lasting performance in industrial settings.
