Introduction

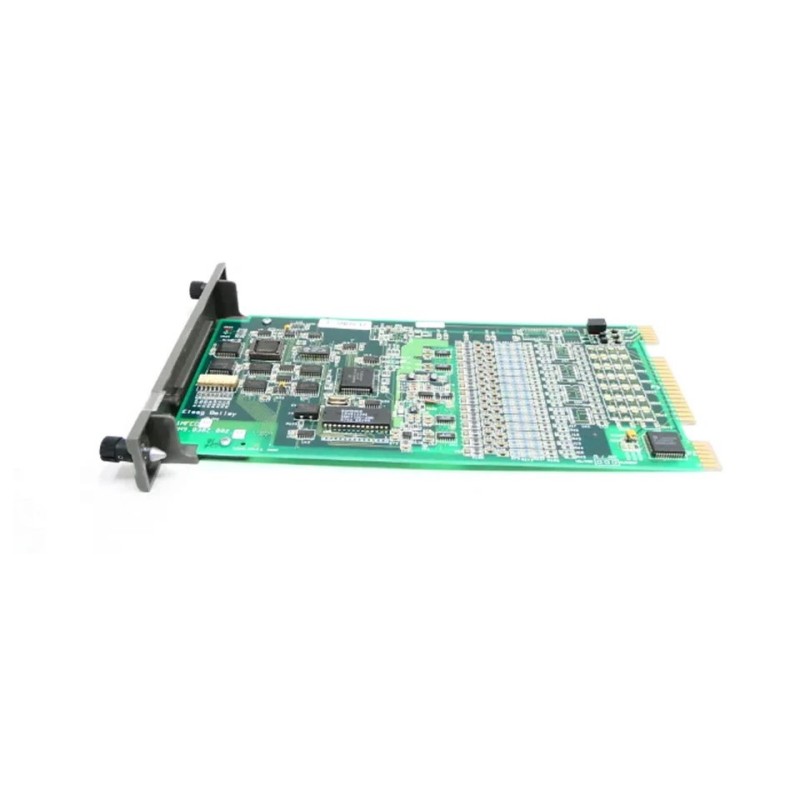

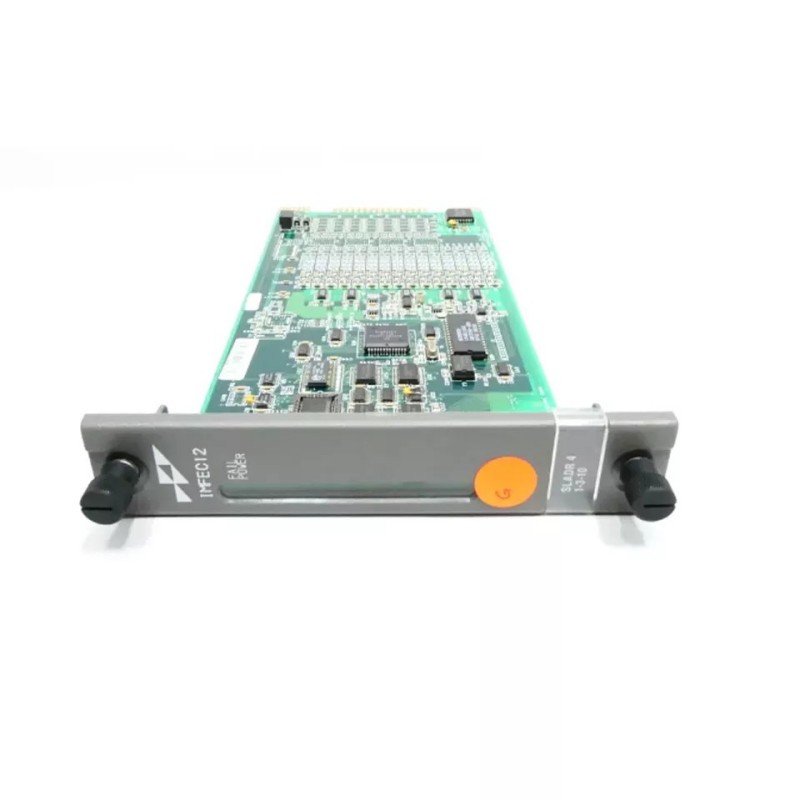

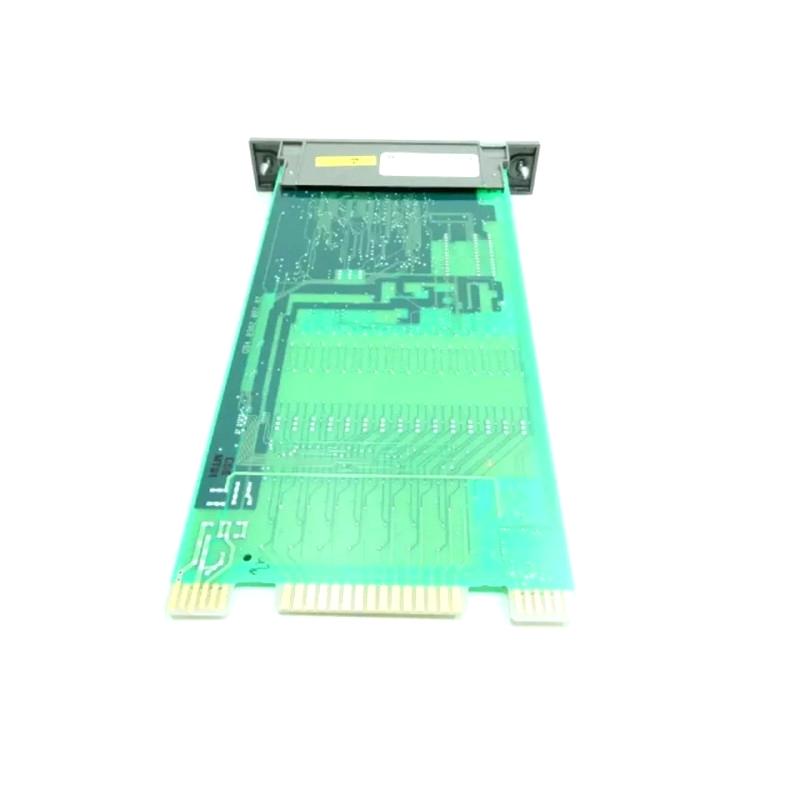

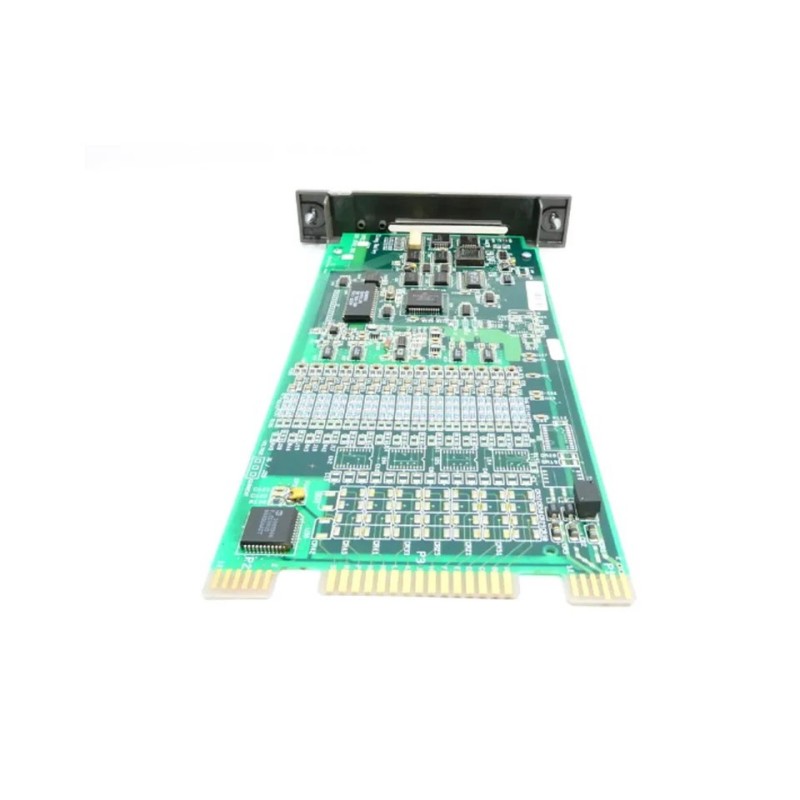

The ABB Bailey IMFEC12 Analog Input Module is a high-performance component that provides accurate and reliable conversion of analog signals from field devices to digital signals for industrial automation systems. It is ideal for a wide range of applications in process control, SCADA systems, energy management, and building automation, offering high accuracy, ease of integration, and long-term reliability.
With its robust construction and low power consumption, the IMFEC12 ensures that critical data is accurately transmitted to the control system, enabling precise monitoring and control in demanding industrial environments. Its compact design makes it easy to install and integrate into existing automation systems, ensuring flexibility and scalability for future system expansions.
Technical Specifications
| Feature | Details |
|---|
| Function | Analog Signal Conversion for Industrial Control Systems |
| Input Voltage | 24V DC (Standard industrial power supply) |
| Dimensions (L x W x H) | 229 x 103 x 33 mm |
| Weight | 1 kg (2.2 lb) |
| Operating Temperature | -20°C to 60°C |
| Signal Type | Voltage, Current, and other standard industrial signals |
| Mounting Type | Control panels, automation racks, industrial setups |
| Protection Rating | Industrial-grade design, resistant to temperature and mechanical stress |
Applications
The ABB Bailey IMFEC12 Analog Input Module is designed to provide accurate analog signal conversion for industrial automation and process control systems. This module is used for applications requiring precise measurement and monitoring of various analog signals, ensuring that critical data is transmitted accurately to the control system. Key applications include:
-
Industrial Automation: The IMFEC12 is used in automation systems for monitoring and controlling industrial processes, providing accurate analog inputs from sensors and devices to the central control system.
-
Process Control: In industries such as chemical, oil & gas, and pharmaceuticals, the module is critical for measuring parameters like pressure, temperature, and flow, ensuring precise process control and optimization.
-
SCADA Systems: The IMFEC12 integrates seamlessly with SCADA (Supervisory Control and Data Acquisition) systems to collect real-time analog data from remote devices, enabling efficient monitoring and decision-making.
-
Building Management Systems (BMS): In BMS applications, the IMFEC12 module is used for monitoring environmental conditions such as temperature and humidity, helping manage HVAC systems, lighting, and security.
-
Energy Management Systems: The module is also used for energy monitoring, providing analog input signals from energy meters and controllers, enabling effective energy management and optimization.
