Introduction

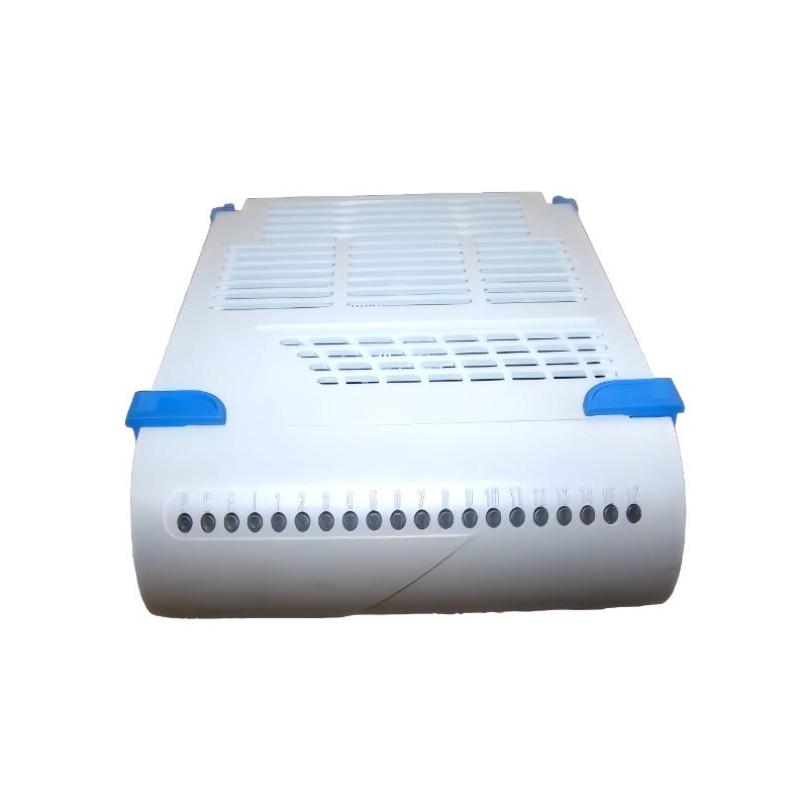

The Ovation 1C31025G03 Analog Input Module delivers reliable, high-precision signal acquisition for modern automation and process control systems. It allows engineers to gather real-time analog data efficiently, enabling smarter decisions, faster system response, and safer operations. Its compact design and robust protection features make it a versatile choice for engineers seeking consistent, high-quality analog input performance.

Technical Specifications

Parameter	Specification
Module Type	Analog Input Module
Dimensions (L×W×H)	41 × 159 × 108 mm
Weight	0.6 kg / 1.32 lb
Operating Temperature	0°C to 60°C
Storage Temperature	-20°C to 70°C
Input Type	Voltage, Current (4–20 mA), Resistance
Max Sampling Rate	1 kHz per channel
Protection Features	Overvoltage, Short Circuit
Mounting	DIN Rail / Panel Mount
Compatibility	Ovation System Modules

Applications

The Ovation 1C31025G03 Analog Input Module is engineered for precise monitoring in industrial automation, power generation, and process control systems. It excels in measuring temperature, pressure, flow, and other analog signals with exceptional accuracy. Ideal for real-time data acquisition, system diagnostics, and critical feedback loops, this module ensures smooth and stable operations in demanding environments.

Advantages

High Precision: Accurate analog signal measurement supports complex control strategies.
Wide Compatibility: Works seamlessly with Ovation control systems and third-party automation platforms.
Reliable Performance: Designed for continuous operation in industrial settings.
Enhanced Safety: Built-in signal protection prevents overvoltage and short circuits.
Compact Design: Space-saving 41 × 159 × 108 mm footprint allows easy panel integration.

Technical FAQs

Which types of analog signals does the module support?
Supports voltage, current (4–20 mA), and resistance input signals.
What is the input accuracy of the module?
±0.1% of full scale, ensuring reliable measurements.
Can it operate in high-temperature environments?
Yes, it functions reliably from 0°C to 60°C.
Is calibration required?
Calibration is recommended at installation, with optional periodic recalibration.
Does it provide diagnostic data?
Yes, the module reports signal integrity and operational status in real time.
What protections are included for input channels?
Overvoltage and short-circuit protection for all analog inputs.
Can it integrate with redundant systems?
Fully compatible with Ovation redundant and failover architectures.
What is the maximum sampling rate?
Up to 1 kHz per channel depending on configuration.
Does it support remote configuration?
Yes, via Ovation system software or networked control interface.
Is it suitable for outdoor or harsh conditions?
Designed for industrial indoor environments; additional enclosures recommended for outdoor use.
