Introduction

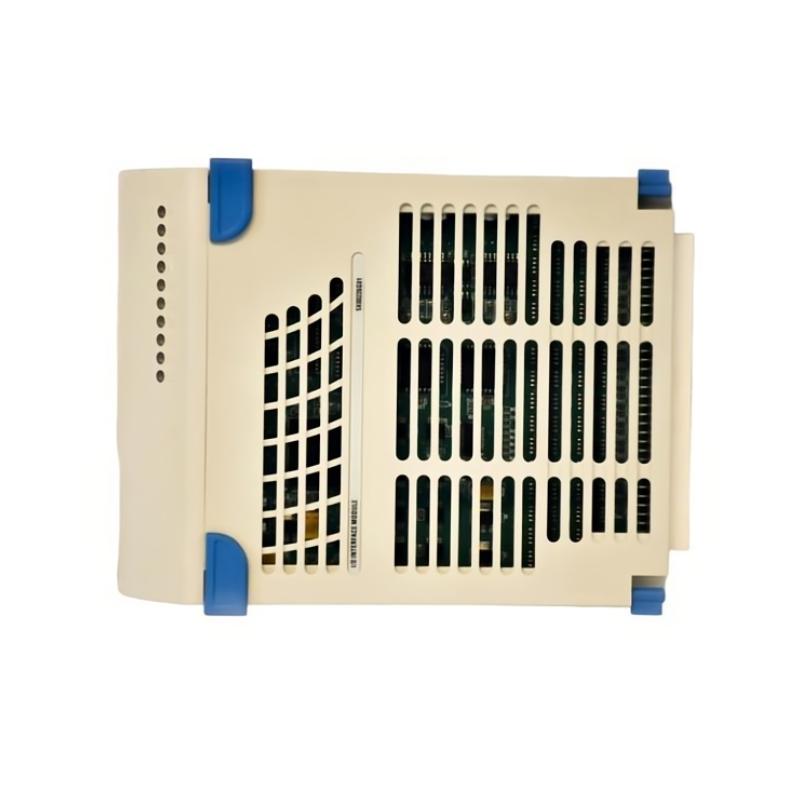

The Ovation 1C31036H03 Power Module is a robust and reliable energy source for Ovation control systems. Built to maintain stable operation in industrial environments, it ensures uninterrupted power to critical system modules. Its compact design, safety features, and ease of integration make it an essential component for engineers managing complex control and automation networks.

Technical Specifications

Parameter	Specification
Module Type	Power Module
Dimensions (L×W×H)	41 × 159 × 108 mm
Weight	0.6 kg / 1.32 lb
Operating Temperature	0°C to 60°C
Storage Temperature	-20°C to 70°C
Output Voltage	24 VDC ±10%
Maximum Current	2.5 A
Protection Features	Overvoltage, Overcurrent, Thermal
Mounting	DIN Rail / Panel Mount
Compatibility	Ovation System Modules

Applications

The Ovation 1C31036H03 Power Module is designed for industrial automation, distributed control systems, and power-critical applications. It provides stable and reliable power to digital, analog, and relay modules within Ovation control architectures. Ideal for power plants, process control environments, and mission-critical industrial systems where uninterrupted operation is essential.

Advantages

Consistent Power Delivery: Maintains stable voltage and current to connected modules.
Compact Industrial Design: 41 × 159 × 108 mm footprint allows for easy integration in control panels.
High Reliability: Engineered for continuous operation in demanding industrial conditions.
Integrated Protection: Overvoltage, overcurrent, and thermal safeguards prevent system disruptions.
Easy Installation: Plug-and-play with standard Ovation systems for quick deployment.

Technical FAQs

What is the output voltage of this power module?
Provides regulated 24 VDC output suitable for Ovation modules.
What is the maximum current capacity?
Up to 2.5 A continuous load.
Does it have overcurrent and overvoltage protection?
Yes, built-in protections safeguard connected equipment.
Can it operate in extreme temperature ranges?
Reliable operation from 0°C to 60°C.
Is it hot-swappable?
No, system power should be turned off before replacing the module.
Does it support redundant power configurations?
Yes, compatible with Ovation redundant architectures for high availability.
What is the expected operational lifespan?
Designed for over 10 years under standard industrial conditions.
Can it power multiple module types simultaneously?
Yes, it supports digital I/O, analog input/output, and MRC boards.
Is firmware required for this module?
No firmware is required; optional software may enhance system monitoring.
Can it be installed outdoors?
Recommended for indoor industrial environments; use protective enclosures for outdoor applications.
