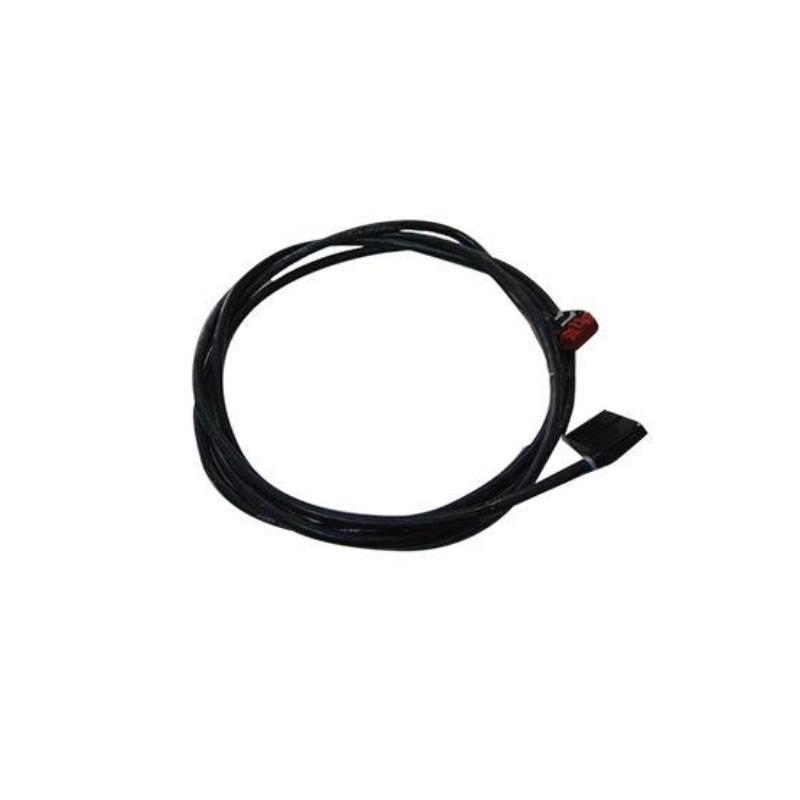

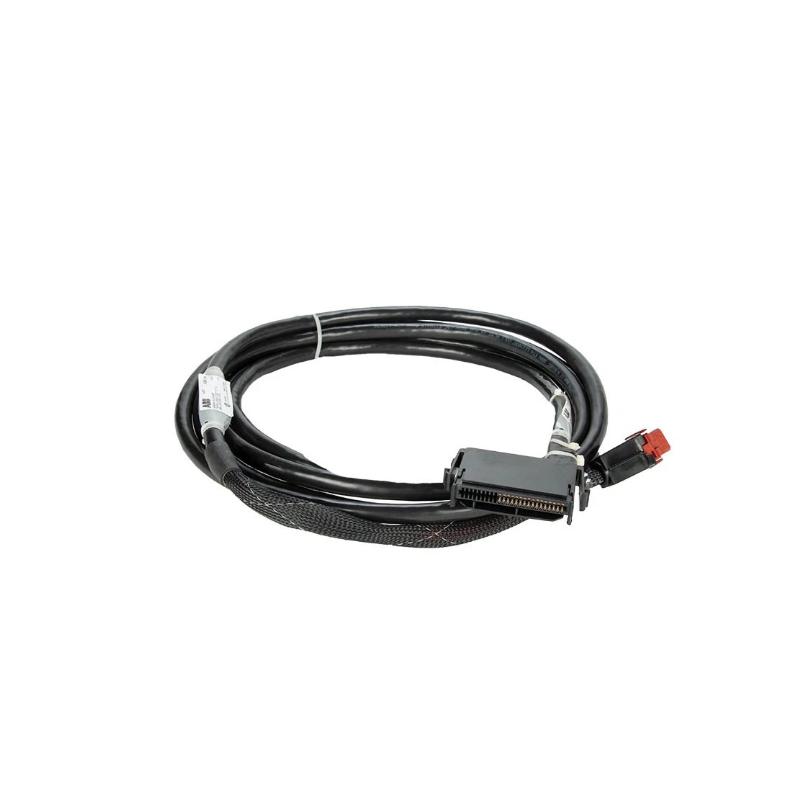

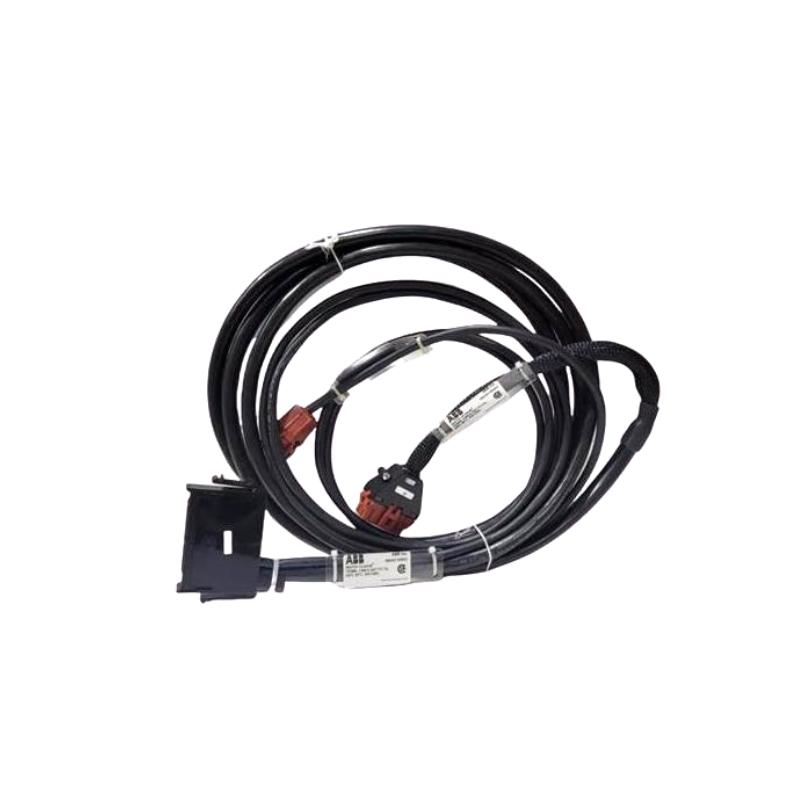

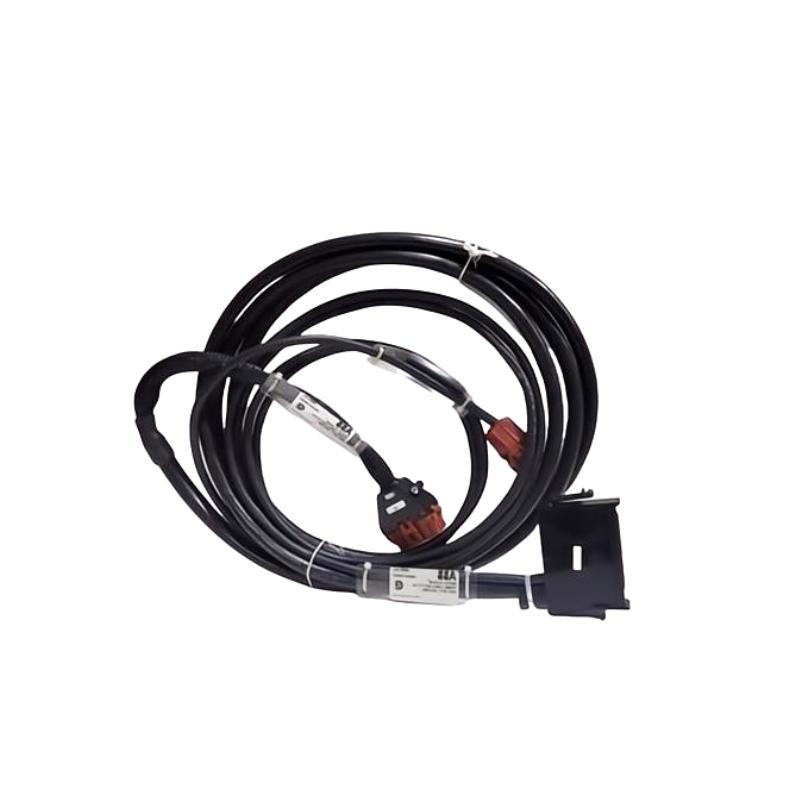

The ABB Bailey NKSD01-15 SOE Digital Input Interface Cable is a specialized industrial communication cable designed for the ABB Bailey INFI 90 / Net 90 Distributed Control System (DCS). It is engineered to provide fast, stable, and interference-resistant signal transmission between Sequence of Events (SOE) digital input modules and associated termination units.
In critical process automation environments, accurate event timing is essential for operational safety, system diagnostics, and fault investigation. The NKSD01-15 ensures precise transmission of time-sensitive digital event signals, enabling reliable recording of alarms, trips, and operational changes across distributed control systems.
Its 15-foot cable configuration provides enhanced installation flexibility while maintaining high signal integrity in electrically noisy industrial environments.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Type | SOE Digital Input Interface Cable |
| System Compatibility | ABB Bailey INFI 90 / Net 90 |
| Function | Sequence of Events signal transmission |
| Cable Length | 15 ft (approximately 4.57 m) |
| Cable Type | Shielded industrial communication cable |
| Signal Application | Digital event recording and SOE communication |
| Connection Role | SOE module to termination unit interface |
| Cable Construction | Industrial-grade insulated and EMI-shielded design |
| Installation Environment | Industrial control cabinet |
| Operating Duty | Continuous industrial operation |
The NKSD01-15 is commonly used with ABB Bailey SOE systems for high-speed event logging and digital signal monitoring applications.
Physical Dimensions & Weight
| Specification | Value |
|---|---|
| Dimensions (H × W × D) | 320 mm × 320 mm × 75 mm |
| Weight | ~0.8–1.2 kg |
The medium-length industrial cable structure supports organized cabinet routing while ensuring reliable high-speed event signal transmission.
Recommended Related Models
- ABB Bailey NKSD01 SOE Cable Series
- ABB Bailey NTDI01 Digital Input Termination Unit
- ABB Bailey NRDI01 Input Interface Module
- ABB Bailey NKLS01 Logic System Cable
- ABB Bailey NICS01 Communication Slave Module
These components are commonly integrated with NKSD01-15 in ABB Bailey event recording and process monitoring systems.
