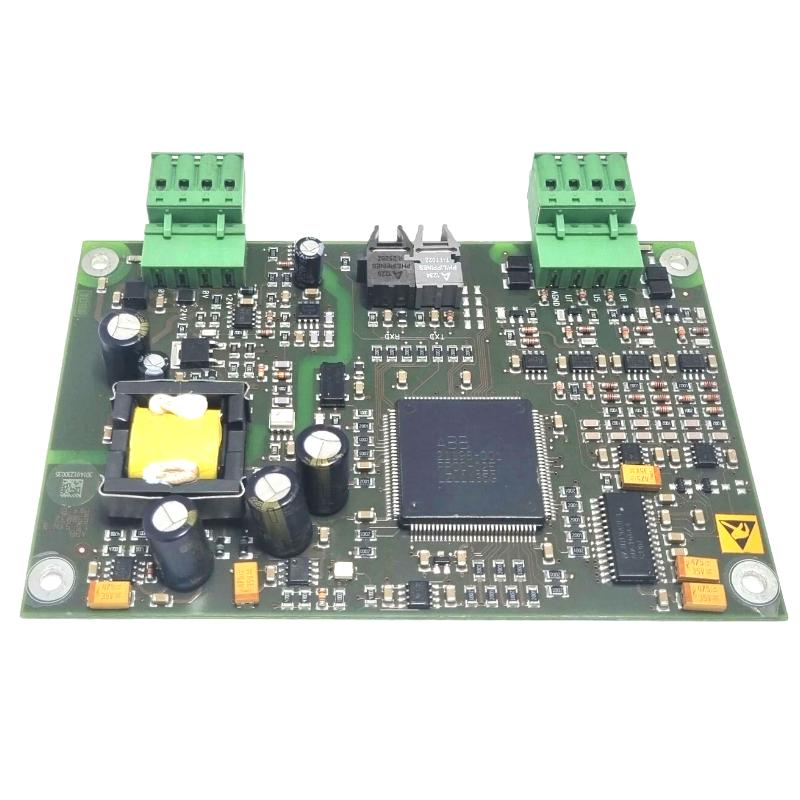

ABB LD SYN-101 3BHE005555R0101 Synchronous Voltage Measurement Board
ABB LD SYN-101 3BHE005555R0101 Synchronous Voltage Measurement Board
0.0
Points
Brand:ABB PLC Item No.:LD SYN-101 Product Origin:Sweden (SE) Product Dimensions:210 × 120 × 30 mm Product Weight:0.15 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The ABB LD SYN-101 3BHE005555R0101 Synchronous Voltage Measurement Board is a high-precision module for monitoring AC voltage in synchronized industrial systems. It provides accurate voltage data to support protection, control, and energy management functions.
Designed for demanding industrial environments, the module ensures signal integrity, operational reliability, and seamless integration with ABB automation and protection systems. Its lightweight and compact design facilitates installation in tight spaces while maintaining high measurement performance.
Technical Specifications
Parameter
Description
Product Type
Synchronous Voltage Measurement Board
Function
High-precision AC voltage measurement
Diagnostics
Real-time signal and measurement monitoring
Phase Support
Single or multi-phase systems
Environmental Protection
Industrial-grade design for temperature, vibration, EMI
System Compatibility
ABB protection relays and control systems
Dimensions (W × H × D)
210 × 120 × 30 mm
Weight
0.15 kg
Recommended Related Models
Model
Module Type
Primary Application
ABB LD SYN-102
Synchronous Voltage Measurement Board
Advanced multi-phase measurement
ABB LD SYN-201
Voltage & Current Measurement Board
Combined voltage/current measurement
ABB LD PRO-301
Protection Relay Module
High-speed protection applications
ABB LD SYN-101/A
Synchronous Voltage Board variant
Enhanced diagnostic features
ABB LD SYN-105
Voltage Measurement Module
Power quality monitoring
Popular Related Models
Model
Module Type
Common Use
ABB LD SYN-100
Voltage Measurement Board
Standard AC voltage measurement
ABB LD PRO-201
Protection Relay Module
Grid protection applications
ABB LD SYN-103
Synchronous Voltage Module
Multi-phase monitoring
ABB LD PRO-302
Protection & Monitoring Module
Industrial control and protection
ABB LD SYN-110
Voltage Monitoring Board
High-accuracy voltage tracking
Applications
The ABB LD SYN-101 Synchronous Voltage Measurement Board is designed for precise measurement of AC voltage in high-speed and synchronized industrial applications. It is widely used in power generation, substation automation, and industrial monitoring systems where accurate phase and amplitude voltage measurements are critical.
This module enables real-time monitoring of voltage parameters for protection, control, and energy management applications. It is suitable for integration into digital control and protection systems, supporting high-precision measurement for grid stability, power quality analysis, and synchronized control applications.
Advantages
The LD SYN-101 offers high-accuracy voltage measurements with minimal phase delay, ensuring precise synchronization across connected systems. Its lightweight and compact design allows for easy integration into existing panels or measurement systems.
Advanced diagnostics enable continuous monitoring of measurement accuracy and signal quality, allowing operators to quickly detect anomalies. The module’s robust design ensures reliable performance under industrial environmental conditions, while its compatibility with ABB automation platforms ensures seamless system integration.
Technical FAQs
1. What is the main function of the LD SYN-101?
It provides synchronous AC voltage measurement for precise monitoring and control in industrial systems.
2. How accurate is the voltage measurement?
The module delivers high-precision measurements with minimal phase and amplitude errors, suitable for protection and control applications.
3. Can the board detect voltage anomalies?
Yes, integrated diagnostics allow detection of overvoltage, undervoltage, and phase imbalances.
4. How does it support synchronized measurements across systems?
The module aligns its measurements with system-wide timing signals, enabling synchronized monitoring and control.
5. Is the LD SYN-101 suitable for power quality analysis?
Yes, its precise measurement capabilities make it ideal for real-time power quality monitoring.
6. Can it operate in harsh industrial environments?
Yes, the module is designed for vibration, temperature variation, and electromagnetic interference typical in industrial settings.
7. How is the module integrated into control and protection systems?
It interfaces directly with ABB protection relays, digital control systems, and measurement panels, providing real-time voltage data.
8. Does the module provide real-time diagnostics?
Yes, it continuously monitors signal quality, measurement accuracy, and operational status.
9. Can the LD SYN-101 be used in synchronized multi-phase systems?
Yes, it is designed for accurate multi-phase voltage measurement and synchronization.
10. Which applications benefit most from this board?
Applications requiring high-accuracy AC voltage monitoring, synchronized control, protection, and power quality analysis benefit most.
