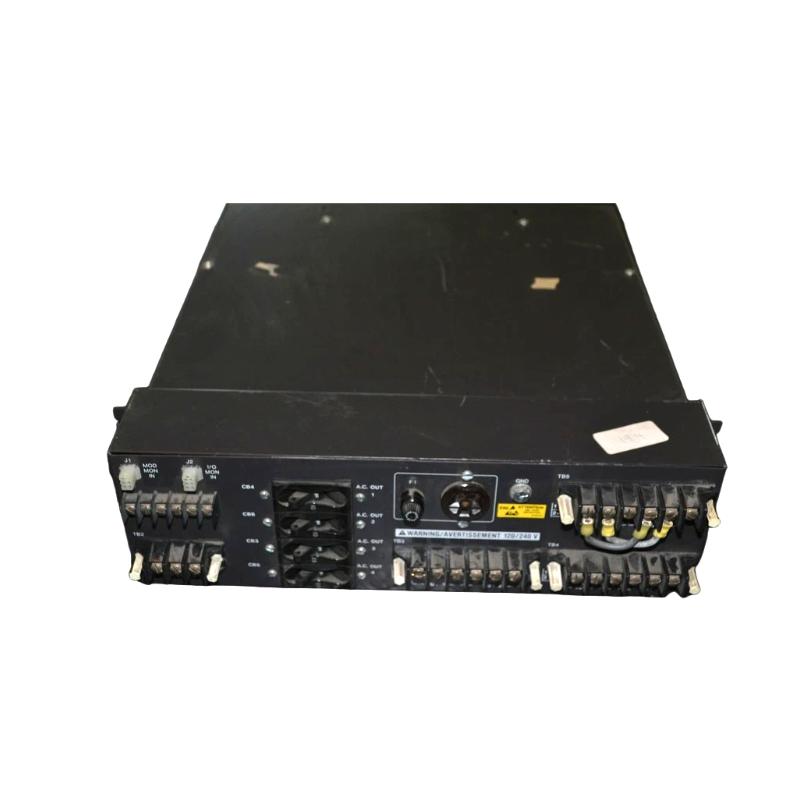

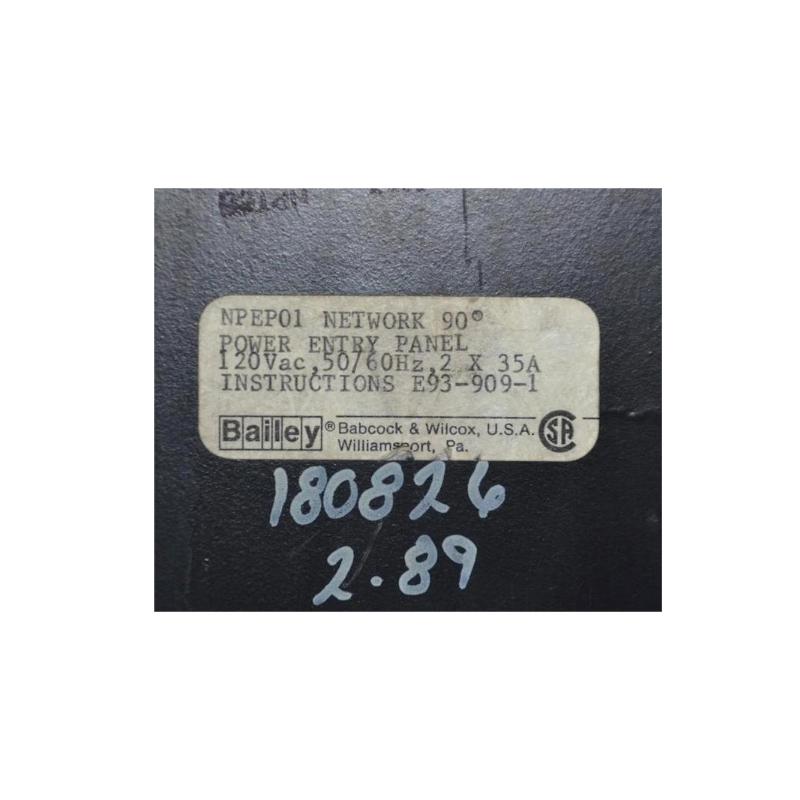

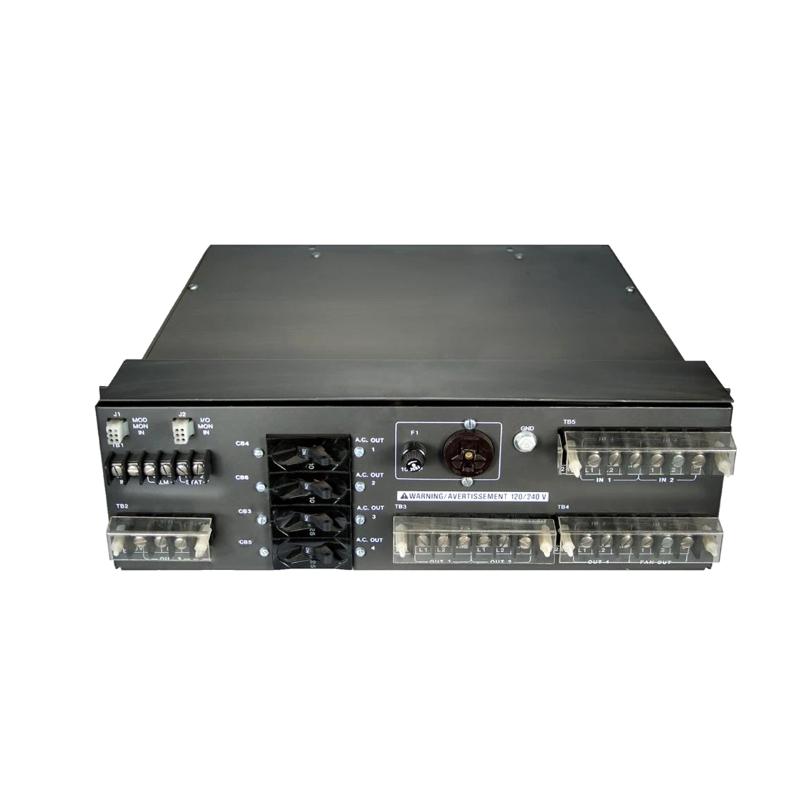

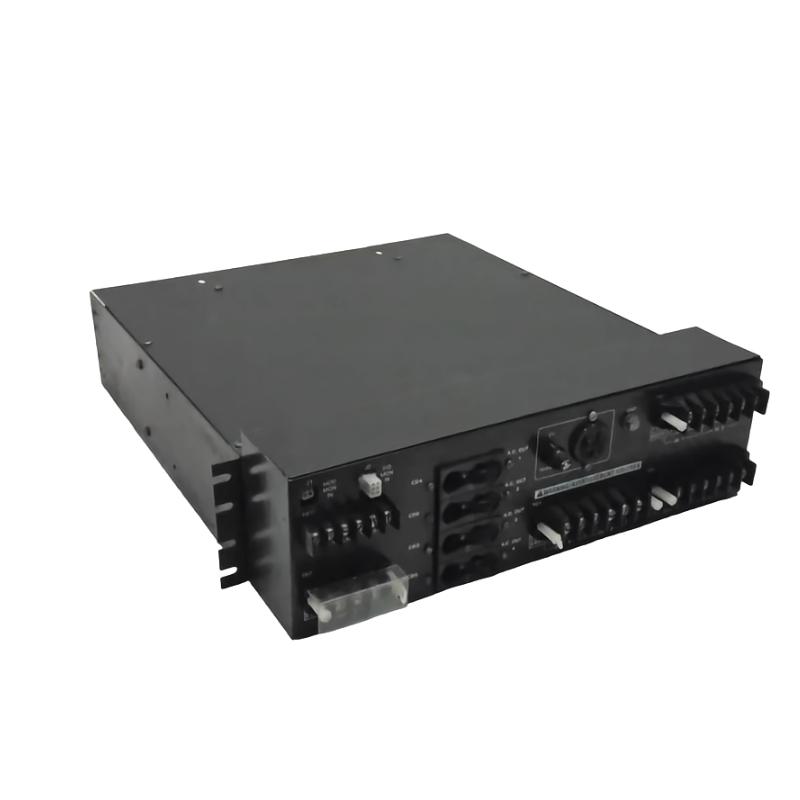

The ABB Bailey NPEP01 Power Entry Panel is a critical power distribution interface designed for the ABB Bailey INFI 90 / Net 90 Distributed Control System (DCS). It serves as the main electrical entry point for system cabinets, distributing incoming AC power to internal modules such as power supplies, fans, and control assemblies.
In industrial automation systems, stable and protected power distribution is essential for ensuring uninterrupted control performance. The NPEP01 is engineered to provide safe power intake, surge protection, and basic fault indication, helping maintain system reliability in demanding process environments.
This module is widely used in legacy ABB Bailey installations where robust cabinet-level power management is required for continuous industrial operation.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Type | Power Entry Panel |
| System Compatibility | ABB Bailey INFI 90 / Net 90 |
| Input Voltage | 120/240 VAC (system dependent) |
| Main Function | Cabinet power distribution & entry |
| Protection Features | Surge suppression, voltage monitoring |
| Output Distribution | Power modules & fan assemblies |
| Installation | 19-inch rack mount system |
| Electrical Interface | Terminal block input/output |
| Operating Environment | Industrial control cabinets |
| Operating Duty | Continuous 24/7 operation |
The NPEP01 is designed to distribute incoming AC power safely within ABB Bailey system cabinets while providing basic protection and monitoring functions.
Physical Dimensions & Weight
| Specification | Value |
|---|---|
| Dimensions (H × W × D) | 19.0 in × 6.0 in × 22.0 in (≈ 48.3 cm × 15.2 cm × 55.9 cm) |
| Weight | ~15.9 kg |
Its rack-mounted metal enclosure is designed for industrial durability and stable installation inside control cabinets.
Recommended Related Models
- ABB Bailey NPSM01 Power Supply Module
- ABB Bailey NMFC02 Multi-Function Controller Module
- ABB Bailey NMMU01 Module Mounting Unit
- ABB Bailey NICS01 Communication Module
- ABB Bailey NTMP01 Terminal Processing Module
These components are typically used together with the NPEP01 to build a complete and reliable ABB Bailey control cabinet power architecture.
