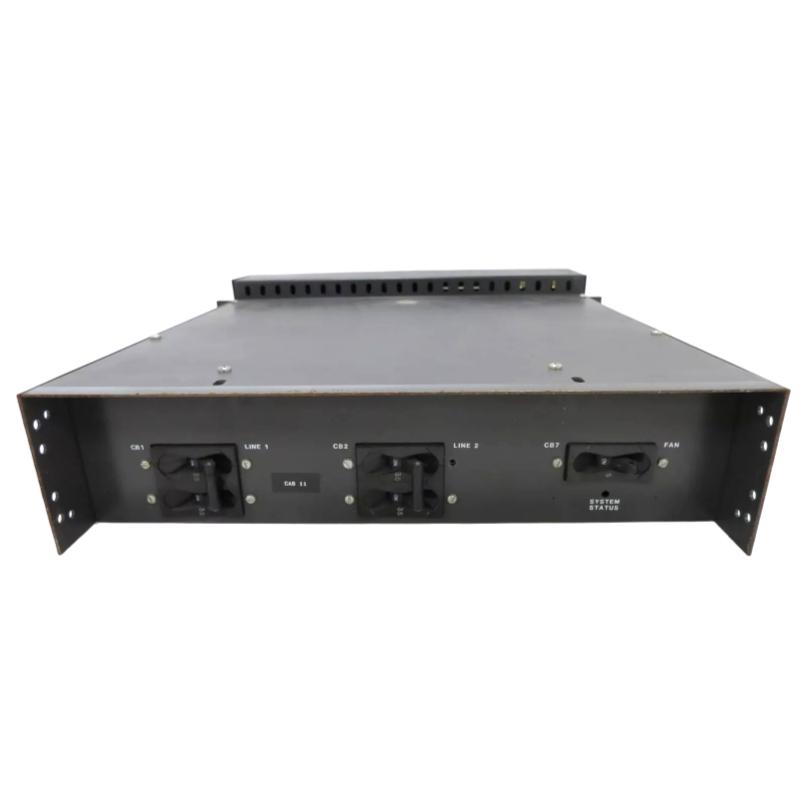

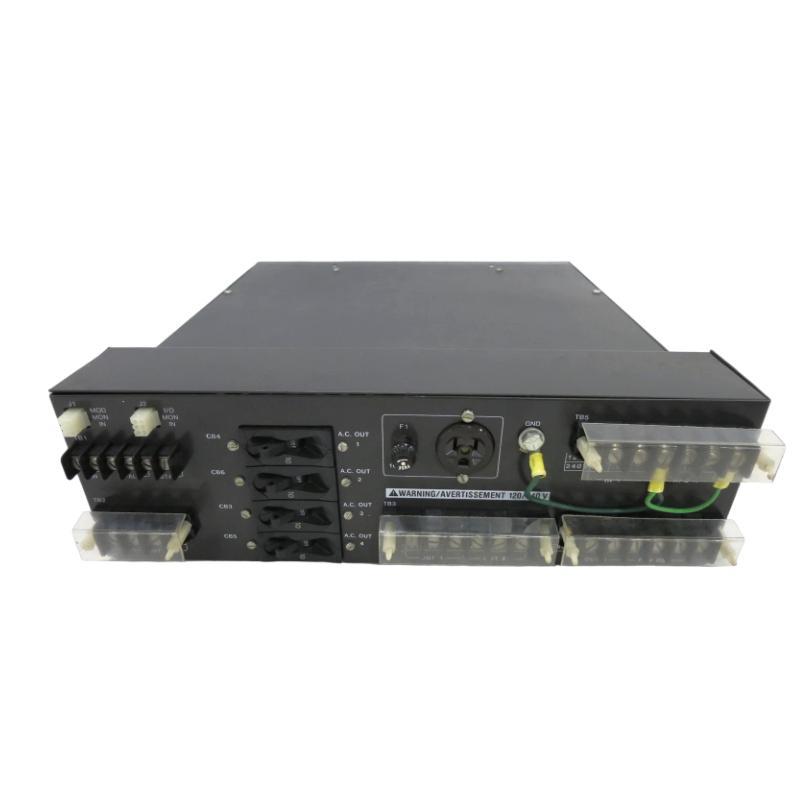

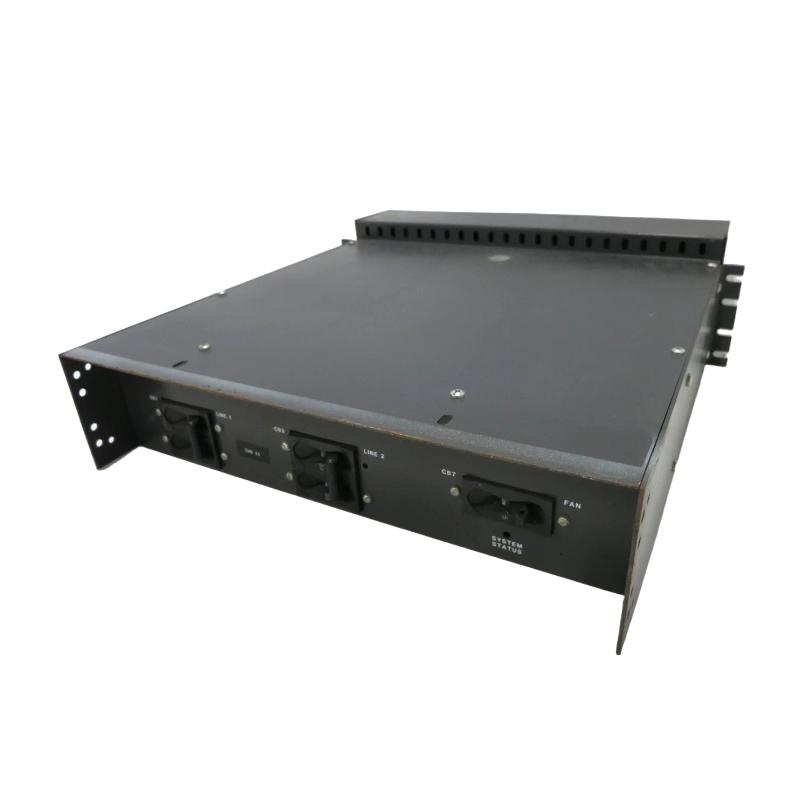

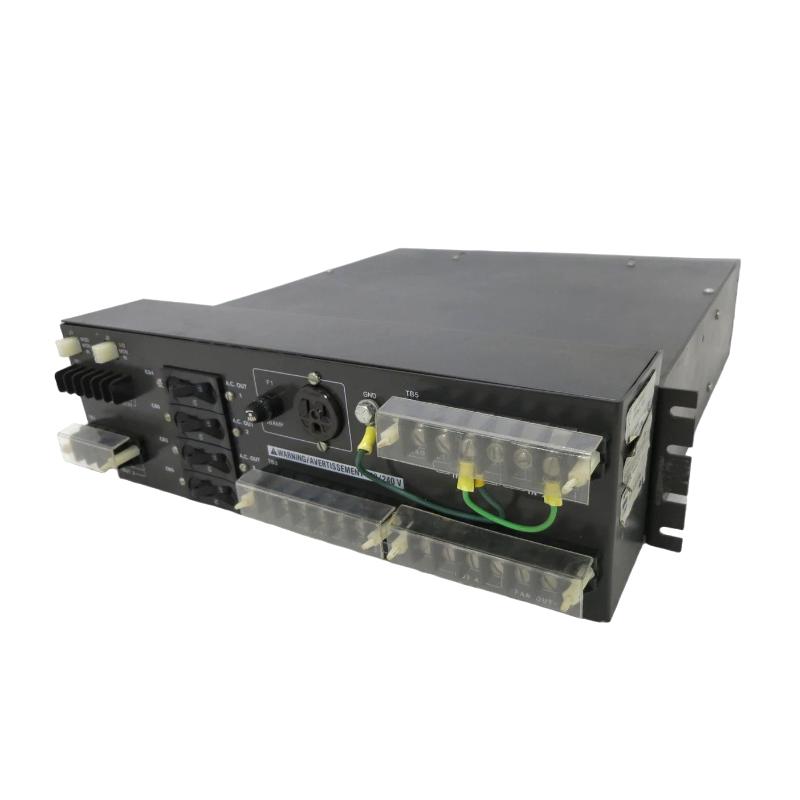

The ABB Bailey NPEP02 Network 90 Power Entry Panel is a heavy-duty industrial power distribution unit designed for the ABB Bailey INFI 90 / Net 90 Distributed Control System (DCS). It serves as the main electrical entry point for system cabinets, responsible for receiving AC power and distributing it safely to internal modules such as power supplies, fan assemblies, and control racks.
In mission-critical industrial environments, stable and protected power delivery is essential for uninterrupted automation performance. The NPEP02 is engineered to ensure secure power intake, system-level protection, and reliable energy distribution, making it a foundational component in ABB Bailey control architectures.
It is widely used in legacy DCS installations across power generation, oil and gas, and process industries where uptime and electrical stability are non-negotiable.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Type | Network 90 Power Entry Panel |
| System Compatibility | ABB Bailey INFI 90 / Net 90 |
| Input Voltage | 120/240 VAC (50/60 Hz) |
| Main Function | Power entry and cabinet power distribution |
| Protection Features | Overvoltage, overcurrent, short-circuit protection |
| Internal Distribution | Power modules and fan assemblies |
| Terminal Blocks | Dual input/output terminal configuration |
| Installation | 19-inch rack cabinet mounting |
| Operating Environment | Industrial automation systems |
| Operating Duty | Continuous 24/7 operation |
The NPEP02 is designed to safely distribute incoming power across ABB Bailey system cabinets while maintaining electrical protection and operational stability.
Physical Dimensions & Weight
| Specification | Value |
|---|---|
| Dimensions (H × W × D) | 22.0 in × 6.0 in × 19.0 in (≈ 55.9 cm × 15.2 cm × 48.3 cm) |
| Weight | ~13.6 kg |
Its industrial-grade metal enclosure ensures strong mechanical durability and stable installation within control system cabinets.
