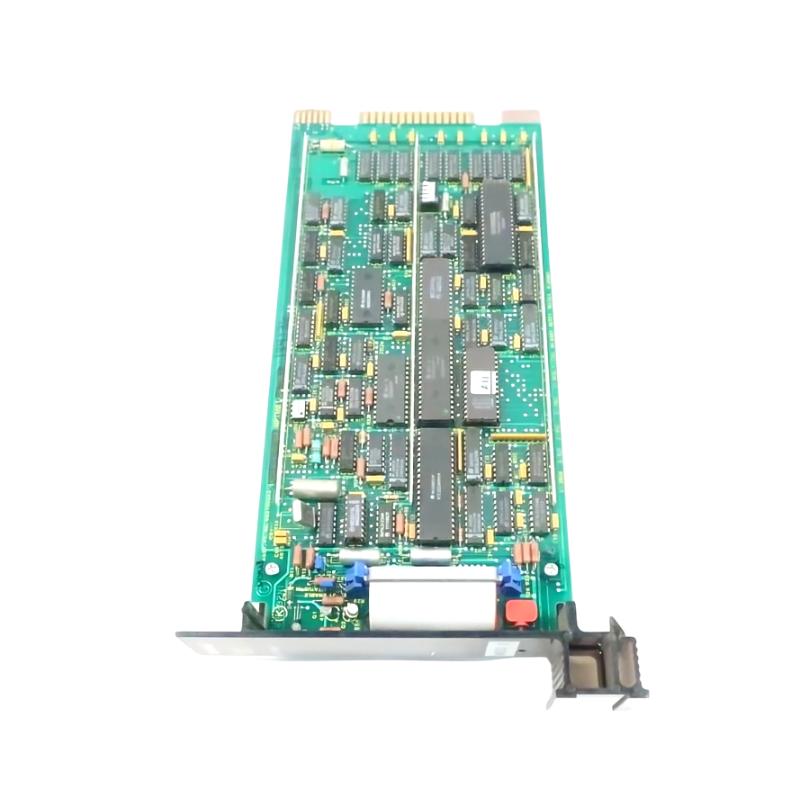

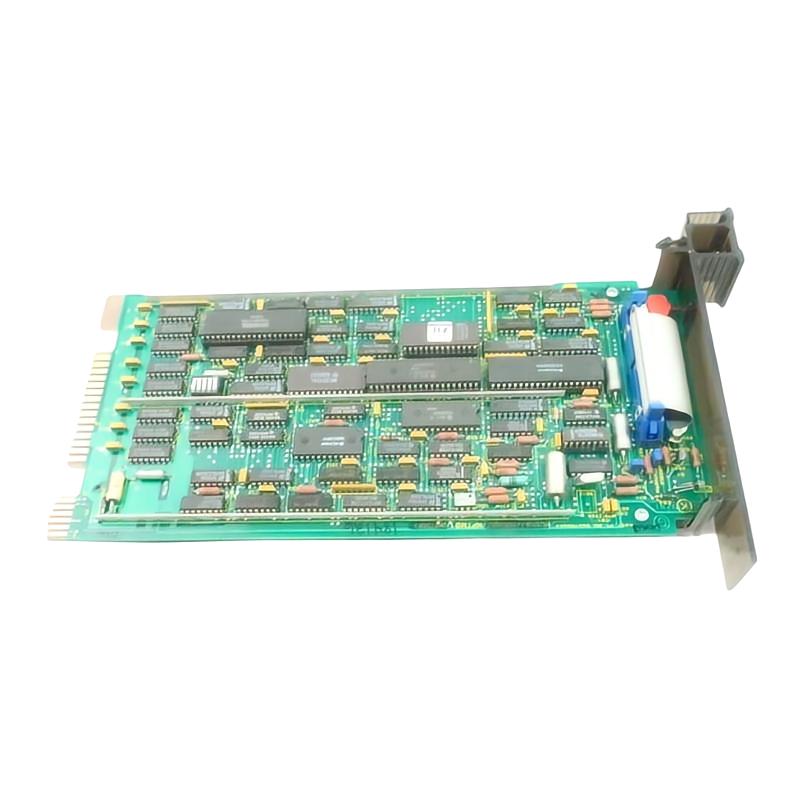

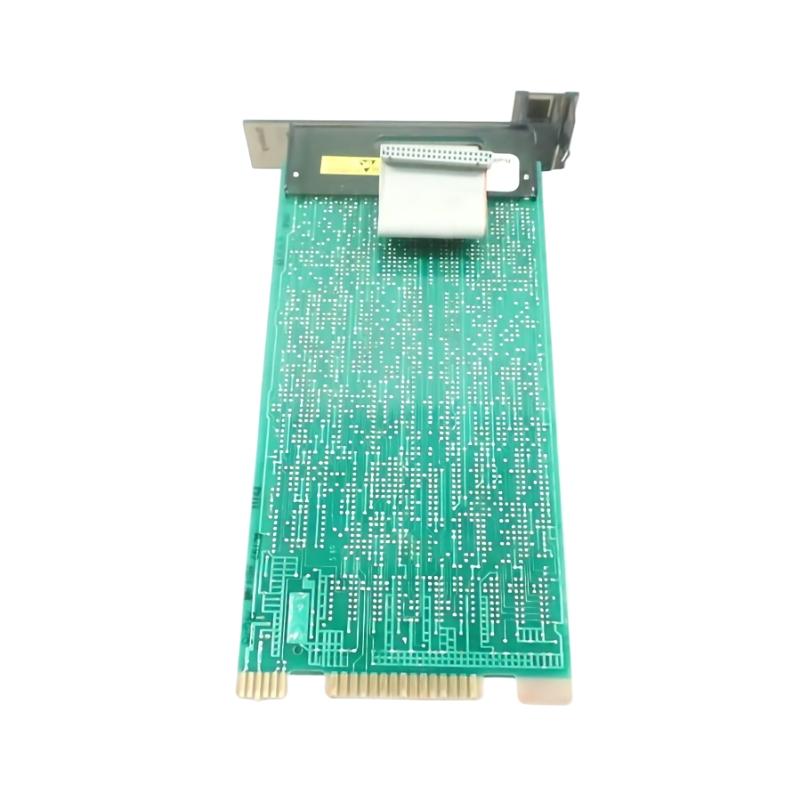

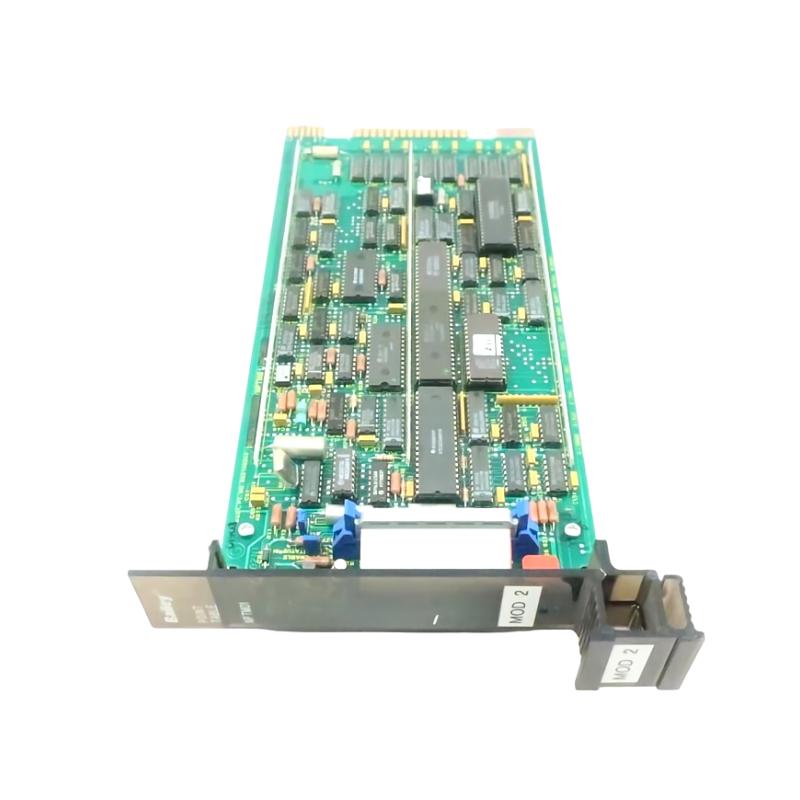

The ABB Bailey NPTM01 Point Table Module is a key data management component used in the ABB Bailey INFI 90 / Net 90 Distributed Control System (DCS). It functions as a structured data storage and coordination module that organizes process control “points” such as PV (Process Variable), SP (Setpoint), and OP (Output).
In complex industrial automation systems, thousands of control variables must be tracked in real time. The NPTM01 ensures these values are stored, updated, and synchronized across controllers and network modules with high reliability. It acts as the “data backbone” of the control strategy, supporting accurate process execution and system-wide consistency.
This module is widely used in legacy ABB Bailey installations where long-term stability and deterministic data handling are essential for continuous industrial operation.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Type | Point Table Module |
| System Compatibility | ABB Bailey INFI 90 / Net 90 |
| Main Function | Process data point storage & management |
| Data Types | PV, SP, OP and control variables |
| Communication Role | System data exchange interface |
| Architecture | Distributed control data structure |
| Installation Method | Rack-mounted module |
| Operating Environment | Industrial automation systems |
| Operating Duty | Continuous 24/7 operation |
The NPTM01 is designed to organize and manage control system data points, ensuring smooth interaction between controllers and field-level automation devices.
Physical Dimensions & Weight
| Specification | Value |
|---|---|
| Dimensions (H × W × D) | 22.9 cm × 5.1 cm × 2.5 cm |
| Weight | ~0.4 kg |
Its slim rack-style form factor allows dense installation within ABB Bailey control cabinets while maintaining efficient system organization.
Recommended Related Models
- ABB Bailey NPIM01 Processor Interface Module
- ABB Bailey NMFP01 Multi-Function Processor Module
- ABB Bailey NMFC02 Controller Module
- ABB Bailey NICS01 Communication Module
- ABB Bailey NTMP01 Terminal Processing Module
These modules are commonly integrated with NPTM01 to support full distributed control system functionality.
Popular ABB Bailey Models
- NPTM01 Point Table Module
- NMFP01 Processor Module
- NMFC02 Multi-Function Controller Module
- NPSM01 Power Supply Module
- NPIM01 Interface Module
These ABB Bailey components are widely used in long-life industrial automation systems requiring stable legacy DCS operation.
