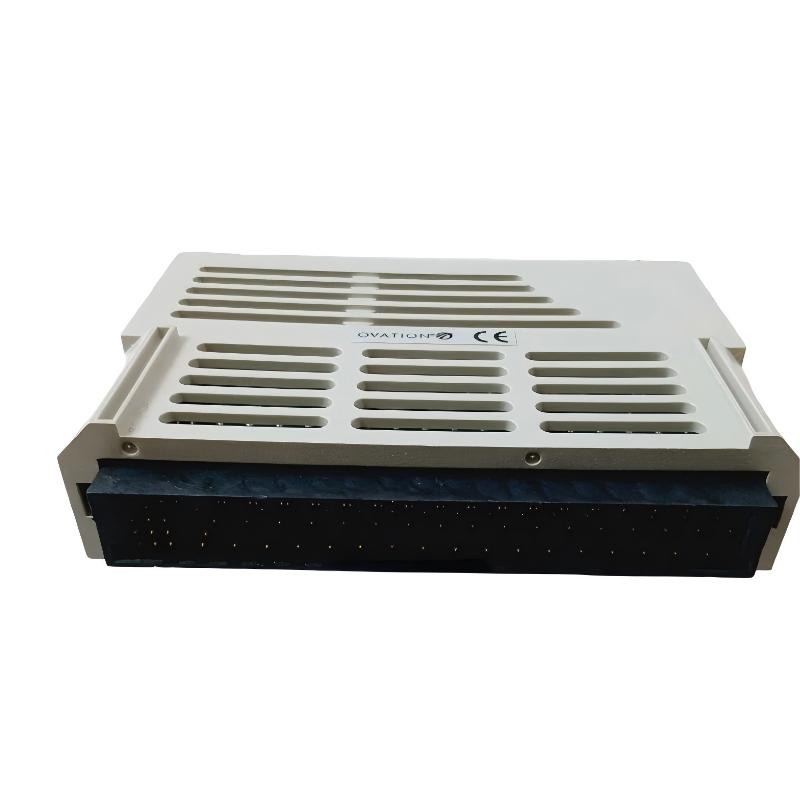

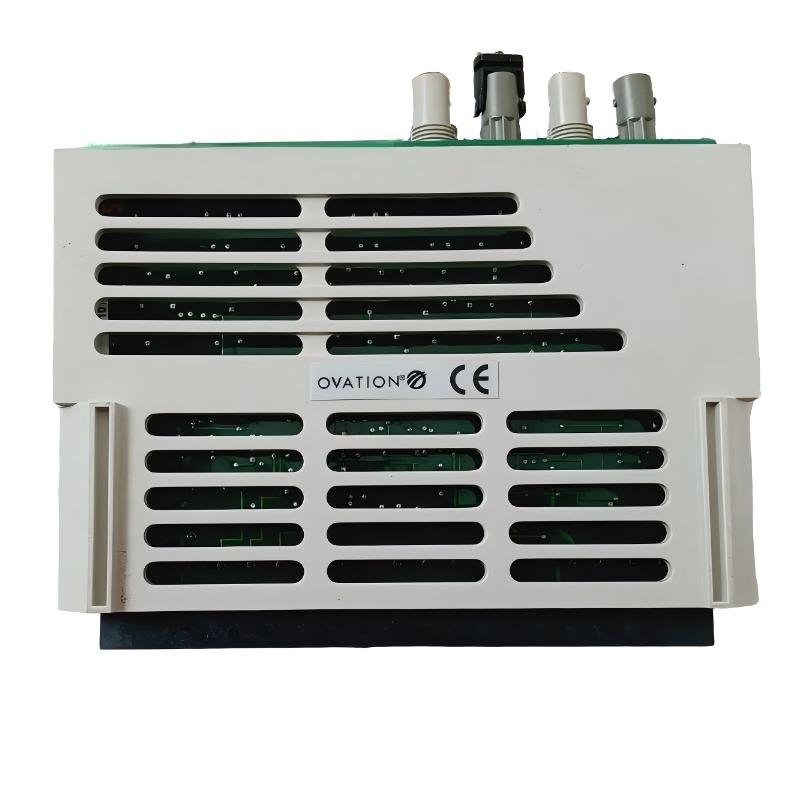

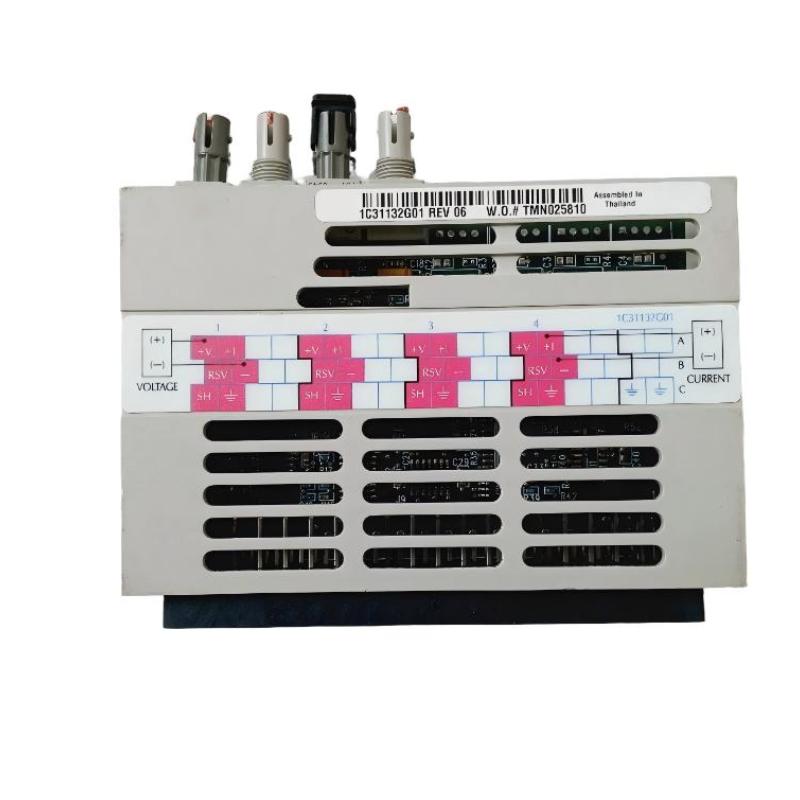

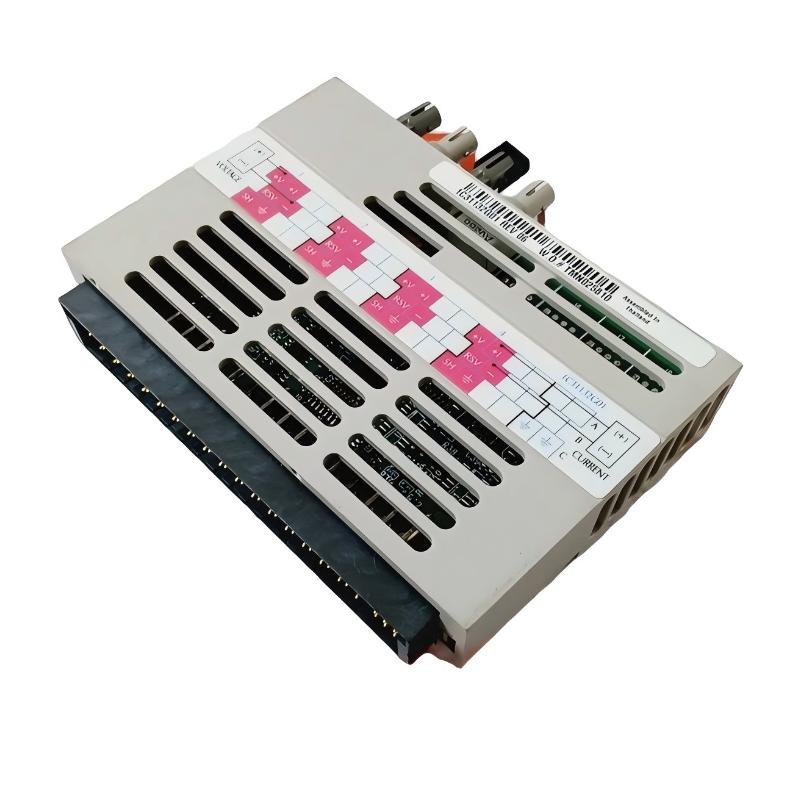

Ovation 1C31132G01 Analog Output Module

Applications

The Ovation 1C31132G01 Analog Output Module delivers high-precision control signals to industrial actuators, valves, and field instruments. Designed for power plants, chemical facilities, and automated manufacturing systems, it converts digital commands into stable analog voltage or current outputs. Its slim and lightweight design allows installation in tight panels while maintaining reliable performance in critical industrial processes.

Advantages

• Ultra-Lightweight Design: Only 0.45 kg / 0.99 lb, ideal for compact installations.
• High-Precision Output: Provides accurate analog voltage and current for sensitive control equipment.
• Space-Saving Industrial Form Factor: 25.4 × 273 × 267 mm allows integration in narrow or elongated panels.
• Multi-Channel Capability: Supports multiple analog outputs for flexible process control.
• Seamless Ovation Integration: Fully compatible with Ovation DCS for straightforward plug-and-play deployment.

Technical FAQs

1. What types of analog outputs does it support?
   Supports voltage and current outputs suitable for field devices like valves and actuators.
2. Is it compatible with Ovation DCS and SCADA systems?
   Yes, fully integrated for seamless operation with Ovation control networks.
3. How many output channels are available?
   Multi-channel design allows simultaneous control of several devices.
4. Does it include diagnostic feedback?
   Yes, channel status and error reporting are available to monitor performance.
5. Can it operate in industrial environments?
   Yes, designed to function reliably at temperatures ranging from 0–60 °C.
6. Is it suitable for panel or rack mounting?
   Yes, slim dimensions enable flexible installation in control panels and racks.
7. Does it support redundant configurations?
   Yes, compatible with Ovation redundant systems for high-availability applications.
8. Is firmware or software required?
   No firmware is needed; optional Ovation software enhances diagnostics and monitoring.
9. Can it handle precise, time-sensitive operations?
   Yes, optimized for accurate analog output in real-time industrial processes.
10. What is the expected operational lifespan?
    Designed for over 10 years of dependable industrial performance.
