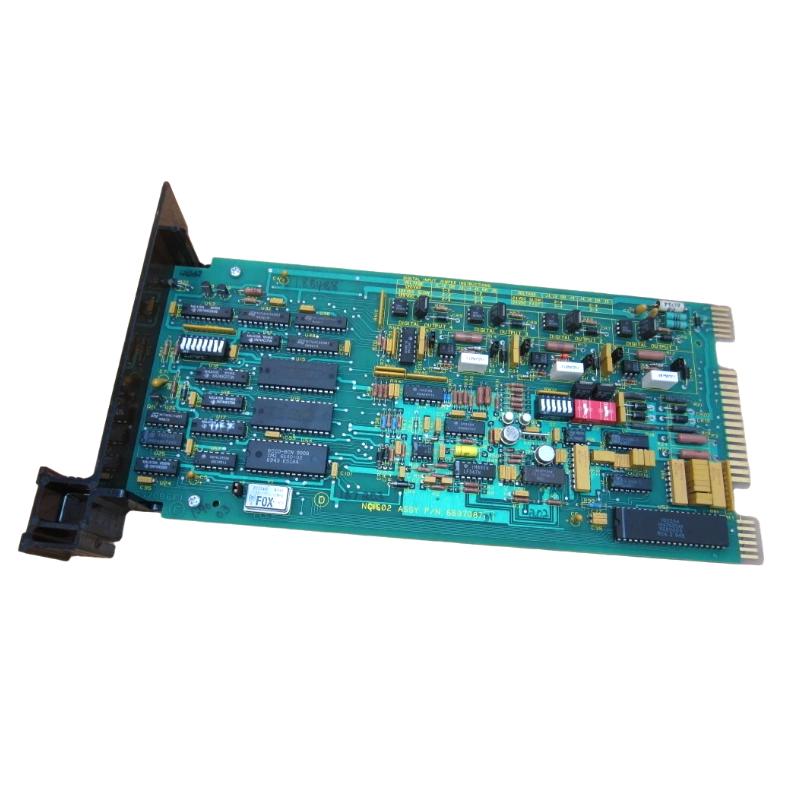

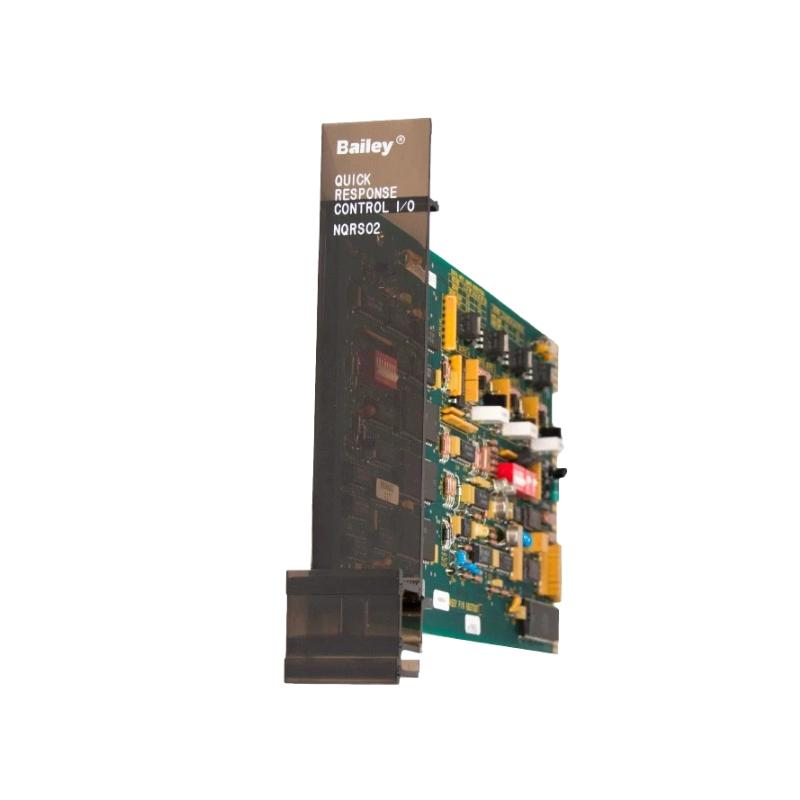

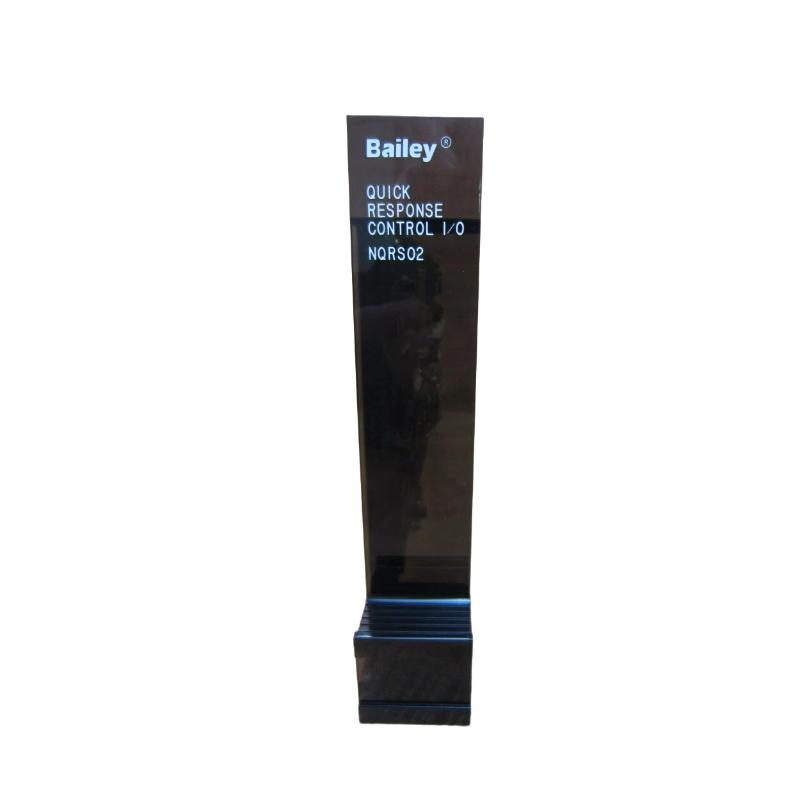

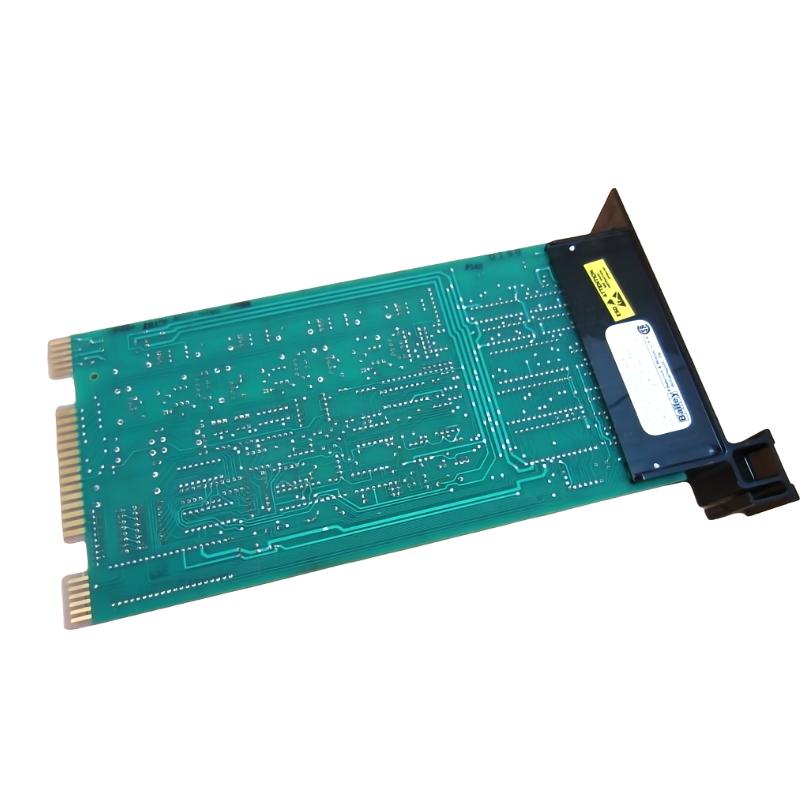

The ABB Bailey NQRS02 Quick Response Control I/O Module is a high-performance input/output interface used in the ABB Bailey INFI 90 / Net 90 Distributed Control System (DCS). It is designed to handle fast-response control signals between field devices and the central control system, ensuring real-time data acquisition and precise process execution.
In industrial automation, response speed and signal reliability are critical. The NQRS02 is engineered for rapid signal processing and stable I/O communication, making it suitable for demanding process environments where timing accuracy directly impacts production safety and efficiency.
This module is widely used in legacy ABB Bailey systems across power generation, petrochemical, and heavy process industries.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Type | Quick Response Control I/O Module |
| System Compatibility | ABB Bailey INFI 90 / Net 90 |
| Main Function | Fast I/O signal processing |
| Signal Type | Analog / digital I/O (system dependent) |
| Response Feature | High-speed control signal handling |
| Communication Role | Field device interface to DCS |
| Installation Method | Rack-mounted module |
| Operating Environment | Industrial automation systems |
| Operating Duty | Continuous 24/7 operation |
The NQRS02 is designed to improve control loop responsiveness by reducing signal latency between field instruments and system controllers.
Physical Dimensions & Weight
| Specification | Value |
|---|---|
| Dimensions (H × W × D) | Approx. 150 mm × 110 mm × 50 mm |
| Weight | ~1.0 kg |
Its compact rack-mounted structure allows dense installation inside ABB Bailey control cabinets while maintaining stable electrical performance and reliable signal integrity.
Recommended Related Models
- ABB Bailey NPIM01 Processor Interface Module
- ABB Bailey NMFP01 Multi-Function Processor Module
- ABB Bailey NMFC02 Controller Module
- ABB Bailey NICS01 Communication Module
- ABB Bailey NPTM01 Point Table Module
These modules are commonly integrated with NQRS02 to support complete ABB Bailey distributed control system functionality.
Popular ABB Bailey Models
- NQRS02 Quick Response I/O Module
- NMFP01 Processor Module
- NMFC02 Controller Module
- NPBS01 Parallel Bus Module
- NPSM02 Power Supply Module
These ABB Bailey products remain widely used in long-life industrial automation systems requiring stable and responsive control performance.
