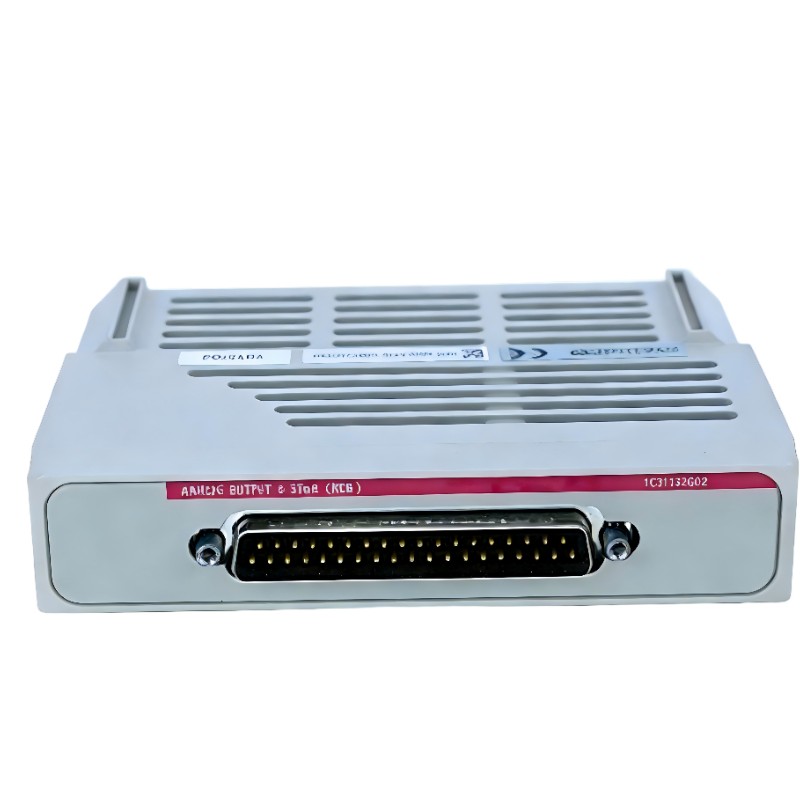

Name: Ovation 1C31132G02 Analog Output Mmodule
Brand: Ovation DCS
SKU: 9751
Availability: InStock
Rating: 5.0 (1 reviews)

Introduction

The Ovation 1C31132G02 Analog Output Module offers a compact, lightweight solution for precise analog control in industrial automation. Its multi-channel capability, high accuracy, and robust construction make it ideal for controlling actuators, valves, and field instruments. Fully integrated with Ovation DCS, it ensures reliable and efficient operation in critical processes.

Technical Specifications

Parameter	Specification
Module Type	Analog Output Module
Dimensions (L×W×H)	41 × 159 × 108 mm
Weight	0.3 kg / 0.66 lb
Operating Temperature	0°C to 60°C
Storage Temperature	-20°C to 70°C
Output Type	Analog (Voltage and Current)
Channels	Multi-channel analog output
Mounting	Panel / Rack Mount
Compatibility	Ovation System Modules

Applications

The Ovation 1C31132G02 Analog Output Module is engineered for precise analog signal control in industrial automation systems. It converts digital commands into stable voltage or current outputs, driving actuators, valves, and other field devices. Ideal for use in power plants, chemical processing, and manufacturing environments where accurate, real-time analog control is critical.

Advantages

Compact Industrial Design: 41 × 159 × 108 mm size fits easily into panels and racks.
Ultra-Lightweight: 0.3 kg / 0.66 lb allows easy handling and stable mounting.
High-Precision Analog Output: Ensures accurate control for sensitive industrial equipment.
Energy Efficient: Low power consumption without sacrificing performance.
Seamless Ovation Integration: Fully compatible with Ovation DCS for smooth deployment.

Technical FAQs

What types of analog outputs does this module support?
Voltage and current outputs for actuators, valves, and field instruments.
Is it compatible with Ovation DCS and SCADA systems?
Yes, it integrates seamlessly with Ovation control networks.
How many output channels are available?
Multi-channel support allows simultaneous control of multiple devices.
Does it provide diagnostic feedback?
Yes, channel status and error reporting are supported.
Can it operate reliably in industrial environments?
Yes, designed for 0–60 °C operating temperature conditions.
Is it suitable for panel or rack mounting?
Yes, compact design enables flexible installation.
Does it support redundant configurations?
Yes, compatible with Ovation redundant architectures for high availability.
Is firmware or software required?
No firmware needed; optional Ovation software enhances monitoring and diagnostics.
Can it handle precise, time-sensitive control applications?
Yes, optimized for real-time, stable analog output.
What is the expected operational lifespan?
Designed for over 10 years of reliable industrial performance.
