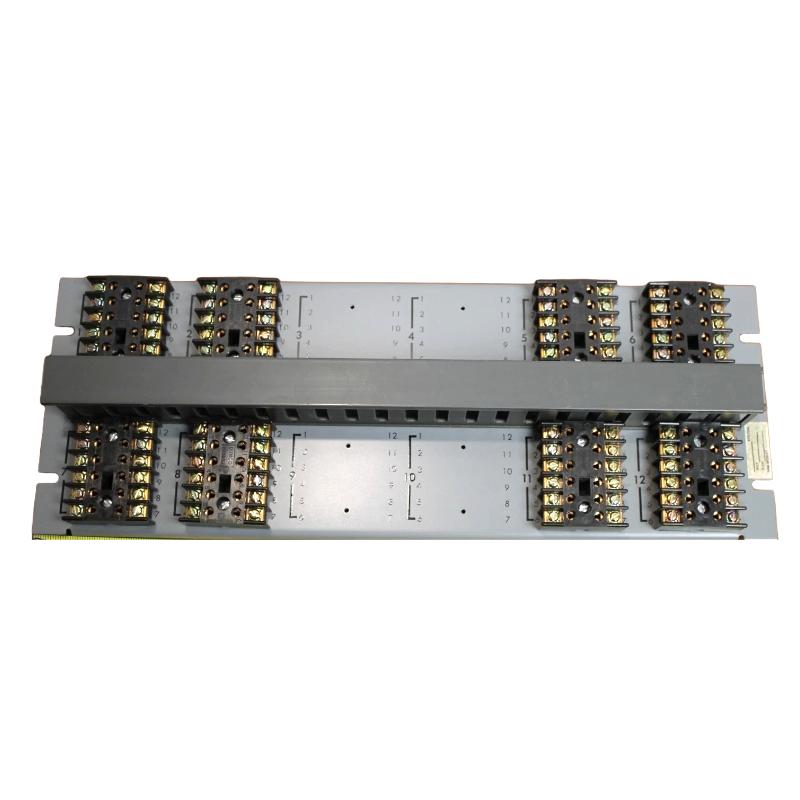

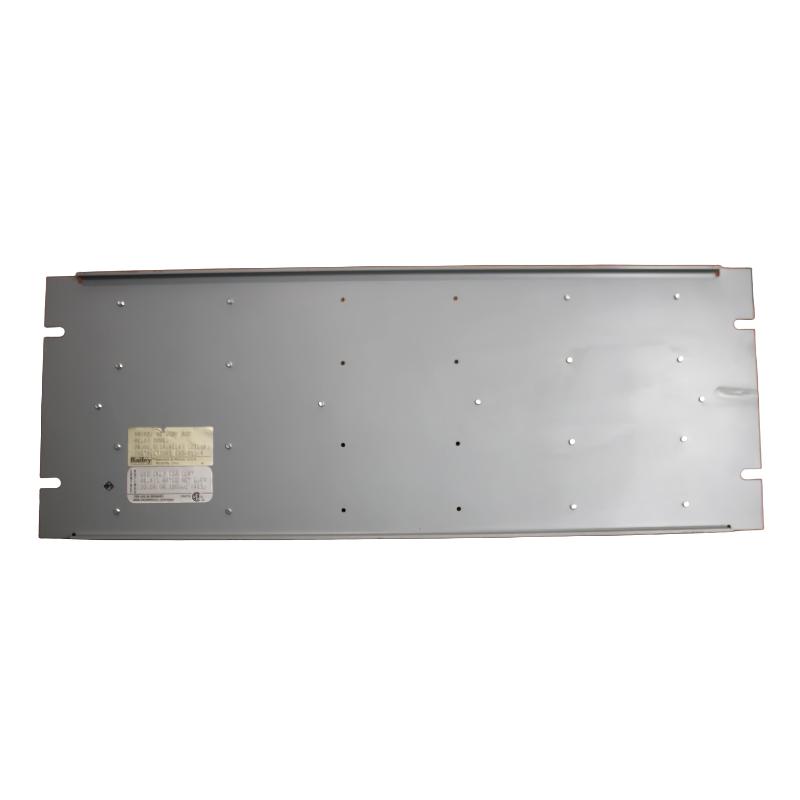

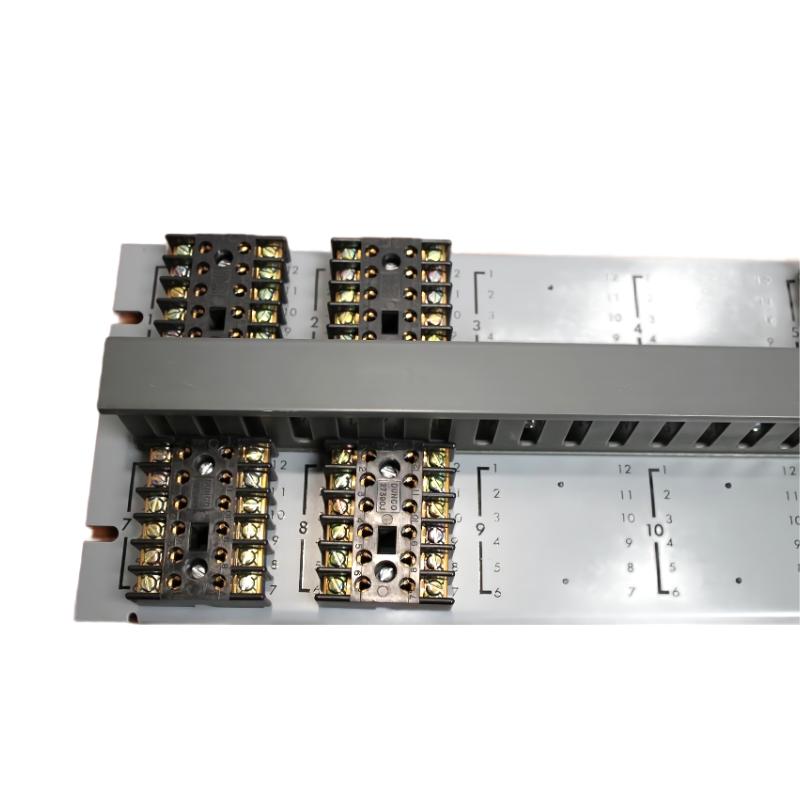

The ABB Bailey NRYP01 Network 90 Relay Panel is a rack-mounted relay interface module used in the ABB Bailey INFI 90 / Net 90 Distributed Control System (DCS). It provides safe and organized relay-based switching between control outputs and field devices such as alarms, interlocks, and actuators.
Designed for industrial-grade automation environments, the NRYP01 improves system safety by electrically isolating control signals from field loads. It ensures reliable signal switching performance in continuous 24/7 operations, making it a dependable component in legacy ABB Bailey control architectures.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Type | Relay Panel |
| System Compatibility | ABB Bailey INFI 90 / Net 90 |
| Main Function | Relay switching & signal isolation |
| Signal Type | Digital control signals |
| Relay Channels | Multi-channel configuration |
| Electrical Role | Control-to-field signal interface |
| Isolation Type | Electromechanical relay isolation |
| Installation Method | Rack-mounted module |
| Operating Environment | Industrial automation systems |
| Operating Duty | Continuous 24/7 operation |
The NRYP01 is designed to provide safe relay switching between control systems and field devices, improving operational reliability and electrical protection.
Physical Dimensions & Weight
| Specification | Value |
|---|---|
| Dimensions (H × W × D) | 127 mm × 482 mm × 178 mm |
| Weight | ~1.0 kg |
Its standard rack-compatible size allows easy installation in ABB Bailey control cabinets while maintaining stable mechanical support and organized wiring layout.
Recommended Related Models
- ABB Bailey NRDO02 Digital Output Termination Unit
- ABB Bailey NRDI01 Digital Input Termination Unit
- ABB Bailey NRAO01 Analog Output Termination Unit
- ABB Bailey NPIM01 Processor Interface Module
- ABB Bailey NPSM02 Power Supply Module
These modules are commonly used with NRYP01 to build complete ABB Bailey I/O and control signal architectures.
