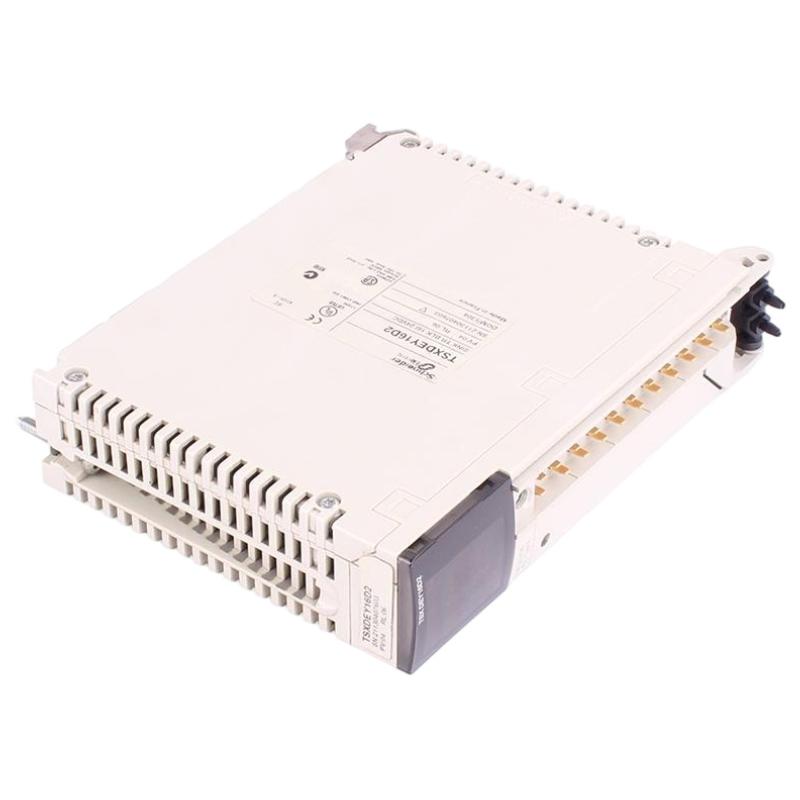

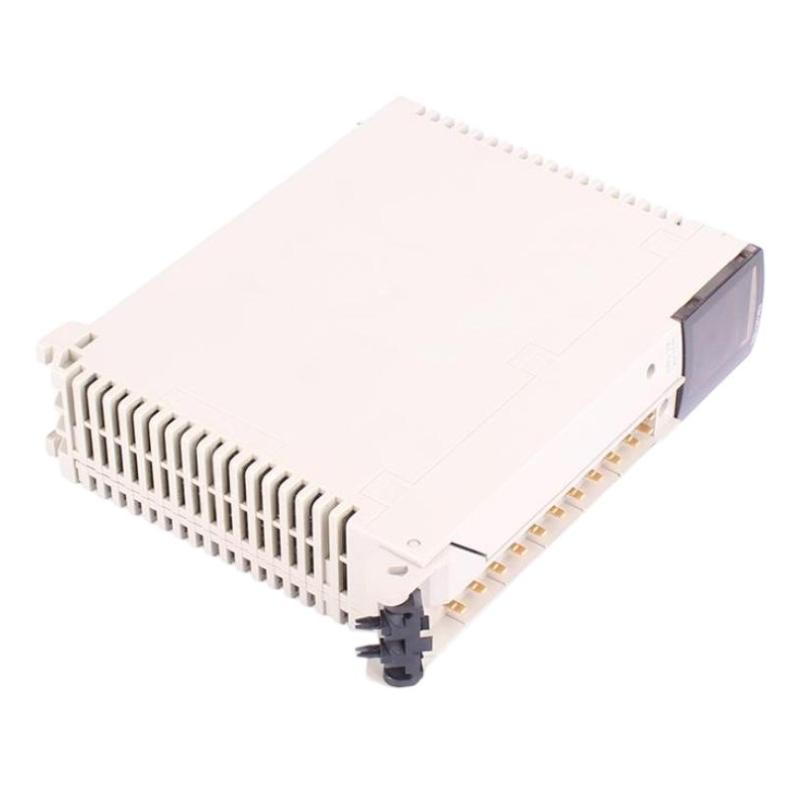

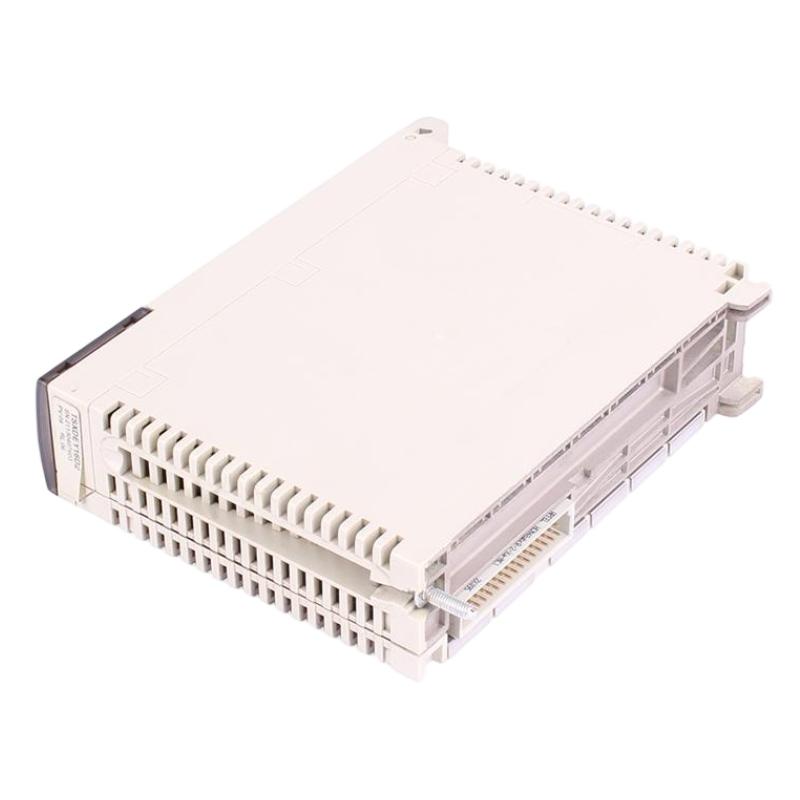

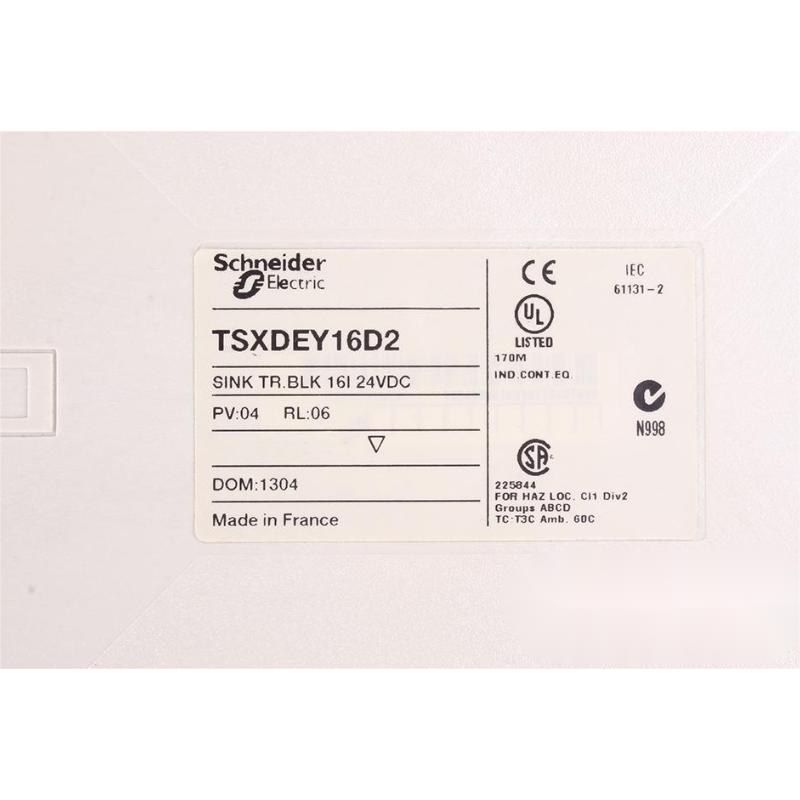

Schneider TSXDEY16D2 Discrete Input Module

Applications

• Used in Modicon Premium PLC systems for reliable acquisition of 24V DC digital signals from field devices

• Applied in industrial automation lines for monitoring sensors, limit switches, and machine status signals

• Integrated into process control systems to collect distributed discrete inputs for centralized PLC processing

• Used in manufacturing equipment for real-time detection of operational states and safety conditions

• Deployed in control cabinet architectures requiring electrically isolated and stable input signal processing

Key Advantages

• 16-channel isolated input design ensures stable and interference-resistant signal acquisition

• Fast response time supports accurate real-time industrial monitoring and control

• Compatible with 2-wire and 3-wire proximity sensors for flexible field integration

• Robust industrial design improves reliability in harsh automation environments

• Seamless integration with Modicon Premium architecture simplifies system configuration

Technical FAQs

Q1: What is the main function of this module?
It collects and processes digital ON/OFF signals from industrial field devices.

Q2: How many input channels does it support?
It supports 16 discrete input channels.

Q3: What voltage does it use?
It operates with 24 V DC input signals.

Q4: What type of devices can be connected?
Sensors, switches, and industrial proximity detectors.

Q5: Is it electrically isolated?
Yes, each input channel is isolated for protection and stability.

Q6: What PLC system is it compatible with?
It is designed for the Modicon Premium platform.

Q7: Does it support real-time operation?
Yes, it provides fast response for industrial control applications.

Q8: Is it suitable for harsh environments?
Yes, it is designed for industrial automation conditions.

Q9: Can it handle continuous operation?
Yes, it is built for 24/7 industrial use.

Q10: Does it require frequent maintenance?
No, only standard industrial inspection is needed.
