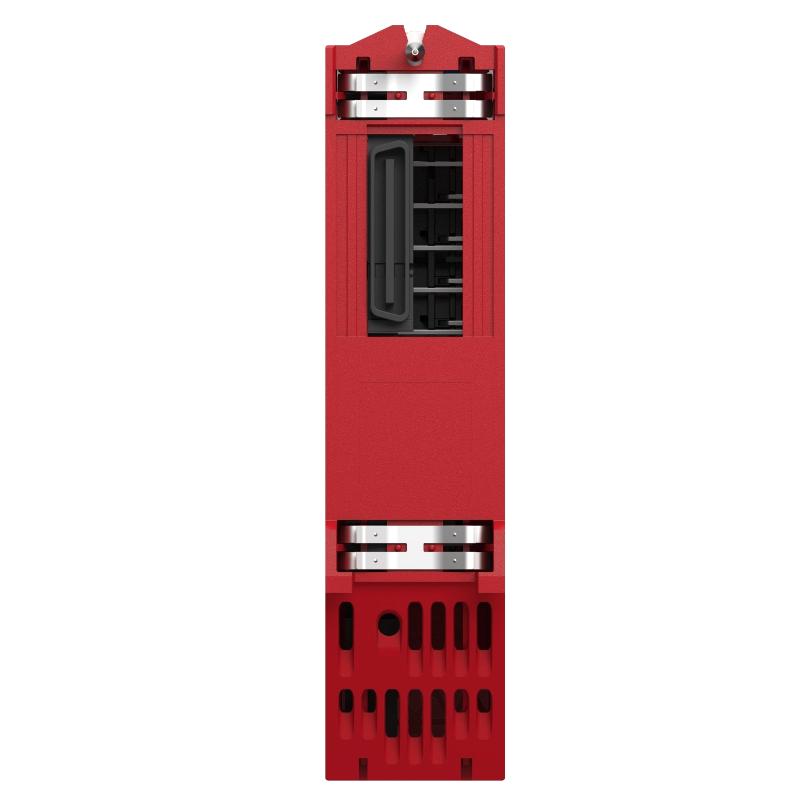

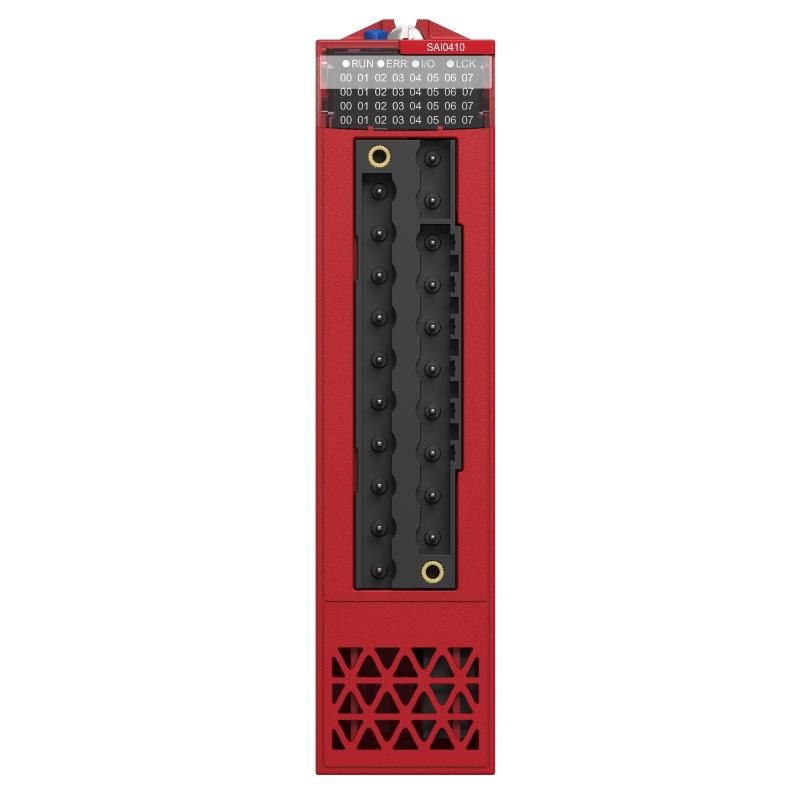

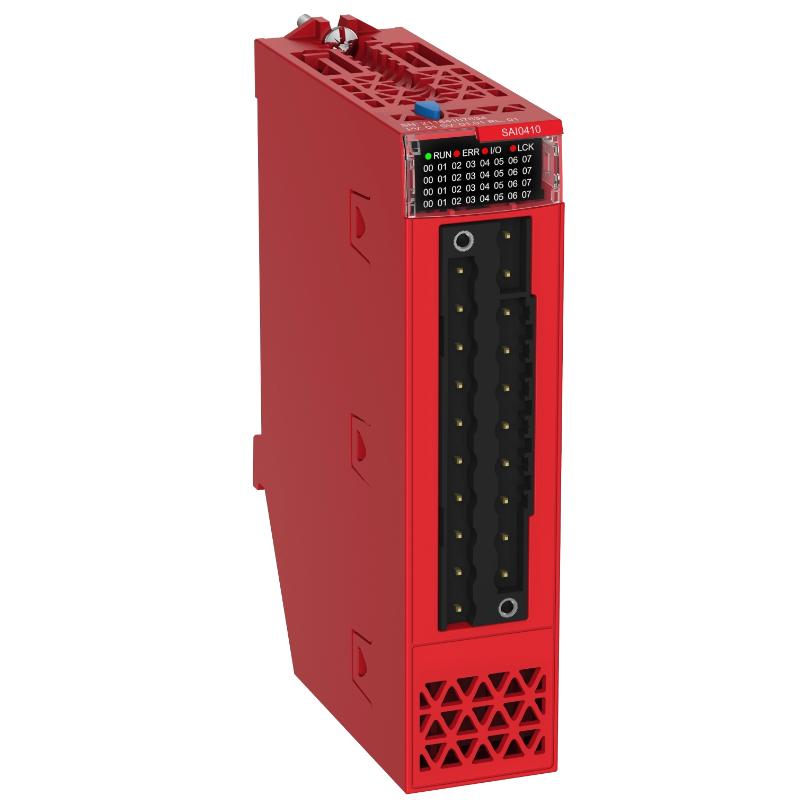

Schneider BMXSAI0410 Safety Analog Input Module

Applications

• Used in Modicon X80 and M580 Safety systems for high-integrity analog signal acquisition in industrial automation environments

• Applied in process industries such as oil & gas, chemical plants, power generation, and water treatment for monitoring critical 4–20 mA field signals

• Integrated into SIL-rated safety control architectures to ensure accurate measurement of pressure, temperature, and flow transmitters

• Used in distributed safety systems where reliable analog data is required for emergency shutdown and protection functions

• Deployed in industrial control cabinets requiring electrically isolated and high-precision analog input processing

Key Advantages

• SIL3 safety-rated design ensures compliance with high-level functional safety standards

• 4-channel isolated 4–20 mA inputs provide stable and interference-resistant signal acquisition

• High 16-bit resolution enables precise analog measurement for critical process variables

• Strong channel-to-channel and channel-to-ground isolation improves system reliability

• Seamless integration with Modicon M580 Safety architecture enhances system scalability

Technical FAQs

Q1: What is the main function of this module?
It collects and processes analog 4–20 mA signals in safety-critical automation systems.

Q2: How many input channels does it support?
It supports 4 isolated analog input channels.

Q3: What type of signals does it accept?
It is designed for 4–20 mA industrial current loop signals.

Q4: Is it safety rated?
Yes, it is SIL3-certified for functional safety applications.

Q5: What systems is it compatible with?
It is used in Schneider Modicon X80 and M580 Safety systems.

Q6: Is it suitable for process industries?
Yes, it is widely used in oil, gas, chemical, and power plants.

Q7: Does it provide electrical isolation?
Yes, it has strong channel-to-channel and channel-to-ground isolation.

Q8: Can it operate in harsh environments?
Yes, it is designed for industrial-grade operating conditions.

Q9: Does it support high-precision measurement?
Yes, it uses 16-bit conversion for accurate signal processing.

Q10: Is it suitable for continuous operation?
Yes, it is built for 24/7 industrial safety applications.
