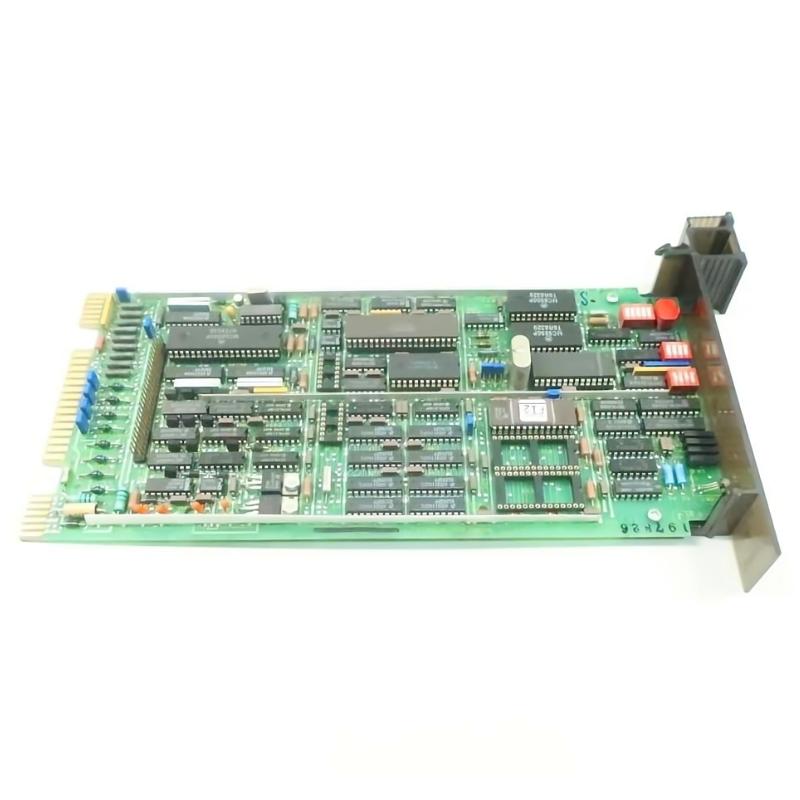

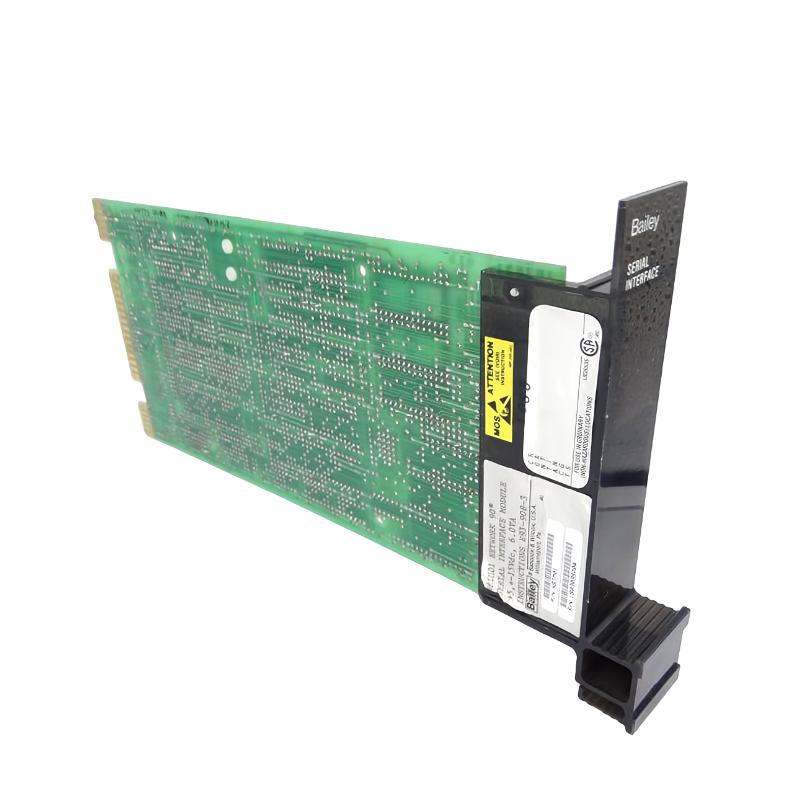

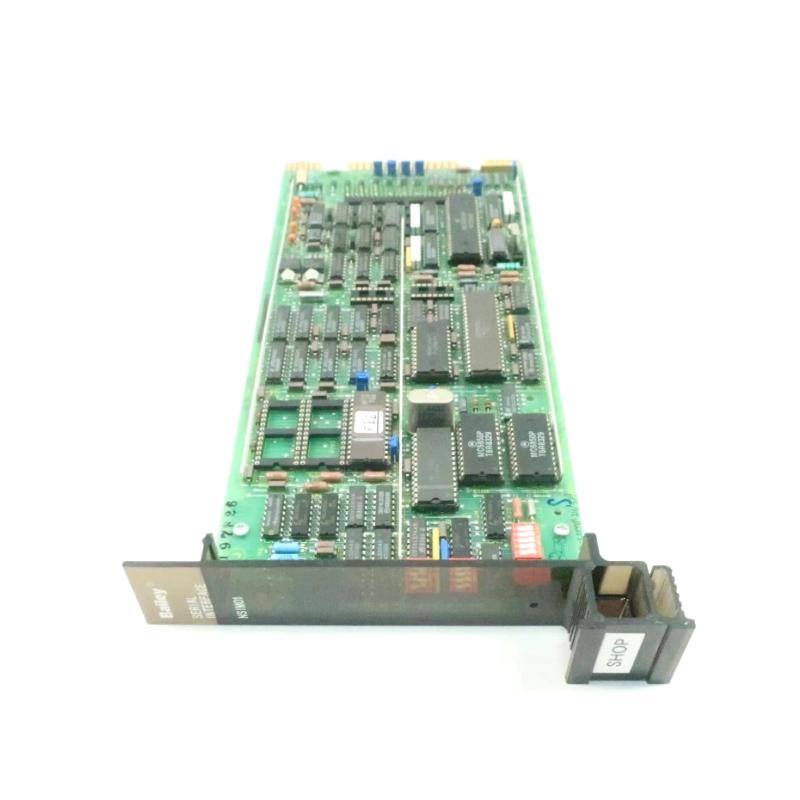

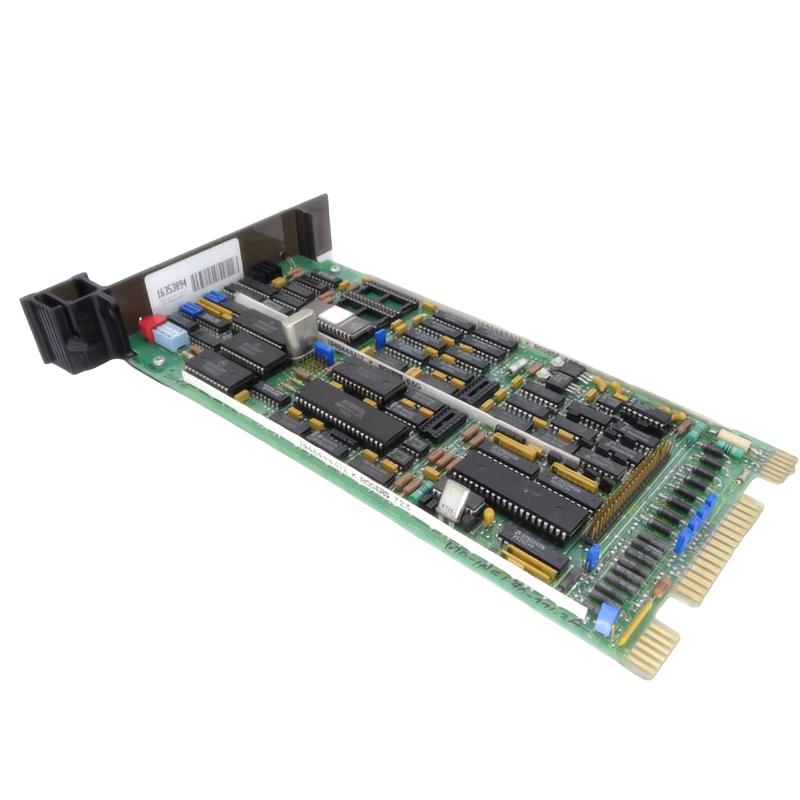

The ABB Bailey NSIM01 Serial Interface Module is a communication interface module used in the ABB Bailey INFI 90 / Net 90 Distributed Control System (DCS). It is designed to handle serial communication between control system modules and external or internal network devices, enabling reliable data exchange within the Bailey automation architecture.
In industrial control systems, many legacy devices still rely on serial communication. The NSIM01 provides a stable interface for these connections, supporting system integration, diagnostics, and data transfer between processors, I/O modules, and supervisory systems.
It is commonly found in long-life ABB Bailey installations in power plants, oil and gas facilities, and other process industries where robust and deterministic communication is required.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Type | Serial Interface Module |
| System Compatibility | ABB Bailey INFI 90 / Net 90 |
| Main Function | Serial communication interface |
| Communication Type | RS-232 / system serial links |
| Data Role | Control system data exchange |
| Network Role | Interface for Bailey system modules |
| Integration | Works with NPTM01, NLIM modules |
| Installation Method | Rack-mounted module |
| Operating Environment | Industrial automation systems |
| Operating Duty | Continuous 24/7 operation |
The NSIM01 is part of the Bailey communication chain, often used to connect Plant Loop / Network 90 elements and interface modules in distributed control configurations.
Physical Dimensions & Weight
| Specification | Value |
|---|---|
| Dimensions (H × W × D) | 178 mm × 51 mm × 25 mm |
| Weight | ~0.4 kg |
Its compact rack-style design allows easy installation inside ABB Bailey control cabinets while maintaining stable signal integrity and modular flexibility.
Recommended Related Models
- ABB Bailey NPTM01 Point Table Module
- ABB Bailey NLIM02 Loop Interface Module
- ABB Bailey NICS01 Communication Module
- ABB Bailey NPIM01 Processor Interface Module
- ABB Bailey NMFP01 Processor Module
These modules are often used together with NSIM01 to form a complete Bailey communication and control network structure.
Popular ABB Bailey Models
- NSIM01 Serial Interface Module
- NPTM01 Point Table Module
- NLIM02 Loop Interface Module
- NMFC02 Controller Module
- NPIM01 Interface Module
These ABB Bailey components remain widely used in long-life industrial automation systems requiring stable legacy DCS communication infrastructure.
